Toyota FCV-R Concept (Foto Ufficiali)

[Touareg 2.5]

FCV-R Concept 2013

FCV-R Concept 2011

carscoops

Press Release 2013:

TOYOTA PREPARES FOR 2015 PRODUCTION FUEL CELL HYBRID VEHICLE LAUNCHKEY POINTS

• Toyota on course to launch its first hydrogen fuel cell vehicle in 2015
• Technology builds on Toyota’s world-leading hybrid powertrain expertise to capture the zero-emissions potential of hydrogen-electric system

• FCV-R concept signposts Toyota’s progress towards developing an affordable four-door saloon model for production, with no compromise in interior space and a cruising range of more than 300 miles

• FCV-R powered by a Toyota fuel cell stack with world-leading power density of 3.0kW per litre


Toyota believes the Fuel Cell Hybrid Vehicle offers the best solution to the challenges of energy sources and emissions, with hydrogen as an ideal, ultra-clean fuel. At the 2013 Frankfurt motor show (from 10 September) it will demonstrate how it has overcome some of the historic barriers to developing a marketable fuel cell vehicle and how it is closing in on its goal of achieving a driving range and performance comparable to conventional petrol and diesel engines, but with no harmful tailpipe emissions.

Toyota applied its successful Hybrid Synergy Drive technology – the power system used by Prius and its other full hybrid production models – in its FCHV development, replacing the petrol engine with a fuel cell and the conventional fuel tank with high-pressure hydrogen tanks. The FCHV uses the same electrical components as a full hybrid powertrain, as well as a 21kW battery to store energy recovered by its regenerative braking system.

Having first unveiled its FCV-R concept at the 2011 Tokyo motor show, Toyota has continued to make progress towards its planned introduction of an affordable FCHV saloon model in Japan, the USA and Europe by 2015. Development of the production model has seen a focus on significant cost reduction, durability, reliability and improvements in well-to-wheel CO2 emissions.

The FCV-R concept is 4,745mm long – 35mm longer than an Avensis saloon – 1,510mm high and 1,790mm wide. Tested by Toyota (in line with official Japanese JC08 criteria) it has achieved a maximum driving range of about 420 miles, producing no CO2, NOx or particulate matter emissions. The only by-product of the hydrogen fuel cell when driving is water vapour.

Creating a car that’s a practical proposition for today’s motorists has required particular attention to the design of the fuel cell and the hydrogen fuel tank. Toyota has succeeded in downsizing the fuel cell stack by achieving the highest fuel cell power density yet – 3.0kW per litre. A marked increase in the fuel cell stack’s energy efficiency has allowed for the size of the vehicle’s fuel tank to be reduced, so that the latest design features two tanks rather than the four originally envisaged. This also allows different materials to be used, which has a positive impact on overall costs.

The twin fuel tanks and the fuel cell stack are located beneath the vehicle floor, which means there is no impact on the cabin and load space.

Toyota expects FCHVs to reach full mass-market commercialisation during the 2020s, by when it aims to be selling tens of thousands of vehicles annually. This market growth will be supported by the wider roll-out of fuel cell vehicle technology; the development of hydrogen refuelling infrastructure that will bring filling stations within easy reach of greater numbers of people; and cost reductions that go hand-in-hand with a maturing technology.

Technical evolution

Toyota’s fuel cell stack technology has consistently enjoyed performance leadership, the company having launched its R&D programme in 1992. Since then it has secured significant improvements in every aspect of FCHV operation.

As mentioned above, the fuel cell to be used in Toyota’s production FCHV currently achieves the world’s highest power output density at 3kW per litre. Compared to the fuel stack Toyota deployed in its 2008 FCHV-adv model, the new unit has twice the power density while being half the weight and half the size.

The progress made in energy efficiency is also revealed in the vehicle’s range, which, according to Toyota test data (in line with the official Japanese 10-15 test cycle), has improved from about 205 miles to more than 350 miles. At the same time, the fuel cell has a greater operating range, with the use of new materials in its construction making cold start possible at temperatures as low as -30°C.

Cost issues have also been tackled, with the current fuel cell system, including the stack and high-pressure hydrogen tank, one-tenth the cost of that used in the FCHV-adv. Toyota aims ultimately to reduce this by a further 50 per cent. Currently a vehicle price tag of less than £70,000 is thought attainable, but Toyota is working to reduce costs even further before bringing its first model to market.

Toyota

Modificato 2 Settembre 2013 da Touareg 2.5

[Stefano73]

autoblog.it

Sta roba mi puzza di Prius Sedan...

Sedan? Io non vedo una coda-terzo volume.

Sta roba puzza solo di ennessimo cesso japan-toyota:oops:

[MotorPassion]

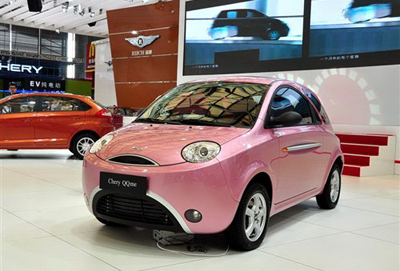

Il muso mi ricorda questa:

[1happydream]

Purtroppo, piaccia o meno, lo stile delle auto Jap (e Asiatiche in genere) non ha piu' come target la (ex)ricca Europa.

Il centro economico-finanziario-demografico è l'EST.

E i loro gusti sono profondamente diversi dai nostri (sofisticati e figli del buon gusto,concetti che ci sono propri dal Rinascimento).

1happydream

PS Vado spesso in Asia e vi assicuro che hanno un gusto del KITSCH per noi incomprensibile

[Uomo dell'Ovest]

Che brutta cosa!

[Dannatio]

Raccapricciante non è la parola giusta....ma è la prima che mi viene in mente.....

[Merak]

Signori, giú il cappello di fronte all'ultimo ritrovato del design ittico-automobilistico... La prima automobile dotata di opercoli branchiali!

Chiara l'intenzione dei designer di volersi ispirare al cefalo muggine, principe delle acque portuali, ed alle sue forme svelte ed idrodinamiche:

[alfa75qv88]

[1happydream]

Bocca da Capodoglio/Balena

1happydream

[Touareg 2.5]

carscoop

Ho aggiunto le miniature zoomabili nel primo messaggio.

Quest'auto è davvero sconcertante
