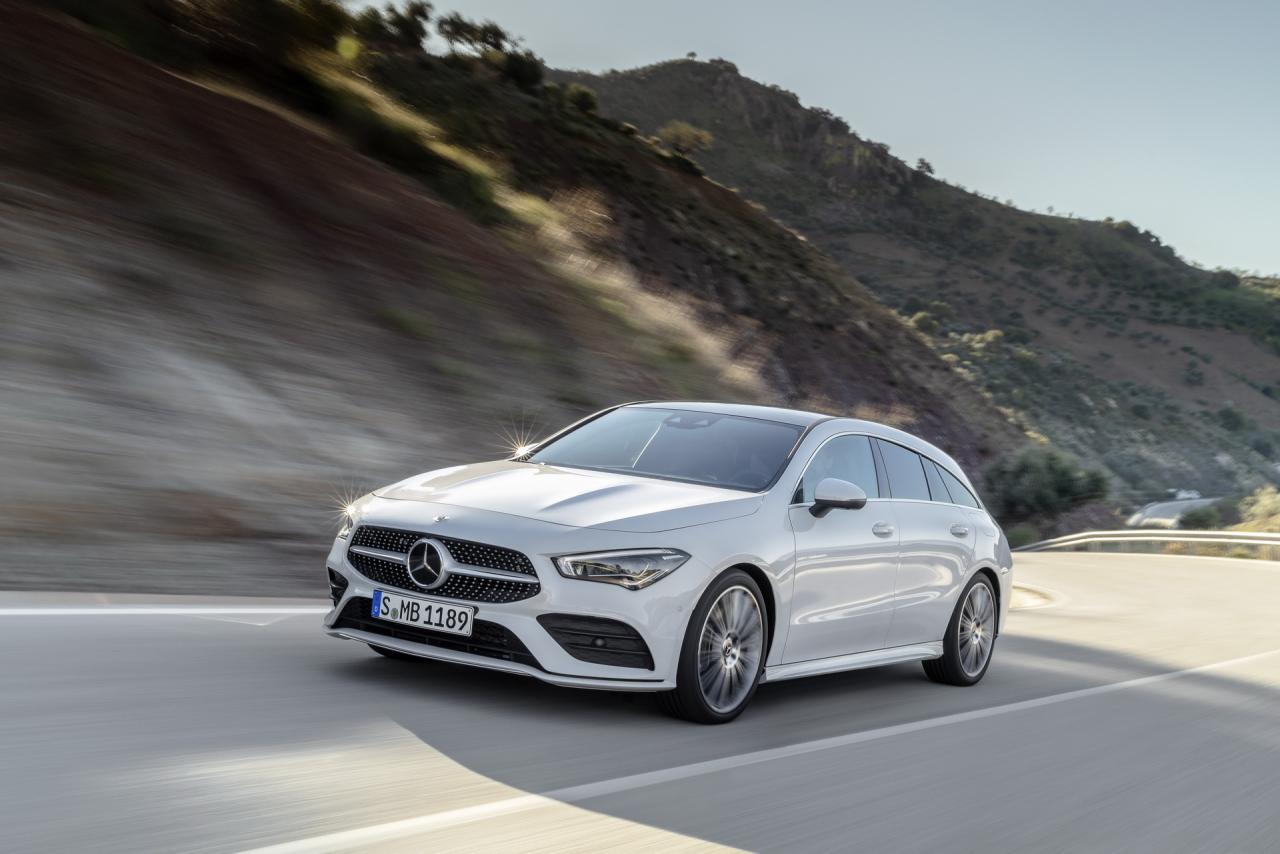

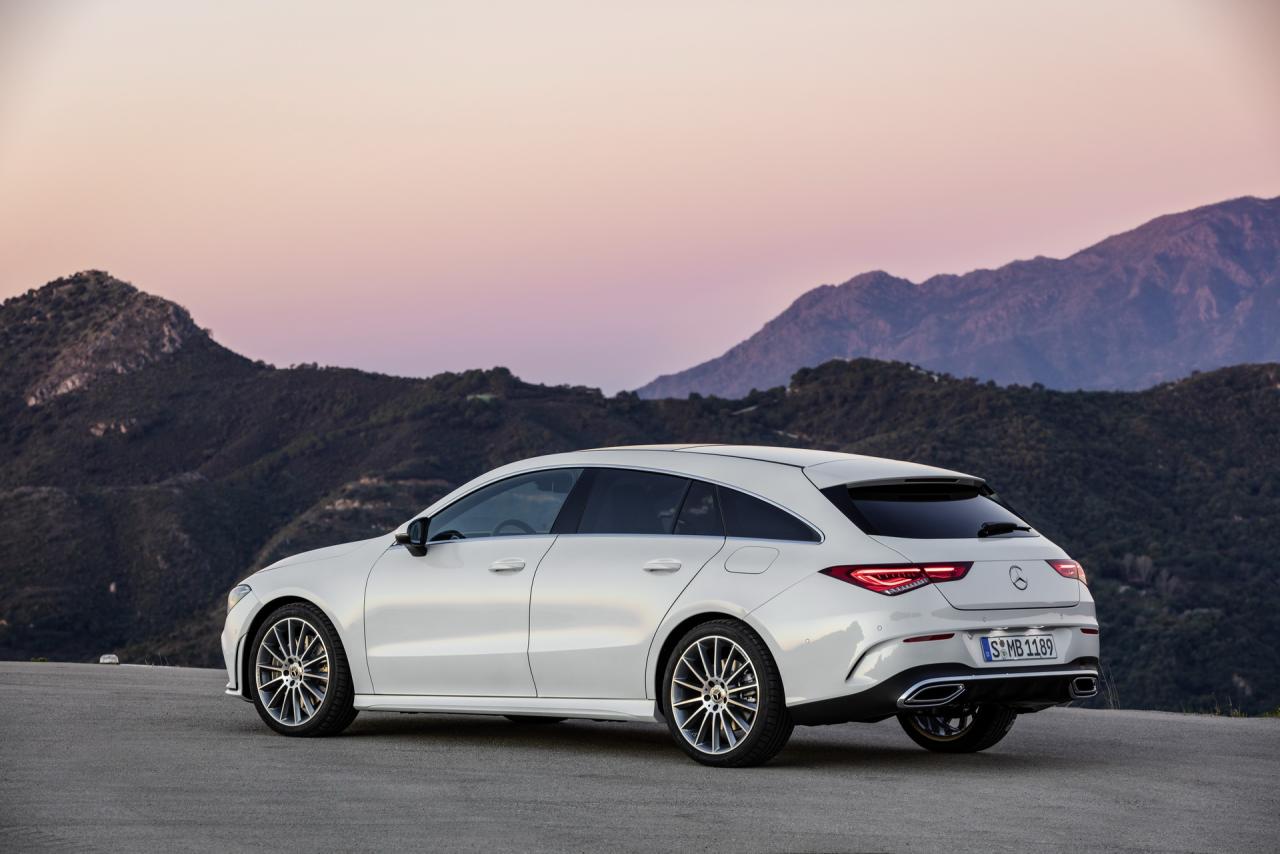

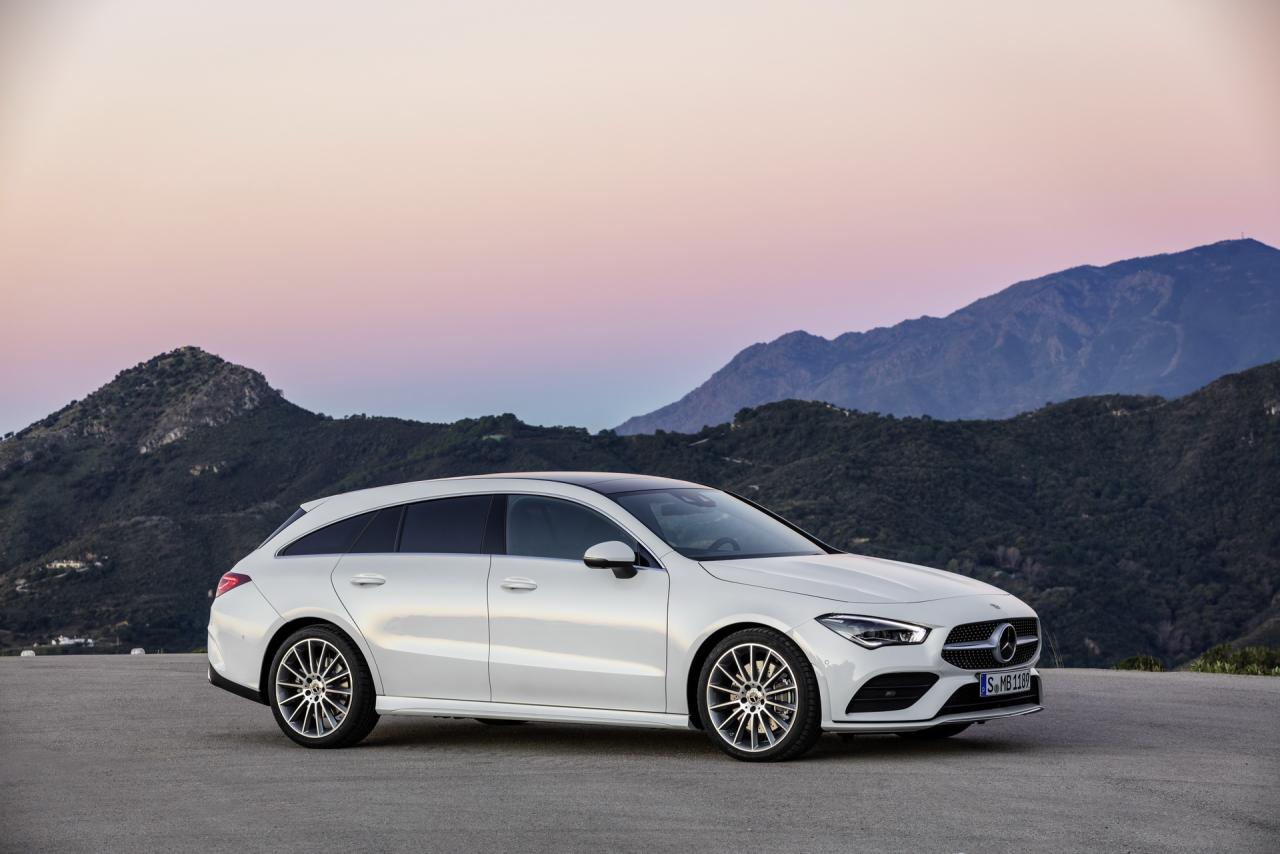

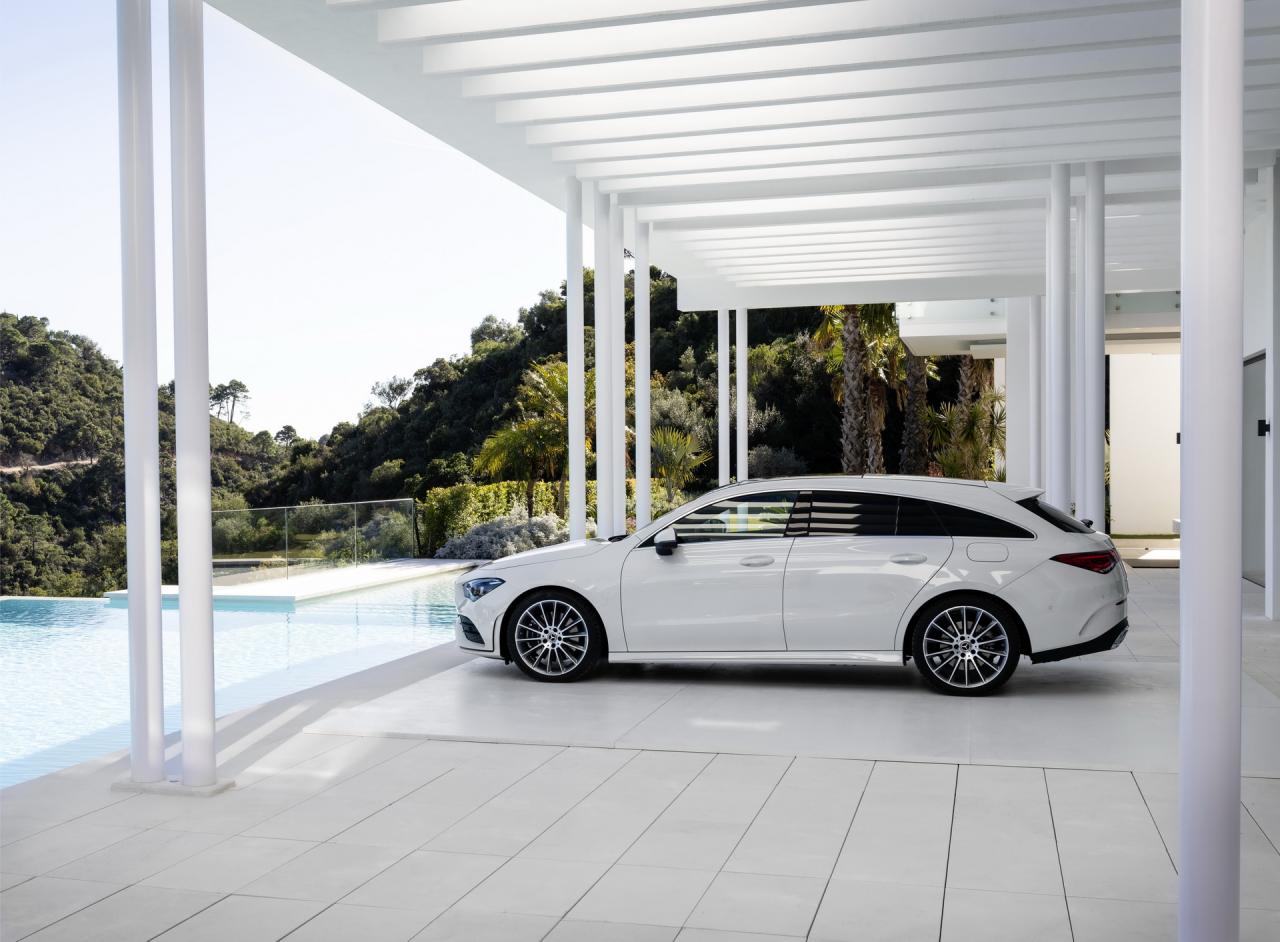

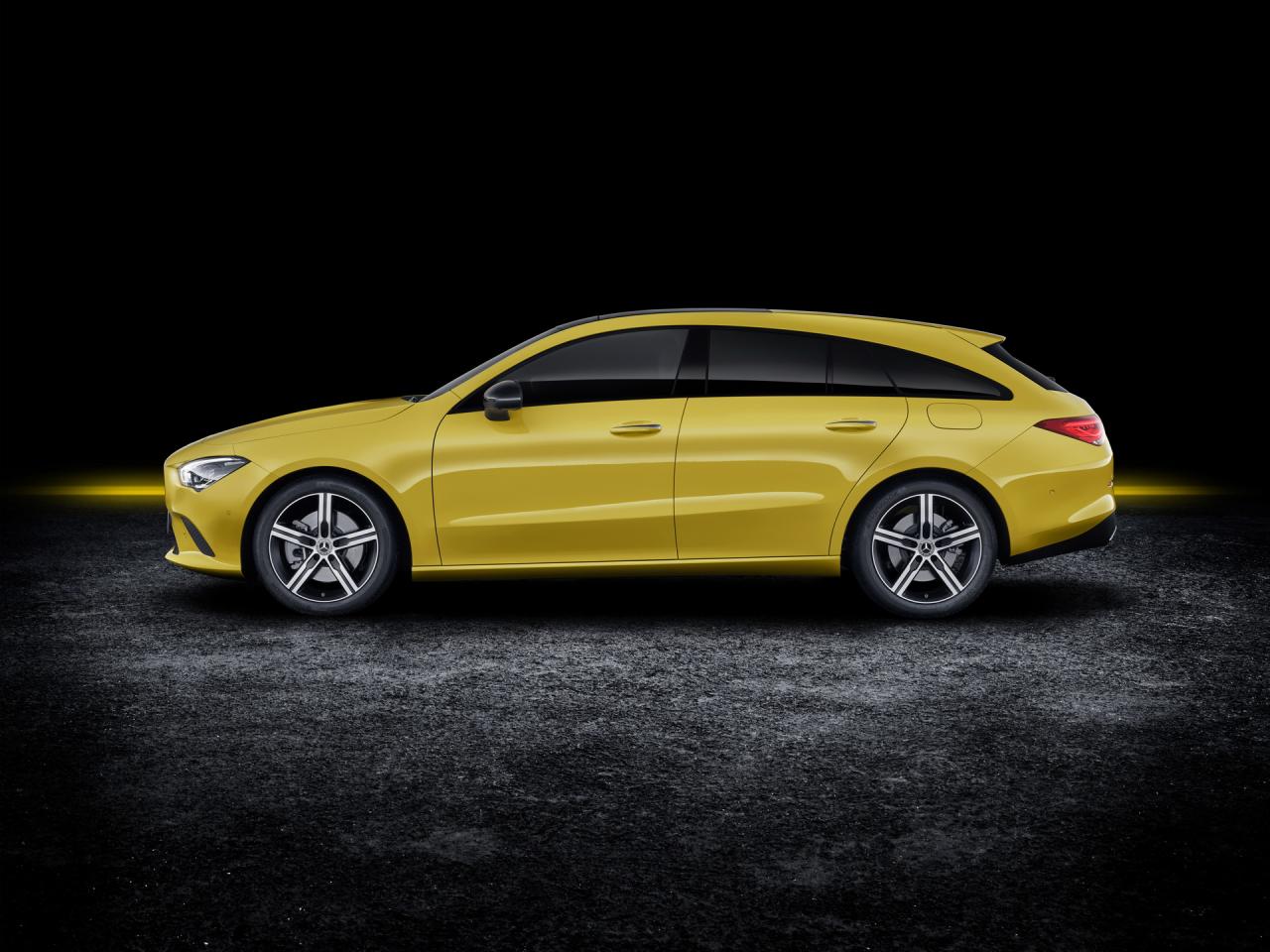

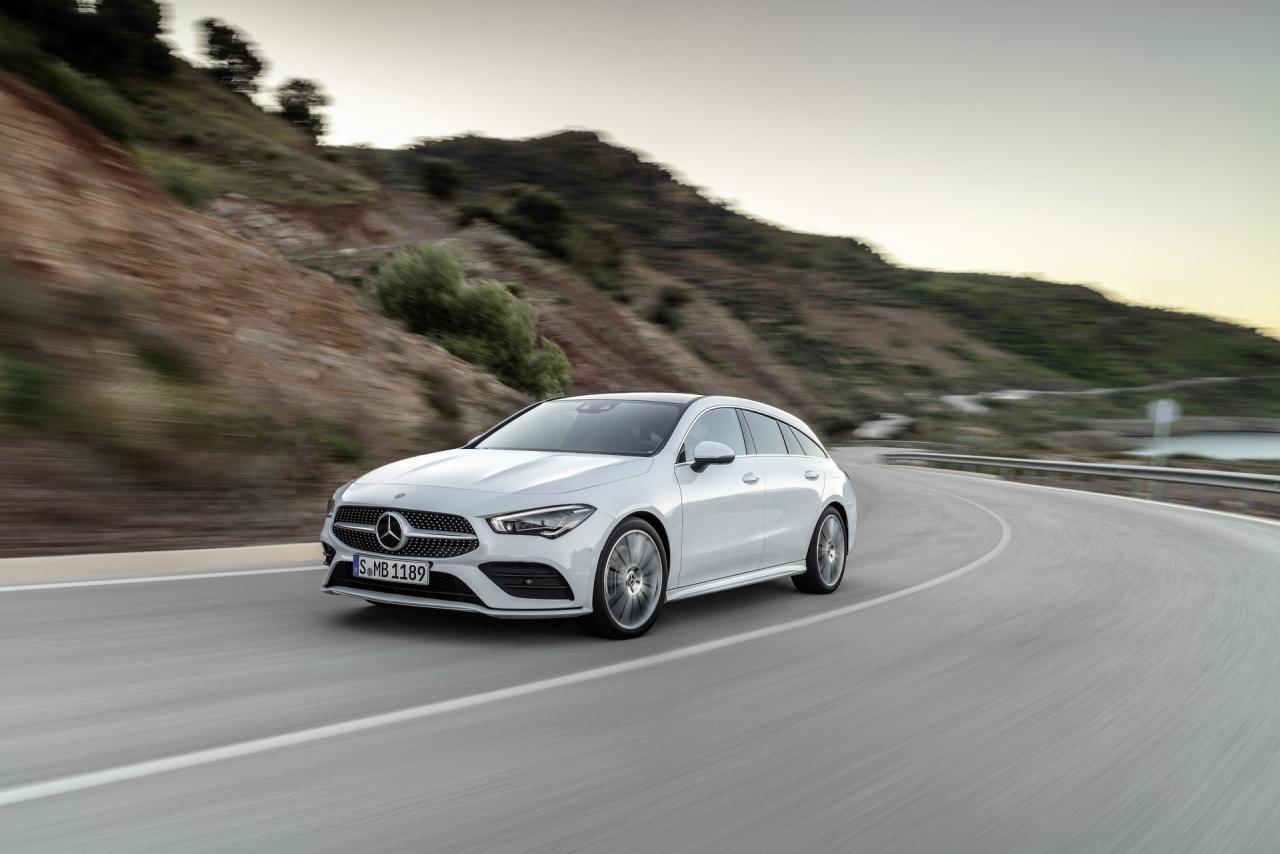

Mercedes presenta la nuova Mercedes-Benz CLA Shooting Brake al Salone dell'Auto di Ginevra 2019.

Rispetto al modello uscente, la vettura è più lunga di 48 mm, 53 mm più larga e 2 mm più bassa, mentre il passo è cresciuto di 30 mm.

Quello che cambia notevolmente è il vano bagagli, dove arriva ad una lunghezza massima di 871 mm ed un capacità di carico di 505 litri (635 mm e 495 litri per il modello uscente).

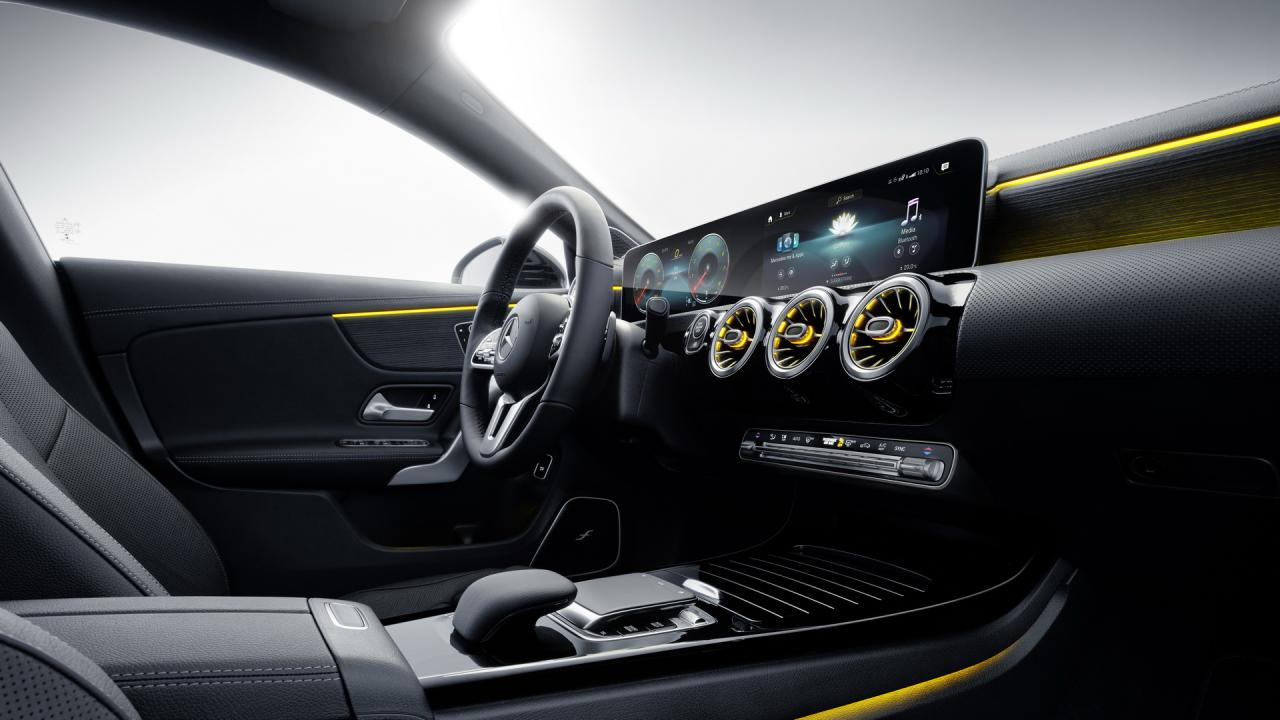

Nessuna sorpresa per gli interni, che ricalcano quelli della Classe A e della CLA. Diverso, invece, il CX dove sale fino ad un valore di 0.26, mentre la CLA si ferma a 0.23.

Mercedes CLA Shooting Brake
Lunghezza	4.688 mm
Larghezza	1.830 mm*
Altezza	1.442 mm
Passo	2.729 mm
Vano bagagli	505 litri

*1.999 mm inclusi gli specchi esterni.



Attualmente è stata presentata con il 2.0 litri Turbo benzina della CLA 250 che eroga 225 CV e 350 Nm di coppia che vengono trasferiti al suolo mediante il cambio doppia frizione a 7 rapporti (7G-DCT) e la trazione integrale 4Matic +.

Il lancio sul mercato partirà da Settembre 2019.







Press Release:



Cita

Stuttgart/Geneva. Attractive, intelligent – and at the same time practical: The new Mercedes-Benz CLA will also be available as a Shooting Brake from September. Just like the four-door CLA Coupé, the Shooting Brake puts its own spin on the design idiom of sensual purity and turns the interior into a coolly designed user interface for intelligent digital technology. From the striking sharknose at the front of the vehicle to the clean edge with accented surfaces, the design displays elegant athletics right down to the gently muscular rear. The latter on the CLA Shooting Brake ensures a decisive addition in terms of functionality. While just as much a designer piece as the CLA Coupé, it offers more space for spontaneity, be it on an extended shopping spree or for sports and outdoor activities where space is required.

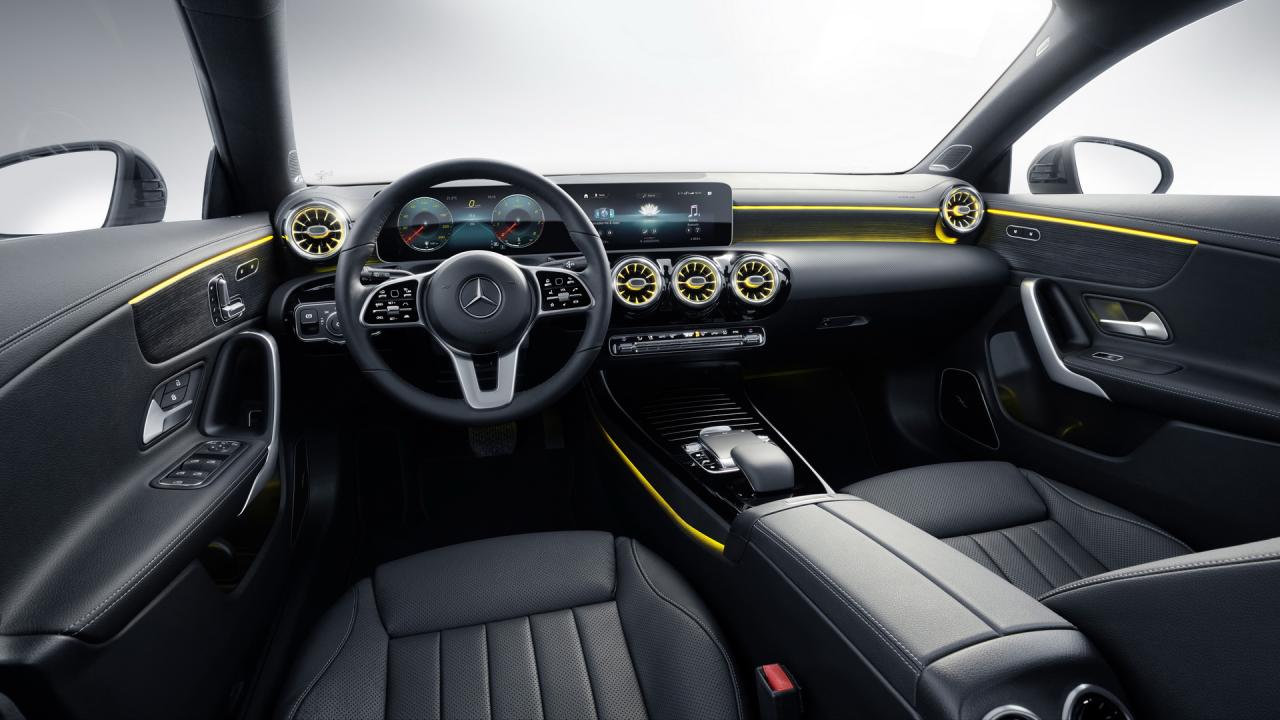

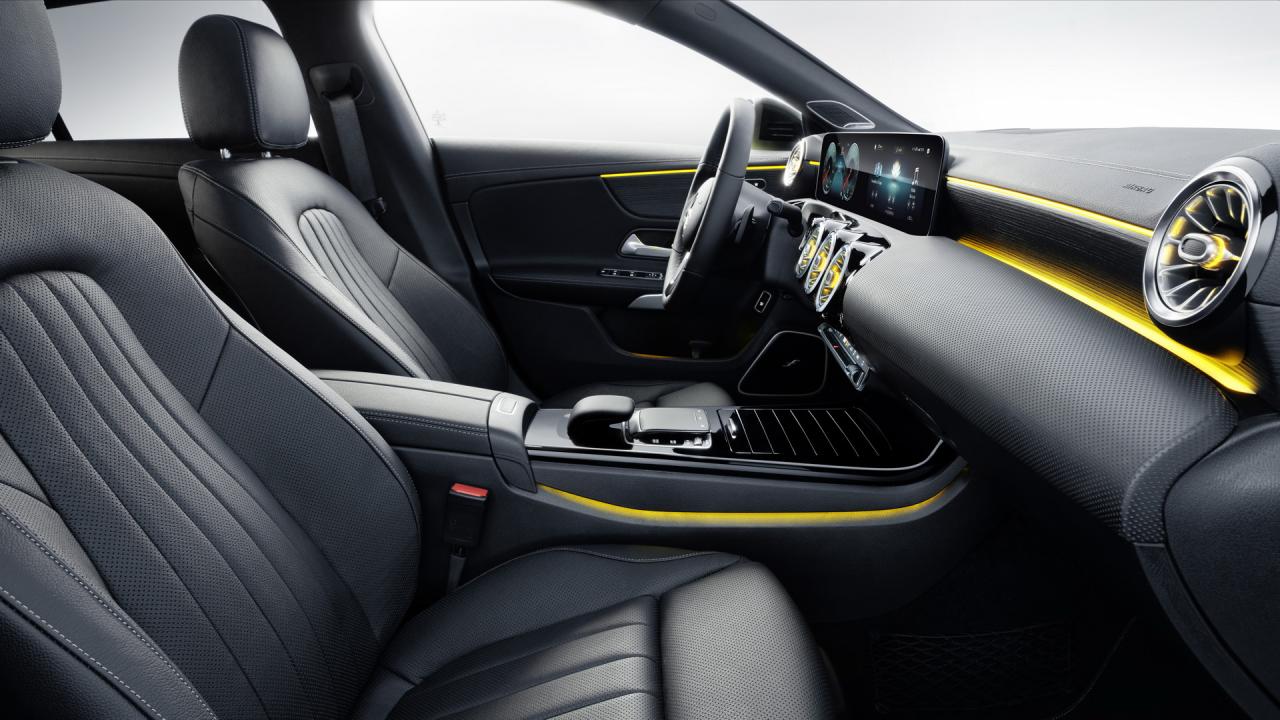

The interior of the CLA Shooting Brake displays the modern, cool and high quality ambience of the Coupé. In addition, it offers passengers more space than the predecessor model in the shoulder, head and elbow areas. The digital environment of the CLA's technophile customers is integrated into the interior in a creatively and technically pioneering way. Thanks to MBUX – Mercedes-Benz User Experience with intelligent interior assistants and refined voice recognition – operation of ever more functions is becoming more natural and much simpler.

Great emphasis is placed on individualisation in the new Shooting Brake with the Progressive and AMG Line equipment lines as well as an increasing and diverse range of apps and services, which can be downloaded from Mercedes me depending on your own preferences and called up via MBUX.

This CLA is thus aimed at customers for whom, just a few years ago, Mercedes‑Benz was not the first thing that came to mind when they were looking to buy a car. "We want to address young individualists with the particularly expressive design of the CLA Coupé and CLA Shooting Brake. Furthermore, the new CLA Shooting Brake offers more space than its predecessor – for sports equipment and much more", states Britta Seeger, Member of the Board of Management of Daimler AG responsible for Mercedes-Benz Cars sales.

Like the previous model, the new CLA Shooting Brake will be manufactured at the Kecskemét plant (Hungary) and comes onto the market in September 2019.

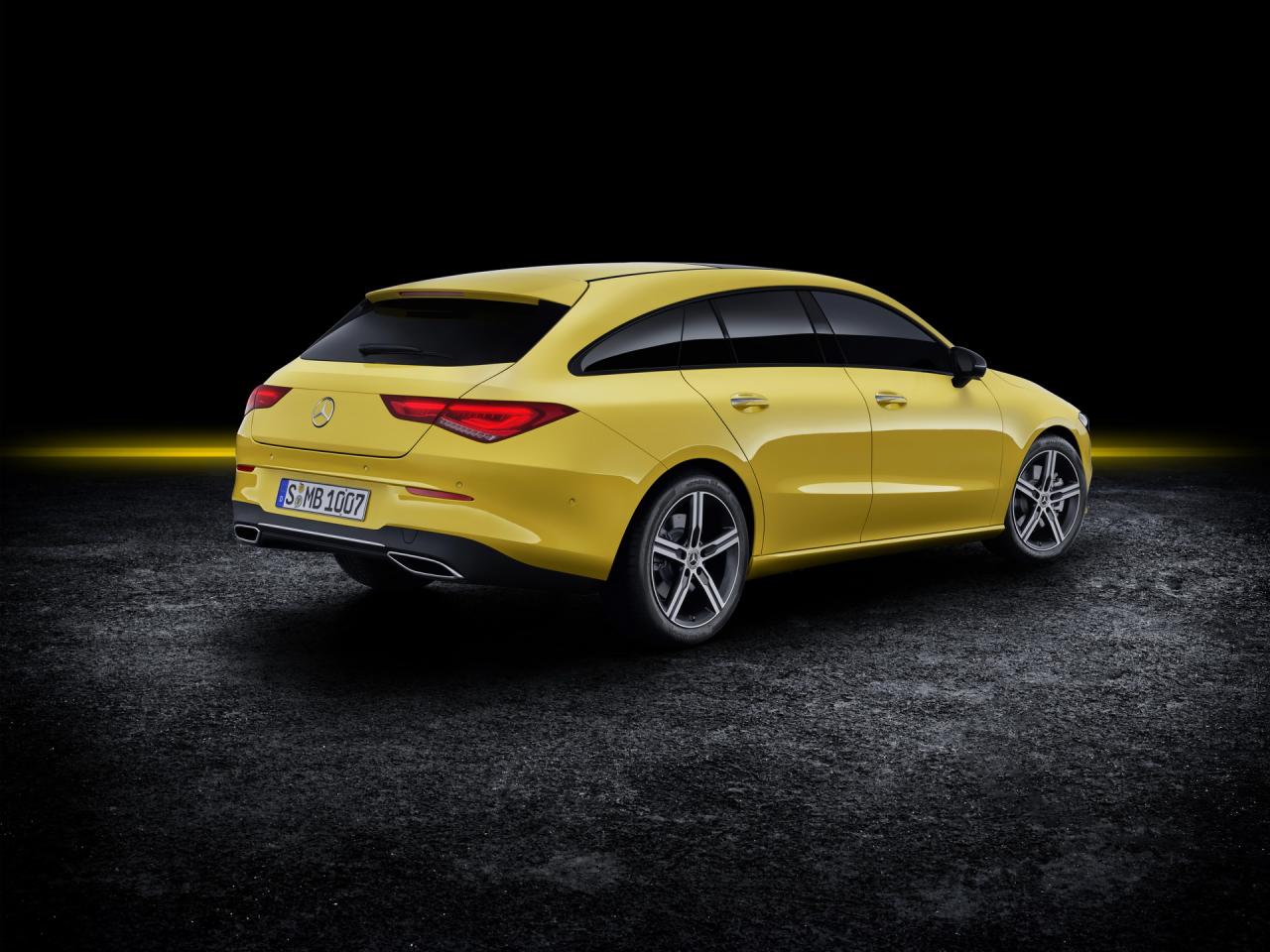

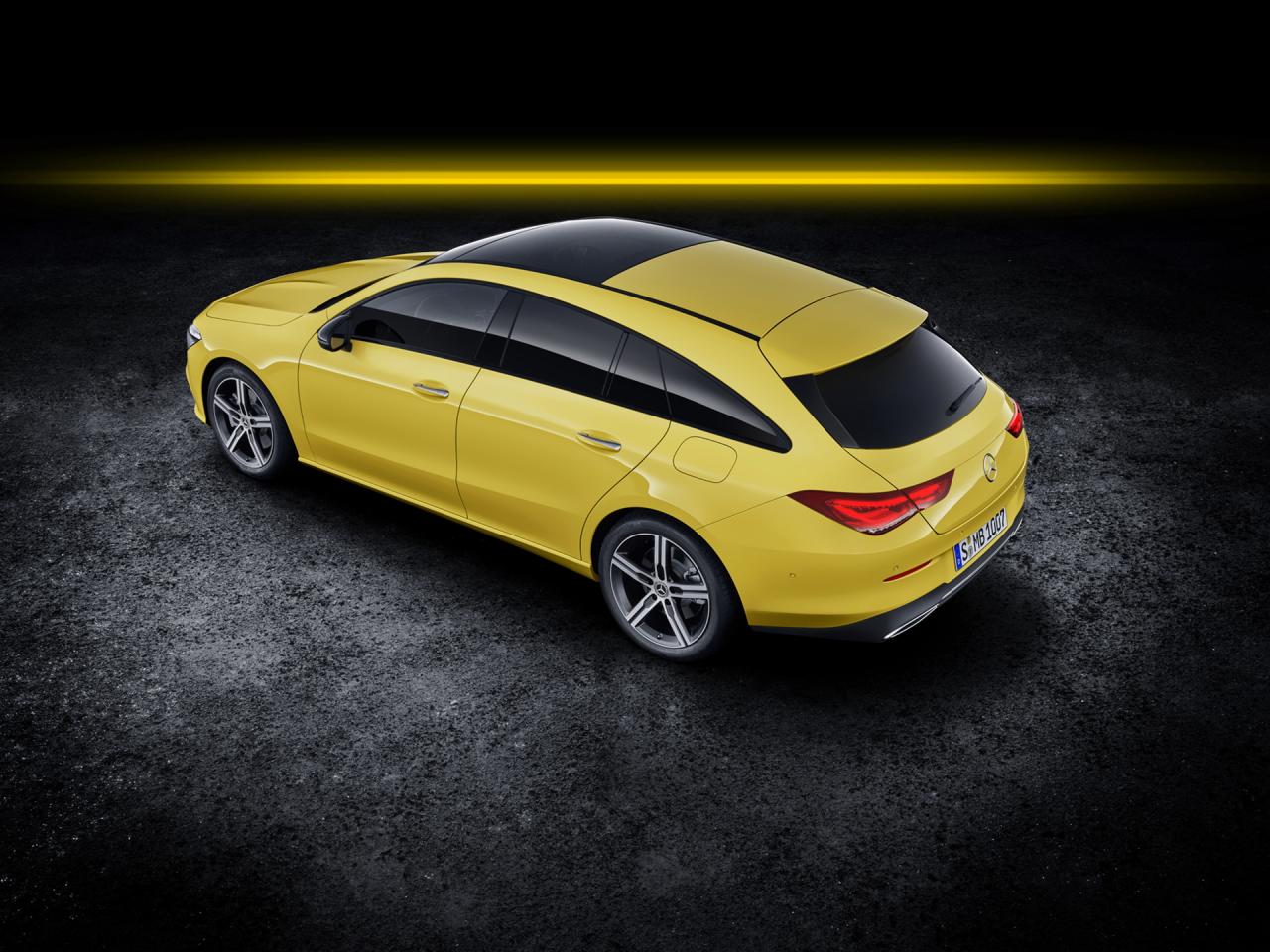

Design: Sports car with load space

Mercedes-Benz introduced the first generation of the CLA Shooting Brake in 2015: a five-door, clearly a Coupé in terms of its proportions, and yet with considerable effective load space thanks to the roof which continues through to the rear and the rear door. The new CLA Shooting Brake is also a designer car, which in the first instance is emotionally appealing on account of its proportions: a long bonnet, compact greenhouse with coupé-like windowlines, muscular shoulders over the rear wheel arch and a supplely crouched rear, which clearly shows its sports car genes. The outline of the frameless windows is identical to the outline of the Coupés itself up to the B-pillar. Behind it, the windowline runs considerably higher, which makes entering for rear passengers easier. Elongated into the rear, it tapers off into an acute angle.

The distinctive front end tilted forward ("sharknose") and the elongated bonnet with striking powerdomes form dynamic style elements. The number of character lines has been reduced, for example, the shoulder line has been completely dispensed with. The surfaces are structured with soft sculptural curvatures.

These emphasise outlines and proportions and define the vehicle's character. It is 48 millimetres longer than before, 53 mm wider but 2 mm lower. The flat headlamps, the low-slung bonnet and the diamond radiator grille with central star mark the typical Mercedes-Benz sports car look. The narrow two-part rear lamps and the license plate positioned in the bumper are typical for the GT rear with a flush transition between the rear bumper and the tailgate. The CLA Shooting Brake strikes an impressive pose on the road and looks athletic from every angle. At 871 millimetres, the boot opening is significantly wider than in the previous model (635 mm). In addition, the tailgate can also be opened contactlessly with EASY-PACK and HANDS-FREE ACCESS.

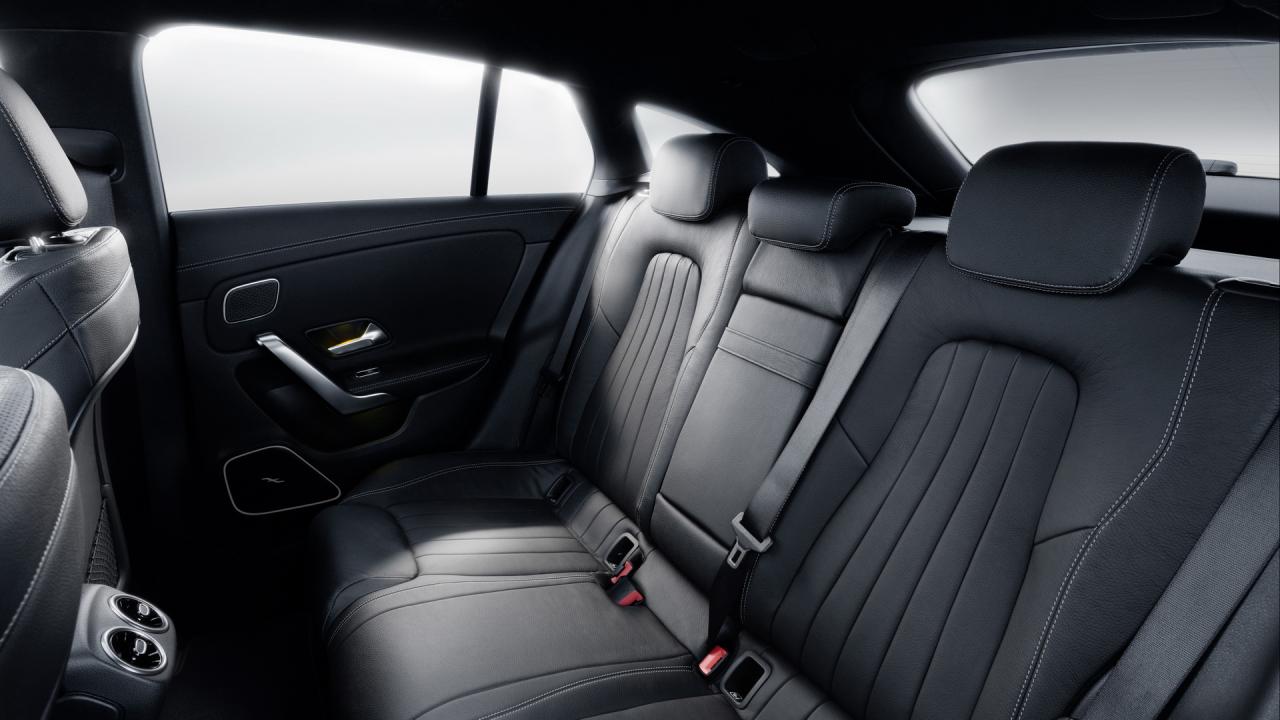

The interior of the passenger compartment is identical to that of the Coupé. Both CLAs offer unique room architecture, especially on account of the avant-garde instrument panel: the widescreen display is completely free-standing with no hood on the wing-shaped main body of the instrument panel. This stretches continuously from one front door to the other. The lower section of the instrument panel is visually separated from the main body of the instrument cluster by a "trench". The ambient lighting amplifies this effect, offering a selection of 64 colours, ten colour worlds and various effects in three brightness zones. The three air vents are incorporated here, and their sporty turbine look appeals to the senses even without the lighting.

The concept for its dimensions: longer, wider and more grown-up

		CLA Shooting Brake	Predecessor	Diff.
Exterior dimensions
Length	mm	4688	4640	+48
Width	mm	1830	1777	+53
Width incl. exterior mirrors	mm	1999	2032	-33
Height	mm	1442	1444	-2
Wheelbase	mm	2729	2699	+30
Front track	mm	1612	1549	+63
Rear track	mm	1602	1547	+55
Interior dimensions
Max. headroom, front	mm	1025	1016	+9
Headroom, rear	mm	955	947	+8
Legroom, front	mm	1062	1063	-1
Legroom, rear	mm	861	860	+1
Elbow room, front	mm	1457	1422	+35
Elbow room, rear	mm	1454	1410	+44
Shoulder room, front	mm	1400	1391	+9
Shoulder room, rear	mm	1372	1350	+22
Load compartment width max.	mm	1394	1328	+66
Load compartment depth max.	mm	1054	1003	+51
Width of load compartment opening	mm	871	635	+236
Boot capacity, German Association of the Automotive Industry	l	505	495	+10

Digital home on wheels: MBUX keeps on learning

Mercedes-Benz User Experience, MBUX for short, defines the experience in the interior of Mercedes-Benz models since the beginning of 2018 and develops from model to model in line with the digital world. A high-level computing capacity, bright screens and graphics, individualisable presentation, highlights available on request such as a full-colour head-up display and navigation with augmented reality; additionally software capable of learning and voice-operated control that goes beyond the conventional automotive standards and accepts passengers' instructions following the command "Hey Mercedes". MBUX is completely customised to the wishes of modern users.

The latest achievement is the MBUX interior assistant, which allows for intuitive and natural operation of different comfort and MBUX functions by recognising movement, among other things. It is even able to distinguish between the driver's and front passenger's wishes – and thus knows for whose seat the massage function is to be activated, for example. Voice control understands questions from an increasing number of fields of knowledge and searches for appropriate answers online while the driver concentrates on the road. Due to ongoing development of the system, it is also possible to take into consideration country-specific content providers.

"In addition, the voice assistant no longer gets confused by other passengers talking, rather it only answers the command of the person who last activated the system with 'Hey Mercedes'", Sajjad Khan emphasises, Deputy Member of the Board of Management of Mercedes-Benz Cars for CASE and head of Digital Vehicle & Mobility.

ENERGIZING comfort control: wellness while driving

• The new CLA Shooting Brake is even more comfortable thanks to Energizing comfort control, which networks the various comfort systems in the vehicle. Functions of the air conditioning system and the seats (heater, ventilation, massage) as well as lighting and musical moods are used in a targeted manner to enable a specific wellness set-up tailored to the mood and need of the customer.
• Based on an intelligent algorithm, the ENERGIZING COACH recommends one of the ENERGIZING packages' programmes depending on the situation and individual. If the Mercedes-Benz vivoactive^® 3 smartwatch or a compatible Garmin^® wearable is connected, the driver's well-being is taken into consideration in the recommendation based on his/her stress level, pulse frequency or sleep quality the previous night.

Suspension: agile yet comfortable

Along with the CLA Coupé, the CLA Shooting Brake has the sportiest driving characteristics of all the models in the new compact car generation from Mercedes-Benz. This is down to the wider track, which makes the new CLA Shooting Brake look even more athletic, as well as the lower centre of gravity and the multi-link rear suspension generally fitted in these models. The wheel suspensions are not only precisely guided, but also designed for ride comfort and quiet-running with acoustic control arms that decouple vibrations at the rear and hydromounts at the front. A large-scale stabiliser bar reduces the roll angle.

An Adaptive Damping System is available on request, which allows the driver to switch between more comfort or particularly sporty tuning. There is a huge selection when it comes to the wheels. The rim diameters range from 16 to 19 inches, tyre size starts at 205/60 R 16 and finishes at 225/40 R 19 ex works. The ESP^® tuning has been specially adapted to the CLA's potentially high cornering speeds and handling performance.

Aerodynamics: extensive flow simulation helps to save fuel

Aerodynamics was always one of the first CLA's strong points. Thanks to extensive flow simulation on the computer and fine tuning in the wind tunnel, the new model maintains the high level despite its wider track. The c_d value of 0.26 is naturally above that the Coupé (0.23), whose tapering rear inherently create somewhat less flow. Apart from just aerodynamic resistance, development work also focussed on wind noise.

Intelligent Drive: functions from the S-Class

The CLA Shooting Brake has the very latest driving assistance systems with cooperative driver support, and thus provides the highest level of active safety in this segment with functions adopted from the S‑Class. Thanks to improved camera and radar systems, the CLA can look up to 500 m ahead and can drive partially autonomously in certain situations, for example by conveniently adapting the speed before corners, cross roads or roundabouts using the Active Distance Assist DISTRONIC with recourse to maps and navigation data. As a new function of the Active Steer Assist, among other things, there is also the intuitive Active Lange Change Assist. If the Active Park Assist with PARKTRONIC is additionally onboard, the CLA also has the function extended automatic restart on motorways.

Drive system: clean and strong

The top-of-the range engine in the CLA Shooting Brake will be the powerful four-cylinder petrol engine of the CLA 250 (165 kW/225 hp, 350 Nm), which drives the front wheels via the 7G-DCT dual clutch transmission (combined fuel consumption 6.5-6.2 l/100 km, combined CO₂ emissions 149‑143 g/km)[1]. The two-litre direct injection engine has a petrol particulate filter as standard.

By the time of market launch in September there will by a wide range of diesel and petrol engines with manual or dual clutch transmission, front-wheel or all-wheel drive 4MATIC to choose from.

[1] The stated fuel consumption and CO₂ emission figures are provisional, were determined by the technical service for the certification process in accordance with the WLTP test procedure and correlated as NEDC figures. No EC type approval or certificate of conformity with official figures is yet available. There may be differences between the stated figures and the official figures.

Mercedes-Benz

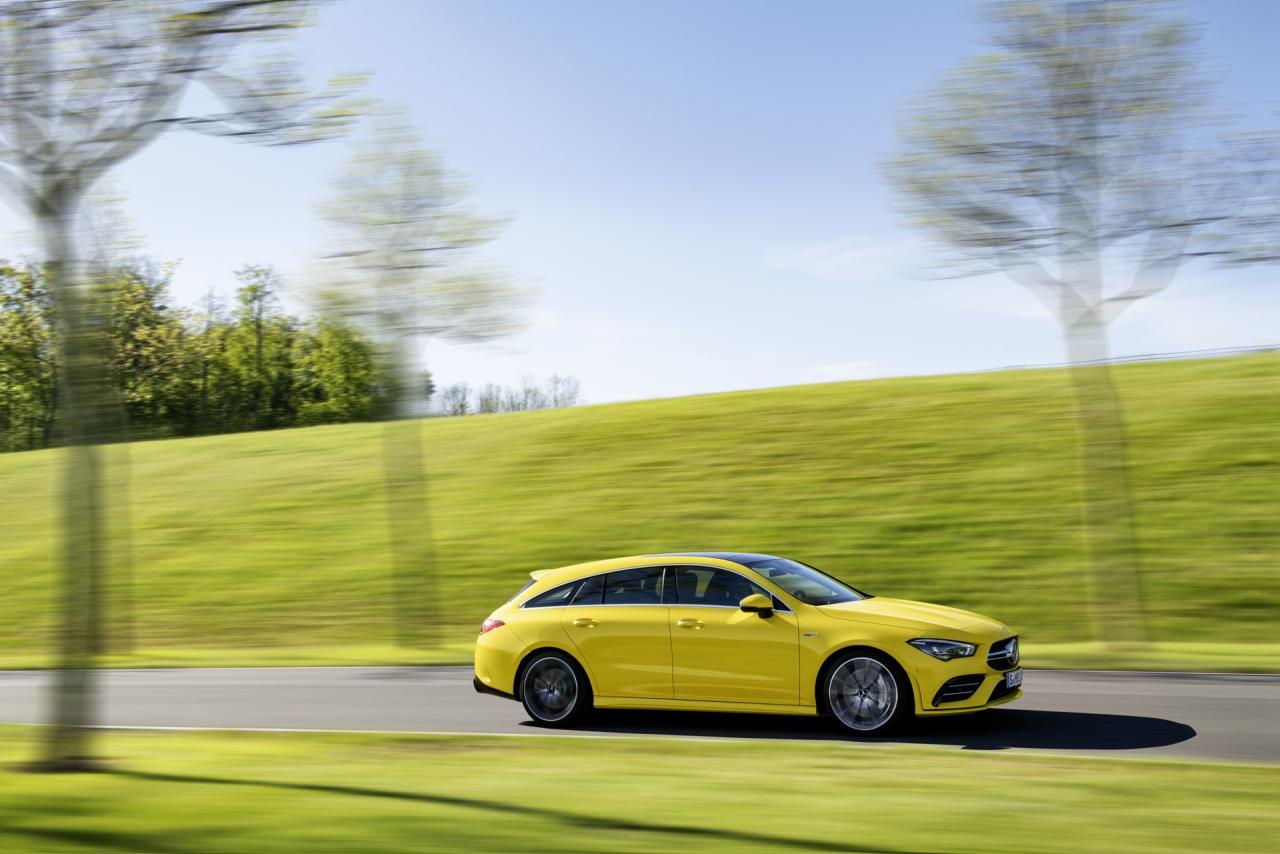

AMG CLA 35 4MATIC Shooting Brake



Niente di nuovo sul fronte occidentale: 4 cilindri 2.0 litri turbo da 306 CV e 400 Nm di coppia. Trazione integrale 4Matic e trasmissione doppia frizione a 7 rapporti DCT AMG SPEEDSHIFT 7G.









Press Release:



Cita

Affalterbach. Already the fifth model in the compact class, the new CLA 35 4MATIC Shooting Brake (combined fuel consumption 7.5-7.4 l/100 km; combined CO₂ emissions 171-168 g/km)^[1] is the latest point of entry to the world of Mercedes-AMG. The five-door model combines the powerful proportions of a sporty coupé with the decisive extra functionality thanks to the extended roof, the large tailgate, the wide load compartment opening and the variable interior. The agile high-torque 2.0-litre four-cylinder engine delivers 225 kW (306 hp), which is variably distributed to the front and rear axle via the 7-speed dual-clutch transmission and the AMG Performance 4MATIC all-wheel drive. The sporty performance (acceleration 0-100 km/h in 4.9 seconds) is coupled with an increased amount of space for luggage or sports and outdoor equipment.

"The new CLA 35 Shooting Brake, with its expressive design, the agile vehicle dynamics and the flexible load compartment is an attractive alternative for young customers who lead an active life with various leisure activities. With the Shooting Brake we are offering these individualists access to the exciting world of AMG Driving Performance, which is tailored to their specific requirements", says Tobias Moers, Chairman of the Management Board of Mercedes-AMG GmbH.

With sports car genes: the exterior design

The design with its elongated bonnet including power domes, broadly sculpted wheel arches, a slim waistline, compact greenhouse and width-accentuated tail end displays clear sports car genes. The AMG-specific radiator grille with its twin louvre and the AMG Line front apron with flics around the air inlet grilles as well as the front splitter and the inserts on the louvres on the outer air inlet grilles in silver chrome are characteristic elements of the "35" models and are thus also among the distinguishing features of the Shooting Brake.

From a side view, the aerodynamically optimised 18-inch light-alloy wheels in a 5-twin-spoke design (19-inch optionally available) and the dynamically sculpted side sill panels catch the eye. The outline of the frameless windows is identical to the outline of the Coupés itself up to the B-pillar. Behind it, the window line runs considerably higher, which makes entering easier for rear passengers and facilitates the larger load compartment capacity.

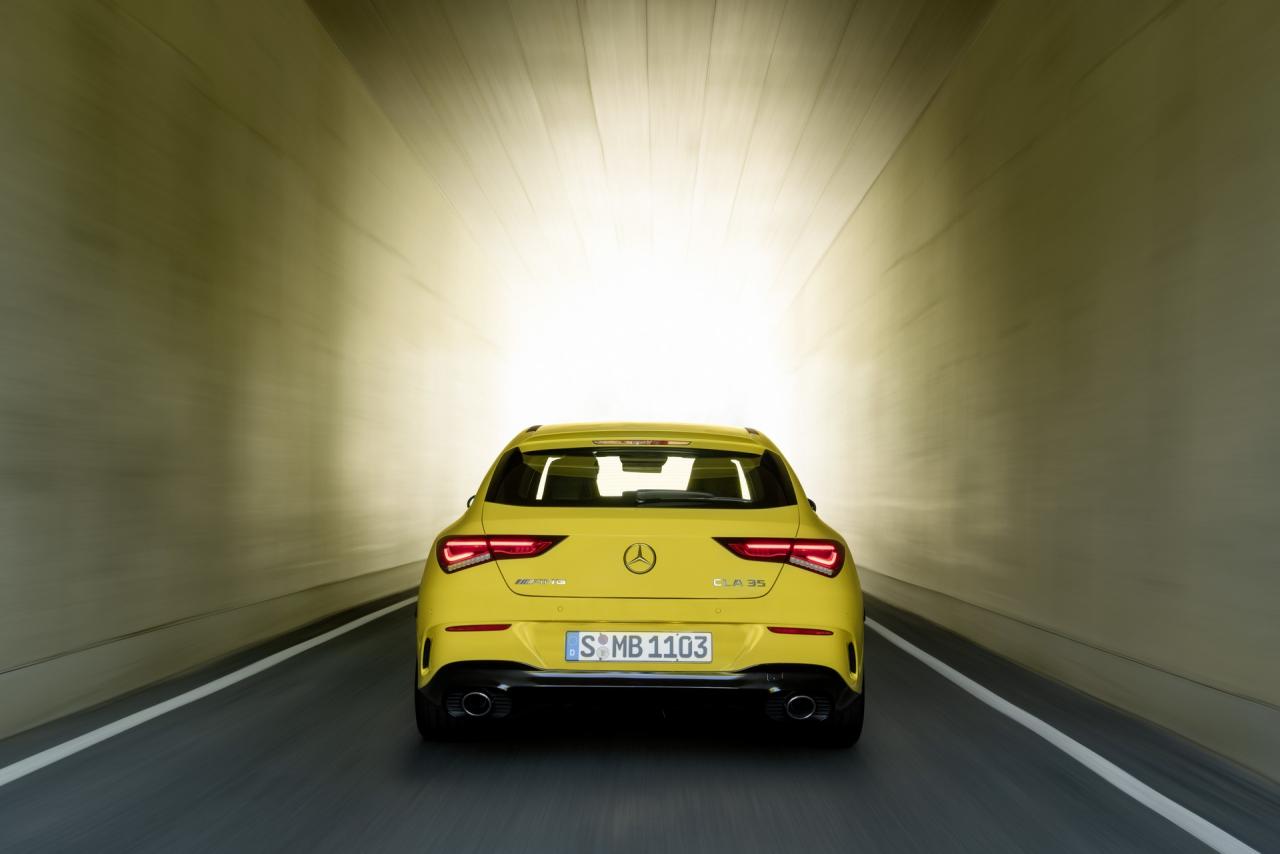

The rear view is dominated by the rear apron with a diffuser insert and four vertical fins, the AMG airflow break-away edge in the vehicle colour on the roof spoiler and the two round tailpipe trims on the left and right. The two-piece, narrow tail lamps and the number plate housed in the bumper make the tail end look especially wide.

Tailor-made options: Design Packages and large selection of wheels

Access to the world of Mercedes-AMG also means a large selection of individual equipment items on request, with which every customer can tailor their Shooting Brake personally. The options for the exterior include

^[1] The stated figures were determined in accordance with the prescribed measuring method. These are the "NEDC CO₂ figures" according to Article 2 No. 1 Implementing Regulation (EU) 2017/1153. The fuel consumption figures were calculated based on these figures.

• AMG Night Package with design features in black, such as the front splitter or the inserts in the side sill panels, plus black-chromed tailpipe trims
• AMG Aerodynamics Package for optimised aerodynamic balance, including with modified front splitter and flics in the outer air inlet grilles as well as airflow break-away edge in high-gloss black on the roof edge spoiler. The measures increase the negative lift force and thus also the driving stability at the sporty limits
• 48.3 cm (19-inch) AMG 5-twin-spoke alloy wheels, painted in high-gloss black with a high-sheen finish
• 48.3-cm (19-inch) AMG multi-spoke light-alloy wheels, painted high-gloss black with a high-sheen finish
• 48.3 cm (19-inch) AMG multi-spoke light-alloy wheels, painted matt black, rim flange with a high-sheen finish

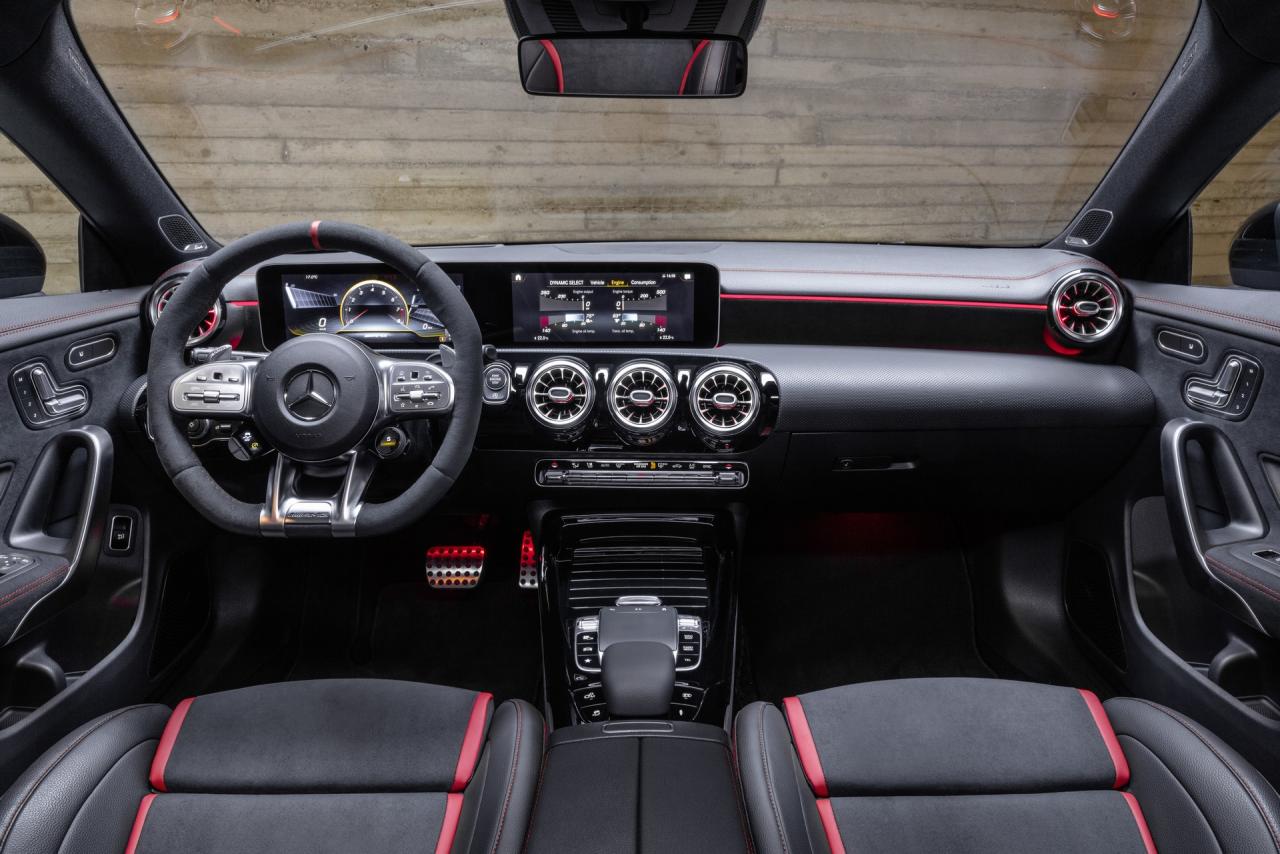

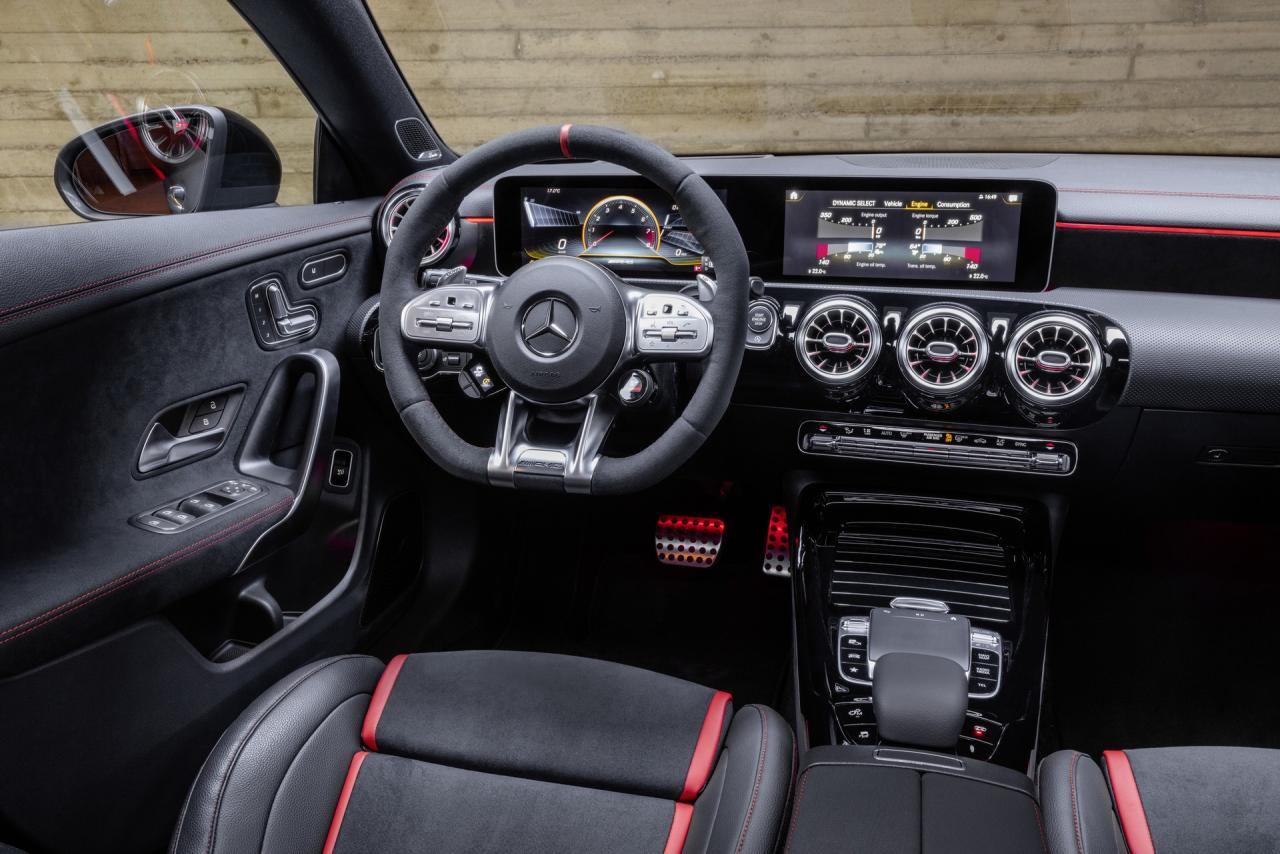

Sporty interior with characteristic equipment features

Frameless doors open to an interior with a high-tech ambience where quality and elegance meet fully digital displays. Characteristic features of the "35" models include sports seats with upholstery in ARTICO man-made leather and DINAMICA microfibre in black with red double topstitching, complemented by the central trim element of the instrument panel in black DINAMICA with a red trim strip.

As an alternative, upholstery in ARTICO man-made leather in neva grey/black with mid-grey double topstitching and light-longitudinal-grain aluminium trim is available.

The AMG-specific centre console in high-gloss black with standard touchpad has additional buttons that control the 3-stage ESP^®, manual transmission mode and the optional AMG RIDE CONTROL adaptive damping system. In combination with the optional leather package, it features a silver chrome console surround.

The characteristic, sporty AMG ambience is also underscored by the sports pedals in brushed stainless steel with rubber studs, floor mats in black with AMG lettering and insert in a nubuck-leather look, the roof liner in black fabric and the AMG door sills in brushed stainless steel at the front with "AMG" lettering.

MBUX infotainment system with AMG-specific displays

The combination of sporty design and sophisticated details is also featured in the MBUX infotainment system with its innovative operating and display concept. MBUX creates an even closer connection between the vehicle, driver and passengers. Emotionally appealing presentations underline the clear control structure and feature brilliant maximum-resolution 3D graphics. Visually, the two displays under one shared glass cover blend into a Widescreen Cockpit and as a central element consequently emphasise the horizontal orientation of the interior design.

The customer can choose between the three AMG display styles "Classic", "Sport" and "Supersport" for the instrument cluster. The "Supersport" mode is particularly striking with a central, round rev counter and additional information presented in the form of bars to the left and right of the rev counter: with a three-dimensional perspective, they reach far into the background to an artificial horizon. Via the AMG menu the driver can call up various special displays:

• Gear display ‑ with yellow "M" symbol in manual mode
• Warm-up menu ‑ engine and transmission oil temperature
• Set-up menu ‑ AMG DYNAMIC SELECT settings
• G-Meter – longitudinal and lateral acceleration forces
• Race-Timer – stopwatch, lap and sector times
• Engine data – output and torque, engine oil and transmission oil temperature

The touchscreen multimedia display also emphasises the dynamic character with individual AMG displays such as visualisation of the driving programs, AMG TRACK PACE and telemetry data.

Operation without touch: the interior assistant

With the new optional MBUX interior assistant, select infotainment functions can be operated touchlessly and the reading light can be switched on and off. The assistant differentiates between driver and passenger interaction and recognises certain hand positions and movements. The interaction area for the MBUX interior assistant is in front of the media display up to the centre console, including the touchpad between the driver and the front-seat passenger.

The MBUX interior assistant recognises movement toward the various operating elements of the infotainment system. The operator's seat is enlarged on the media display if they move their hand toward the touchscreen. The most suitable operating elements are automatically pre-selected. In the Radio and Media menu, the MBUX interior assistant reduces the number of operating steps.

In the Navigation menu, the system fades in the navigation as soon as the hand moves to operate the touchscreen or touchpad, so that a symbol is selected directly. When displaying the camera image, as soon as the hand moves toward the touchscreen the MBUX interior assistant enables the four camera operating symbols from the 360-degree camera to be directly faded in. This means that the front, rear, right or left camera view can be directly selected.

And needless to say, the trailblazing voice control activated with the words "Hey Mercedes" is also on-board. Thanks to artificial intelligence, MBUX recognises and understands nearly all sentences from the fields of infotainment and vehicle operation, even if they are expressed indirectly.

New steering wheel generation with optional steering wheel buttons

The perfect connection between the driver and vehicle comes courtesy of the multifunction sports steering wheel in nappa leather with a steering wheel rim flattened at the bottom and a perforated grip area as well as red contrasting topstitching. The galvanised steering wheel gearshift paddles allow an even sportier driving style with manual gear shifting.

The active distance assistant DISTRONIC and the TEMPOMAT cruise control can be adjusted on the control panels on the left. The control panels on the right are used to activate the voice control and telephone, and to regulate the sound volume, music selection and other functions of the infotainment system.

The AMG Performance steering wheel in nappa leather or in nappa leather / DINAMICA microfibre or in DINAMICA microfibre is optionally available. It is available with the innovative AMG steering wheel buttons (standard with DINAMICA microfibre).

These consist of a round controller with an integrated display beneath the right-hand steering-wheel spoke, plus two vertically positioned colour display buttons with switches beneath the left-hand steering-wheel spoke. The AMG drive programs are actuated directly via the controller. With the two freely configurable display buttons and the additional switches, further AMG functions can be controlled within easy reach, directly on the steering wheel.

Individual optional equipment for the interior

With numerous options the interior of the CLA 35 4MATIC Shooting Brake can be adapted to individual customer requirements. They include the following

• Leather package and AMG leather package with 2-tone upholstery, for example classic red / black, plus instrument panel in ARTICO man-made leather
• AMG Performance steering wheel in nappa leather
• AMG Performance steering wheel in nappa leather / DINAMICA microfibre
• AMG Performance steering wheel in DINAMICA microfibre incl. AMG steering wheel buttons
• Door sills in brushed stainless steel with "AMG" lettering, illuminated
• AMG Performance Seat Package
• AMG Performance Seat package Advanced
• AMG Performance Seat package High-End

Reinforced body-in-white with increased torsional stiffness

Specific measures to strengthen the front section of the bodyshell form the basis for the precise turn-in ability and the toe and camber stability of the chassis components, even when driving at speed. An aluminium lightweight-construction plate screwed underneath the engine - the "shearing plate" - increases the torsional rigidity at the vehicle's front end. Two additional diagonal braces at the front of the underbody also reduce torsion and increase the stiffness. As a result, the entire chassis system responds with maximum precision even at the limits of performance and gives clearly defined driver feedback.

New four-cylinder turbo engine with output of 225 kW (306 hp)

The 2.0-litre engine is based on the M 260 four-cylinder drivetrain in the new A-Class. The AMG-specific developments include the exhaust-gas turbocharging, the water charge air cooler and the independent air intake (clean air line). The sporty drive system boasts an immediate response to accelerator pedal commands, high tractive power (400 Nm max. torque from 3000 rpm), a supremely lively response and an emotional engine sound. The crankcase made of high-strength, lightweight die-cast aluminium reduces the vehicle weight where it matters most for driving dynamics.

The exhaust-gas turbocharging combines optimum responsiveness at low engine speeds with a strong power increase at higher speeds. The housing of the twin-scroll turbocharger is divided into two parallel ducts. Together with two separate exhaust ducts in the exhaust manifold, this makes it possible to channel the exhaust gases separately on the turbine wheel.

This results in a further advantage of twin-scroll technology, i.e. minimisation of the mutually adverse effects of the individual cylinders on the gas cycle. The exhaust gas back pressure is reduced and gas exchange and engine efficiency are improved.

Numerous engine measures increase efficiency

The high technological standards of the new four-cylinder engine are also underscored by numerous efficiency-enhancing measures. These include CAMTRONIC variable valve control, intelligent thermal management for engine and oil, high-precision piezo injectors and multi-spark ignition. In production, the patented CONICSHAPE^® cylinder honing reduces internal engine friction and also increases efficiency. The petrol particulate filter is on board as standard, the emission classification is Euro 6d-Temp.

Agile gear ratios: AMG SPEEDSHIFT DCT 7G dual-clutch transmission

The AMG SPEEDSHIFT DCT 7G dual clutch transmission likewise contributes to the agile and dynamic character. The gear ratios have been configured so that the driver experiences very spontaneous acceleration in all speed ranges, combined with fast shifting and optimum connections when shifting up.

Anyone who prefers to change gear for themselves can select the manual transmission mode in every drive program. Via the short-term M mode this is done lightning-fast simply by operating the steering wheel gearshift paddles.

The standard RACE-START function allows maximum acceleration from stationary, a highly emotional experience. This also applies to the drive sound with partial ignition interruption when changing up a gear and the automatic double-declutching function when changing down.

AMG Performance 4MATIC variable all-wheel drive

Dynamism, agility and performance are three of the attributes that underpin the standard-fit all-wheel drive. The variable AMG Performance 4MATIC combines the best possible traction with lots of driving fun. The torque distribution is infinitely variable to suit the dynamic handling requirements. The spectrum ranges from front-wheel drive only to a 50:50 percent distribution to the front and rear axles.

A multi-disc clutch that is integrated in the rear axle transmission is responsible for the variable torque distribution between the front and rear axles. It is controlled electro-mechanically. The influencing factors for torque distribution are not only the driving speed, the lateral and longitudinal acceleration and the steering angle, but also the difference in rotational speed between the individual wheels, the gear selected and the accelerator position.

The main advantages of electro-mechanical control over an electro-hydraulic system relate to more refined driving dynamics – primarily due to the significantly faster response and speed-independent actuation of the discs over the entire adjustment range.

The all-wheel control characteristics depend on the ESP^® mode selected: As long as ESP^® is activated, the 4MATIC system stays in "Comfort" mode. As soon as the driver presses the "ESP^® SPORT Handling" or "ESP^® OFF" button, the 4MATIC system switches to "Sport" mode – for even more agile handling and even higher stability limits.

The 3-stage ESP^® has individual control strategies in SPORT HANDLING MODE to enable higher drift angles for a sporty driving style before the system intervenes.

When entering a bend the Shooting Brake reacts with even greater agility through brake applications at the rear wheel on the inside of the bend ‑ depending on the AMG DYNAMICS mode or drive program selected

Five driving programs: vehicle characteristics with wide spread

The five AMG DYNAMIC SELECT drive programs "Slippery", "Comfort", "Sport", "Sport +" and "Individual" enable a wide range of vehicle characteristics from comfortable to dynamic. Numerous relevant parameters are modified:

• Powertrain: accelerator pedal characteristic, shift times and timing points, tone and sound functions in the manifestations Reduced, Moderate, Sport, Dynamic
• Transmission: automatic or manual
• AMG DYNAMICS: agility-increasing functions such as all-wheel control, steering characteristic and ESP^® additional functions in the manifestations Basic or Advanced
• Chassis (with optional AMG RIDE CONTROL suspension): in Comfort, Sport, Sport+

The individual drive programs offer an individual driving experience, precisely tailored to different driving conditions and driver requirements.

• The new "Slippery" drive program is optimised for low-grip, icy road conditions, with reduced power and a flat torque curve. Smooth gear changes and earlier upshifting support the driving impression characterised by stability.
• The "Comfort" program stands for comfortable and fuel-efficient driving, for example thanks to very early upshifts. Suspension and steering are set up for an emphasis on comfort. In addition, the ECO start/stop function is active here.
• "Sport" and "Sport+" place the focus on agility and driving pleasure with sporty engine and transmission tuning. The sound of the turbocharged engine becomes more distinctive. "Sport+" is particularly emotional with double-declutching during downshifts and partial cylinder cut-off via a brief and precisely defined retardation of ignition and injection at full load.
• The "Individual" drive program enables the individual parameters to be selected and saved according to personal preferences. In addition, the gliding function is available in the "Reduced" and "Moderate" drive settings.

AMG DYNAMICS: more agility with high stability

As a new feature in the AMG DYNAMIC SELECT drive programs, the new CLA 35 4MATIC Shooting Brake comes with AMG DYNAMICS. This integrated dynamic handling control system extends the stabilising functions of ESP^® with agilising interventions according to the driver's wishes. During dynamic cornering, imperceptible braking intervention on the rear inside wheel creates a defined yaw torque about the vertical axis for immediate and precise steering into the bend.

The different manifestations of AMG DYNAMICS in the "35" models are called "Basic" and "Advanced". On the multimedia display, when a drive program is selected, the new AMG DYNAMICS symbol is displayed together with the corresponding additional information.

• "Basic" is assigned to the "Slippery" and "Comfort" drive programs. Here the Shooting Brake demonstrates exceptionally stable handling characteristics with high yaw damping.
• "Advanced" is activated in the programs "Sport" and "Sport+". The Shooting Brake remains neutrally balanced. The lower yaw damping, lower steering angle requirement and enhanced agility support dynamic manoeuvres such as driving on winding country roads.

In the "Individual" drive program the driver can set the AMG DYNAMICS levels individually.

Chassis with specific components

The layout of the AMG chassis with specific spring/damper elements forms the basis for the solid straight-line stability and the highly dynamic cornering performance. The longitudinal and transverse dynamics are perfectly coordinated. All suspension components have been thoroughly revised in order to achieve a higher maximum lateral acceleration with easy vehicle control at the limits simultaneously.

A McPherson suspension strut construction is fitted on the front axle. Suspension is taken care of by one wishbone below the wheel centre, one spring strut and one tie rod respectively. The special axle geometry reduces the influence of the drive on the steering – for high comfort and agile handling. The new wishbone in aluminium reduces the unsprung masses enabling a more sensitive response from the springs. The AMG-specific front steering knuckle has a radially bolted brake calliper – a technology originating from motorsport. The front axle carrier is rigidly attached and thus additionally stiffens the front section.

The 4-link rear axle is connected rigidly with the body via a rear axle carrier and thus with a very high degree of torsional stiffness. There are three transverse control arms and one trailing arm plus specific bearings per rear wheel. This design ensures maximum driving stability and agility.

Adaptive damping system AMG RIDE CONTROL with three modes

The optional AMG RIDE CONTROL adaptive damping system enables the driver to choose between three different suspension control modes. The spectrum ranges from comfort-focused to sporty. The system operates fully automatically, adapting the damping forces for each wheel according to the driving situation and road conditions. This happens within milliseconds and is infinitely variable, with a wide spread of damping characteristics. The result is that it ride comfort and agility are enhanced in equal measure.

Robust high-performance brake system

The high-performance braking system ensures fade-resistant deceleration and short braking distances. At the front axle, 4-piston monoblock fixed callipers surround the 350-millimetre brake discs, at the rear axle, 1-piston sliding callipers surround the 330-millimetre brake discs. The discs are internally ventilated and perforated to better dissipate heat and prevent brake fading, even with extreme use. The silver-painted brake callipers have black AMG lettering.

Steering with special rack and variable ratio

The speed-sensitive, electro-mechanical sports power steering supports a sporty driving style with its direct response. It has a special rack with variable transmission ratio and two characteristic curves: depending on which drive program the driver has selected, it provides taut and sporty or more comfort-biased steering feedback. The rigid mounting in the integral carrier connects the steering even better with the body and thus increases steering precision.

AMG exhaust system with exhaust flap for sound modulation

As standard the exhaust system has an exhaust flap which is automatically controlled depending on the engine speed and load. Depending on the drive program selected it modulates the sound from harmoniously discreet (in the programs Slippery, Comfort and Sport) to emotively sporty (in Sport+).

Data logger for use on the racetrack: AMG TRACK PACE

AMG TRACK PACE is also available optionally. The virtual race engineer is part of the MBUX infotainment system and permanently records more than 80 vehicle-specific data (e.g. speed, acceleration) while driving on a racetrack. On top of this, lap and sector times are displayed, as well as the respective difference to a reference time. Because specific display elements are shown in green or red, the driver is able to see at a glance without reading numbers whether they are currently faster or slower than the best time.

After putting in some fast laps, the driver can use the data to analyse and, if necessary, improve their driving skills. In addition, acceleration and deceleration values (e.g. 0-100 km/h, ¼ mile, 100-0 km/h) can be measured and saved. Thanks to a newly developed algorithm which determines the vehicle position as precisely as possible, AMG TRACK PACE even detects when the circuit has been left or it has been shortened. This is done using GPS data as well as the sensors available in the vehicle (acceleration, gyroscope, steering angle, wheel speeds).

The data are displayed on the multimedia display, in the instrument cluster and on the optional head-up display. Well-known racetracks like, for example, the Nürburgring or Spa Francorchamps, are already stored. Furthermore, it is also possible to record your own circuits. The map display can be switched from 2D to 3D and updated online.

The MBUX Augmented Reality function also allows the ideal line of a stored racetrack to be displayed on the multimedia display or optional head-up display, allowing the driver to improve lap times with a virtual instructor on board.

Data at a glance

	Mercedes-AMG CLA 35 4MATIC Shooting Brake
Engine	2.0-litre 4-cylinder in-line with twin scroll exhaust gas turbocharger
Displacement	1991 cc
Max. output	225 kW (306 hp) at 5800 rpm
Peak torque	400 Nm at 3000-4000 rpm
Drive system	AMG Performance 4MATIC fully variable all-wheel drive
Transmission	AMG SPEEDSHIFT DCT 7G dual-clutch transmission
Combined fuel consumption	7.5-7.4 l/100 km*
Combined CO2 emissions	171-168 g/km*
Efficiency class	D
Acceleration 0-100 km/h	4.9 s
Top speed	250 km/h**

* The stated figures were determined in accordance with the prescribed measuring method. These are the NEDC CO2 figures according to Article 2 No. 1 Implementing Regulation (EU) 2017/1153. The fuel consumption figures were calculated based on these figures.

* electronically limited

Mercedes-AMG

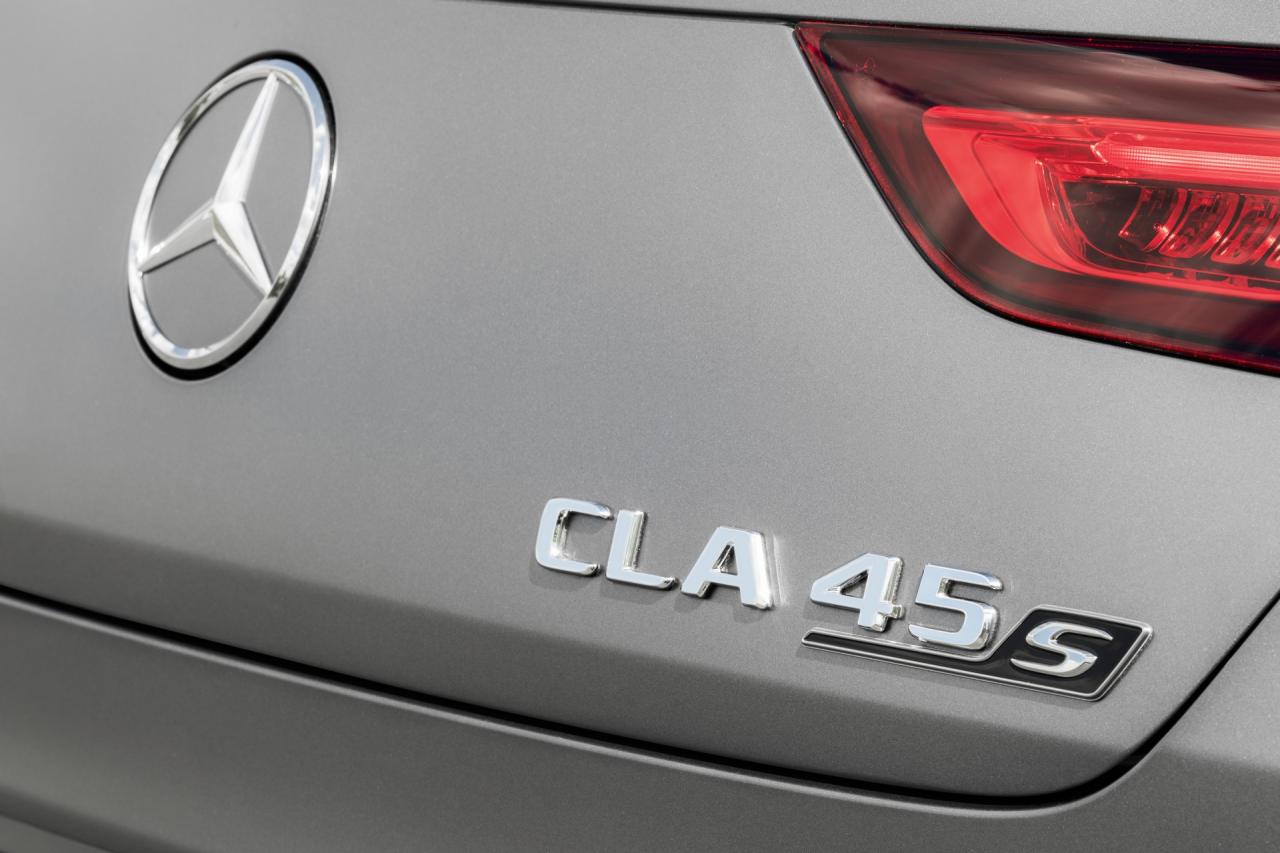

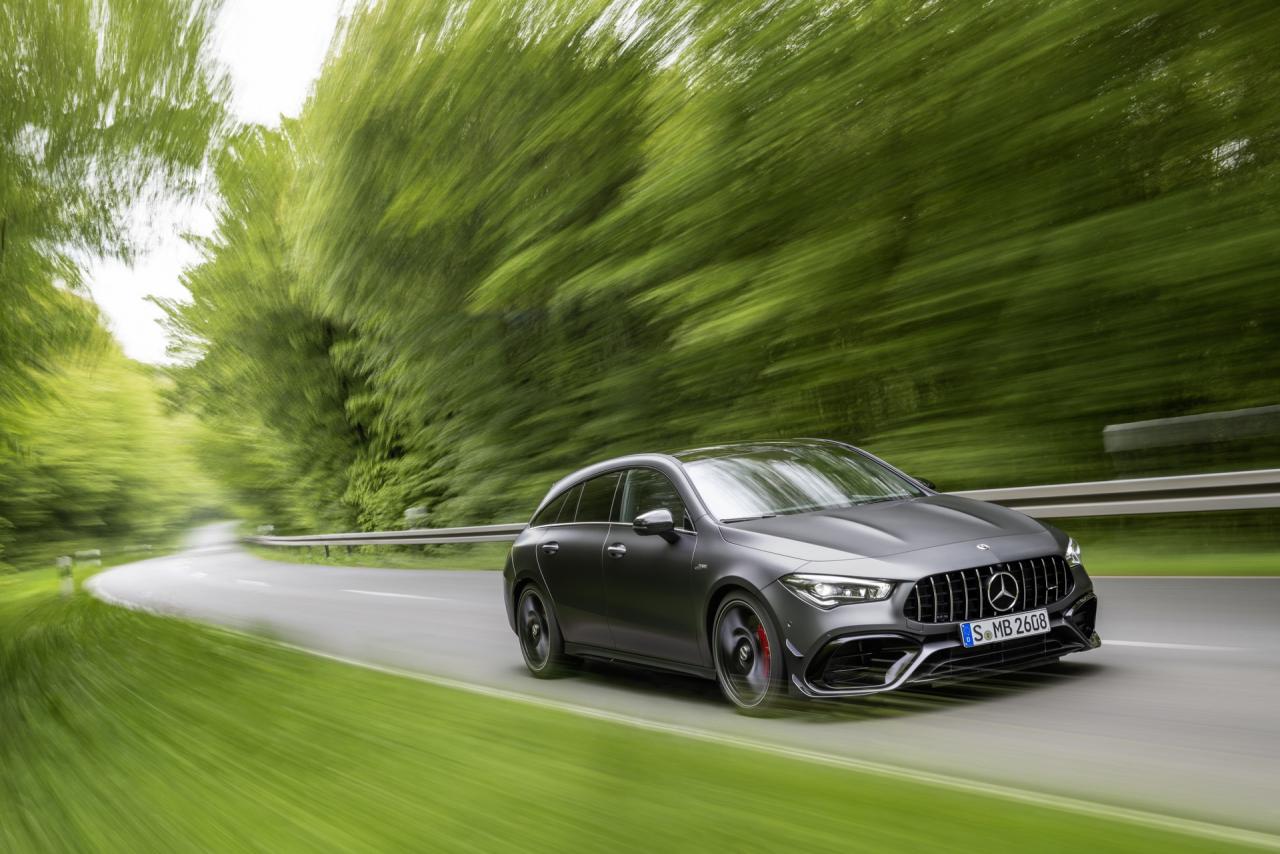

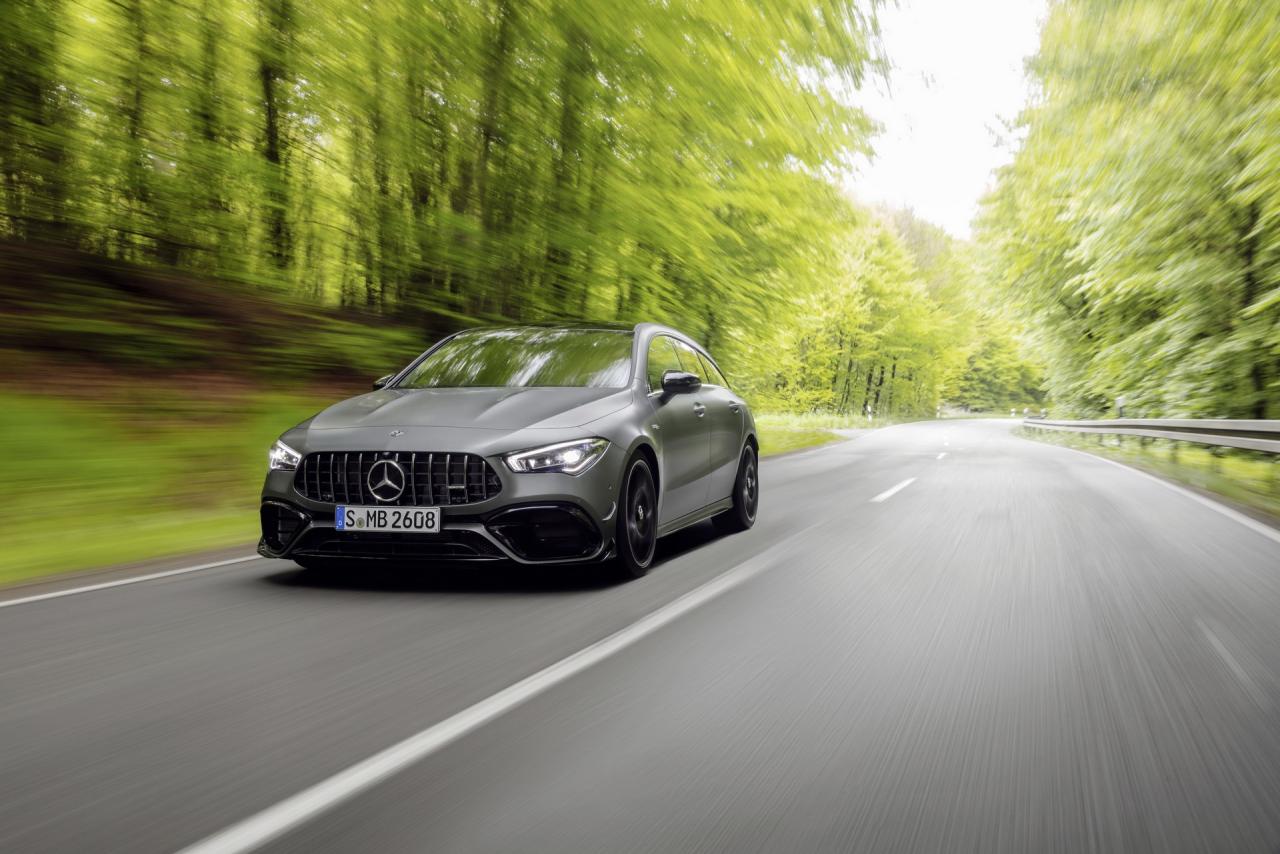

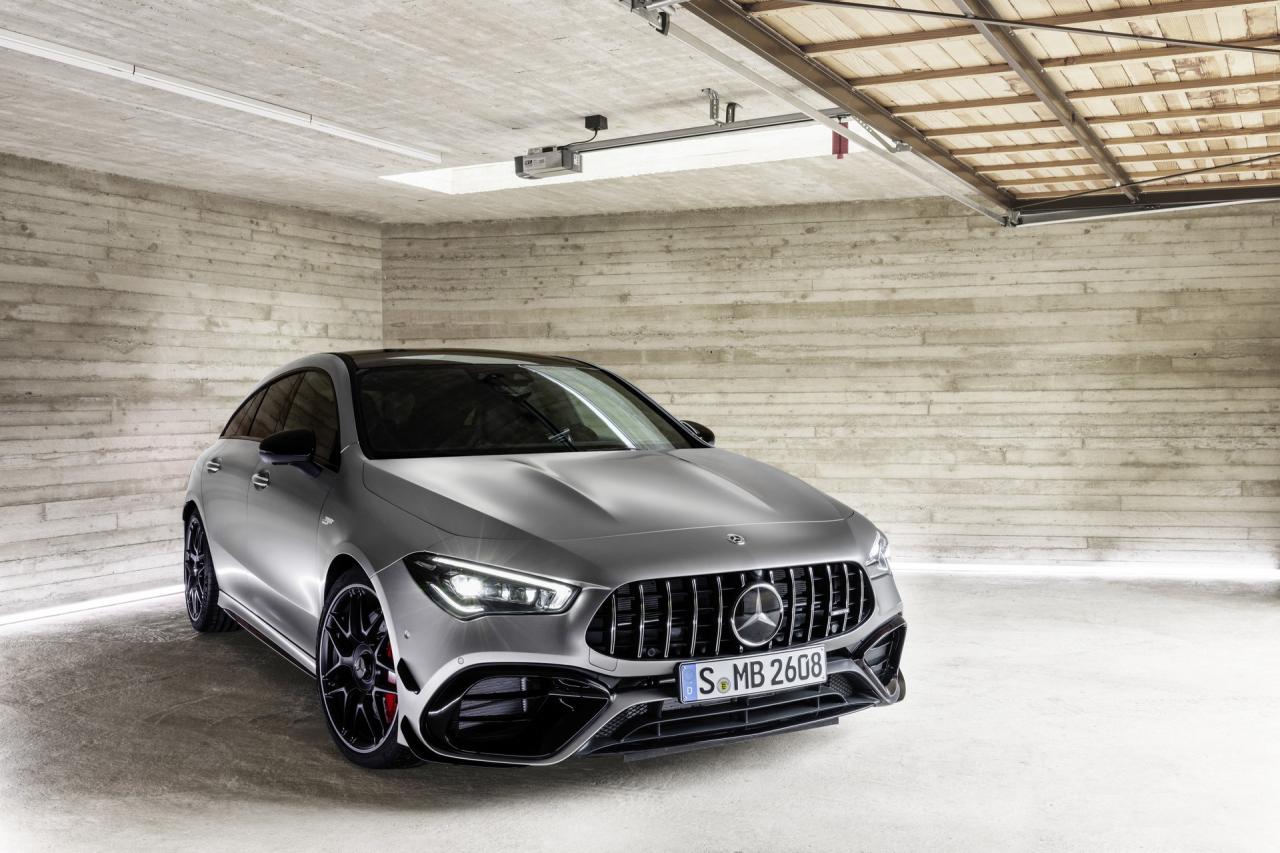

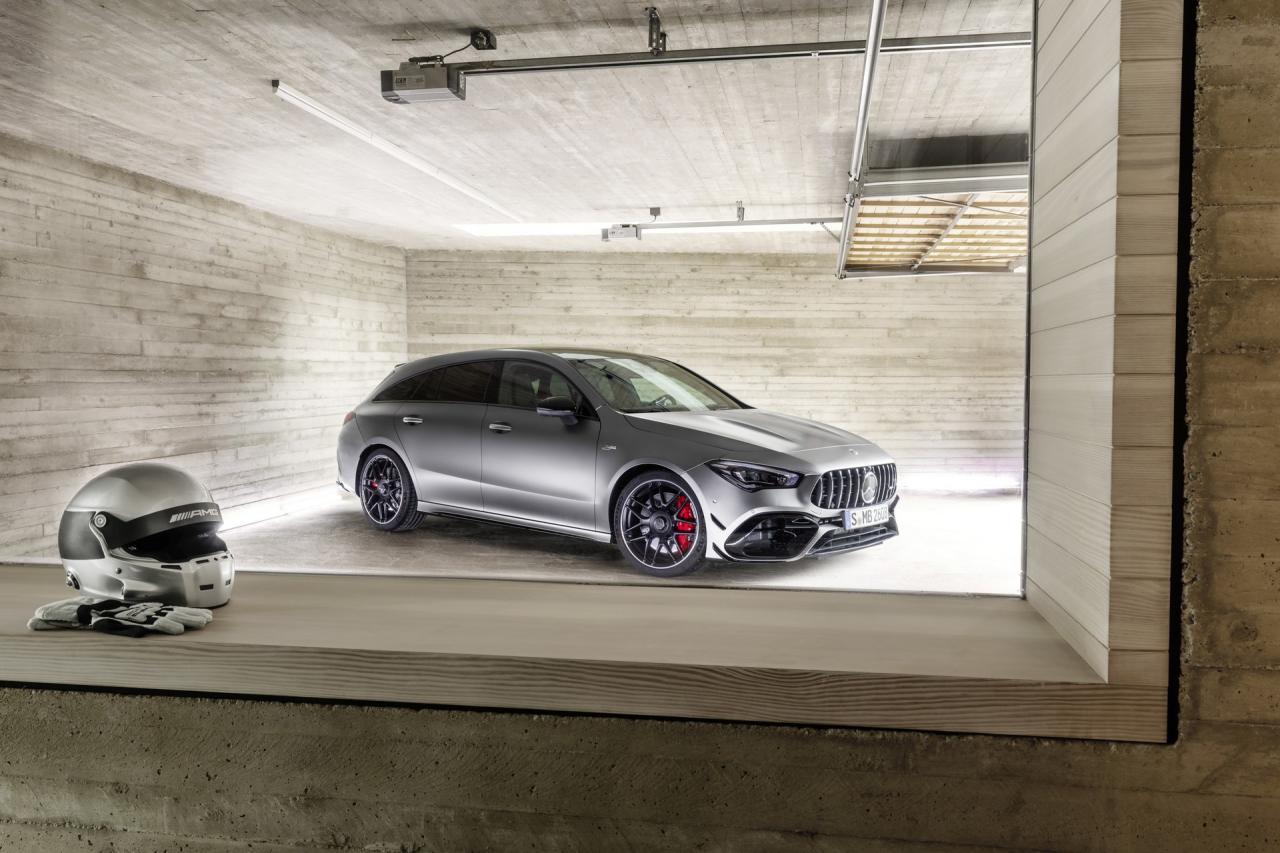

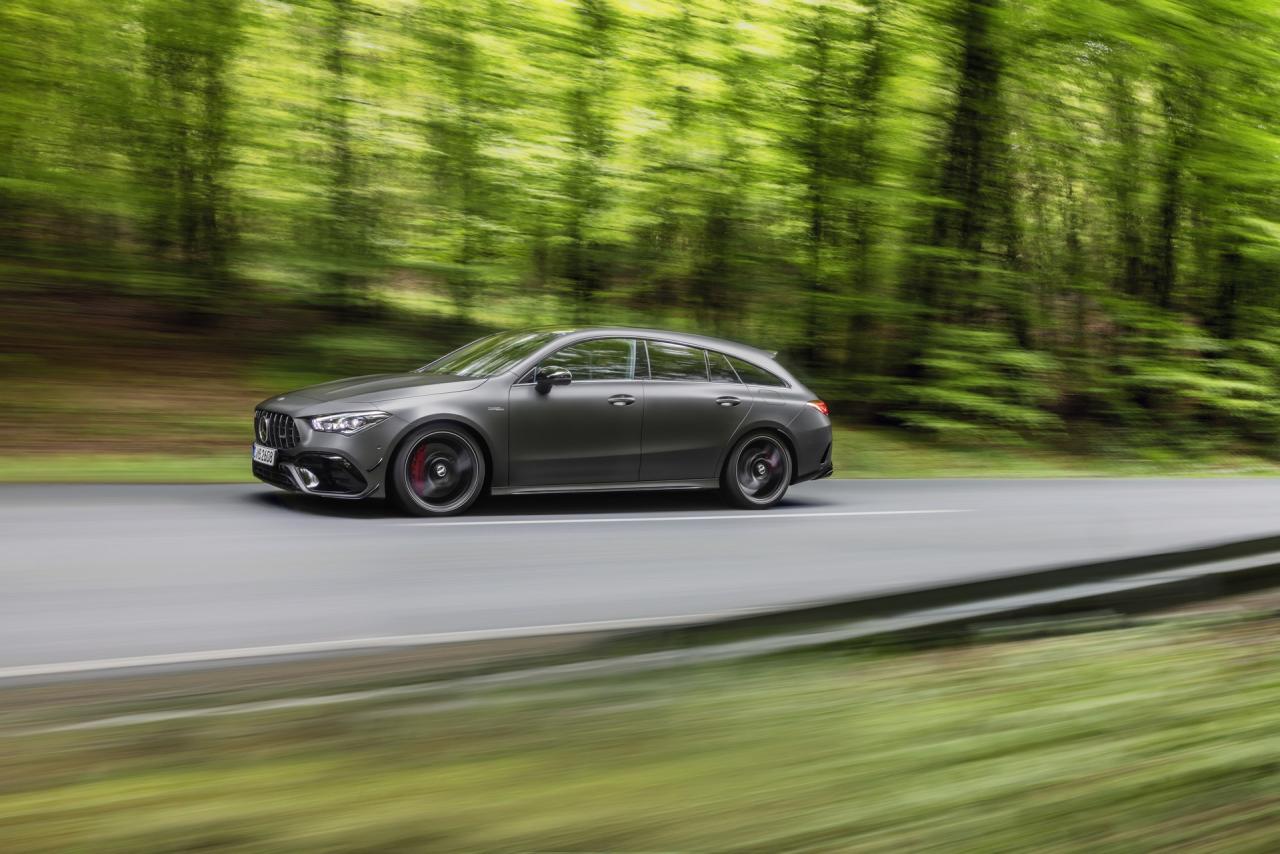

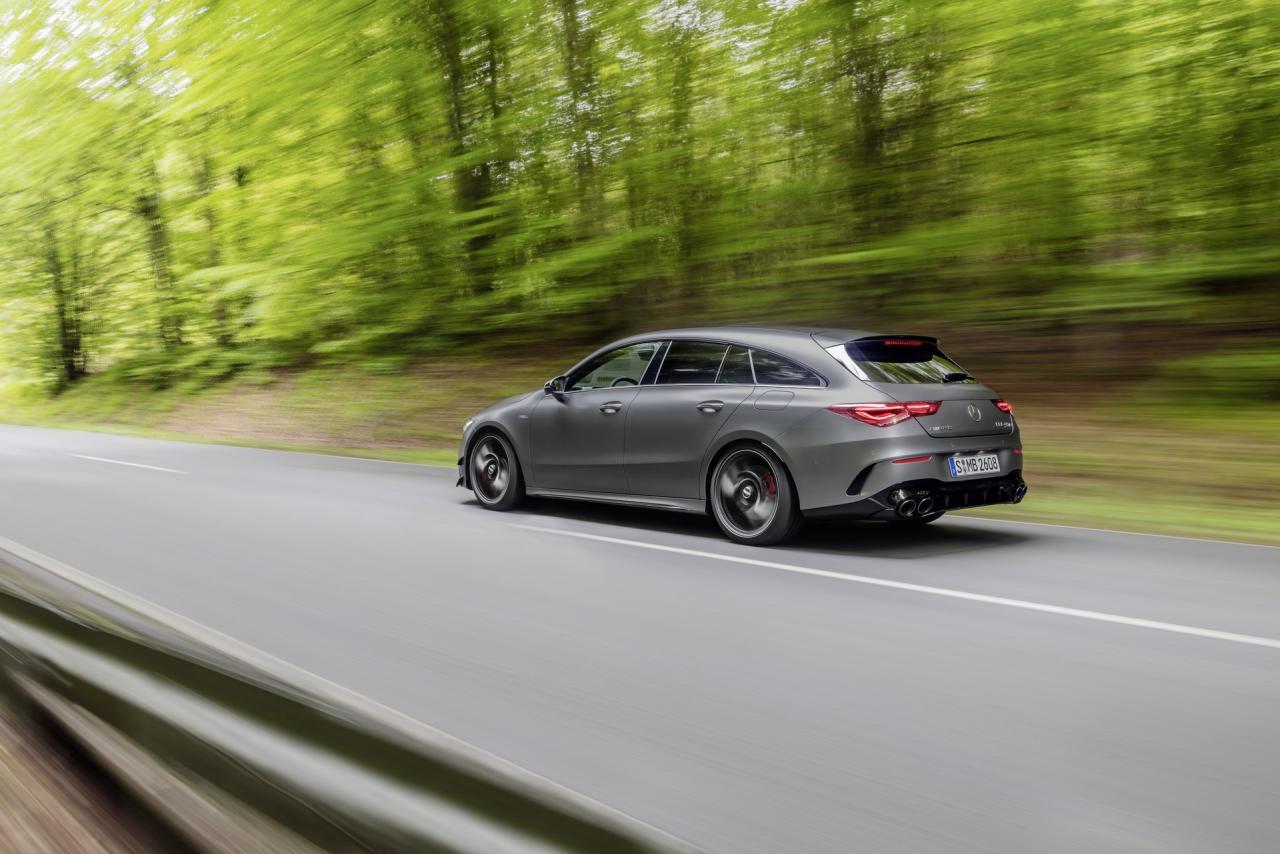

AMG CLA 45 S 4MATIC+ Shooting Brake



Come per la Classe A, la CLA 45 AMG è equipaggiata con il 2.0 litri turbo da 387 e 421 CV di potenza. Trazione integrale 4 Matic + e cambio doppia frizione ad 8 rapporti.









Press Release:



Cita

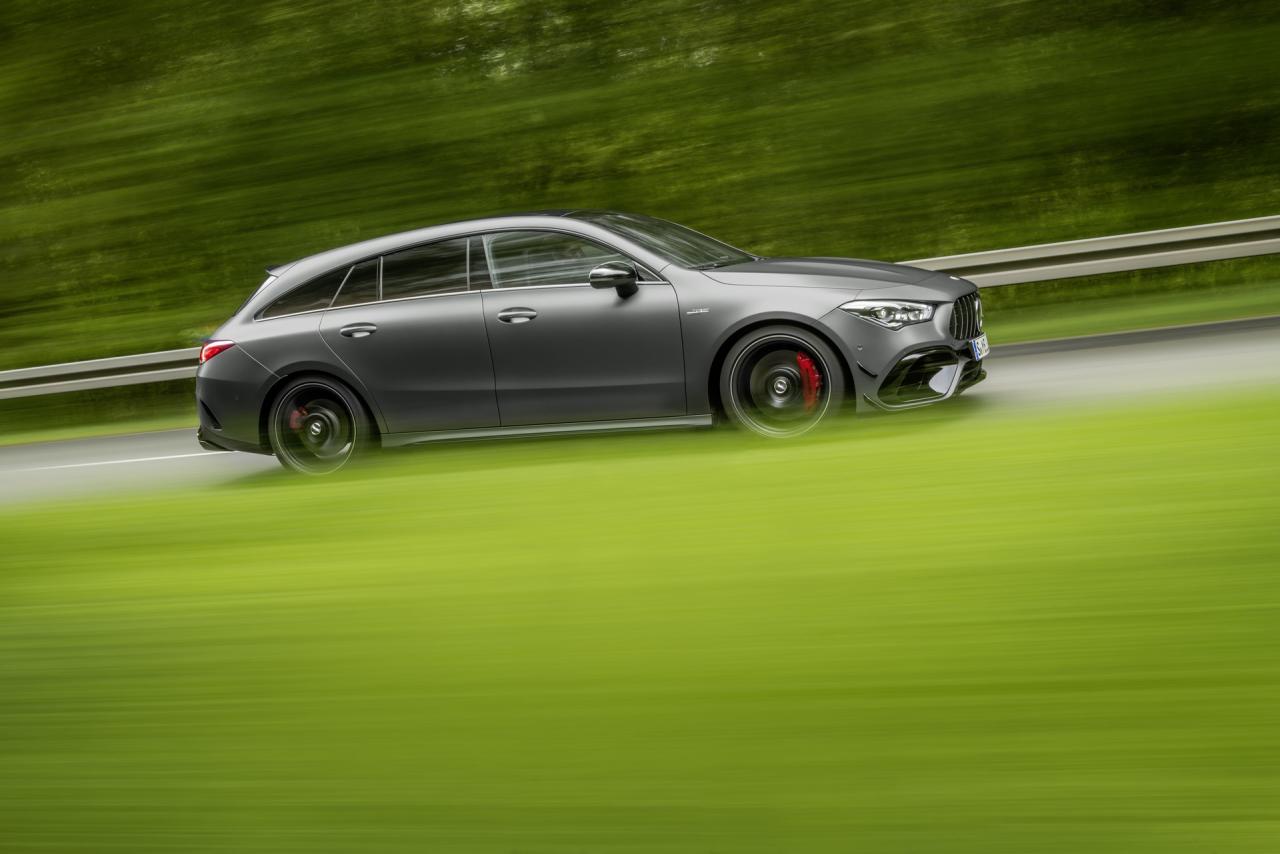

Affalterbach.  Emotional, dynamic, individual: Mercedes-AMG presents the CLA 45 4MATIC+ Shooting Brake and the CLA 45 S 4MATIC+ Shooting Brake (combined fuel consumption 8.4-8.2 l/100 km; combined CO₂ emissions 191-188 g/km) [1] - two powerful new compact cars that complement sporty athleticism with wide-ranging functionality. The 2.0-litre four-cylinder turbo engine is more powerful than ever, with an output of 285 kW (387 hp) or 310 kW (421 hp). The combination of extremely sporty performance (acceleration 0-100 km/h in 4.1/4.0 seconds) and the variable interior with increased luggage capacity is aimed at a young target group who lead an active and varied life at work and in their leisure time.

Mercedes-AMG is broadening its model portfolio apace: "The new CLA 45 Shooting Brake is already the third model of our completely new Performance compact cars portfolio and demonstrates that we have a range tailored to all types of individual wishes. The driving dynamics and the sporty product experience are on a level which was previously unimaginable in the compact class. Our Shooting Brake additionally offers a pronounced degree of practical utility value, which its expressive design idiom brings across with plenty of lifestyle appeal," says Tobias Moers, CEO of Mercedes-AMG GmbH.

One new feature which makes a substantial contribution to the incomparable driving experience is the active, fully variable AMG Performance 4MATIC+ all-wheel drive: for the first time, this system offers selective power distribution to the wheels on the rear axle via AMG TORQUE CONTROL. This means that the power is distributed to the left and right rear wheels highly flexibly and at different ratios, according to the given driving situation – resulting in optimum traction, whatever the road surface conditions and whatever course the route takes. In addition, spectacular Drift mode (standard on the S-Model, included in the optional AMG DYNAMIC PLUS package for the base model) provides for even greater driving enjoyment. This is made possible by a newly developed rear axle differential, which for the first time incorporates two multi-plate clutches. These open and close at lightning speed to control the torque flow for each rear wheel individually.

Athletic and muscular exterior design

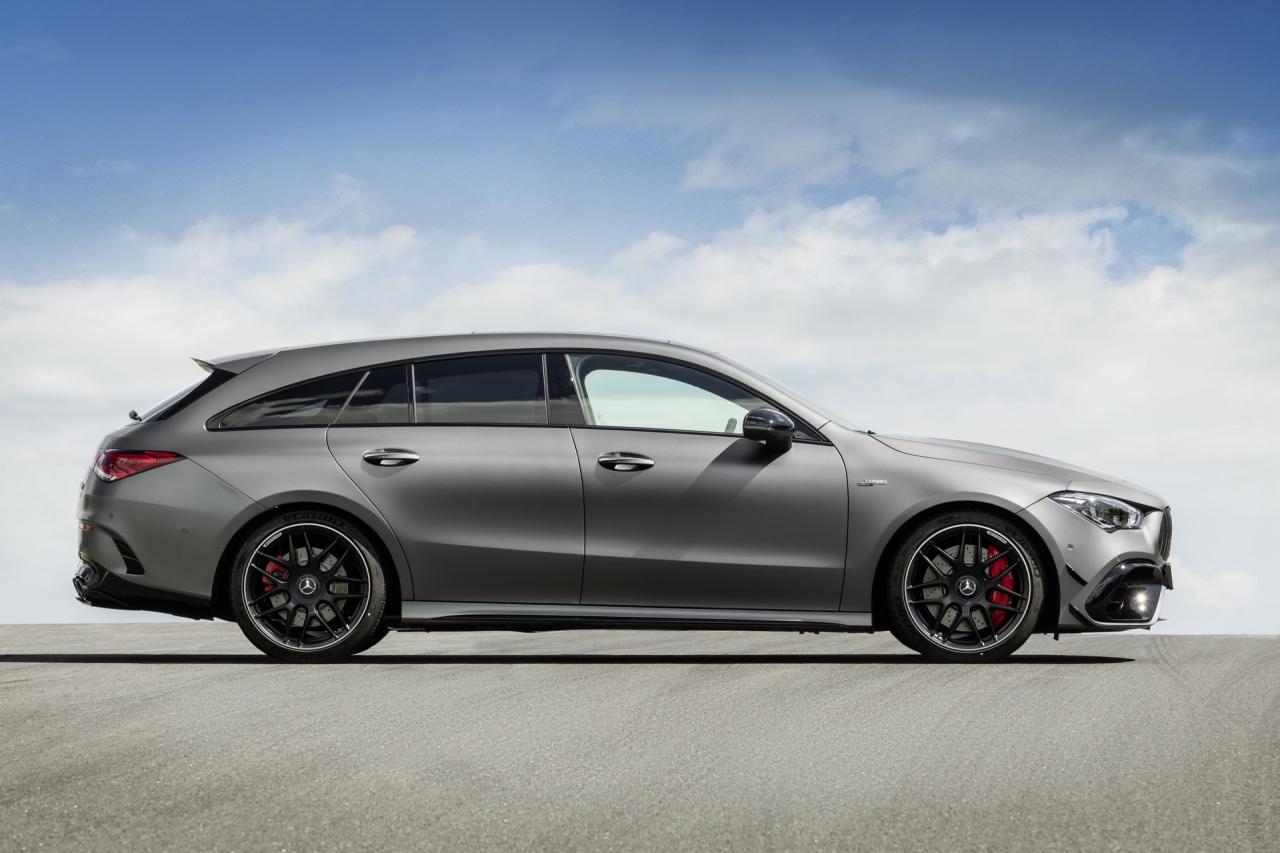

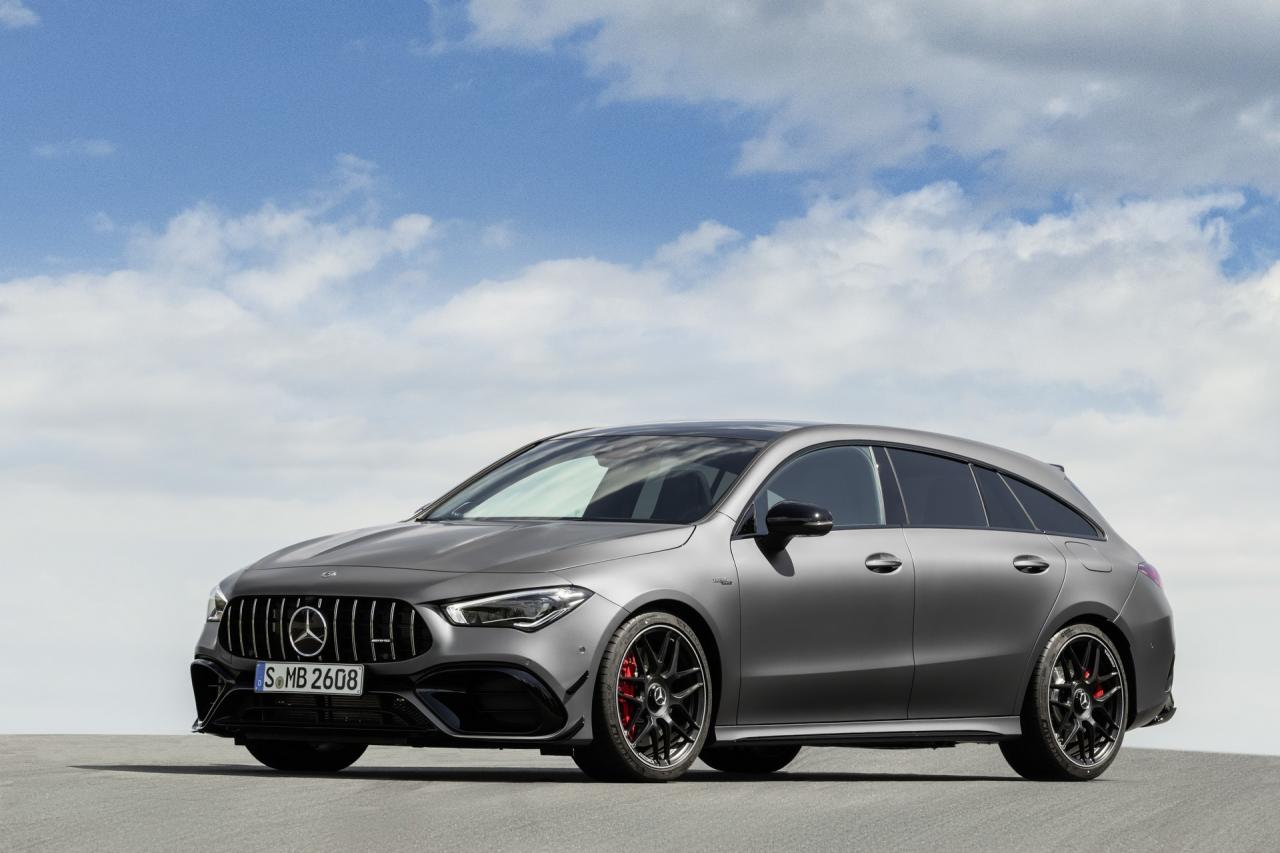

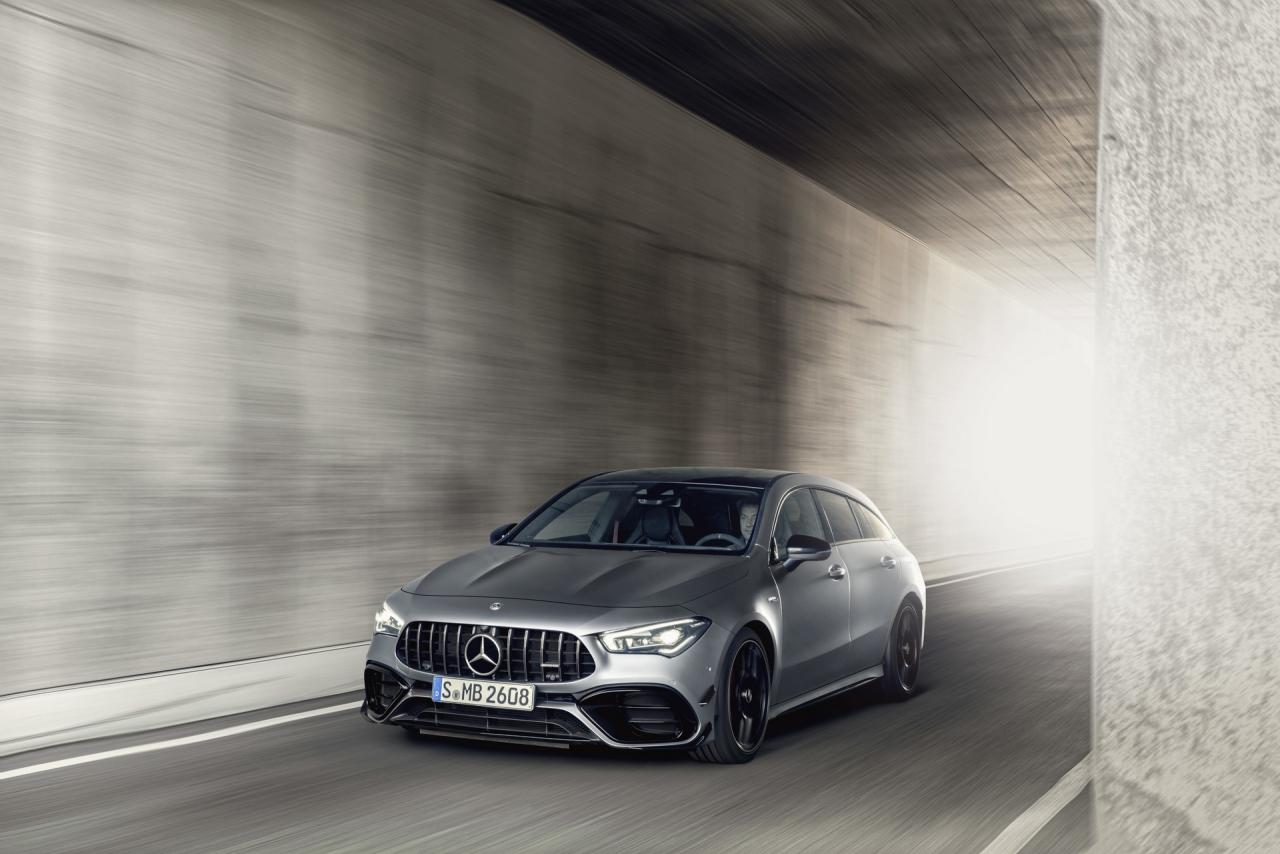

The exterior of the new CLA 45 Shooting Brake also packs plenty of emotional appeal: the long bonnet, the greenhouse with coupé-style window line, the muscular shoulders over the wheel arches and the low rear clearly reveal the vehicle's sports car genes. The AMG-specific radiator grille with the vertical slats unmistakably identifies the Shooting Brake as a member of the AMG Performance family. At the same time, the "shark nose", the sharply defined, narrow headlamps and the flat, aerodynamic bonnet lend the front a crouched appearance.

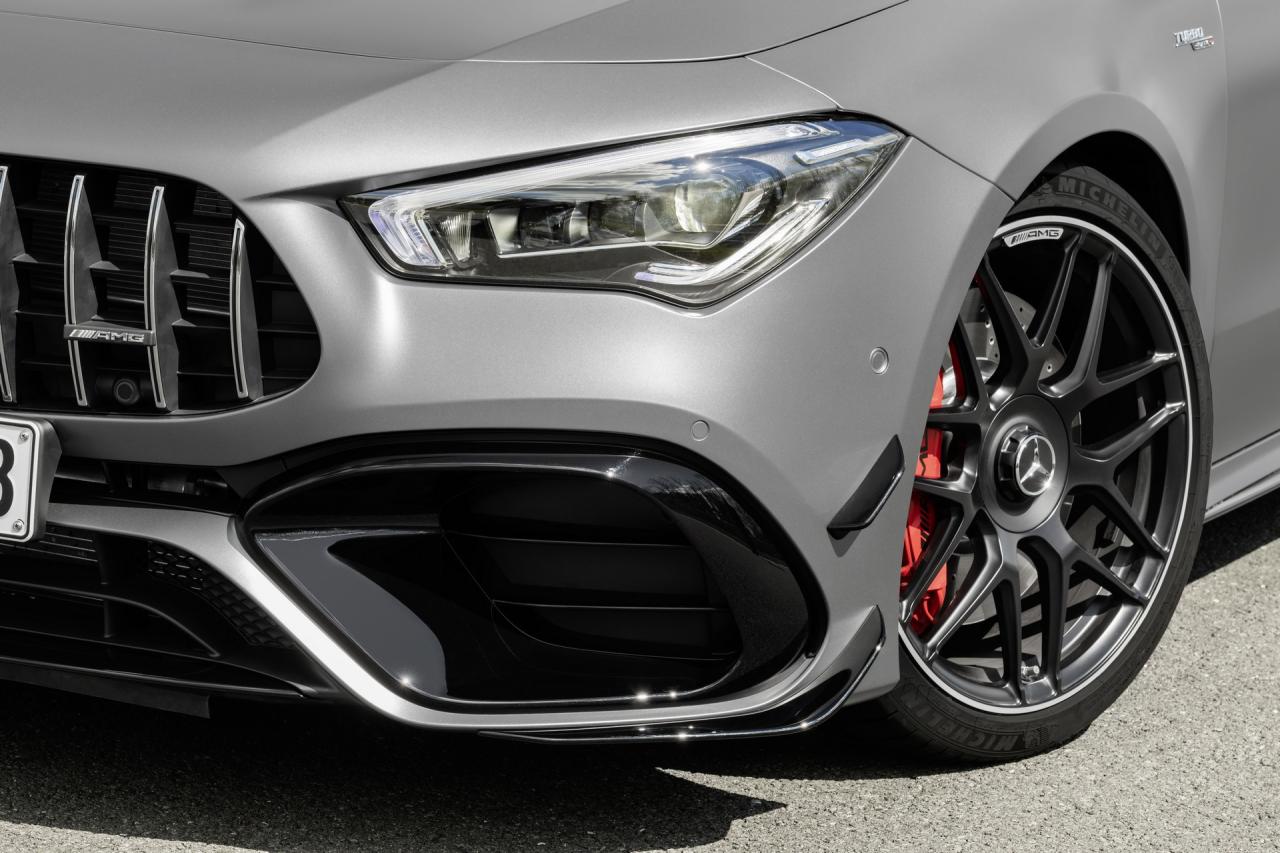

The imposing presence is also accentuated by the wider front wings with flared wheel arches. These create space for the wider front axle, and underline the athletic appearance. The nozzle-shaped outer air intakes establish a close link to the AMG GT 4-Door Coupé. The front splitter transitions seamlessly into the side air curtains ahead of the front wheels, which optimise the airflow to improve aero-performance and the Cd figure.

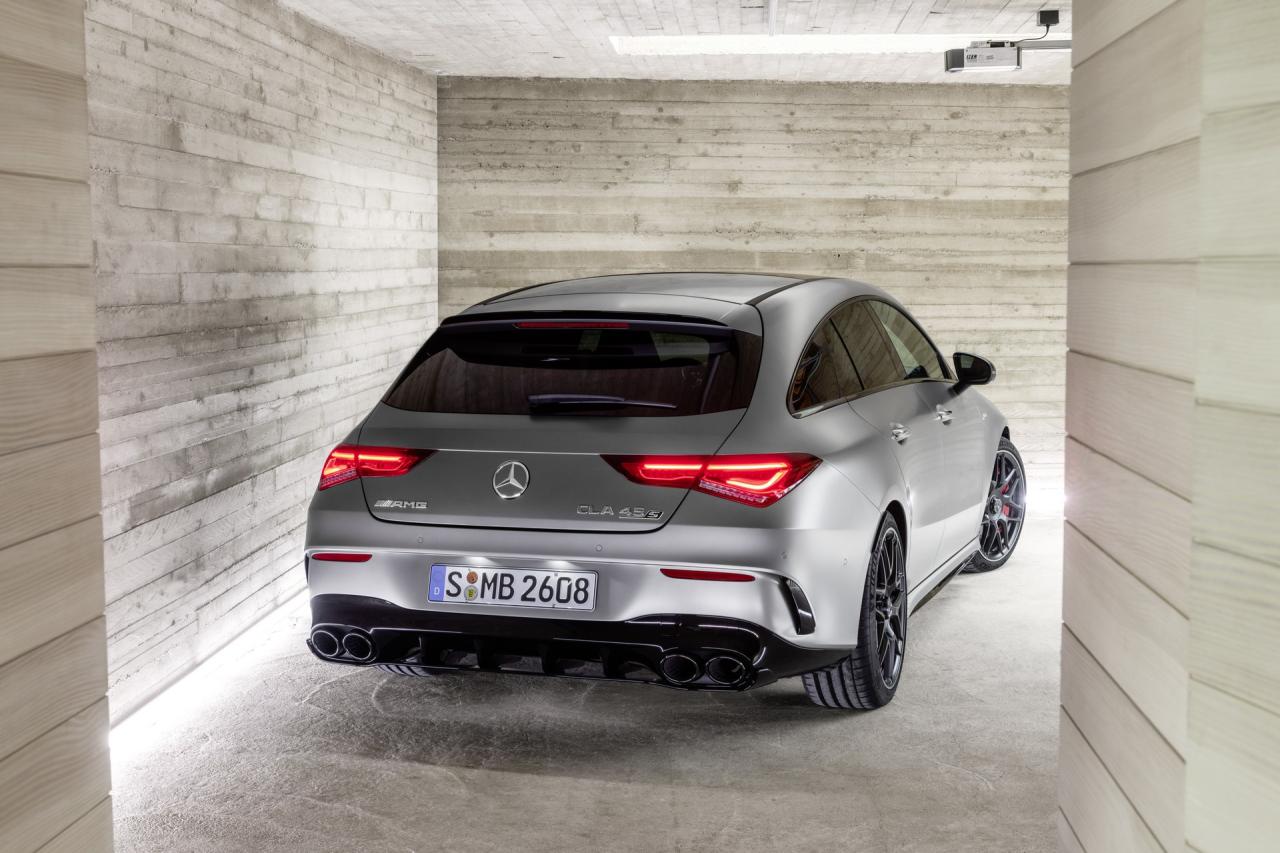

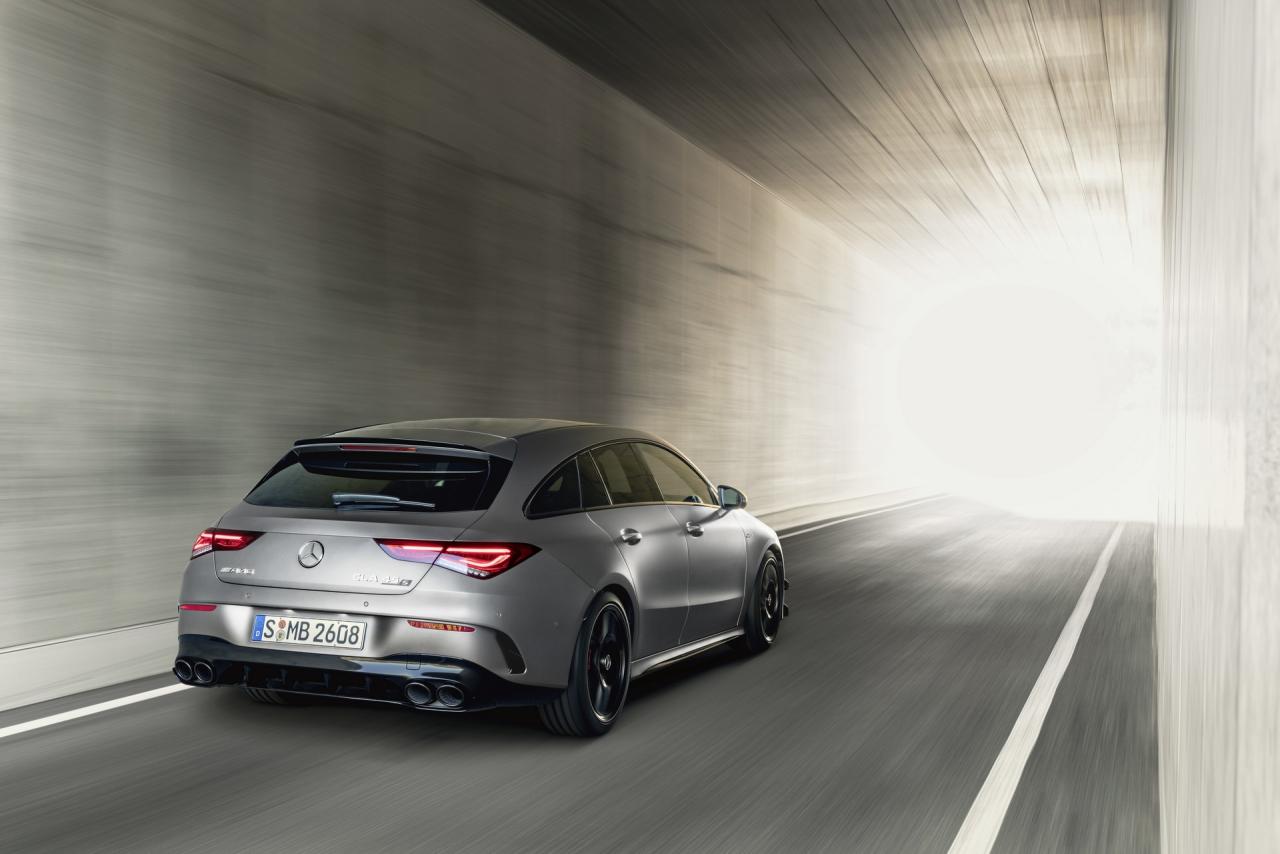

The rear view is characterised by two round twin tailpipes (82 mm diameter) and the wide rear apron. The S-Models are distinguished by their larger, 90 mm exhaust tailpipes with internal fluting and AMG lettering. The impression of width at the rear is emphasised further by the slim two-piece rear light clusters. The diffuser with four vertical fins contributes to the enhanced aerodynamic performance. The airflow break-away edge in the body colour on the roof spoiler rounds off the profile to the rear.

At 871 millimetres, the boot opening is significantly wider than in the previous model (635 mm). In addition, the tailgate can also be opened contactlessly with EASY PACK and HANDS-FREE ACCESS. At 505 litres, the boot is large enough to accommodate a wealth of recreational and outdoor equipment.

Extensively reinforced body shell

As on the Coupé, the AMG developers have extensively reinforced the body shell, as it provides the basis for the precise self-steering characteristics, as well as track and camber stability, also when driving at high speed. A lightweight aluminium plate bolted underneath the engine - the "shearing plate" - increases the torsional rigidity at the vehicle's front end. This is supplemented by a strut tower brace between the front suspension struts and pistol-shhaped "shotguns"  ‑ these are additional reinforcing plates connecting the side members to the A-pillars to minimise movements of the front section. Diagonal struts at the front and rear of the underbody further improve rigidity.

New four-cylinder turbo engine delivering superlative power

With an output of up to 310 kW (421 hp), the completely new Mercedes-AMG 2.0-litre engine is currently the world’ s most powerful turbocharged four-cylinder manufactured for series production. Mercedes-AMG has bettered the output of the preceding engine by 30 kW(40 hp). Maximum torque has also increased from 475 to up to 500 newton metres. The new, highly efficient powerpack is produced on an innovative production line in Affalterbach, on the "One Man, One Engine" principle.

The four-cylinder engine delivers extremely agile drive power in two output ratings: with 310 kW (421 hp) as the S-Model and with 285 kW (387 hp) in the basic version. The new compact sportscars absolve the sprint from zero to 100 km/h in record time: the CLA 45 S 4MATIC+ Shooting Brake requires just 4.0 seconds, while the base model CLA 45 4MATIC+ Shooting Brake gets up to speed in 4.1 seconds. The top speed of the base model is electronically limited to 250 km/h, while the S-Model leaves the factory with a top speed of 270 km/h. With the optional AMG Driver's package, the base variant can also driven at up to 270 km/h.

Apart from its performance figures, the new engine impresses with its immediate response. To this end the torque curve was carefully balanced ("torque shaping"): The peak torque of 500 newton metres (480 newton metres for the basic version) is available in a range of 5000-5250 rpm (4750-5000 rpm in the basic version). With this configuration the AMG engineers have achieved a power delivery akin to a naturally aspirated engine.

Engine design featuring intelligent details

The new engine excels with numerous intelligent design features. In contrast to the likewise transversely installed four-cylinder in the 35 models, the new engine has been turned around its vertical axis by 180 degrees. This means that the turbocharger and the exhaust manifold are now positioned at the rear, on the side of the firewall when viewed from behind. The intake system is therefore positioned at the front. This configuration allows the flattest possible and aerodynamically advantageous front section design. Furthermore, the new arrangement allows much improved air ducting with shorter distances and fewer diversions - both on the intake and exhaust side.

The new twinscroll turbocharger combines optimum responsiveness at low engine speeds with a high power in the upper rpm range. The shaft of the compressor and turbine wheel is installed for the first time on anti-friction bearings, thus minimising mechanical friction in the turbocharger. The charger therefore responds more readily and reaches its maximum speed of up to 169,000 rpm more rapidly.

Electronically controlled charge-air pressure

With a maximum charge pressure of 2.1 bar, the 2.0-litre four-cylinder turbo engine is also the leader in its segment in this respect. The electronically controlled wastegate (exhaust relief valve) allows the charge pressure to be controlled even more precisely and flexibly while optimising responsiveness, especially when accelerating from partial load. Numerous parameters are taken into account in this process.

Fresh air is used in addition to oil and water to cool the turbocharger. This is directed specifically to the charger from the radiator grille, via the engine cover designed as an air deflector and ducts beneath the bonnet. In addition the turbine housing has integral insulation.

Larger exhaust valves for faster gas cycles

In the cylinder head, the repositioned and slightly angled injection nozzles and spark plug system have allowed much larger exhaust valves than in the preceding engine. The larger exhaust cross-sections allow the gases to stream out of the combustion chambers with minimum loss.

Two overhead camshafts control the 16 valves via weight-optimised roller cam followers. Camshaft adjustment on the inlet and outlet side allows an excellent response and optimises the gas cycle for each operating point. Variable CAMTRONIC valve control on the exhaust side is another feature, with two cams per valve. The cams have different geometries, so that depending on the cam setting to suit the driving situation, the exhaust valves can be opened for short or long periods – for even better responsiveness at low engine speeds, comfortable and fuel-efficient driving at medium rpm and full power delivery in the upper rpm range.

Two-stage fuel injection for optimised performance

For the first time, the new high-performance four-cylinder has two-stage fuel injection. In the first stage the particularly fast and precisely operating piezo injectors supply fuel to the combustion chambers at a pressure of up to 200 bar. This is a multiple process at times, and is controlled by the engine management system as required. In the second stage there is additional intake manifold injection using solenoid valves. This is needed to achieve the engine''s high specific output. The electronically controlled fuel supply has an operating pressure of 6.7 bar.

Sophisticated cooling system for engine, turbocharger and charge air

The high output requires an intelligently conceived cooling system. This is so designed that the cylinder head and crankcase can be cooled to different temperature levels. This innovative measure allows a cold cylinder head for maximum output with efficient ignition timing, and a warm crankcase to reduce in-engine friction.

The coolant to the cylinder head is supplied by a mechanical water pump, while cooling of the crankcase is via a second, electrically driven high-performance water pump. After a cold start, this pump remains passive until the engine has warmed up. In operation it is regulated by the engine control unit so that the crankcase is always cooled according to need.

In addition the engine has an oil temperature management function which controls the warm-up phase and flexibly regulates the engine oil temperature. This brings the engine to its operating temperature more rapidly, reducing friction and wear. This is accompanied by the environmentally friendly ancillary effect that fuel consumption and cold start emissions are also reduced.

Functions such as alternator management, the ECO start/stop function with fast restarting, the gliding function and a petrol particulate filter are also part of the technology package for the new AMG four-cylinder.

Digital and smart hand assembly: "One man, one engine"

The new engine is entirely assembled by hand. To this end a completely newly designed production line was constructed in the AMG engine manufactory in Affalterbach, where Mercedes-AMG has raised the "One Man, One Engine" principle and Industry 4.0 processes to an innovative level reflecting the latest findings in ergonomics, material flows, quality assurance, sustainability and efficiency. On the road to implementing Industry 4.0, AMG's hand assembly operation likewise follows the vision of "smart production". This excels with maximum flexibility, and is transparent and highly efficient. It safeguards and improves the quality of the engines and production processes using innovative and digital technologies.

Agile AMG SPEEDSHIFT DCT 8G dual-clutch transmission

The 8-speed AMG SPEEDSHIFT DCT 8G dual-clutch transmission likewise contributes to the agile and dynamic character. The gear ratios have been configured so that the driver experiences very spontaneous acceleration in all speed ranges, combined with fast shifting and optimum connections when shifting up. Depending on the selected AMG DYNAMIC SELECT driving mode, the driver receives a specific drive configuration with different accelerator and gearshift characteristics.

The standard RACE-START function allows maximum acceleration from stationary, a highly emotional experience. This also applies to the drive sound with partial ignition interruption when changing up a gear, and the automatic double-declutching function when changing down. Neither is efficiency neglected: in "Comfort" mode the ECO start/stop function is active; the "gliding" function can be selected in the "Individual" driving mode.

AMG Performance 4MATIC+ all-wheel drive with AMG TORQUE CONTROL

The extremely dynamic driving experience in a completely new dimension is greatly assisted by the fully variable all-wheel drive included as standard. The secret is AMG TORQUE CONTROL in the new rear axle differential: This has two electronically controlled multidisc clutches, each of which is connected to a rear axle drive shaft. In this way, the power can not only be completely variably distributed between the front and rear wheels, but also selectively between the left and right rear wheel. This means that depending on the drive mode, the traction can be separately distributed to both rear wheels.

The result is consistently optimum traction, even in adverse road conditions and during extreme cornering manoeuvres, for example on the racetrack. Furthermore, this sophisticated solution allows Drift mode (standard in the S-Models, included in the optional AMG DYNAMIC PLUS package for the basic models), which makes "powersliding" possible for even more driving pleasure. Drift mode can be called up in the "RACE" driving mode using the shift paddles, provided that ESP^® is deactivated and the transmission is in manual mode.

Highly responsive electro-mechanical control

Control of the drive torque to the front and rear axle, and between the two rear wheels, is electro-mechanical. The influencing factors for torque distribution are not only the driving speed, the lateral and longitudinal acceleration and the steering angle, but also the difference in rotational speed between the individual wheels, the gear selected and the accelerator position.

The main advantages of electro-mechanical control over an electro-hydraulic system relate to more refined driving dynamics – primarily due to the significantly faster response and speed-independent actuation of the discs over the entire adjustment range.

The characteristics of the all-wheel drive control are dependent on the driving mode and the AMG DYNAMICS setting. In "Basic" and "Advanced", the 4MATIC system is in "Comfort" mode. In "Pro" and "Master" (standard for
S-Model, included in the optional AMG DYNAMIC PLUS package for the base model) the 4MATIC system switches to "Sport" mode ‑ for even more agile handling and an even higher threshold for the critical limits.

Specific components for highly dynamic handling

The new AMG suspension with specific spring elements and the new,  frequency-selective shock absorbers provides the basis for high directional stability and highly dynamic cornering characteristics with low body roll. At the same time comfort has been improved compared to the preceding model. The longitudinal and transverse dynamics are perfectly coordinated. All suspension components have been thoroughly revised in order to achieve a higher maximum lateral acceleration together with easy vehicle control at the limits.

A McPherson strut design is used at the front axle. Suspension is taken care of by one wishbone below the wheel centre, one spring strut and one tie rod respectively. The special axle geometry reduces torque steer – for high comfort and agile handling. The new wishbone in aluminium reduces the unsprung masses enabling a more sensitive response from the springs. The brake callipers at the front axle are radially bolted – a technology from motorsport for more stability. The front axle carrier is rigidly attached and thus additionally stiffens the front section.

The 4-link rear suspension is likewise rigidly connected to the body via a rear axle carrier, and therefore very torsionally rigid. There are three transverse control arms and one trailing arm plus specific bearings per rear wheel. This design ensures maximum driving stability and agility.

Adaptive damping system AMG RIDE CONTROL with three modes

The optional AMG RIDE CONTROL adaptive damping system enables the driver to choose between three different suspension control modes. The spectrum ranges from comfort-focused to sporty. The system operates fully automatically, adapting the damping forces for each wheel according to the driving situation and road conditions. This happens within milliseconds and is infinitely variable, with a wide spread of damping characteristics. The result is that it ride comfort and agility are enhanced in equal measure.

Robust high-performance brake system

The high-performance braking system ensures fade-resistant deceleration and short braking distances. On the base model, the 4-piston monobloc fixed front callipers act on 350 x 34 millimetre brake discs, while at the rear axle, 1-piston floating callipers act on 330 x 22 millimetre brake discs. The discs are internally ventilated and perforated to better dissipate heat and prevent brake fading, even with extreme use. The grey-painted brake callipers have white AMG lettering.

The S-Model and the base model with the optional AMG DYNAMIC PLUS package are decelerated by an even larger braking system equipped with 6-piston fixed callipers and 360 x 36 millimetre brake discs at the front. In this case the brake callipers are painted red and bear a black AMG logo.

Steering with special rack and variable ratio

The speed-sensitive, electro-mechanical sports power steering supports a sporty driving style with its direct turn-in ability. It has a special rack with variable transmission ratio and two characteristic curves: depending on which drive program the driver has selected, it provides taut and sporty or more comfort-biased steering feedback. The rigid mounting in the integral carrier connects the steering even better with the body and thus increases steering precision.

Vehicle characteristics with wide spread

The six AMG DYNAMIC SELECT drive programs "Slippery", "Comfort", "Sport", "Sport +", "Individual" and "RACE" (standard for S-Model, included in the optional AMG DYNAMIC PLUS package for the base model) allow a wide spread of vehicle characteristics, from comfortable to dynamic. Numerous relevant parameters are modified:

• Powertrain: Accelerator pedal characteristic, shift times and shift timing in the variants Reduced, Moderate, Sport or Dynamic
• Transmission: automatic or manual
• AMG DYNAMICS: Agility functions such as all-wheel control, steering characteristics and additional ESP^® functions in Basic, Advanced, Pro or Master variants (standard for S-Model, included in the optional AMG DYNAMIC PLUS package for base model)
• Exhaust system: Sound and nature of the sound functions, Balanced or Powerful
• Suspension (with optional AMG RIDE CONTROL suspension): in Comfort, Sport, Sport+

AMG DYNAMICS for enhanced agility and high stability

The new CLA 45 4MATIC+ Shooting Brake features AMG DYNAMICS as part of the AMG DYNAMIC SELECT drive programs. This integrated agility control facility extends the stabilising functions of ESP^® with agility-enhancing intervention in the all-wheel-drive control, steering characteristics and additional ESP^® functions. When cornering at speed, for example, brief braking intervention at the inner rear wheel generates a defined yawing motion around the vertical axis for responsive and precise entry into the bend.

The spectrum ranges from extremely stable to highly dynamic. On the multimedia display, when a drive program is selected, the new AMG DYNAMICS symbol is displayed together with the corresponding additional information.

• "Basic" is assigned to the "Slippery" and "Comfort" drive programs. In this case the compact sportscars exhibit very stable handling with a high level of yaw damping.
• "Advanced" is activated in the "Sport" program. The 45 models remain neutrally balanced. The lower yaw damping, lower steering angle requirement and enhanced agility support dynamic manoeuvres such as driving on winding country roads.
• "Pro" (short for "Professional") belongs to the "Sport+" program. In "Pro" the driver receives even more assistance for dynamic driving manoeuvres while agility and feedback from the road when cornering are further enhanced.
• "Master" is linked to the "RACE" driving mode (standard for
  S-Model, included in the optional AMG DYNAMIC PLUS package for the base model). "Master" mode is aimed at drivers who want to experience dynamism and the driving enjoyment on closed-off circuits. "Master" offers a vehicle balance with slight oversteer, a low steering angle requirement and more agile steering. In this way, "Master" ensures maximum agility and fully exploits the dynamic potential. To activate "Master" mode, the driver must use the separate button in the centre console to switch the ESP^® to ESP^® SPORT Handling Mode or ESP^®

In the "Individual" drive program, the driver can set the AMG DYNAMICS levels "Basic", "Advanced", "Pro" and "Master" themselves.

Man and machine in close alliance

With its sporty appointments and the MBUX infotainment system, the high-quality interior creates a close, personal connection between man and machine. The driver and front passenger are seated in an active position on contoured sport seats with firm lateral support. The standard upholstery as a combination of black ARTICO man-made leather and DINAMICA microfibre is timeless, and creates typical AMG highlights with double topstitching in red. The colour scheme is echoed by the red designo seat belts and the dashboard support trim in black DINAMICA microfibre with a red border. The chromed air vents are likewise upgraded with a red ring. As an alternative an upholstery in ARTICO man-made leather in neva grey/black with mid-grey double topstitching and light-longitudinal-grain aluminium trim is available.

Yellow highlights emphasise the motor racing heritage

Yellow highlights feature throughout the interior on the S-Model, emphasizing the motor racing character of the more powerful models. Also included in the standard equipment are the AMG Performance steering wheel in nappa leather/DINAMICA microfibre with contrasting yellow topstitching, a yellow 12 o'clock marking, AMG steering wheel buttons and AMG logo, plus ambience lighting.

In all models, the centre console in high-gloss black with a touchpad as standard has a further control array with additional switches for controlling the 3-stage ESP^®, the manual transmission mode, the optional adaptive damping system AMG RIDE CONTROL and the optional AMG Real Performance Sound. In combination with the optional leather package, it features a silver chrome console surround.

MBUX infotainment system with AMG-specific displays

The combination of sporty design and sophisticated details is also featured in the MBUX infotainment system with its innovative operating and display concept. MBUX creates an even closer connection between the vehicle, driver and passengers. Emotionally appealing presentations underline the clear control structure and feature brilliant maximum-resolution 3D graphics. Visually, the two displays under one shared glass cover blend into a Widescreen Cockpit and as a central element consequently emphasise the horizontal orientation of the interior design.

The customer can choose between the three AMG display styles "Classic", "Sport" and "Supersport" for the instrument cluster. The "Supersport" mode is particularly striking with a central, round rev counter and additional information presented in the form of bars to the left and right of the rev counter: with a three-dimensional perspective, they reach far into the background to an artificial horizon.

And needless to say, the trailblazing voice control activated with the words "Hey Mercedes" is also on-board. Thanks to artificial intelligence, MBUX recognises and understands nearly all sentences from the fields of infotainment and vehicle operation, even if they are expressed indirectly.

AMG Performance steering wheel with optional control buttons

A perfect symbiosis between the driver and vehicle is ensured by the multifunction sport steering wheel in nappa leather with flattened steering wheel rim and perforated grip area, and depending on the upholstery, red, yellow or black topstitching and a facing in silver chrome. The galvanised steering wheel gearshift paddles allow an even sportier driving style with manual gear shifting.

As standard the S-Models are equipped with the AMG Performance steering wheel in nappa leather/DINAMICA microfibre (optional for basic model). The AMG steering wheel buttons (standard for S-Models, optional for the basic variants in conjunction with the Performance steering wheel) allow the AMG driving modes to be accessed directly, and other AMG functions to be conveniently operated directly at the steering wheel.

Technical data at a glance

	Mercedes-AMG CLA 45 4MATIC+ Shooting Brake	Mercedes-AMG CLA 45 S 4MATIC+ Shooting Brake
Engine	2.0-litre 4 in-line with roller bearing twin-scroll turbocharger	2.0-litre 4 in-line with roller bearing twin-scroll turbocharger
Displacement	1991 cc	1991 cc
Max. output	285 kW (387 hp) at 6500 rpm	310 kW (421 hp) at 6750 rpm
Peak torque	480 Nm at 4750-5000 rpm	500 Nm at 5000-5250 rpm
Drive system	AMG Performance 4MATIC+ fully variable all-wheel drive with AMG TORQUE CONTROL	AMG Performance 4MATIC+ fully variable all-wheel drive with AMG TORQUE CONTROL
Transmission	AMG SPEEDSHIFT DCT 8G dual-clutch transmission	AMG SPEEDSHIFT DCT 8G dual-clutch transmission
Combined fuel consumption	8.3-8.4 l/100 km*	8.4-8.2 l/100 km*
Combined CO2 emissions	191-188 g/km*	191-188 g/km*
Efficiency class	E	D
Acceleration 0-100 km/h	4.1 s	4.0 s
Top speed	250 km/h**	270 km/h***

* The stated figures were determined in accordance with the prescribed measuring method. These are the "NEDC CO₂ figures" according to Article 2 No. 1 Implementing Regulation (EU) 2017/1153. The fuel consumption figures were calculated based on these figures.

** electronically limited, with AMG Driver‘s Package 270 km/h; *** electronically limited

[1] The stated figures were determined in accordance with the prescribed measuring method. These are the "NEDC CO₂ figures" according to Article 2 No. 1 Implementing Regulation (EU) 2017/1153. The fuel consumption figures were calculated based on these figures.

Mercedes-AMG





Topic Spy: ▶️ Mercedes-Benz CLA Shooting Brake II 2019 - Prj. X118 (Spy)



Topic Spy: ▶️ Mercedes-AMG CLA Shooting Brake II 2019 - Prj. X118 (Spy)



Modificato 15 Ottobre 2022 da Cole_90
Primo Messaggio Aggiornato

[Beckervdo]

Niente di nuovo sul fronte occidentale: 4 cilindri 2.0 litri turbo da 306 CV e 400 Nm di coppia. Trazione integrale 4Matic e trasmissione doppia frizione a 7 rapporti DCT AMG SPEEDSHIFT 7G.





Modificato 15 Ottobre 2022 da Cole_90

[Melone]

con questo colore effetto banana garantito al 100% ?

[alfagtv]

10 ore fa, Melone scrive:

con questo colore effetto banana garantito al 100% ?

pensa nella precendente,dove era ancora più accentuato!!

[Beckervdo]

Debutta anche la CLA Shooting Brake A35 AMG

[Beckervdo]

Debutta la CLA SB 35AMG



[KimKardashian]

Boh gli interni sembrano fatti apposta per comprarti una Classe C...

[LucioFire]

ecco...sono riusciti a farm schifare il giallo,uno dei miei colori preferiti

[pixhell]

Ma per cosa sta il 35? Non sono gli stessi 35 di Audi.... non capisco bene. Queste nomenclature alla gazzecan non mi piacciono molto.

Ps. Il giallo si addice/va alle vere Audi s ...ma su questa veramente

[itr83]

una peggio dell'altra, la SB poi è "l'apice dell'apoteosi della schifezza" come direbbe Diego...
