Audi e-tron Sportback & e-tron S Sportback M.Y. 2021

[MotorPassion]







Infografiche:









Press Release M.Y. 2021:



Cita

• Attractive new features for electric SUV models in 2021 model year
• Second on-board charger for fast AC charging at home and on the road
• New e­-tron charging system connect with intelligent functions
• Even more convenience with the assist system adaptive cruise assist





Faster charging, more convenience behind the wheel – Audi is systematically enhancing its e-tron models. The all-electric SUV and e-tron Sportback* SUV coupe are receiving a number of new equipment features.



AC charging: double the capacity

Fast charging with direct current (DC) has always been a major strength of the e-tron models. Now Audi is also enabling faster charging with alternating current (AC). Effective immediately, e-tron 55² and e-tron Sportback 55³ customers can order a second on-board charger that doubles the power from 11 kW to as much as 22 kW at appropriate charging terminals. This option will follow for the e-tron 50⁴ and e-tron S models in mid-2021. The standard mode 3 cable, with which all e-tron models can charge at public terminals, has already been converted to a charging capacity of 22 kW.

Intelligently connected: the e-tron charging system connect

The new charging system connect, which Audi offers for home garages, is also designed for a charging capacity of up to 22 kW. It is designed for use at household outlets and can thus also be used when away from home. Using a suitable domestic installation, the e-tron 55² models can be fully charged in just under five hours. The charging system connect comprises an operating unit with a 5-inch touch display and a wall mount. Its Wi-Fi internet connection enables both control via the myAudi app and function updates. Audi recommends a three-phase, 400-volt outlet for optimal use of the charging system connect. If desired, an electrician referred by the local Audi dealer will check the power supply and install the suitable technology as needed.

In conjunction with a compatible home energy management system from SMA Solar Technology or the Hager Group, the e-tron charging system connect offers additional, intelligent functions. For example, the Audi e-tron can take account of the needs of other consumers in the household and charge with the remaining power available in order to avoid overloading the home electrical system. The charging system also allows customers to define individual priorities, such as charging when electricity is less expensive under a variable electricity rate. If the home is equipped with a photovoltaic system, the car can be charged preferentially using the electricity generated by the system. Charging planning then considers forecast periods of sunshine. Additional features of the e-tron charging system connect include PIN protection against unauthorized use and the recording of charging energy.

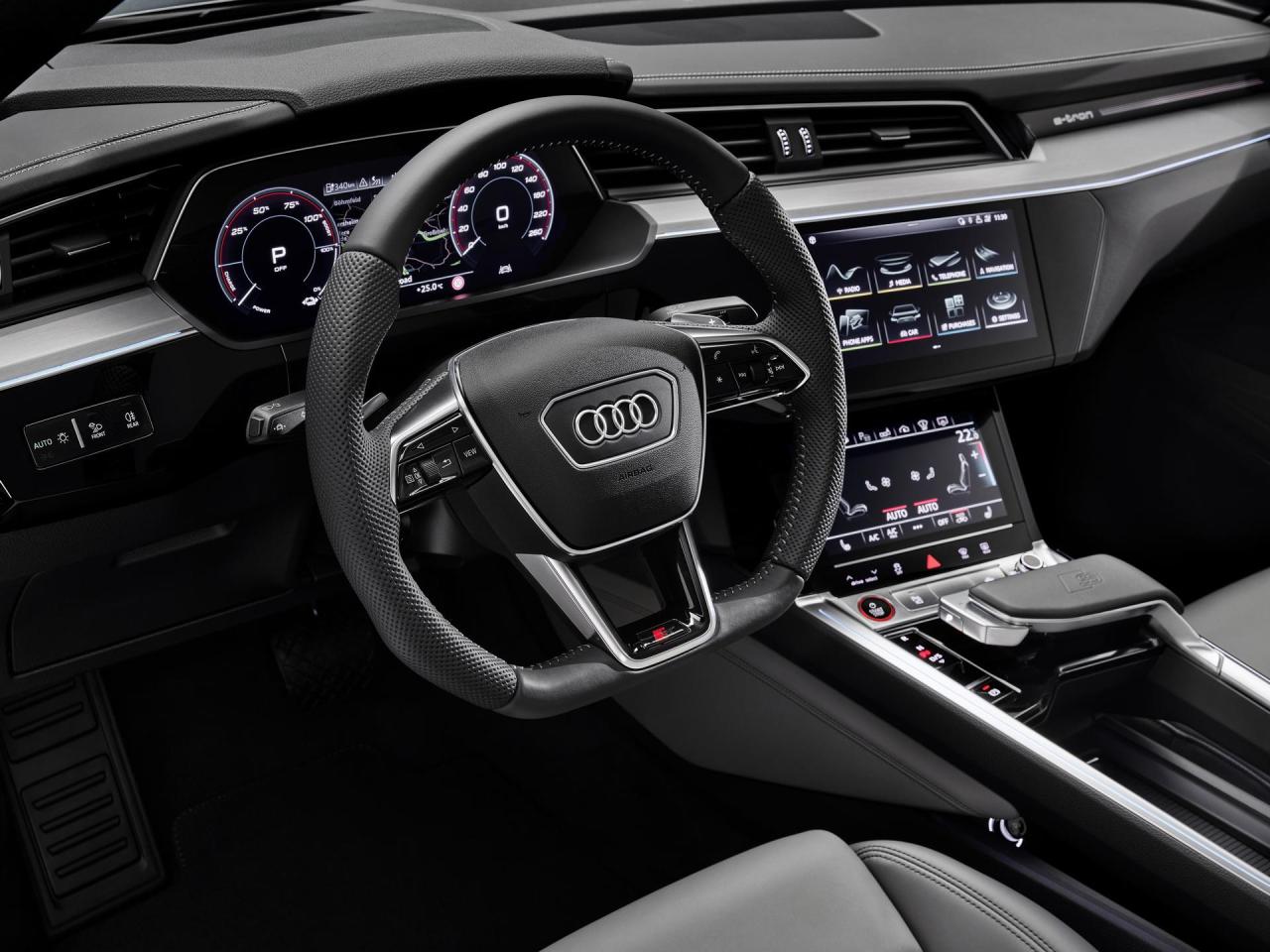

New steering wheel: even more convenience with adaptive cruise assist

The updated steering wheels make driving even more convenient. The driver only has to lightly touch the touch-sensitive rim once per minute with his or her hand to ensure that the lateral guidance of the adaptive cruise assist remains active. The driver remains fully responsible for steering the vehicle, however. The high-end system, which uses data from the central driver assistance controller (zFAS), can keep the Audi e-tron centered in the lane. It also manages longitudinal guidance across the entire speed range. It supports the driver with accelerating, braking, maintaining speed, keeping distance and in traffic jam situations.

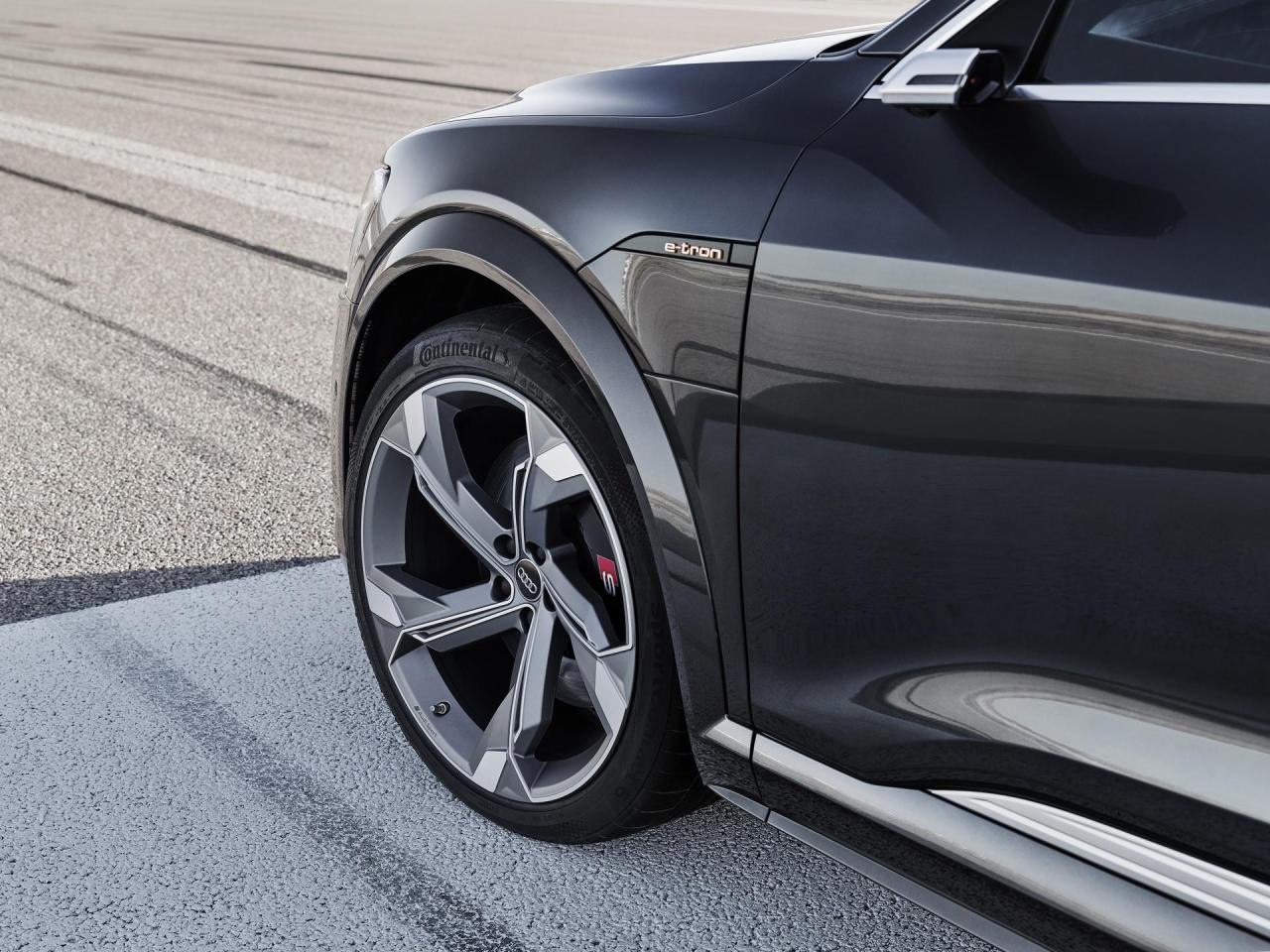

New size for the S models: 22-inch wheels

The Audi e-tron S⁵ and the Audi e-tron S Sportback⁶ come standard with 20-inch wheels, with 21-inch wheels available as an option. Audi Sport GmbH has now upped the ante – with 10.5Jx22 wheels and 285/35 series tires. The titanium gray wheels have a five-spoke structure and a gloss turned finish.

These new features for the e-tron models can be ordered immediately. Customers will begin receiving the improved vehicles toward the end of the year.

Audi





Press Release lancio:



Cita

• Sporty, elegant design and enhanced efficiency, drag coefficient of just 0.25
• 300 kW boost output, up to 446 kilometers (277.1 miles) range according to WLTP
• Innovative digital matrix LED headlight available in series production





“The future is electric:” Audi is staying consistently true to its strategic alignment by presenting the second model in its e-tron product line. The Audi e-tron Sportback is a dynamic SUV coupé offering up to 300 kW of power and a range of up to 446 kilometers (277.1 miles) ( in the WLTP cycle) from a single battery charge (combined electric power consumption in kWh/100 km (62.1 mi): 26.3 - 21.6 (WLTP); 23.9 – 20.6 (NEFZ); combined CO₂ emissions in g/km (g/mi): 0). Its digital matrix LED headlights are a new feature now available for the first time in a mass-production vehicle. Their light is broken down into tiny pixels and can be controlled with exceptional precision. This makes safe lane centering easier on narrow stretches of road and shows the position of the vehicle in the lane. Market introduction of the Audi e-tron Sportback** in Europe is scheduled for the spring of 2020.



* Information on fuel/power consumption and CO₂ emissions in ranges depending on the chosen equipment level of the car.
** The collective fuel consumption values of all models named and available on the German market can be found in the list provided at the end of this MediaInfo.

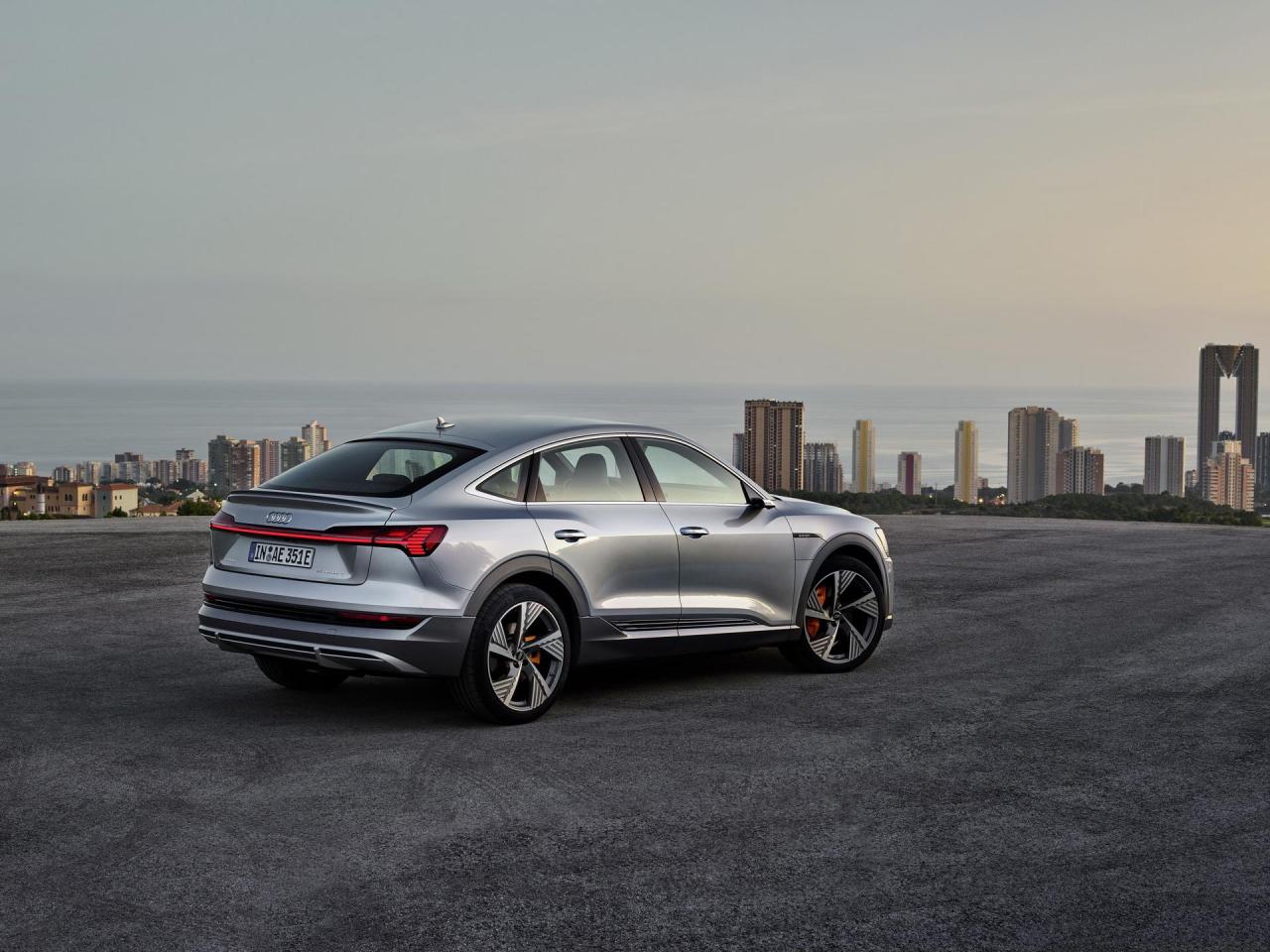

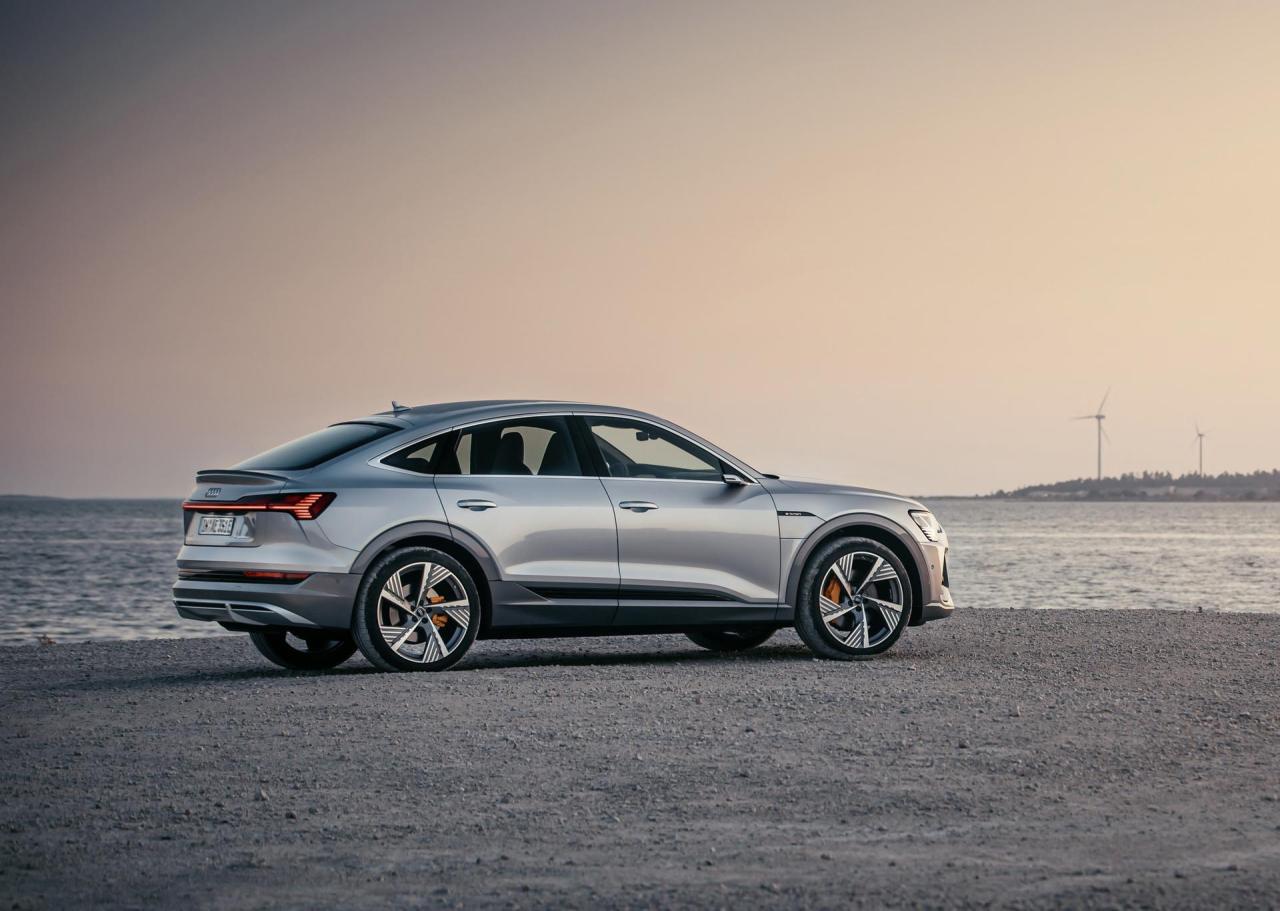

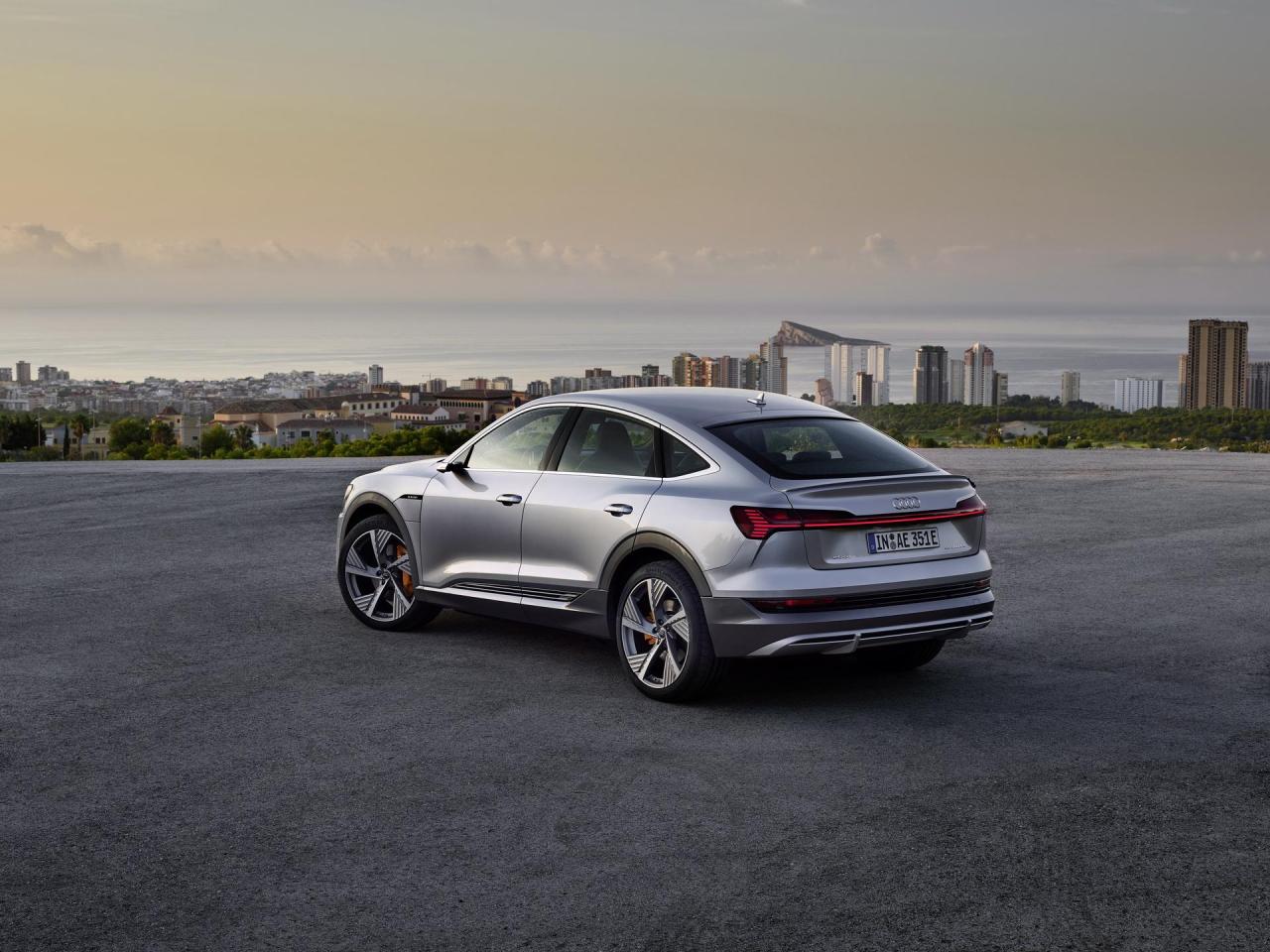

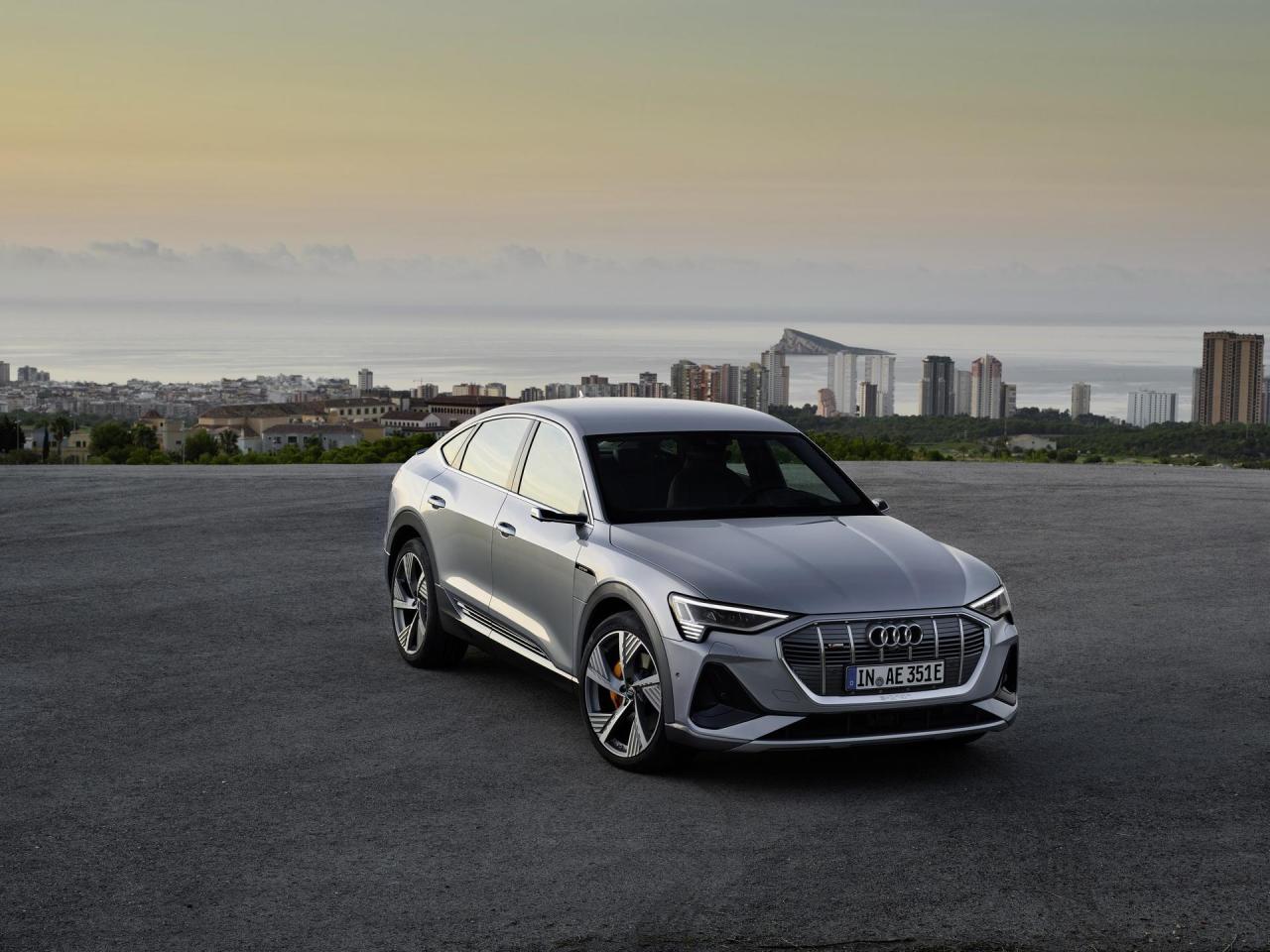

Elegant, efficient, expressive: the exterior design

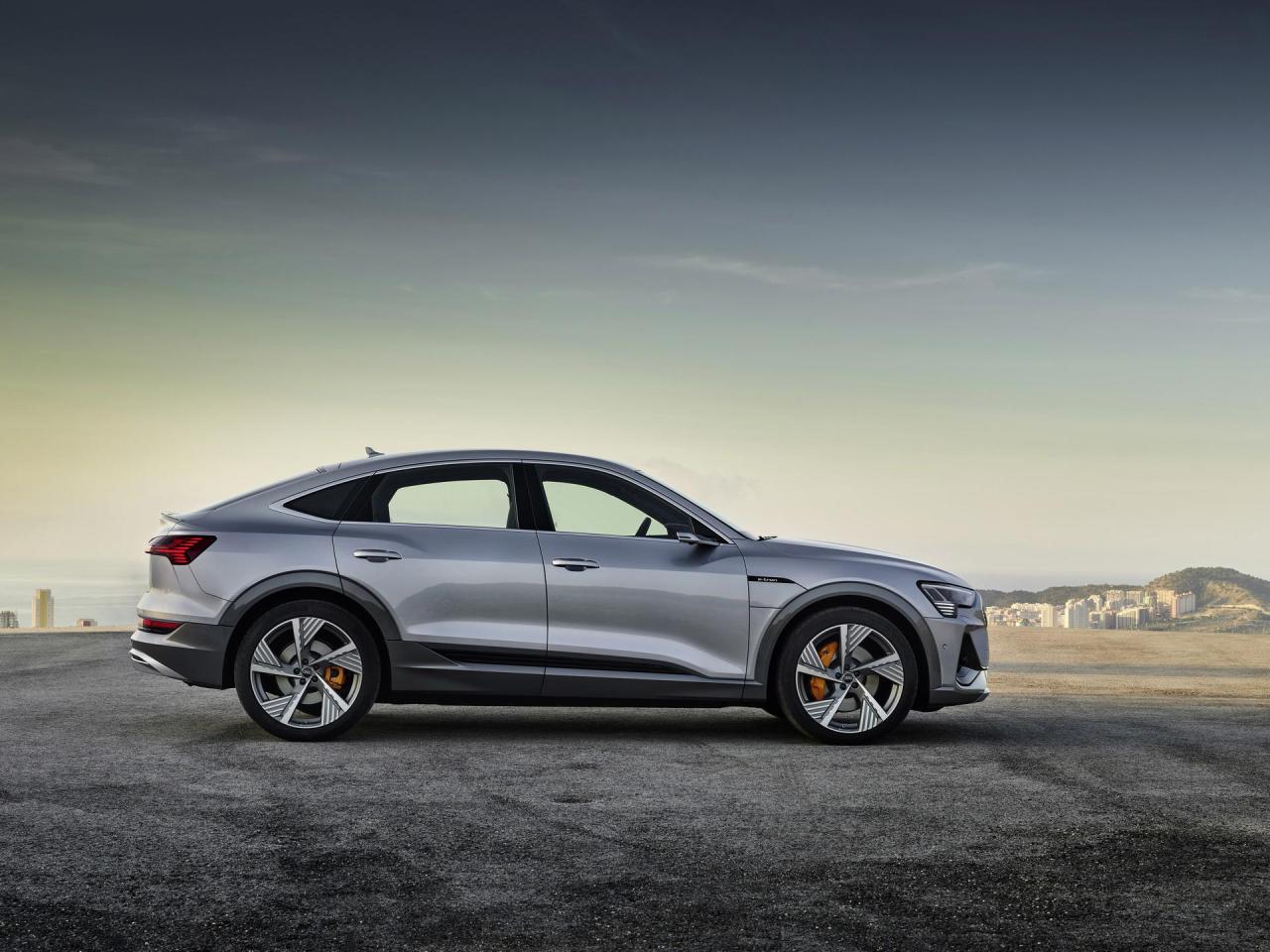

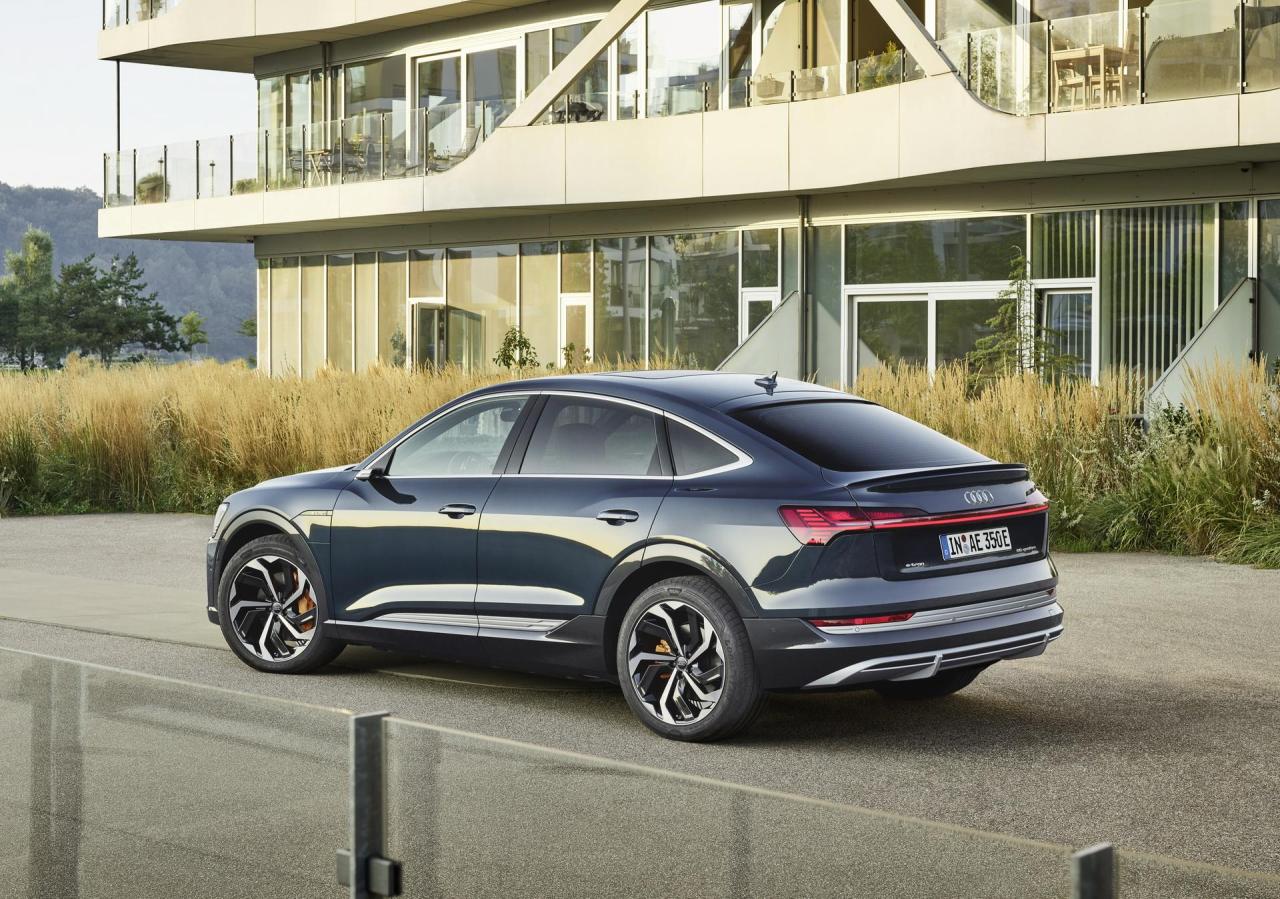

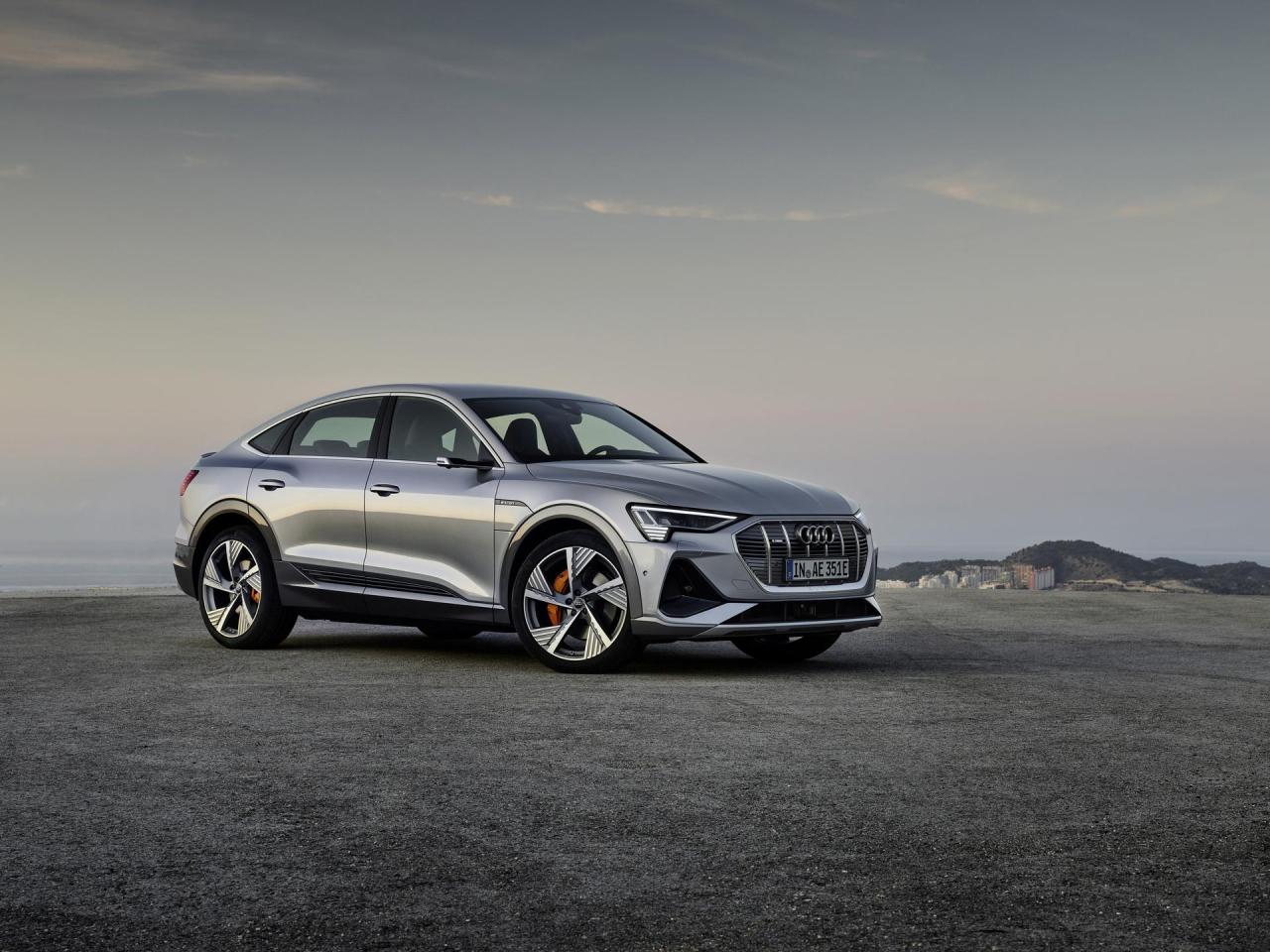

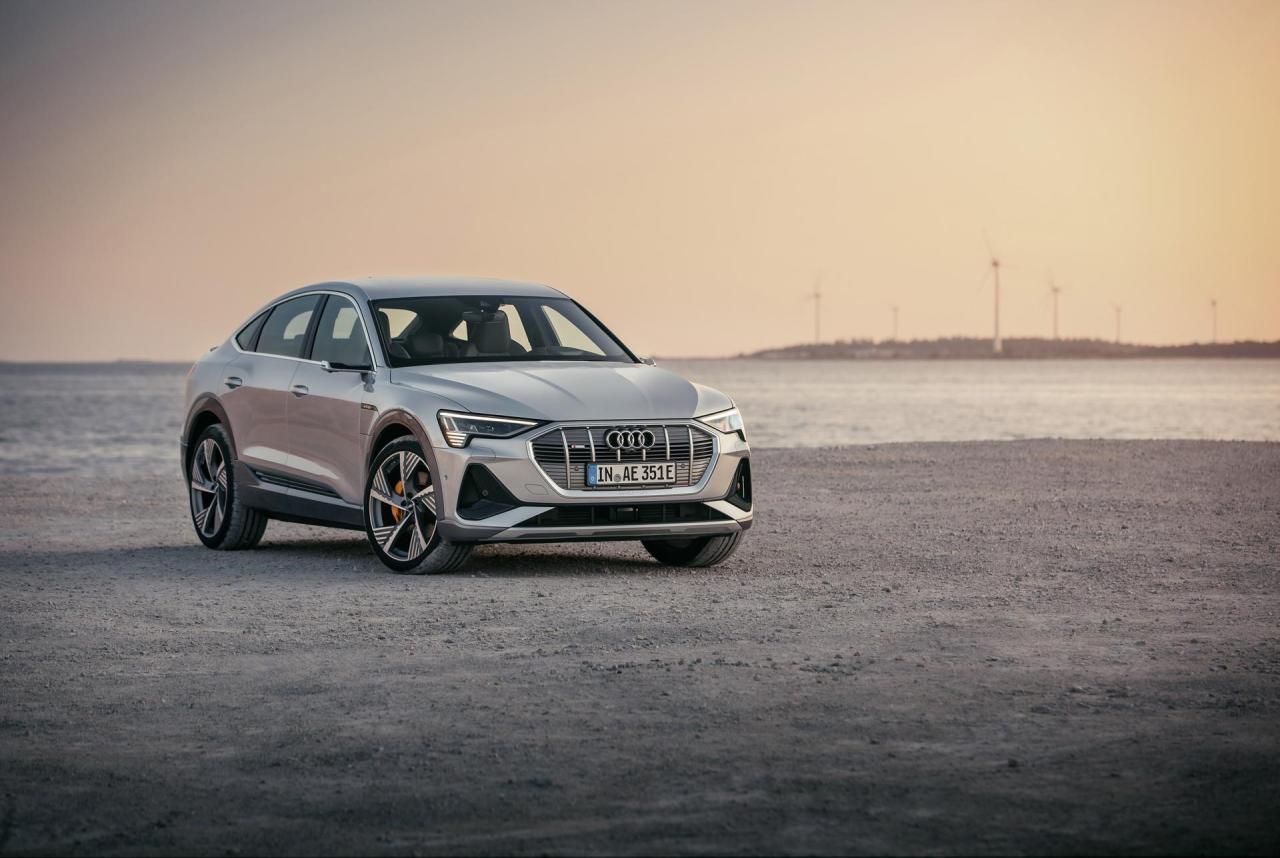

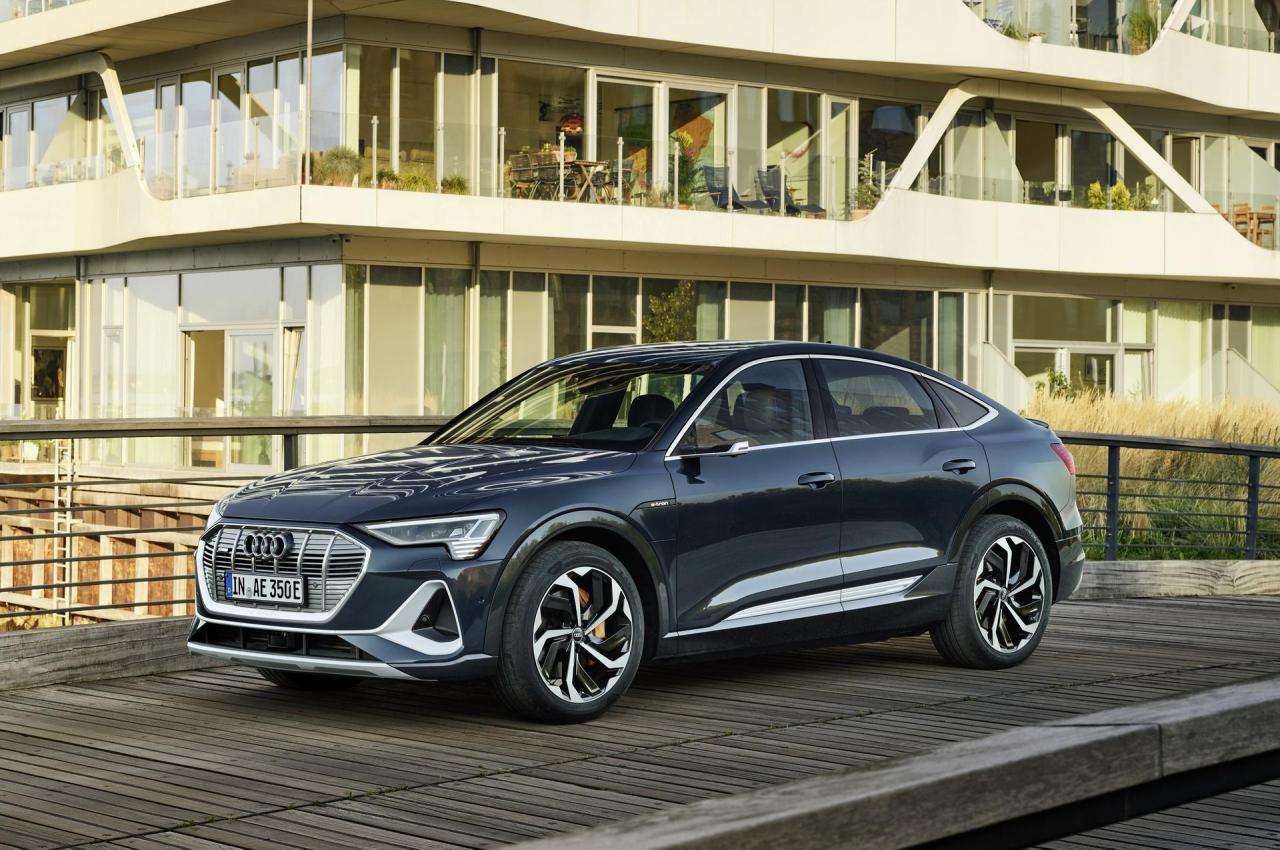

The Audi e-tron Sportback** combines the power of a spacious SUV with the elegance of a four-door coupé and the progressive character of an electric car. It is 4,901 millimeters (16.1 ft) long, 1,935 millimeters (6.3 ft) wide and 1,616 millimeters (5.3 ft) high. Its roof extends flat over the muscular body, dropping down steeply to the rear—in typical coupé style— and flowing into the steeply raked D-pillars. The lower edge of the third side window rises towards the rear—a typical Sportback feature.

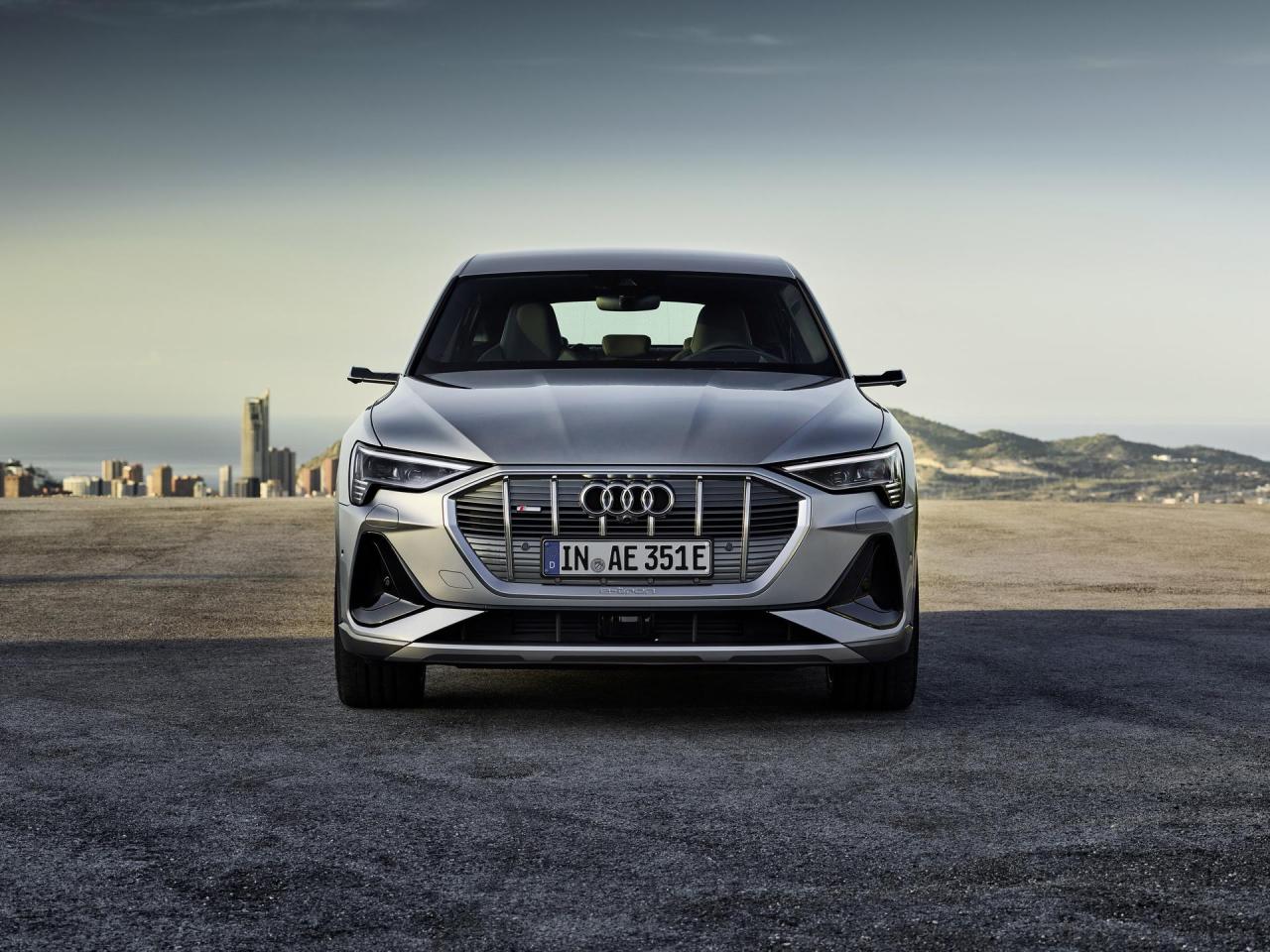

With the octagonal Singleframe, the powerful contours above the wheels, and the sculptural rear end, the Audi e-tron Sportback** is perfectly aligned with the brand’s design idiom. Details signal to the outside world that the SUV coupé is fully electric. The largely enclosed Singleframe with its vertical struts is presented in a light platinum gray—a specific identifying feature of the e-tron models. In the lower area of the matrix LED headlights, four horizontal segments create the e-tron-specific signature in the daytime running lights. This is taken up at numerous points on the model and interpreted in three dimensions, for example, on the striking side sills. Their black inlays draw the eye to where the battery, and thus the energy center, of the Audi e-tron Sportback** can be found. The designers also varied the signature at the broad diffuser, drawing attention to the absence of exhaust tailpipes. A light strip connects the LED lights to one another.

A total of thirteen paint finishes are available for the all-electric drive SUV coupé, including the new color plasma blue, metallic, which is exclusive to the e-tron Sportback. The logo on the electric charging flap features the eye-catching high-voltage signal color orange, which can also be applied to the brake calipers on request. The wheel arch trims and sills are finished in matt anthracite as standard to underscore the off-road look. The same applies to the underbody protection, the diffuser, and the door sills, all of which are painted black. In the exterior line advanced, the attachments are finished in a contrasting gray or, as an option, in the body color. The underbody projection and diffuser then feature a matt silver tone.

The S line model places particular emphasis on the sporting DNA of the Audi e-tron Sportback**. It is equipped as standard with 20-inch wheels and sport air suspension. The more distinctively contoured bumper is flanked by more expressive air curtains, which improve the air flow. They extend below the headlights, thereby creating a dynamic appearance even from a distance. An S line emblem adorns the radiator grille, while the illuminated aluminum door sill trims feature an #S logo. At the rear end, the spoiler fitted as standard as well as a striking diffuser that extends across the entire vehicle width contribute to the outstanding vehicle aerodynamics.

In contrast to the basic model, the attachments on the S line exterior are painted in the exterior body color – including the wheel arch trims, door sills, bumpers and exterior mirrors. Audi also offers the black styling package that accentuates the area of the Singleframe, the side windows, and the bumper. The exterior mirror housings are also available in black as an option.

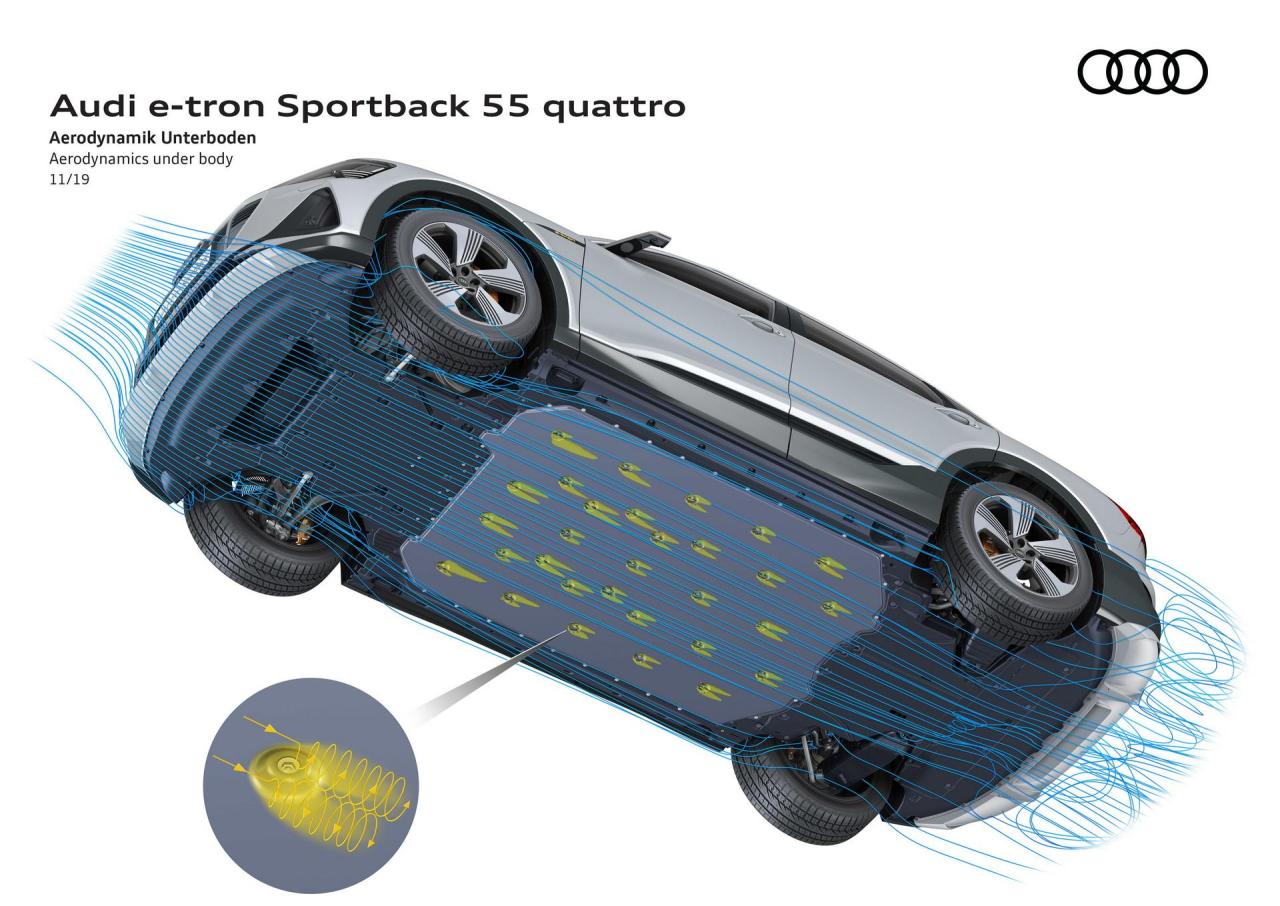

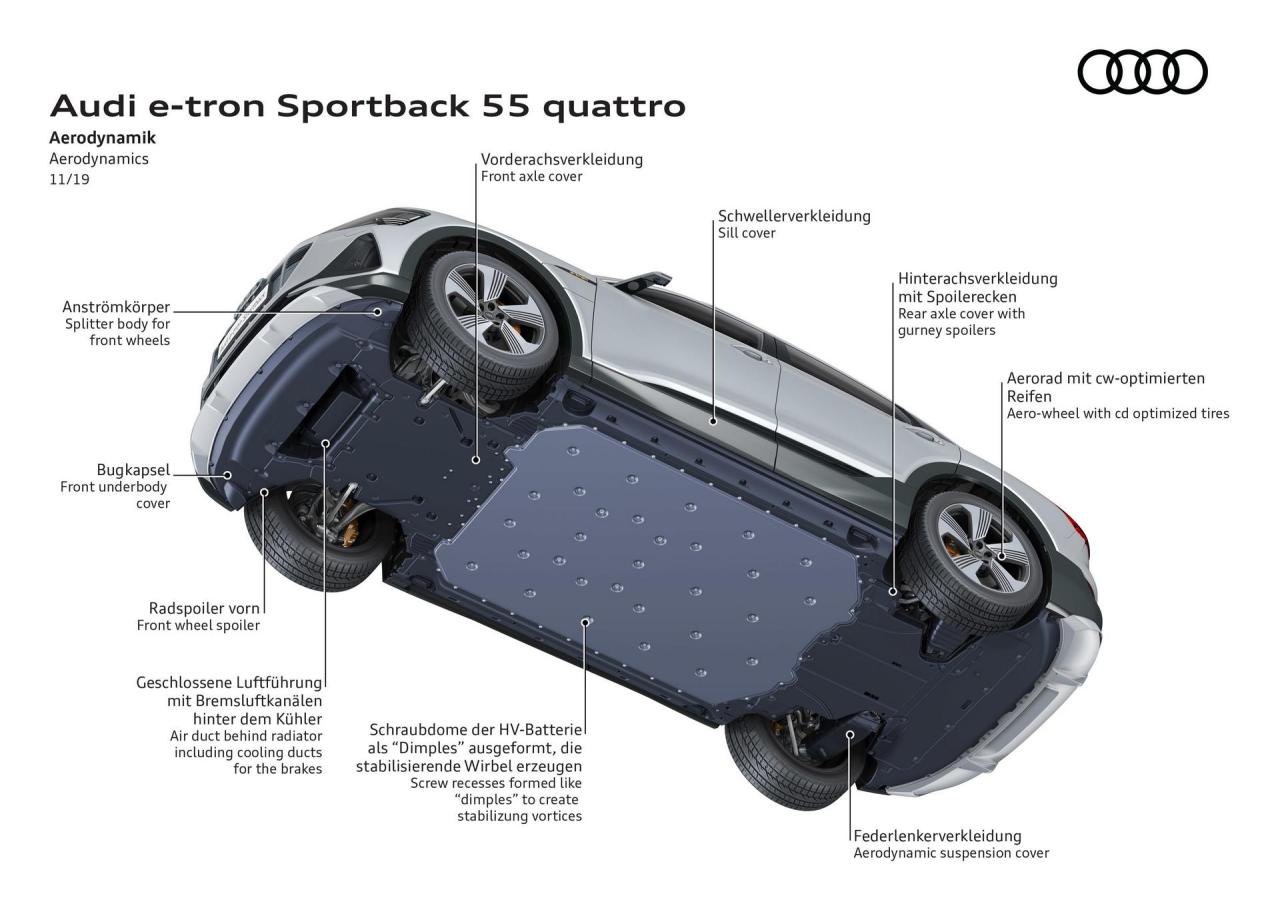

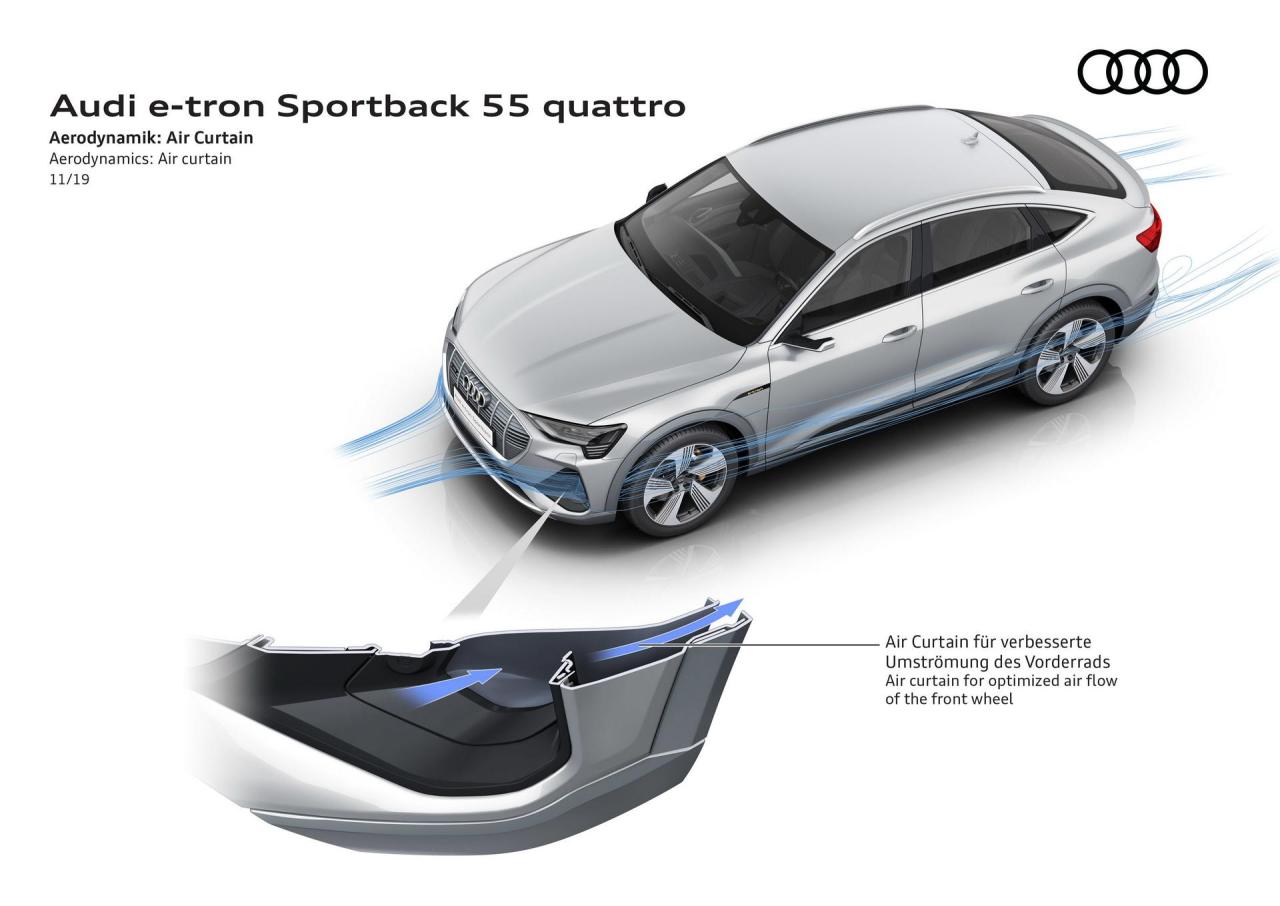

Drag coefficient 0.25: Top aerodynamics for extended range

The Audi e-tron Sportback** in conjunction with the S line exterior and virtual exterior mirrors achieves an outstanding drag coefficient value of just 0.25—even better than its Audi e-tron** sister model. This is primarily due to the coupé body shape and the associated lower aerodynamic drag behind the car. The high separating edge of the Sportback minimizes swirl in the air flow in this area, which ultimately also benefits consumption. In the WLTP cycle, the SUV coupé has a range of up to 446 kilometers (277.1 mi) on a single battery charge. Roughly 10 kilometers (6.2 miles) of the increased range compared to the e-tron can be attributed to the aerodynamically more favorable body. The optional virtual exterior mirrors, whose wing-shaped supports integrate small cameras, represent yet another efficiency factor. The captured images appear on high-contrast OLED displays in the transition between the instrument panel and the door. If the driver moves their finger toward the surface of the touch display, symbols are activated with which the driver can reposition the image. In addition, the mirrors adjust automatically to three driving situations: On the highway as well as during turning and parking maneuvers, they provide optimum visibility for each scenario. The aerodynamic refinement also extends to areas hidden from view. Among others, these include the controllable air intake with channels for cooling the front brakes, the aero wheels, and the fully lined underbody including the aluminum plate to protect the high-voltage battery.

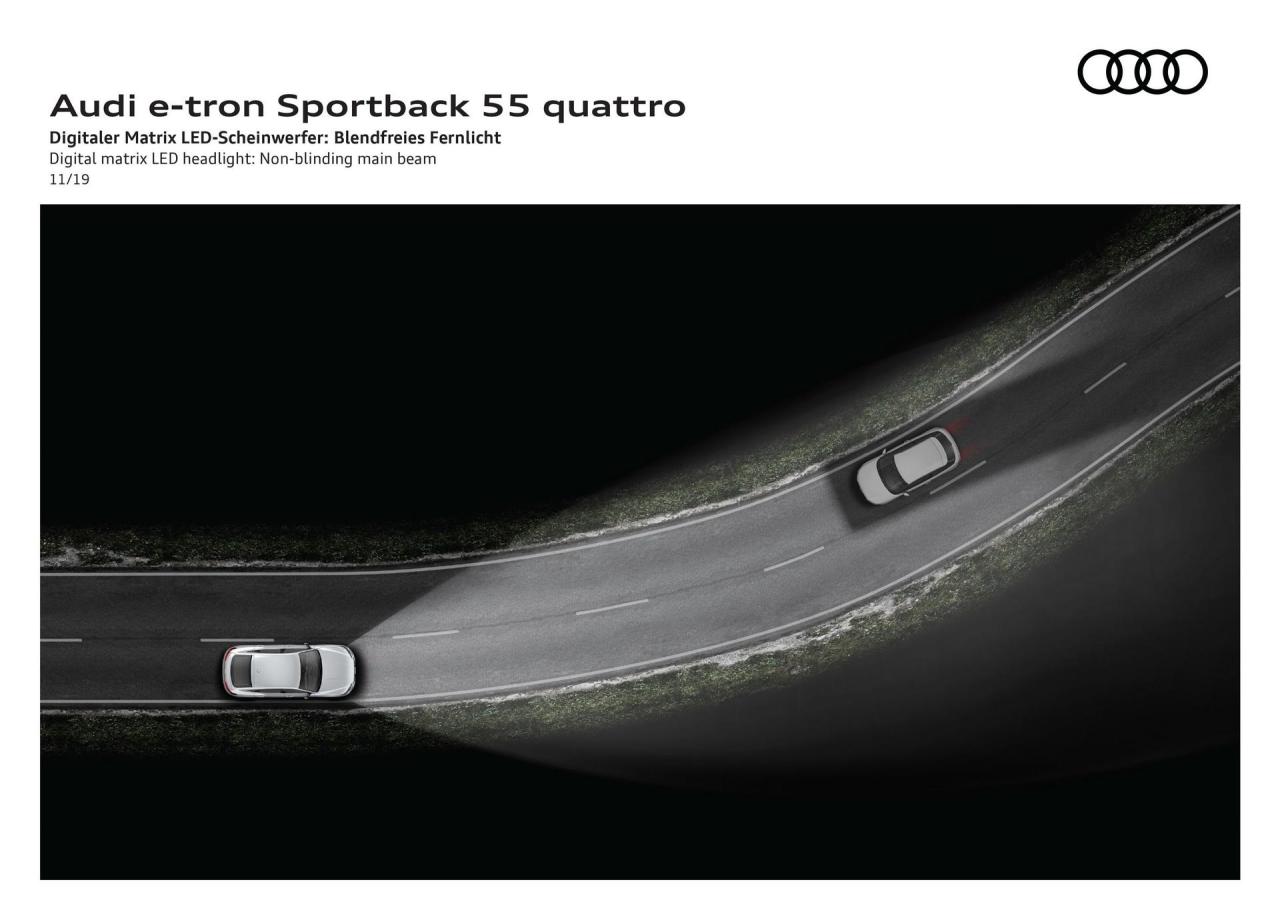

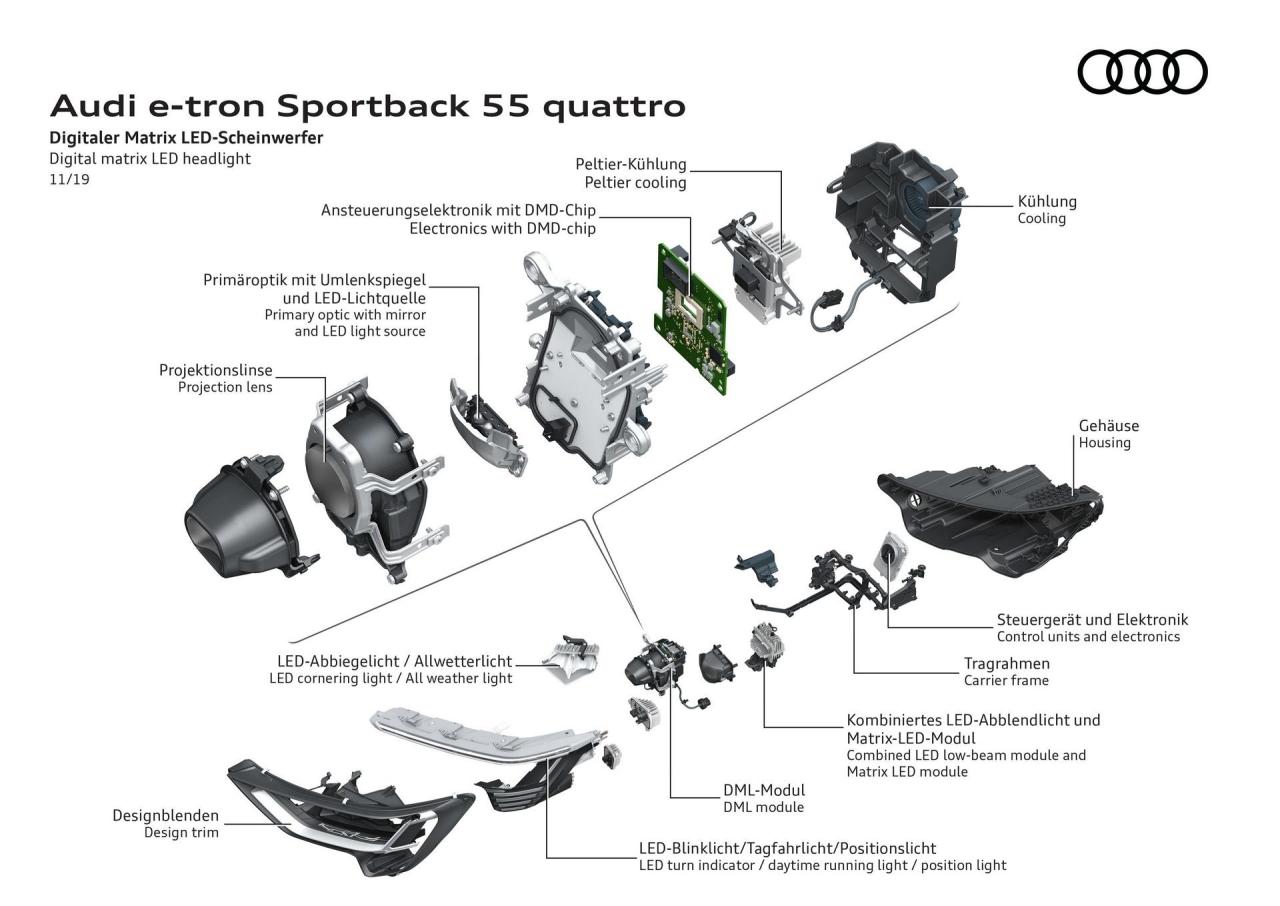

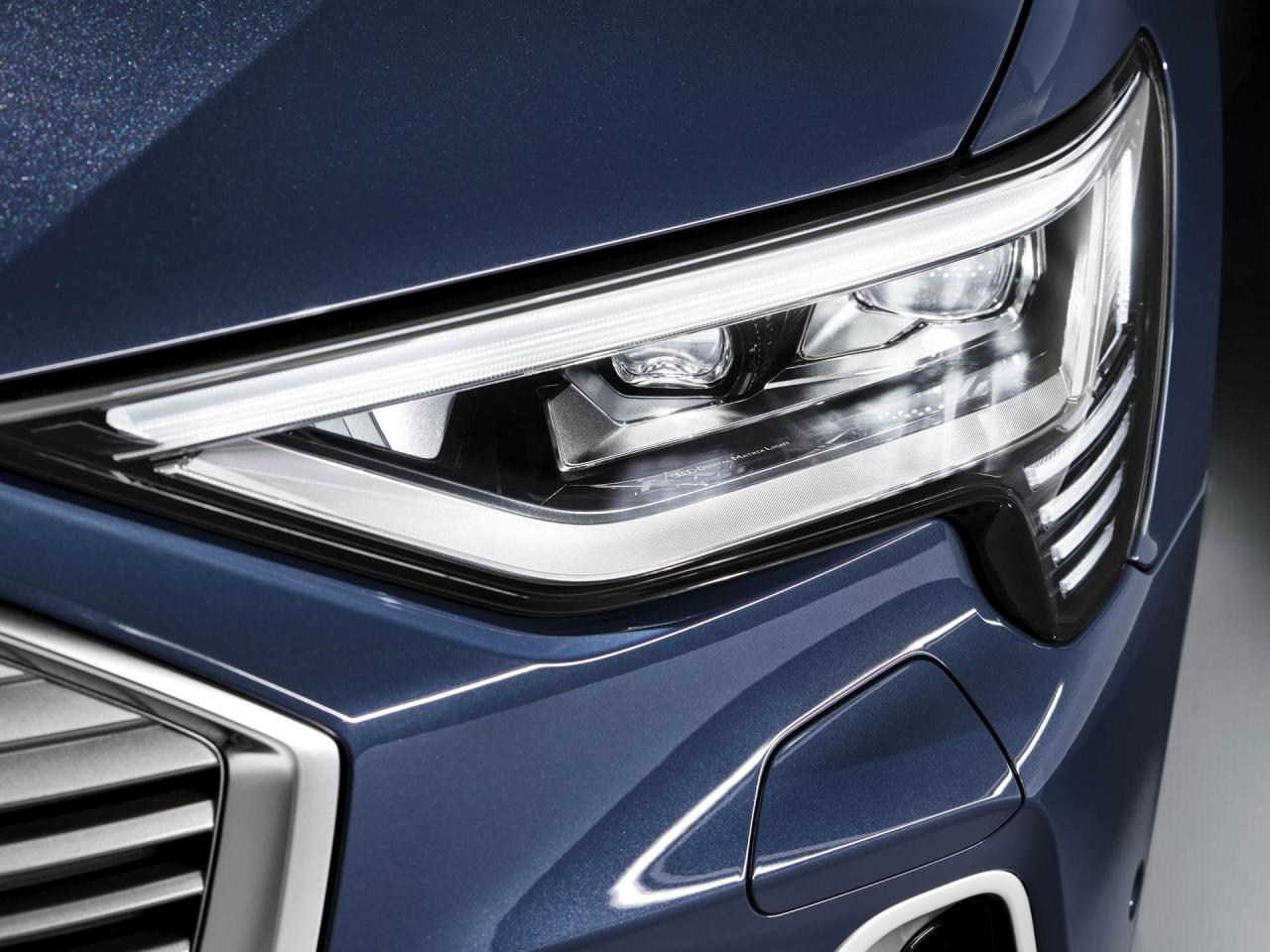

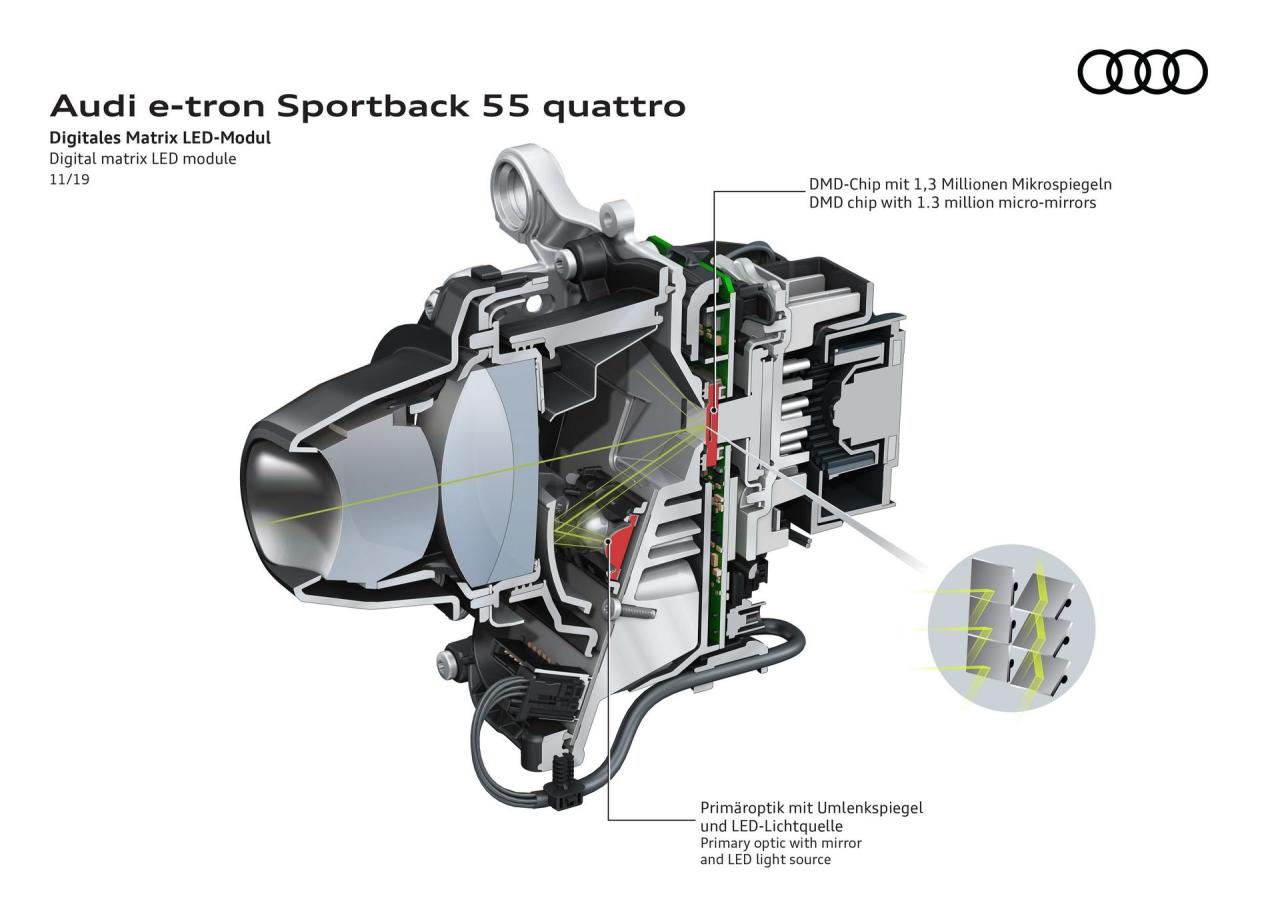

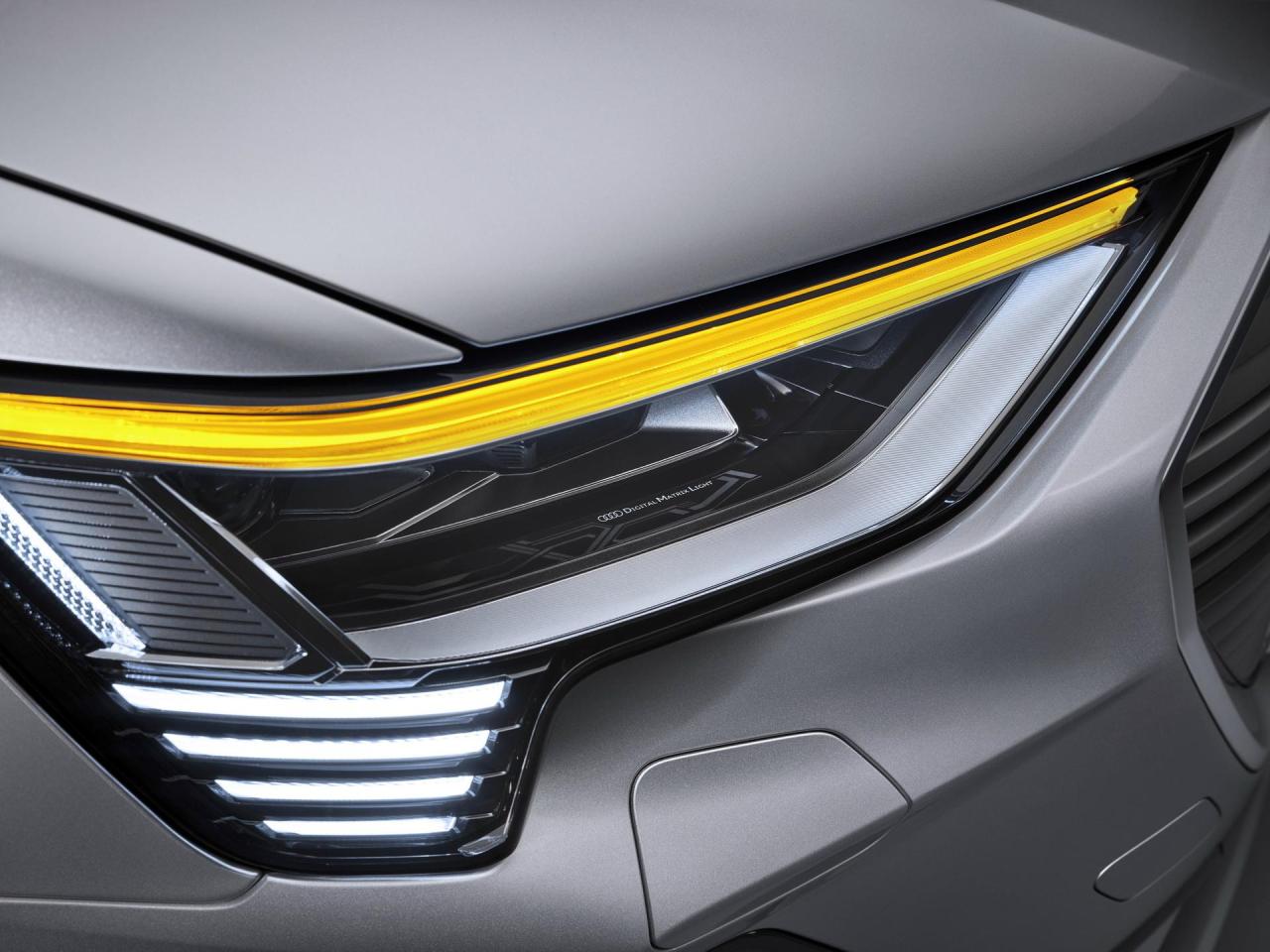

Global innovation in a production vehicle: The digital matrix LED headlights

With the digital matrix LED headlights as top-of-the range equipment, Audi presents a worldwide first in a production vehicle: Broken down into minute pixels, their light can illuminate the road in high resolution. The design is based on a technology abbreviated as DMD (digital micromirror device) and is also used in many video projectors. At its heart is a small chip containing one million micromirrors, each of whose edge length measures just a few hundredths of a millimeter. With the help of electrostatic fields, each individual micromirror can be tilted up to 5,000 times per second. Depending on the setting, the LED light is either directed via the lenses onto the road or is absorbed in order to mask out areas of the light beam.

In the Audi e-tron Sportback**, the digital light —that will go into series production this year—performs multiple tasks. It can generate dynamic leaving- and coming-home animations that appear as projections on a wall or on the ground. This presentation transforms the area in front of the car into a carefully illuminated stage. Not only does the digital light system deliver cornering, city, and highway lighting as versions of the low-beam light with exceptional precision, it also supplements the high-beam light by masking out other road users with even greater accuracy. Above all, however, it offers innovative functions such as lane light and orientation light. On highways, the lane light creates a carpet of light that illuminates the driver’s own lane brightly and adjusts dynamically when he or she changes lane. In this way, it improves the driver’s awareness of the relevant lane and contributes to improved road safety. In addition, the orientation light uses darkened areas masked out from the light beam to predictively show the vehicle’s position in the lane, thereby supporting—especially on narrow roads or in highway construction zones—the safe lane centering assist. The marking light function is also used in conjunction with the optional night vision assist. The light automatically draws attention to any pedestrians it detects, thereby reducing the danger of overlooking pedestrians in the immediate vicinity of the lane.

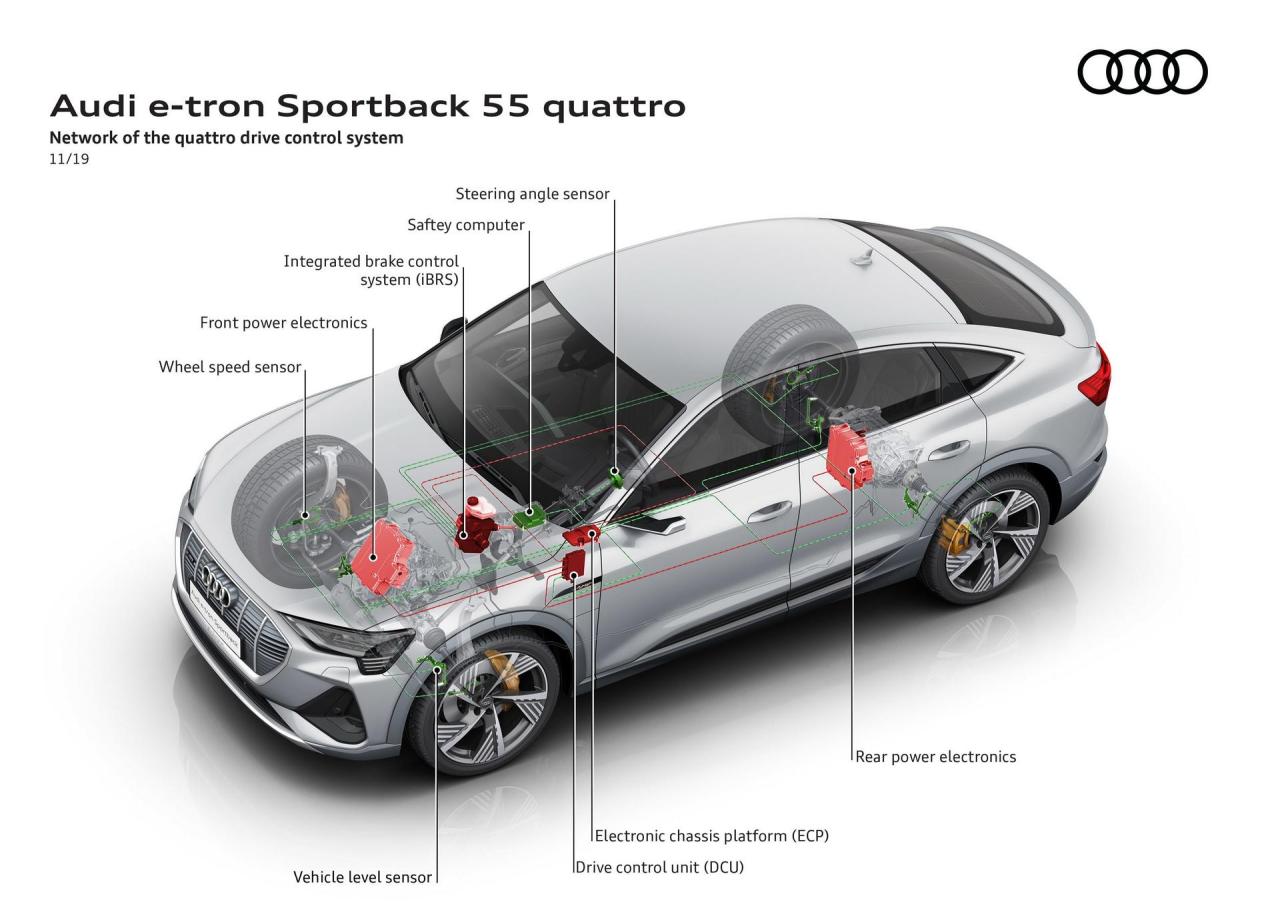

Sporty efficiency: Electric motors, electric all-wheel drive, suspension

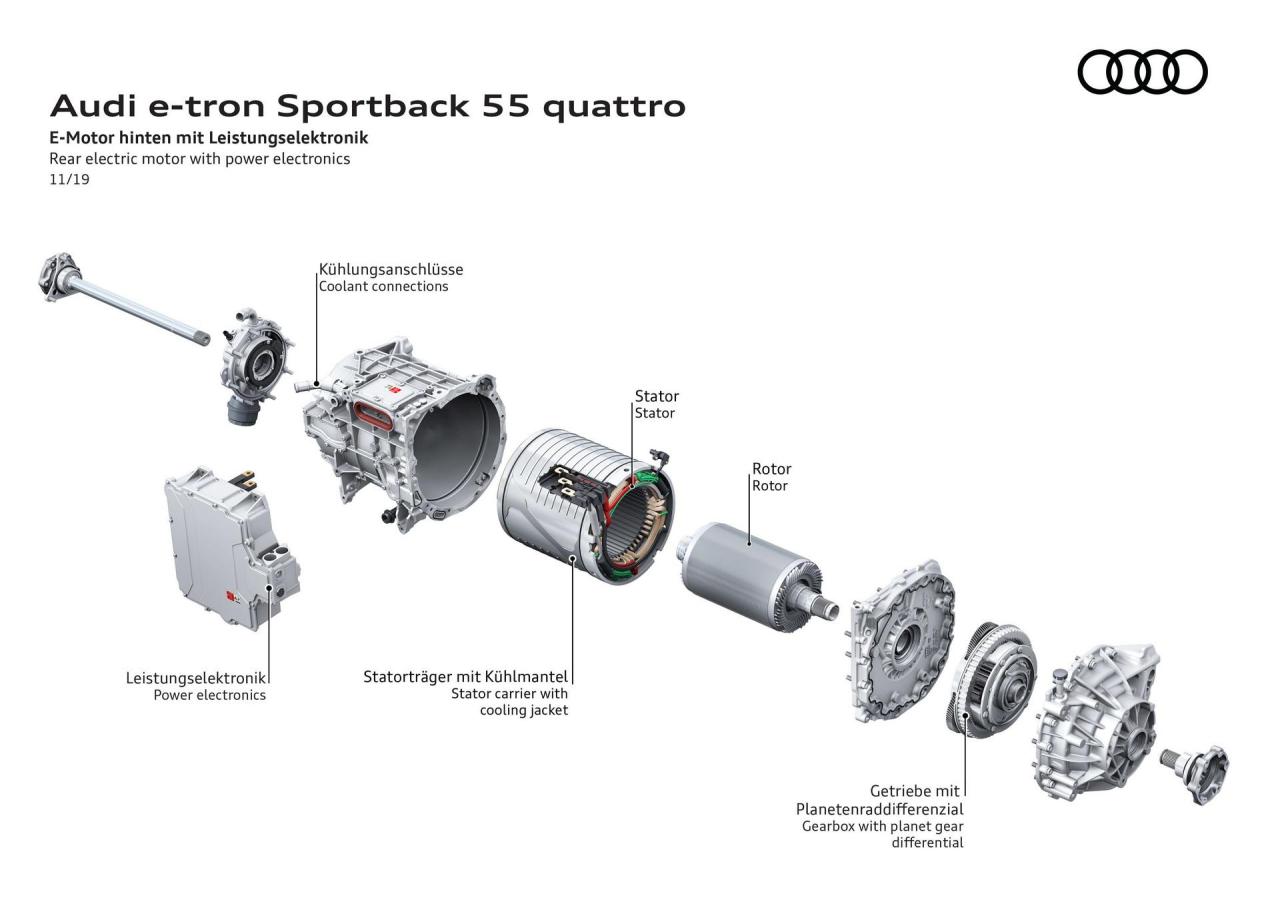

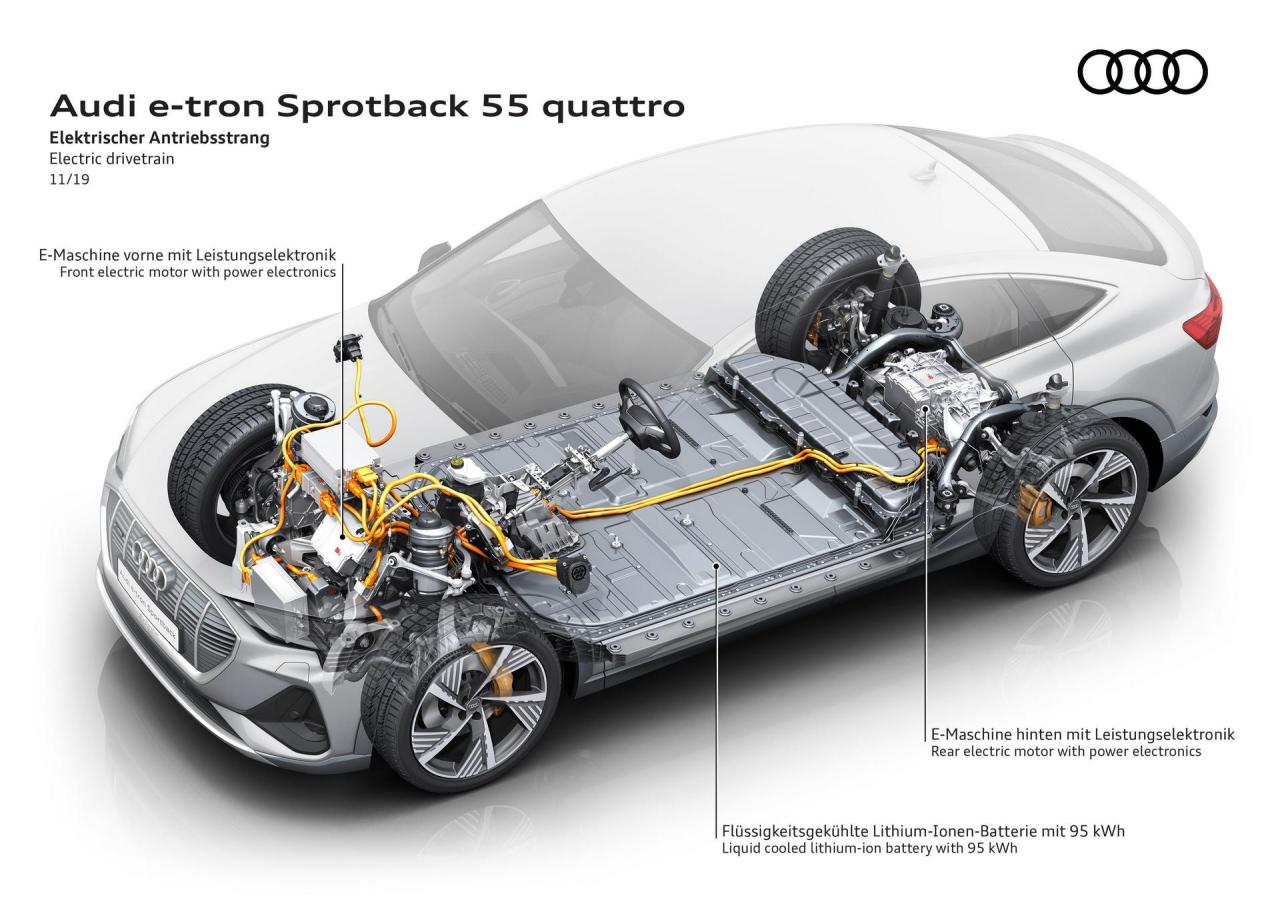

The Audi e-tron Sportback 55 quattro** allows the driver to savor the interaction of efficiency, performance, and supreme calm. Each axle is fitted with an asynchronous electric motor that is fed with three-phase current by the power electronics. With an output of 265 kW and 561 Nm (413.8 lb-ft) of torque (combined electric power consumption in kWh/100 km (62.1 mi)*: 26.0 – 21.9 (WLTP); 22.7 – 20.6 (NEFZ); combined CO₂ emissions in g/km: 0), the two standard electric motors pack a powerful punch in launching the SUV coupé from a standstill – locally emissions-free and in virtual silence. The Audi e-tron Sportback 55 quattro takes just 6.6 seconds (combined electric power consumption in kWh/100 km (62.1 mi)*: 26.0 – 21.9 (WLTP); 22.7 – 20.6 (NEFZ); combined CO₂ emissions in g/km: 0) to reach 100 km/h (62.1 mph), and its top speed is electronically limited to 200 km/h (124.3 mph). By shifting from drive range D to S and fully depressing the accelerator pedal, the driver can activate boost mode. Here, the drive generates 300 kW of output and 664 Nm (489.7 lb-ft) of torque for eight seconds. This enables the SUV coupé to sprint from 0 to 100 km/h (62.1 mph) in 5.7 seconds. Two-stage planetary gearboxes with one gear range transfer the torque from the electric motors to the axles. A switch, which the driver can operate with the thumb and forefinger, is used to select the gears. It is embedded in an elegant lever that is set low above the center tunnel and serves as a hand rest.

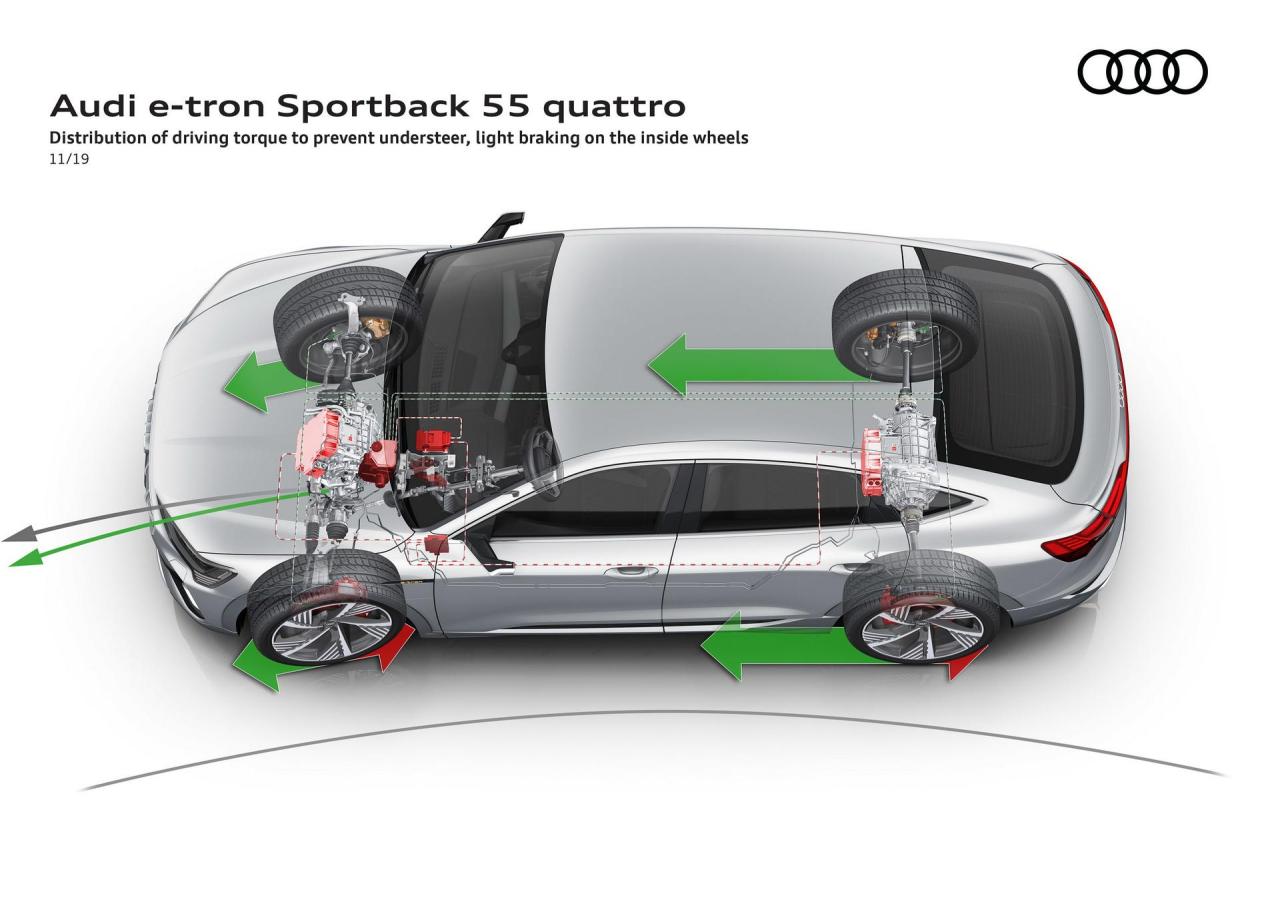

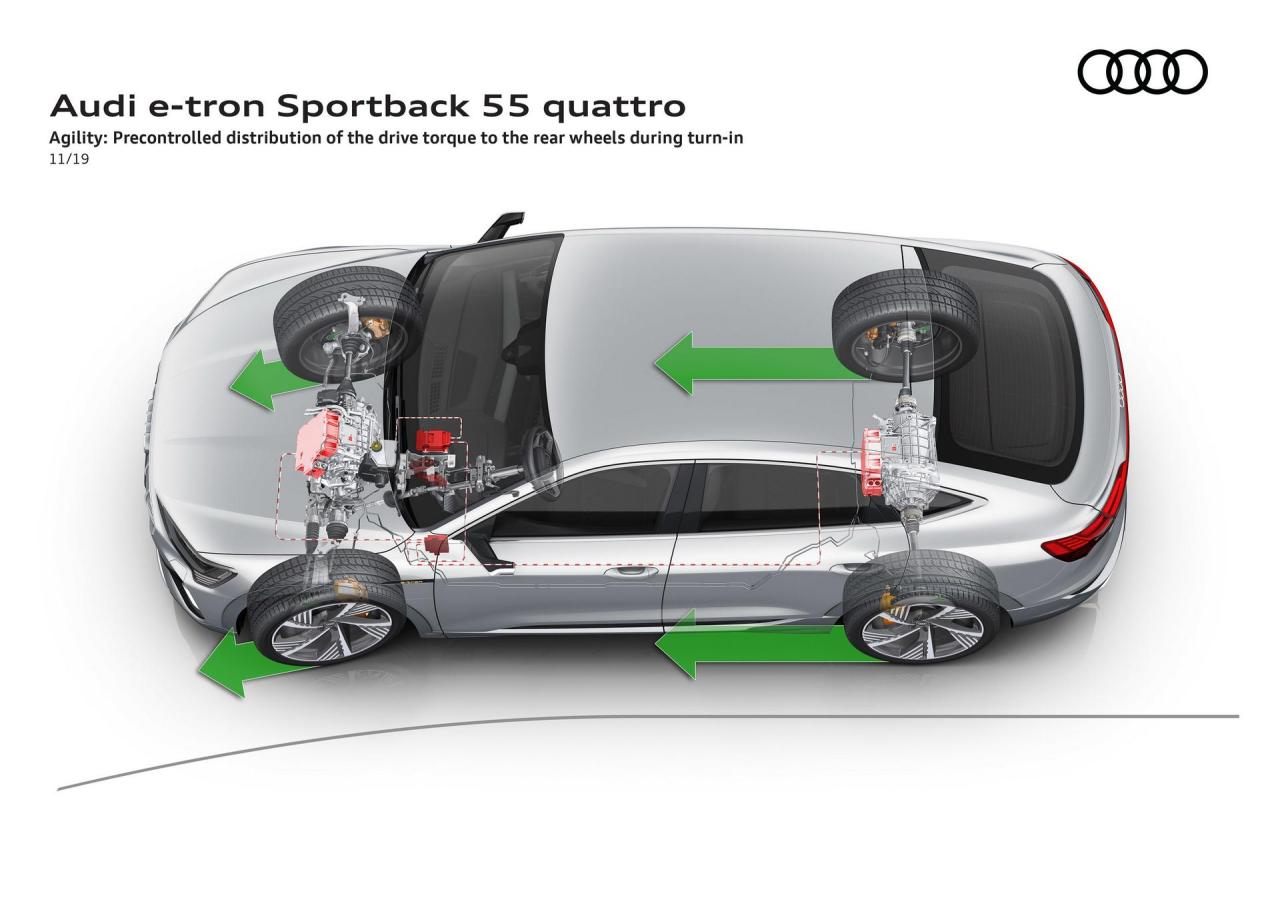

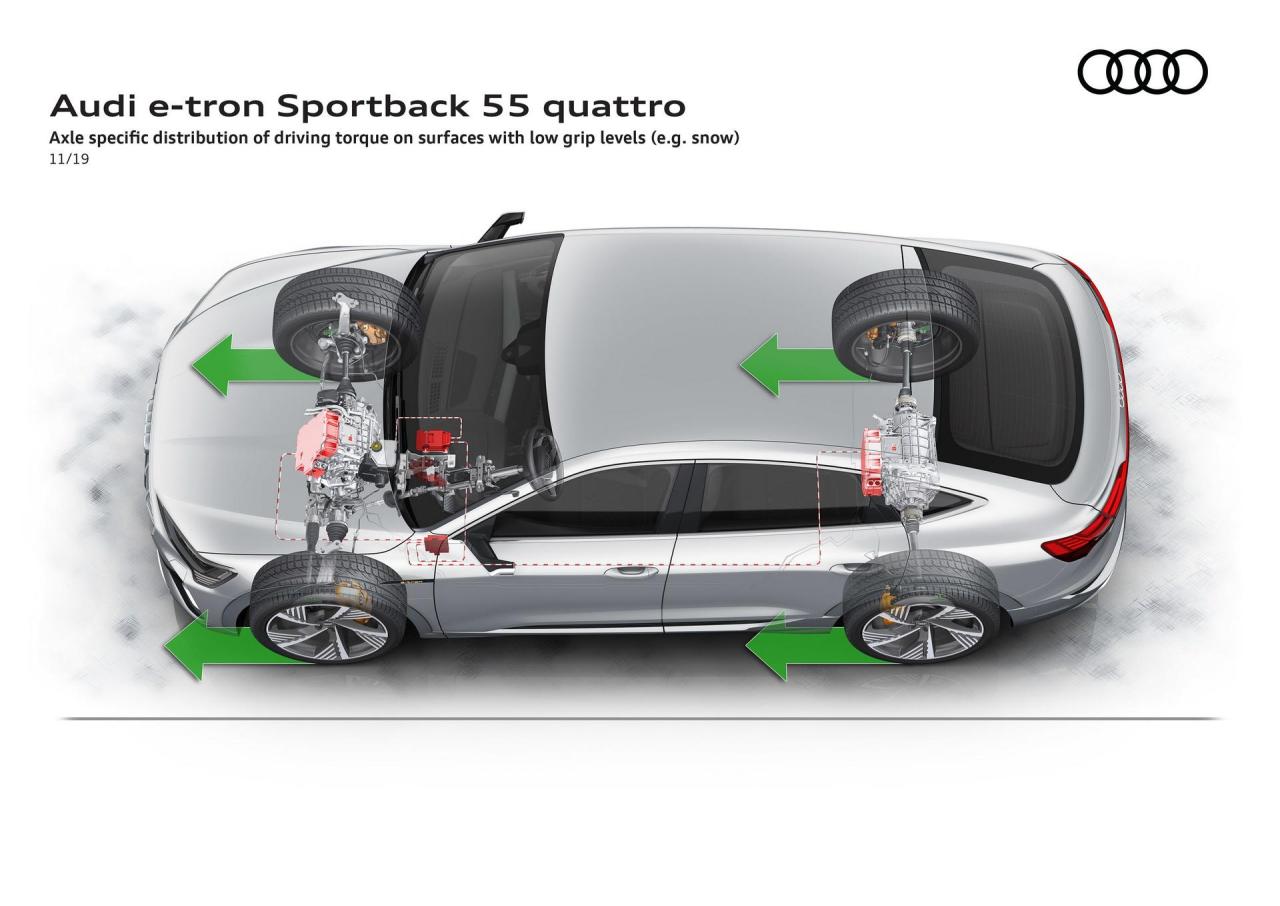

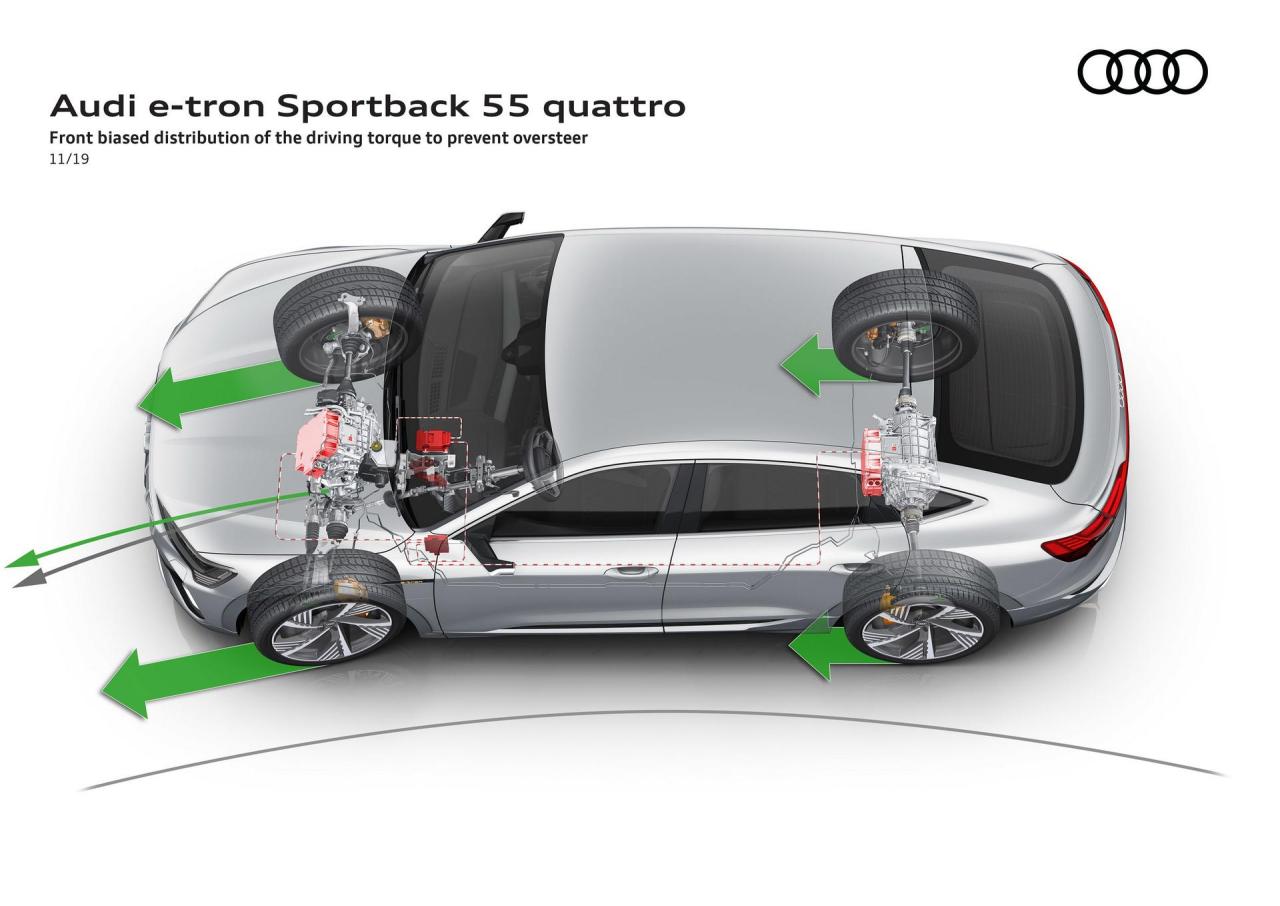

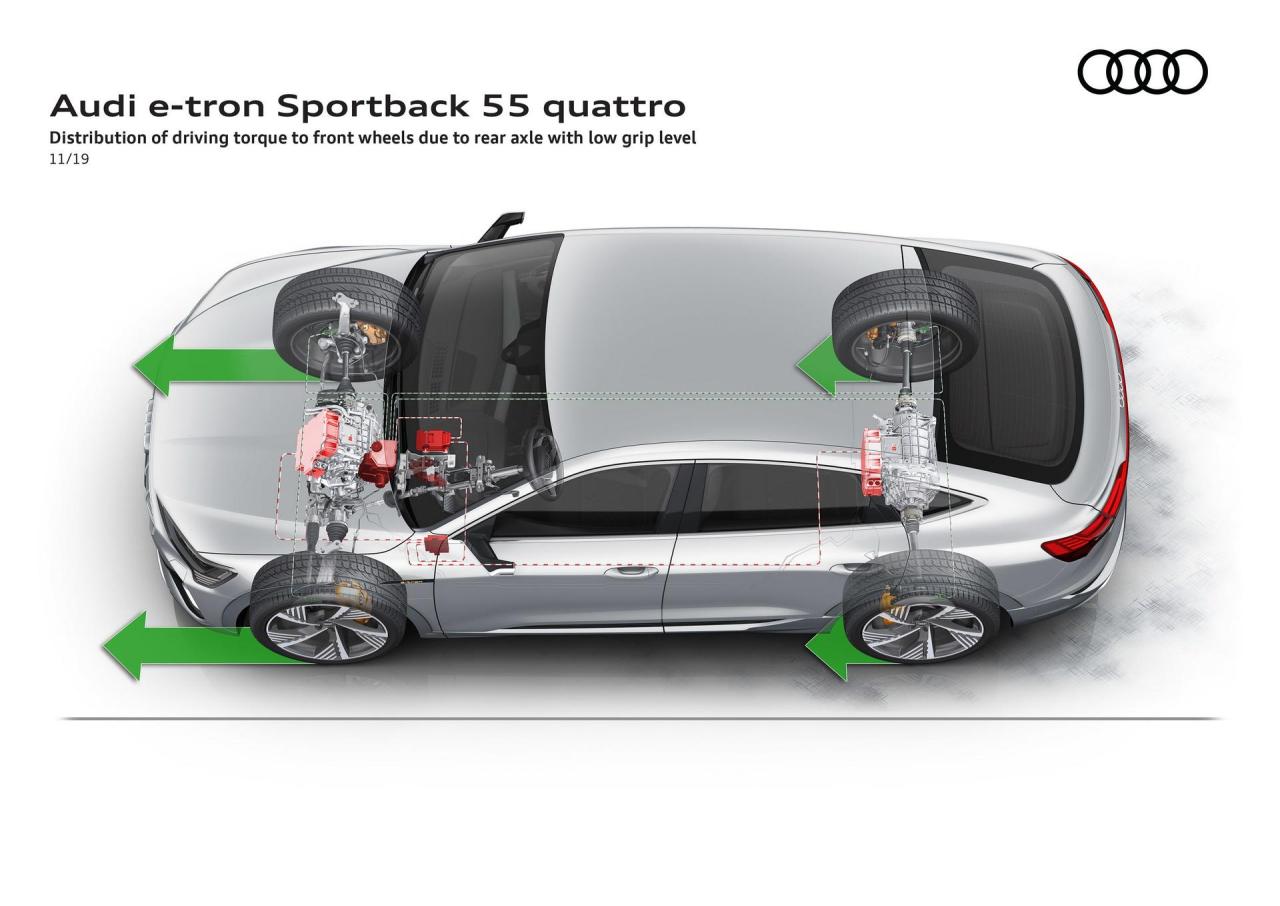

Electric all-wheel drive ensures outstanding traction and dynamism on any terrain. With it, Audi is writing a new chapter in the history of quattro drive. It continuously regulates the ideal drive torque distribution between both axles—within fractions of a second. In most driving situations, the Audi e-tron Sportback** relies exclusively on its rear electric motor—for exceptional efficiency. If the driver requests more output than it can provide, the front unit is instantly activated. This also happens predictively before slip occurs in icy conditions or when cornering fast, or if the car understeers or oversteers.

A key factor behind the sporty character and outstanding transverse dynamics is the low installation position of the drive components—resulting in a center of gravity that is much lower than in a conventional SUV. All of the heaviest components are concentrated in the center of the vehicle. The axle load distribution with a ratio of almost 50:50 is perfectly balanced; the self-steering behavior is neutral. With components such as the five-link suspensions, the progressive steering and the electrohydraulic brake system, the suspension combines the latest technologies, which together ensure agile vehicle handling and a high degree of comfort. The standard 255/55 R19 size tires stand out with their ultra-low rolling resistance. On request, tires of up to 22 inches will also be available from the middle of 2020—one size larger than on the e-tron.

The dynamic handling system Audi drive select—fitted as standard in the Audi e-tron Sportback**—allows the driver to switch the method of operation of multiple drive components between seven profiles. This creates a marked difference between smooth rolling comfort and sporty, stable handling. The adaptive air suspension with controlled dampers provides a major contribution to this versatile character. At higher speeds, the body is lowered, noticeably improving airflow around it and extending the vehicle’s range. In total, the system is capable of varying the ride height by up to 76 millimeters (3.0 in).

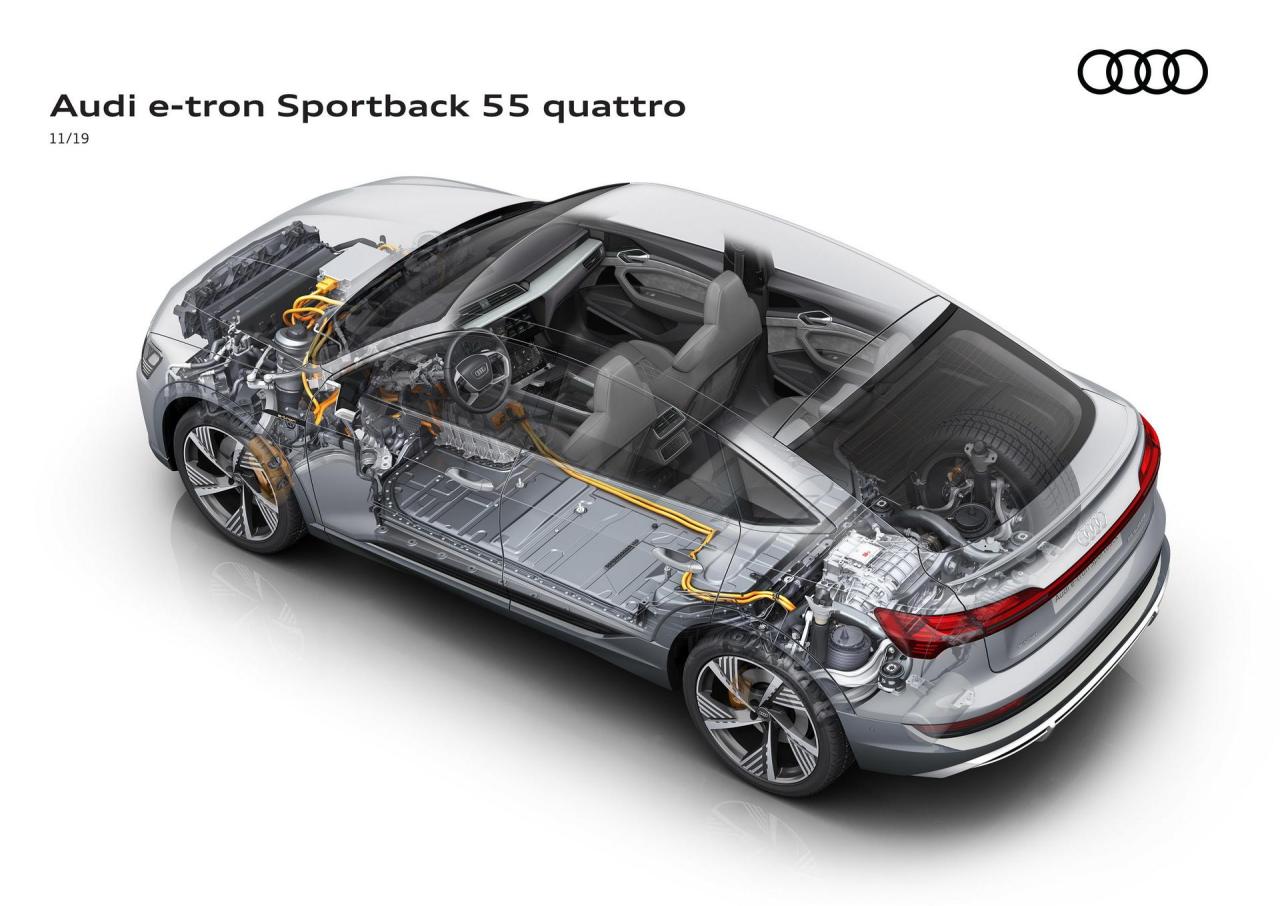

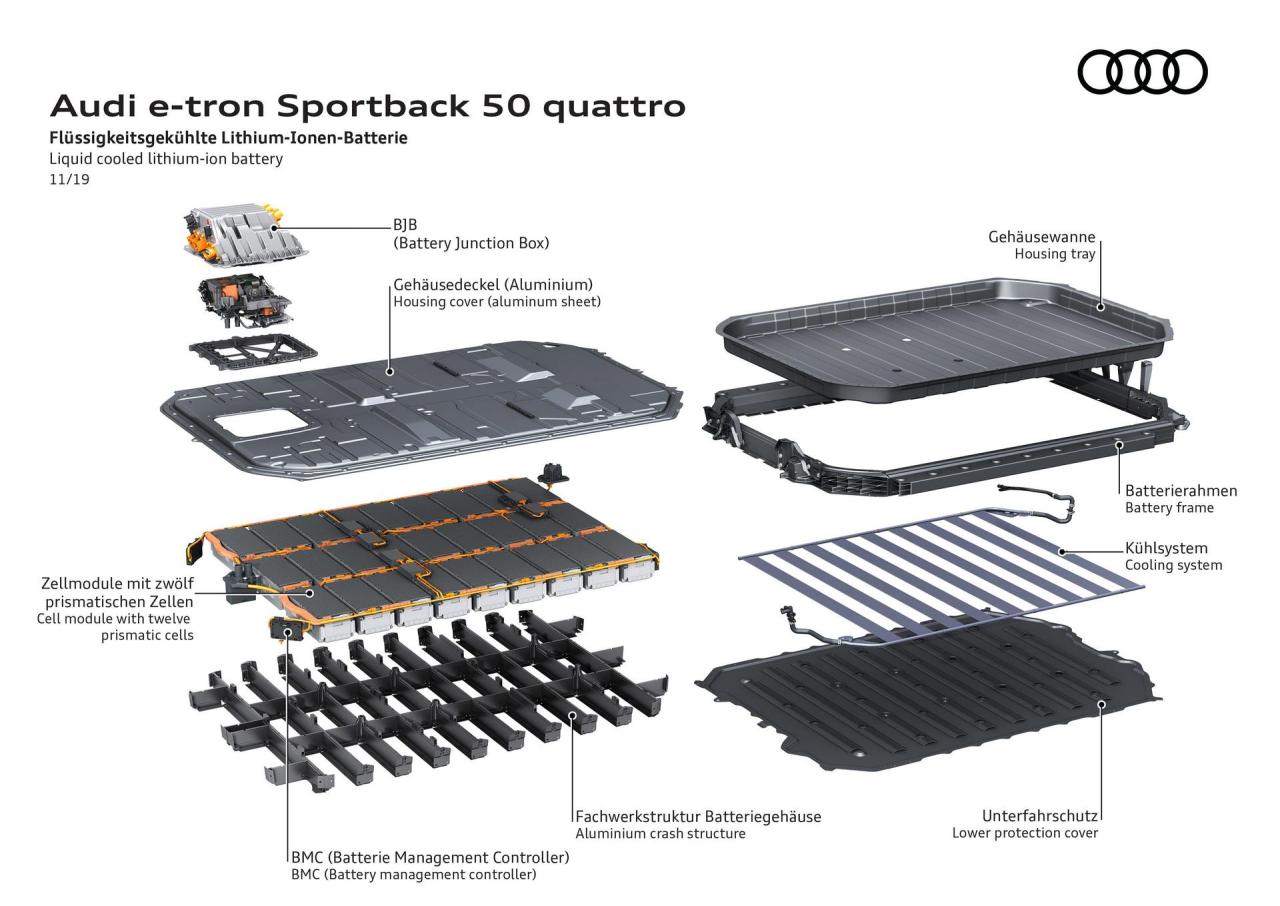

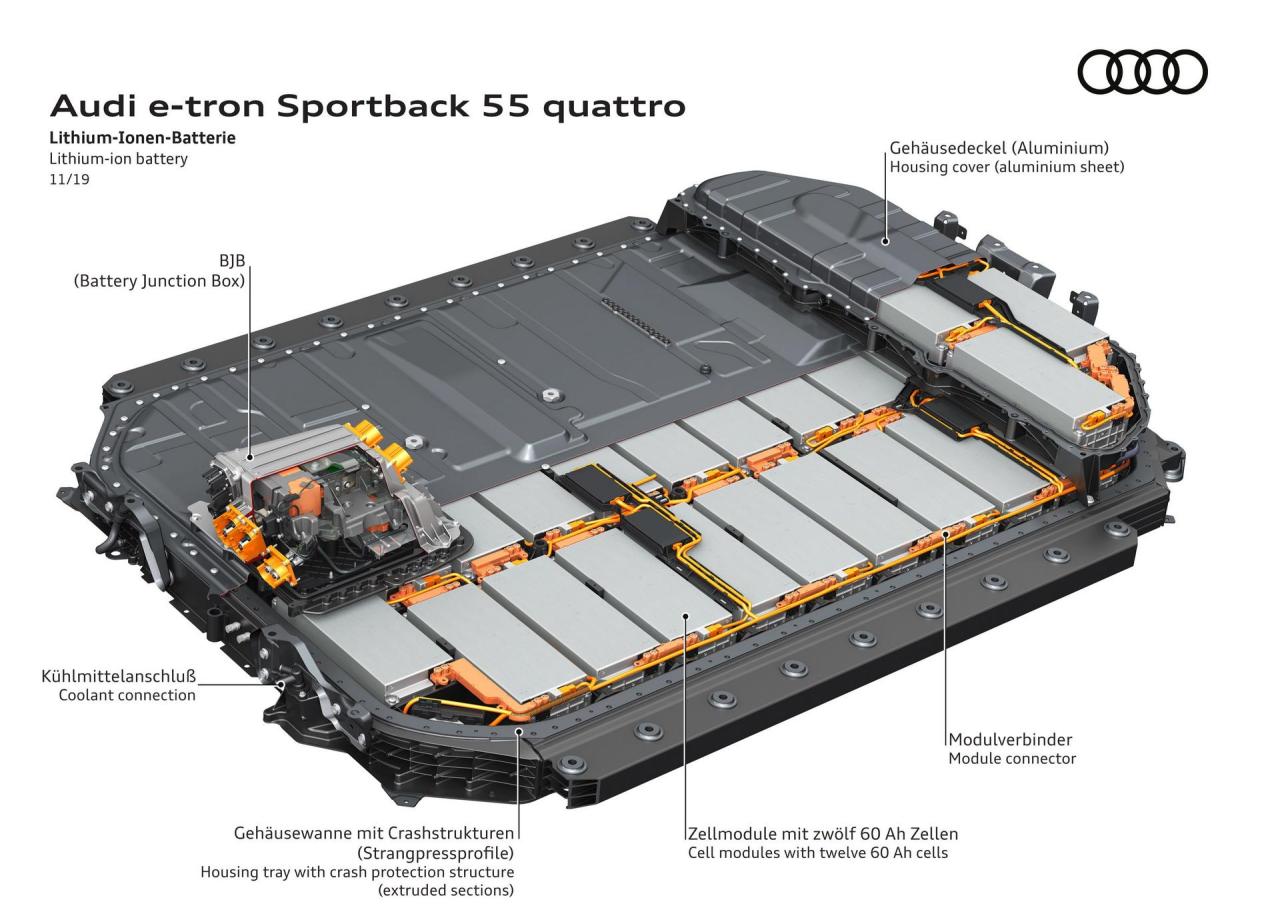

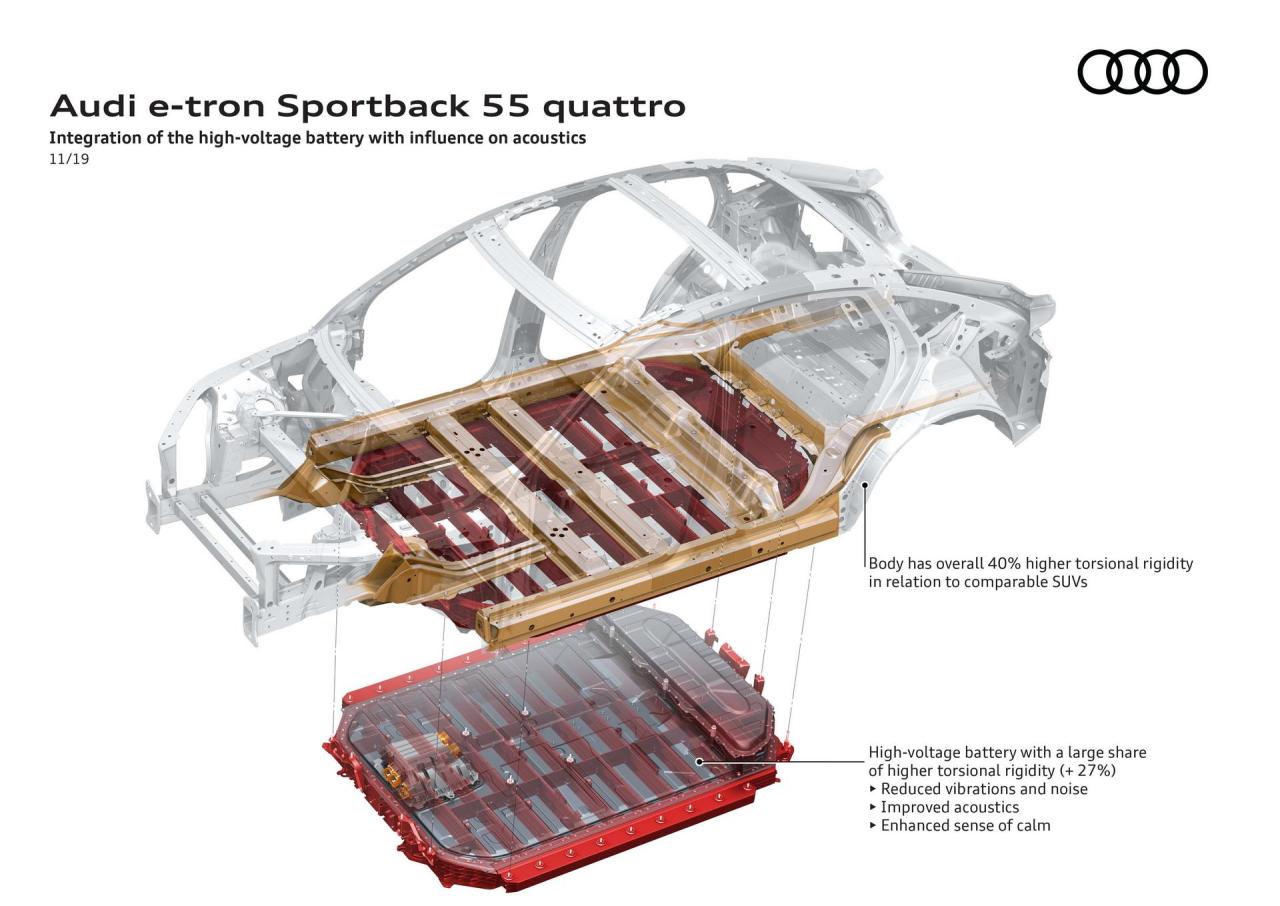

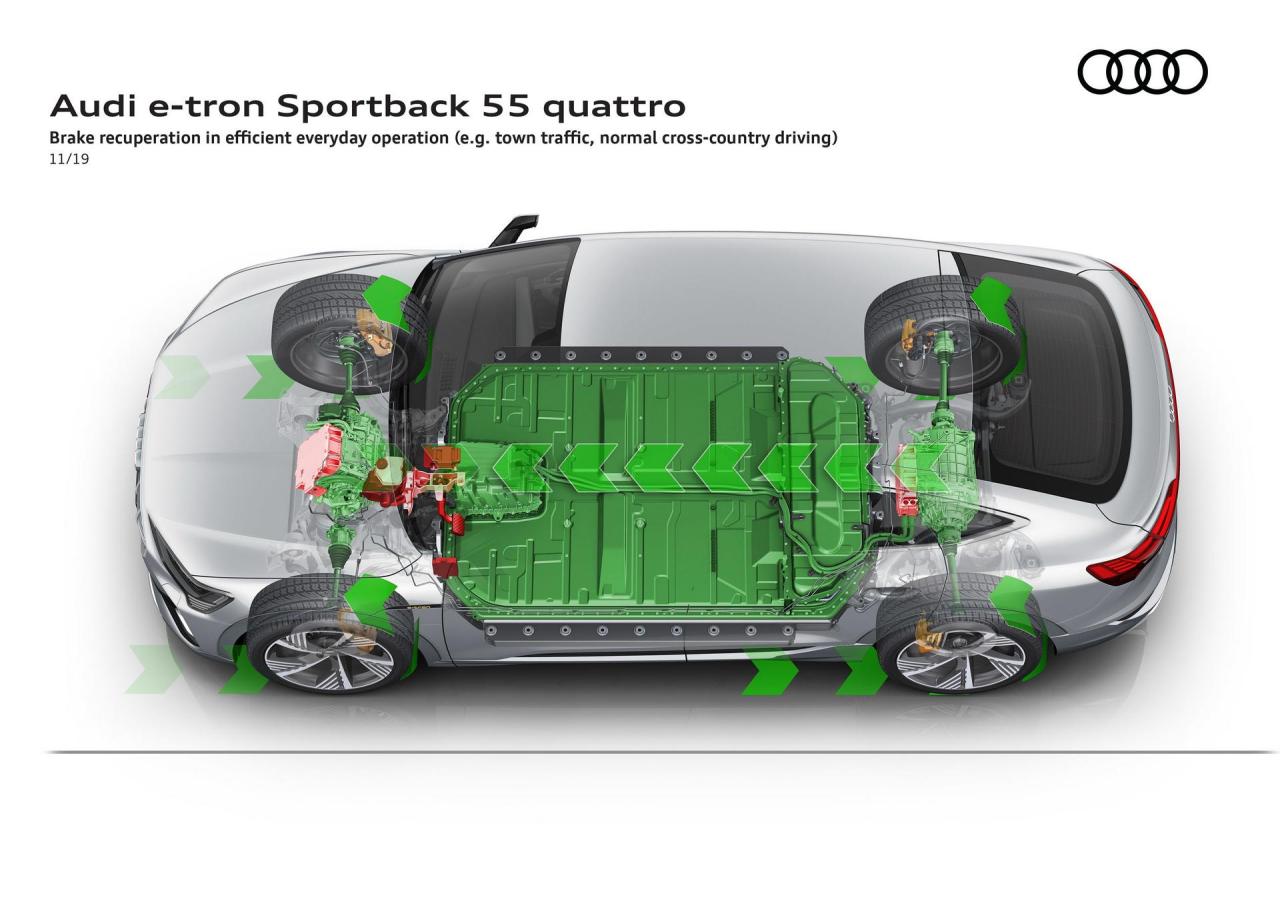

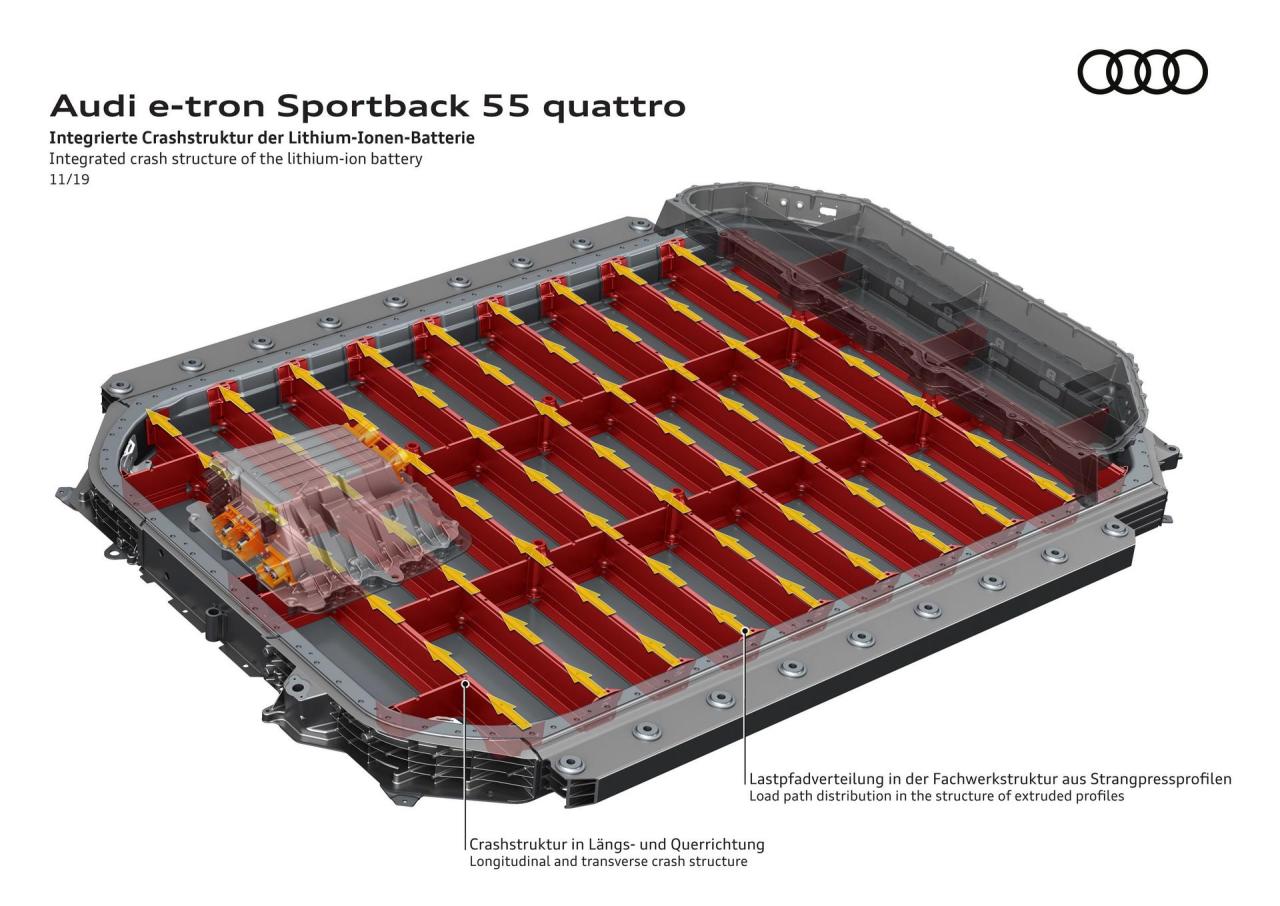

95 kWh of energy: High-voltage battery system and recuperation

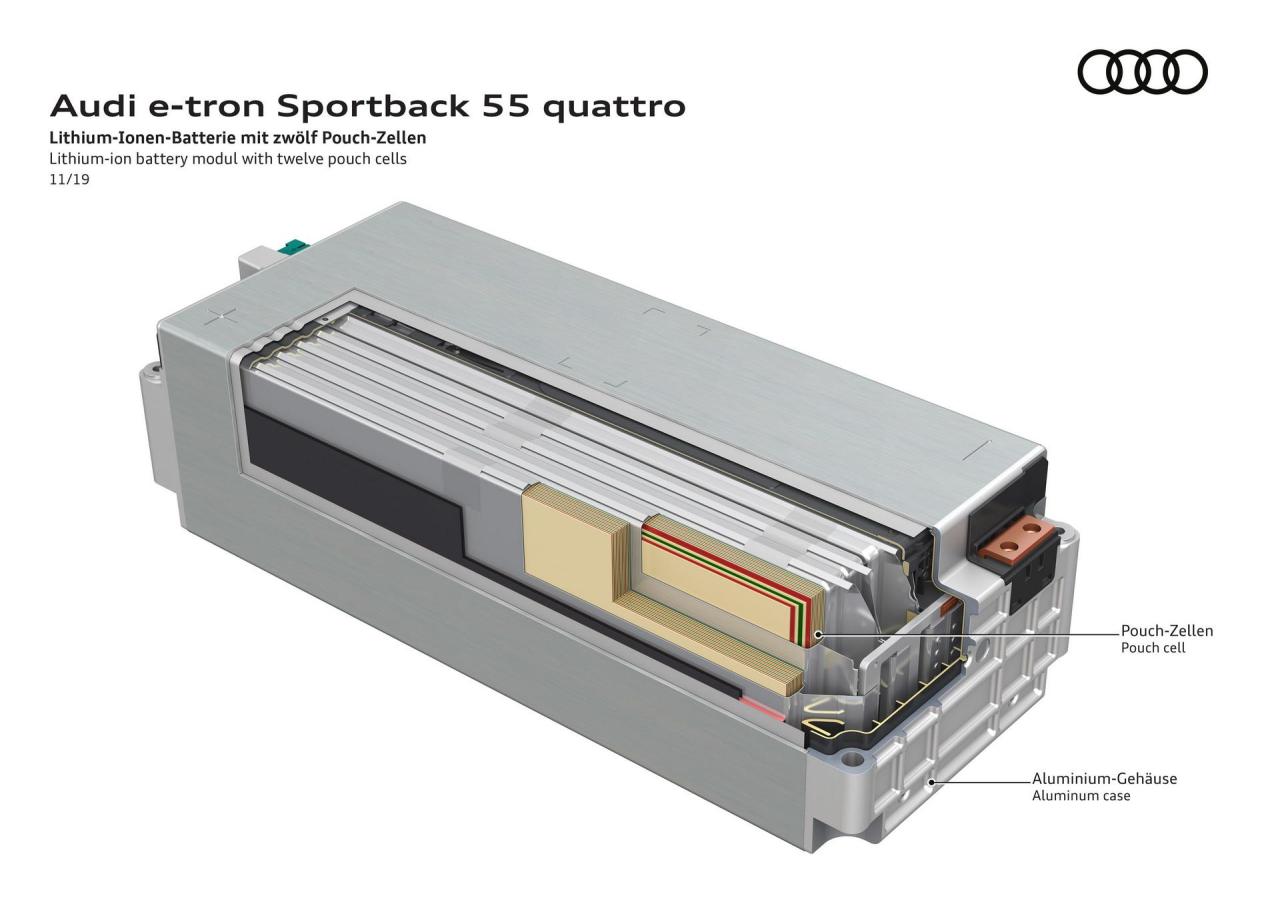

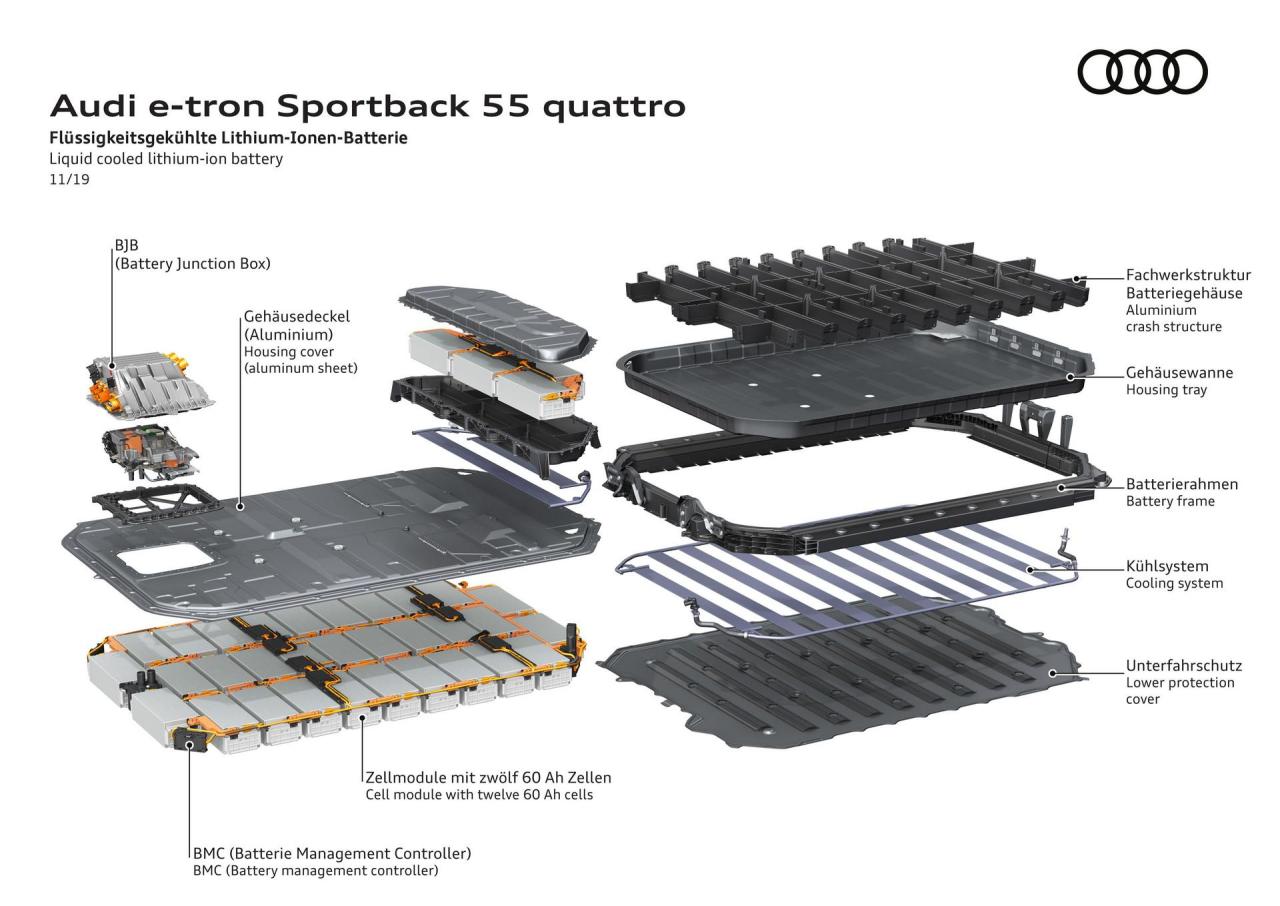

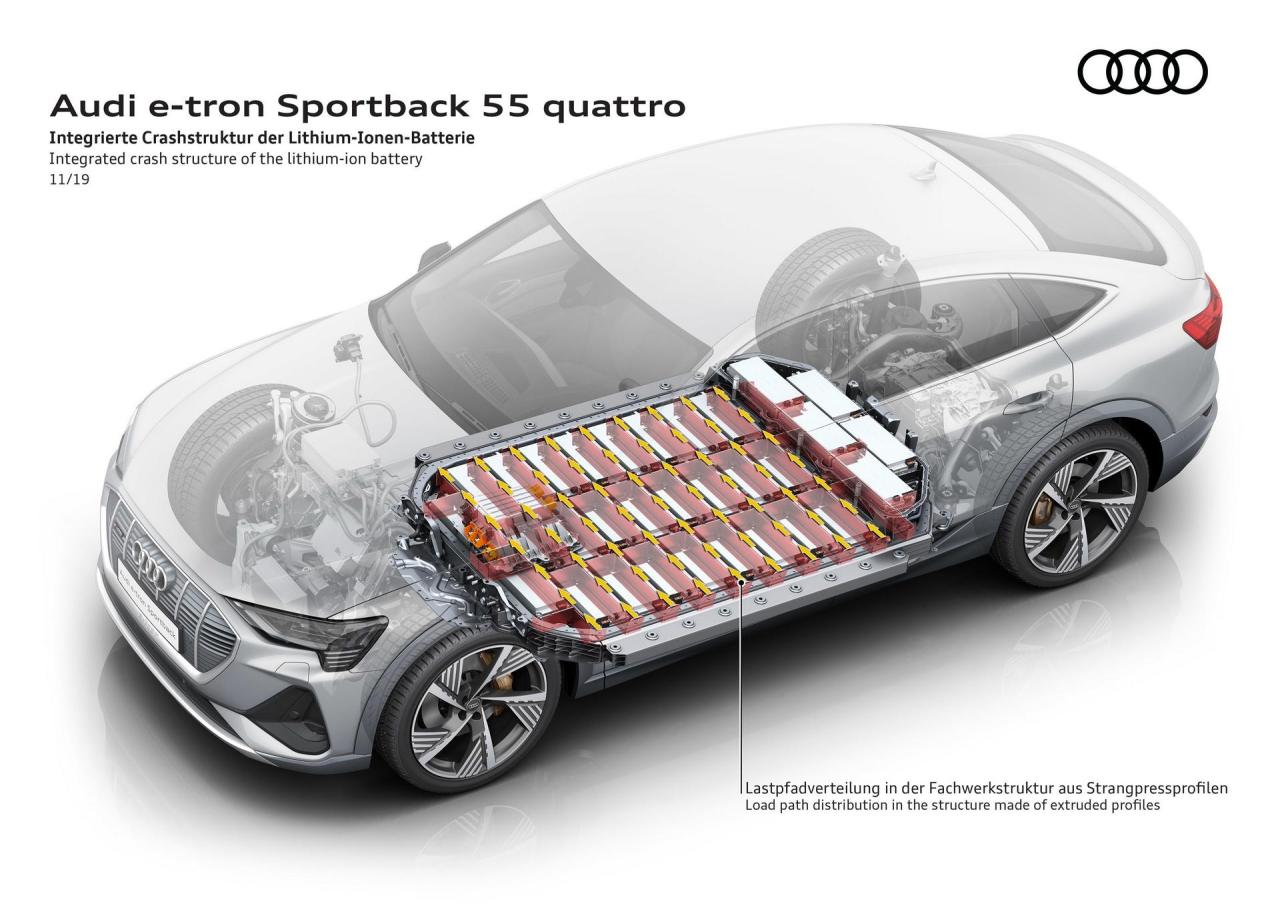

The battery system of the Audi e-tron Sportback 55 quattro** stores 95 kWh of gross energy (86.5 kWh net) and operates at a rated voltage of 396 volts. It is fitted as a wide flat block beneath the passenger cell, to which it is bolted at 35 points. The battery system is exceptionally rigid and crash-proof—thanks to a solid protective frame and an aluminum laminate that holds the 36 cell modules. These are arranged on two levels, as a long lower “floor” with 31 modules and a short upper floor with five modules. Each module integrates twelve ‘pouch cells.’ The cooling system is located beneath the cell chamber.

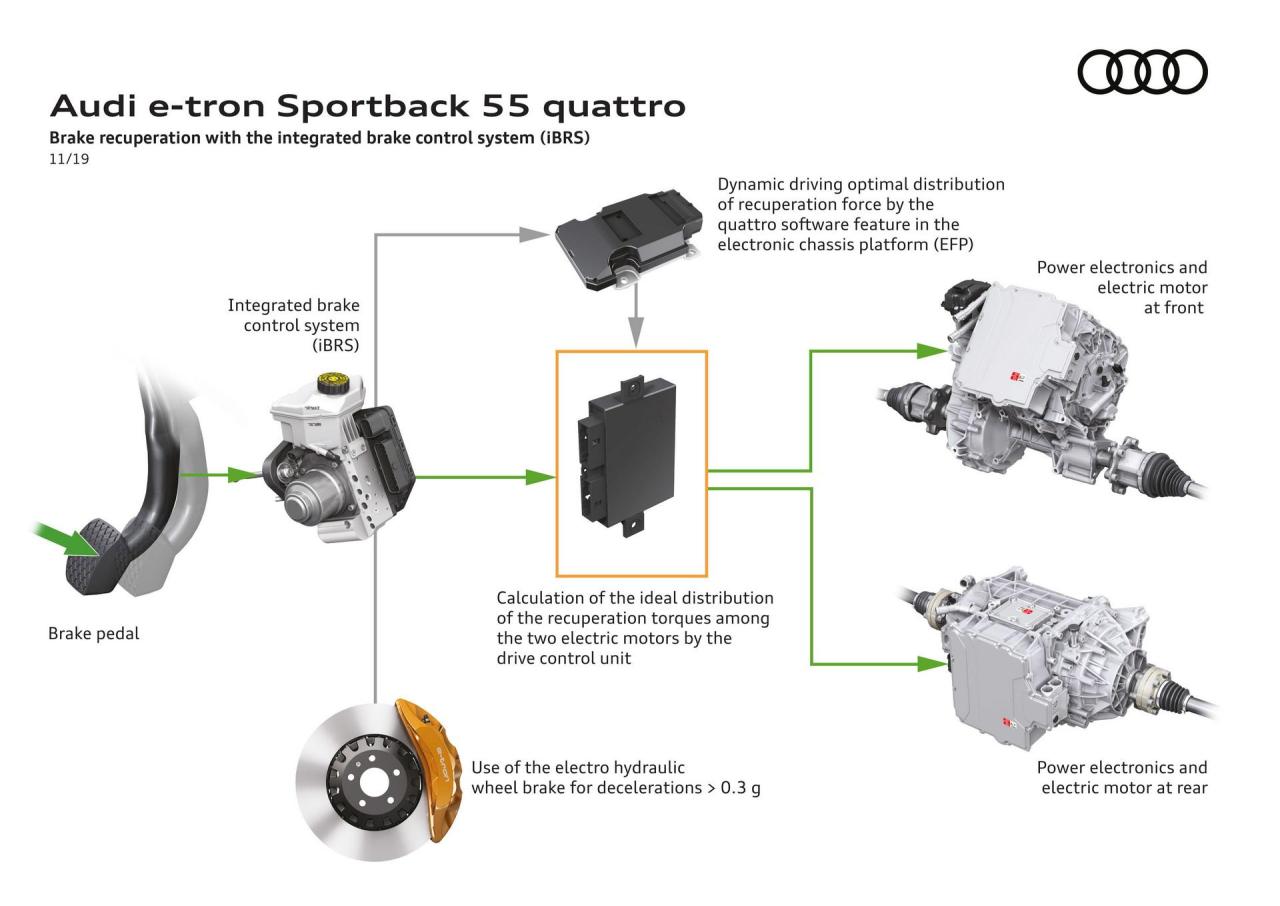

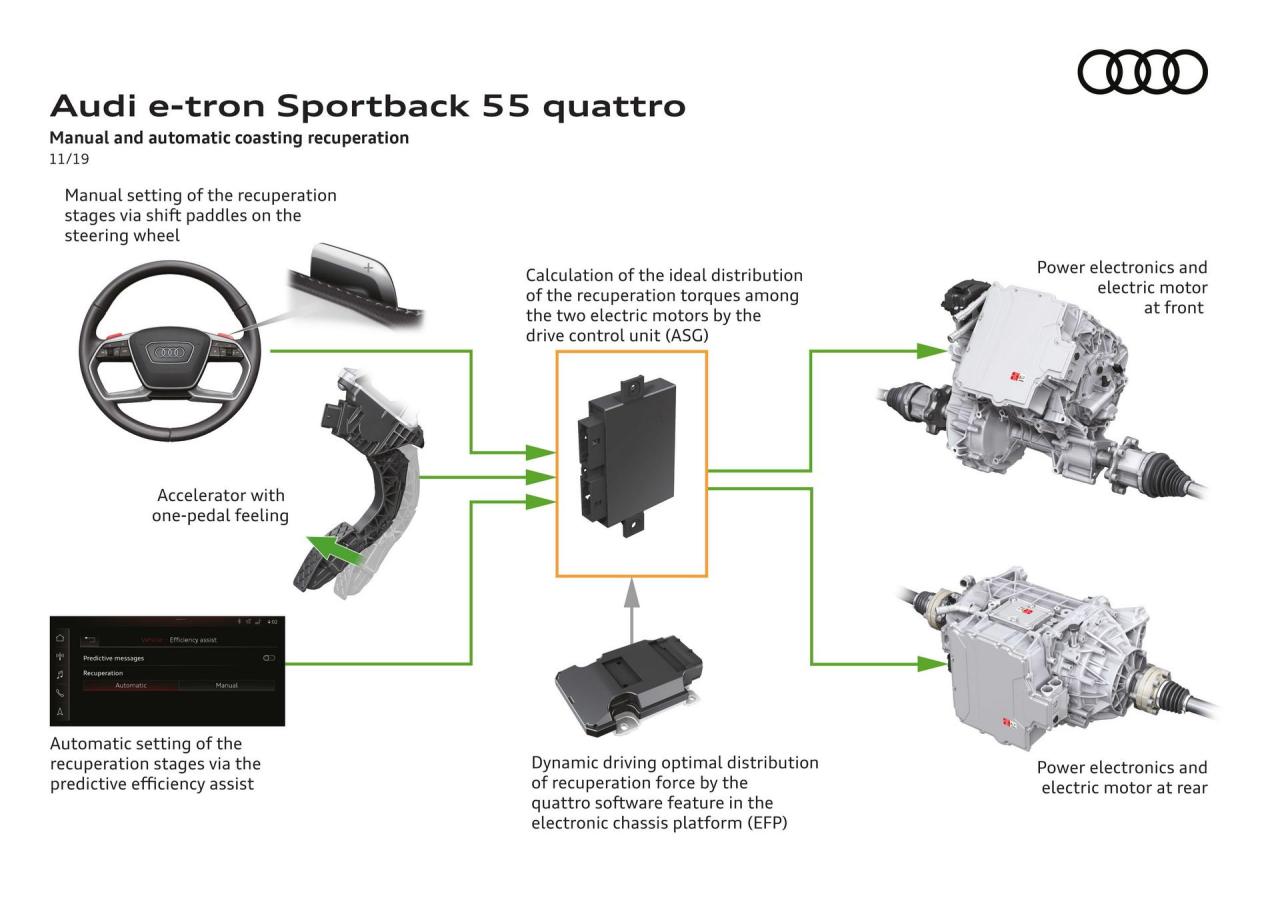

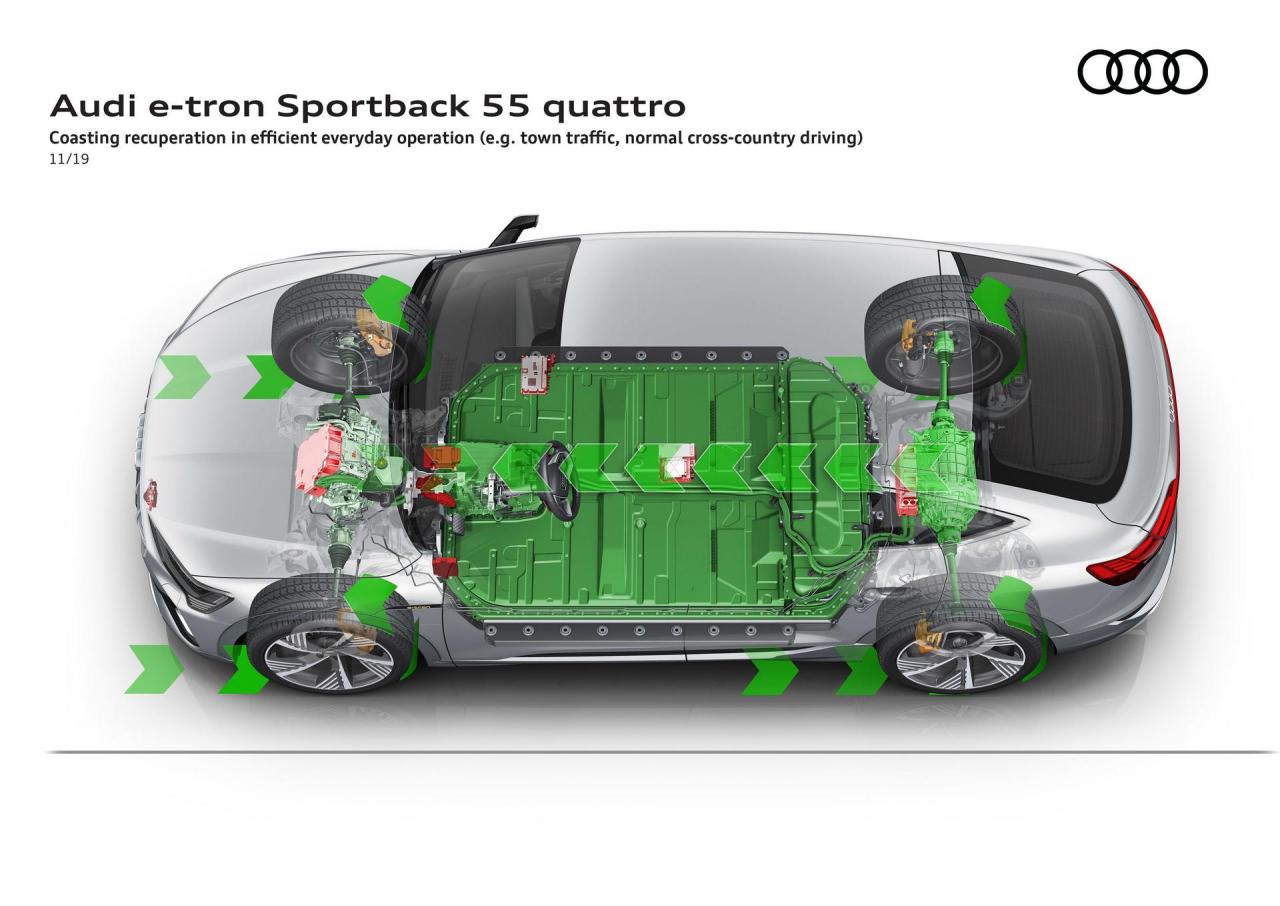

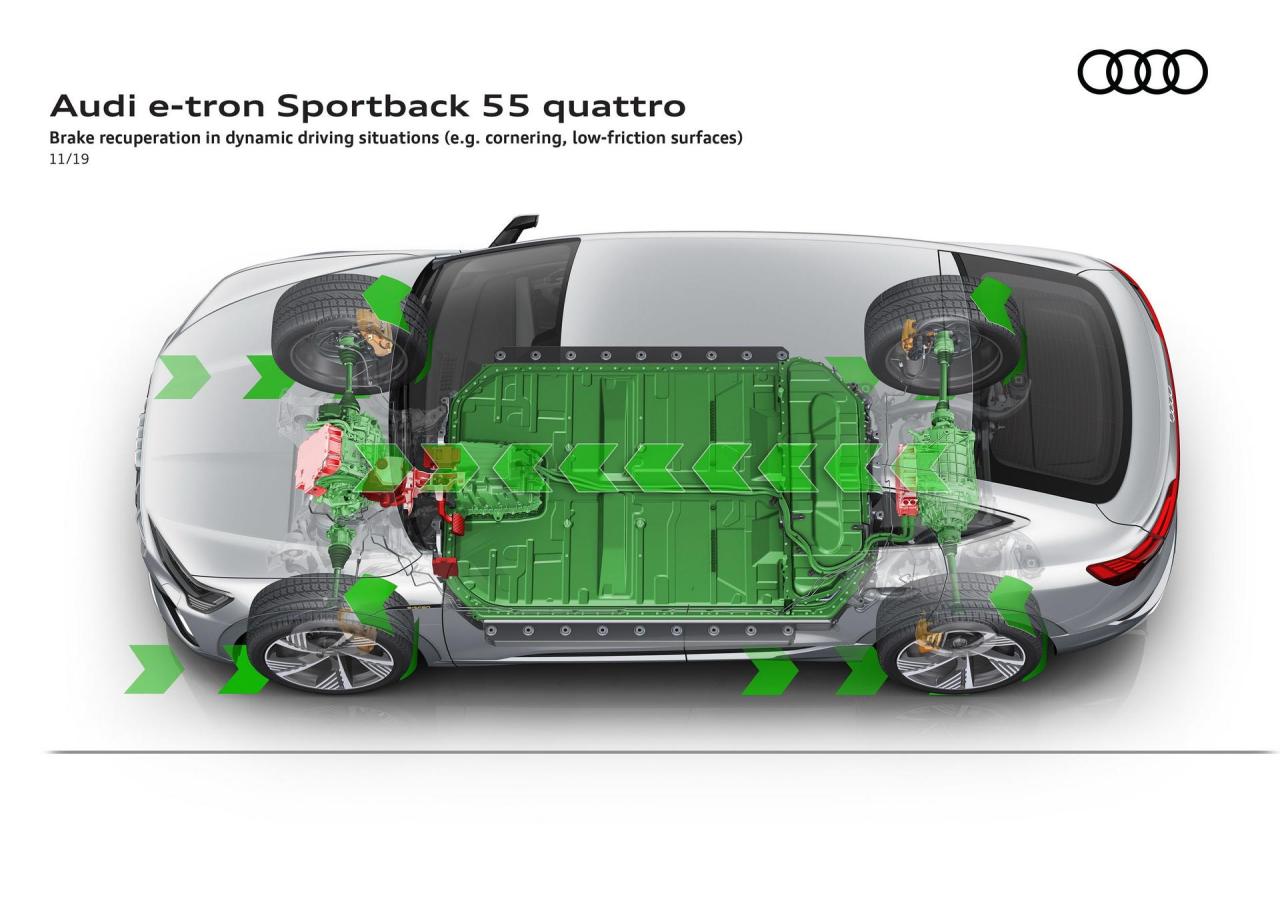

During deceleration actions of up to 0.3 g—which applies to over 90 percent of such actions in everyday driving—the high-voltage battery is charged by the electric motors, primarily by the rear electric motor, which act as generators in these situations. The recuperation system provides for variable regulation of energy recuperation between both electric modules—both in coasting mode when the driver releases the right-hand pedal as well as during braking. The degree of coasting recuperation can be set to three stages by means of paddles on the steering wheel and is even more strongly differentiated than on the e-tron.

When braking from 100 km/h (62.1 mph), the Audi e-tron Sportback** can recuperate a maximum of 300 Nm (221.3 lb-ft) and 220 kW. As with its sister model, this amounts to more than 70 percent of its output and more than any other production model. Overall, the SUV‑coupé attains up to 30 percent of its range through recuperation.

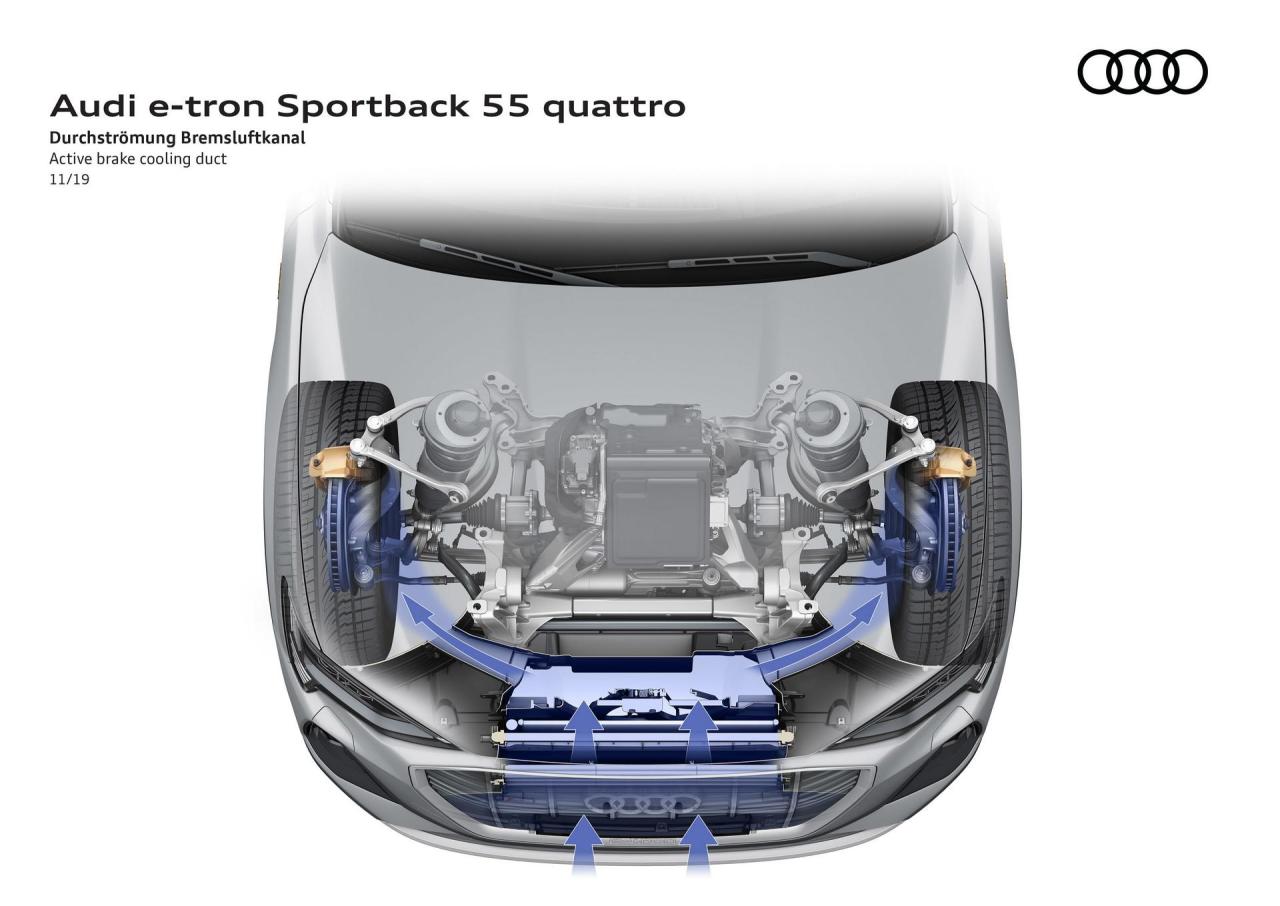

The wheel brakes, whose innovative electrohydraulic activation concept allows them to respond with exceptional speed, come into play only at deceleration forces greater than 0.3 g. Depending on the driving situation, the control system decides individually for each axle whether the SUV coupé recuperates using just the electric motors, just the wheel brakes, or a combination of both. The transition between electric and hydraulic braking is smooth and homogeneous so the driver does not even notice it. Brake forces remain constant.

On the wheel brakes of the Audi e-tron Sportback, the developers have substantially reduced what is referred to as residual brake torque—the losses that occur during brief application of the brake pads against the disk. This benefits both efficiency and range. The same applies to three additional measures: During normal vehicle operation, the front electric motor is almost completely decoupled from the drive. An increase in the usable range of the high-voltage battery combined with a reduction in several of the volume flows in the coolant circuit means that the pump has to provide less power.

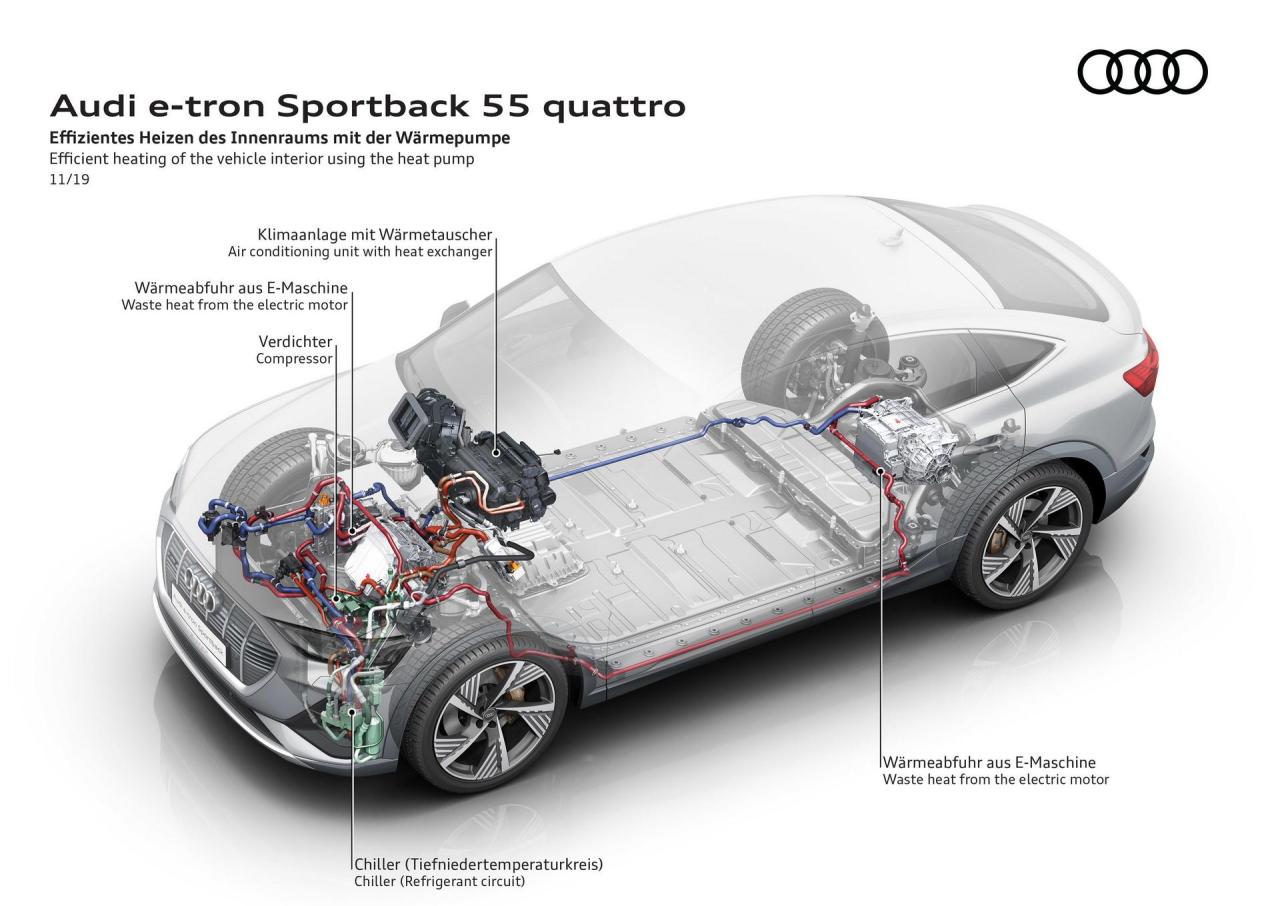

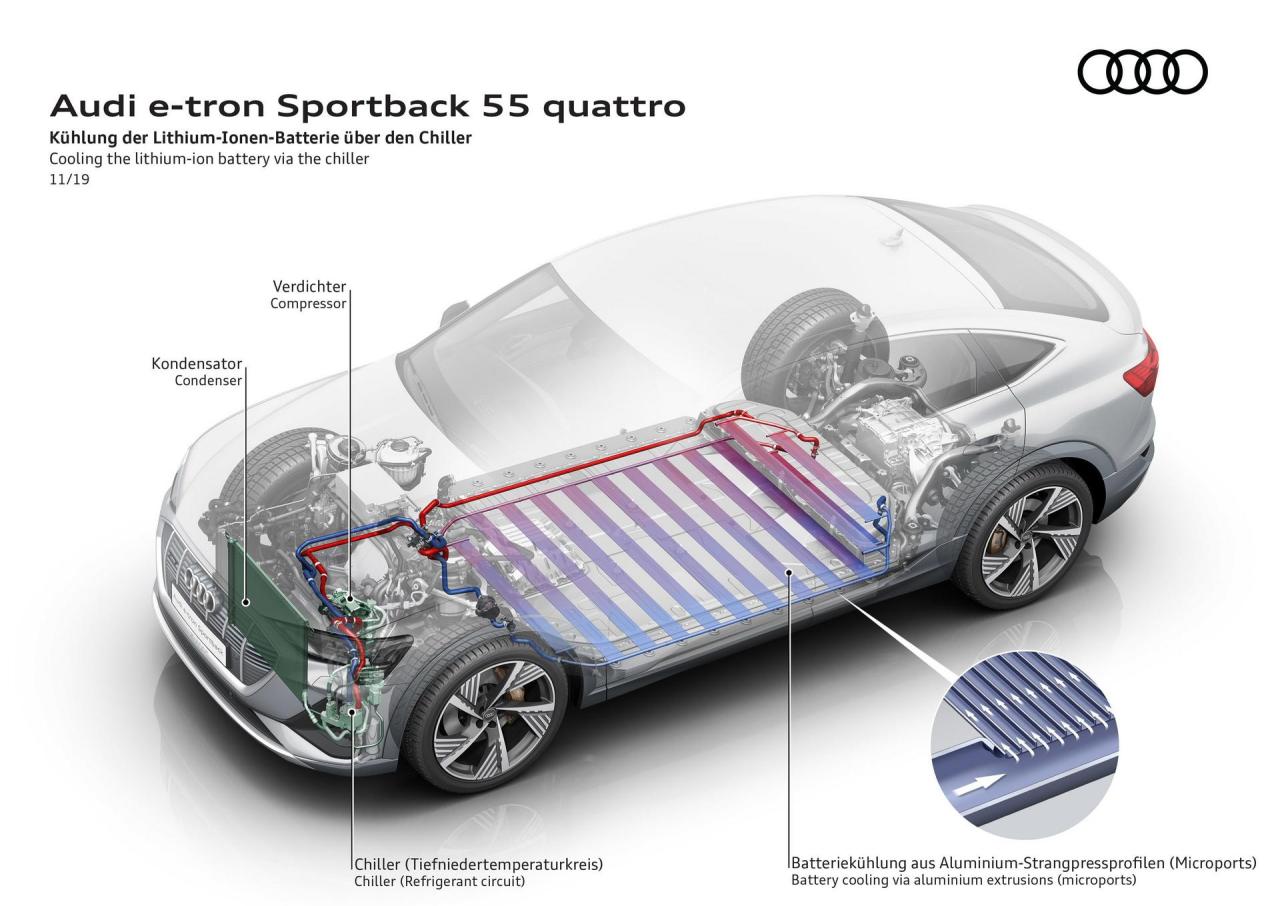

The highly flexible thermal management, which comprises four separate circuits, regulates the temperature of the high-voltage components with maximum efficiency. This enables rapid DC charging, a long battery life cycle, and reproducible performance even under heavy loads. The standard heat pump, which harnesses waste heat from the high-voltage battery, can use up to 3 kW of actual power losses for heating and air conditioning the interior—which is exceptionally efficient. Depending on the outside temperature, that can boost the Audi e-tron Sportback’s range by up to ten percent in customer operation.

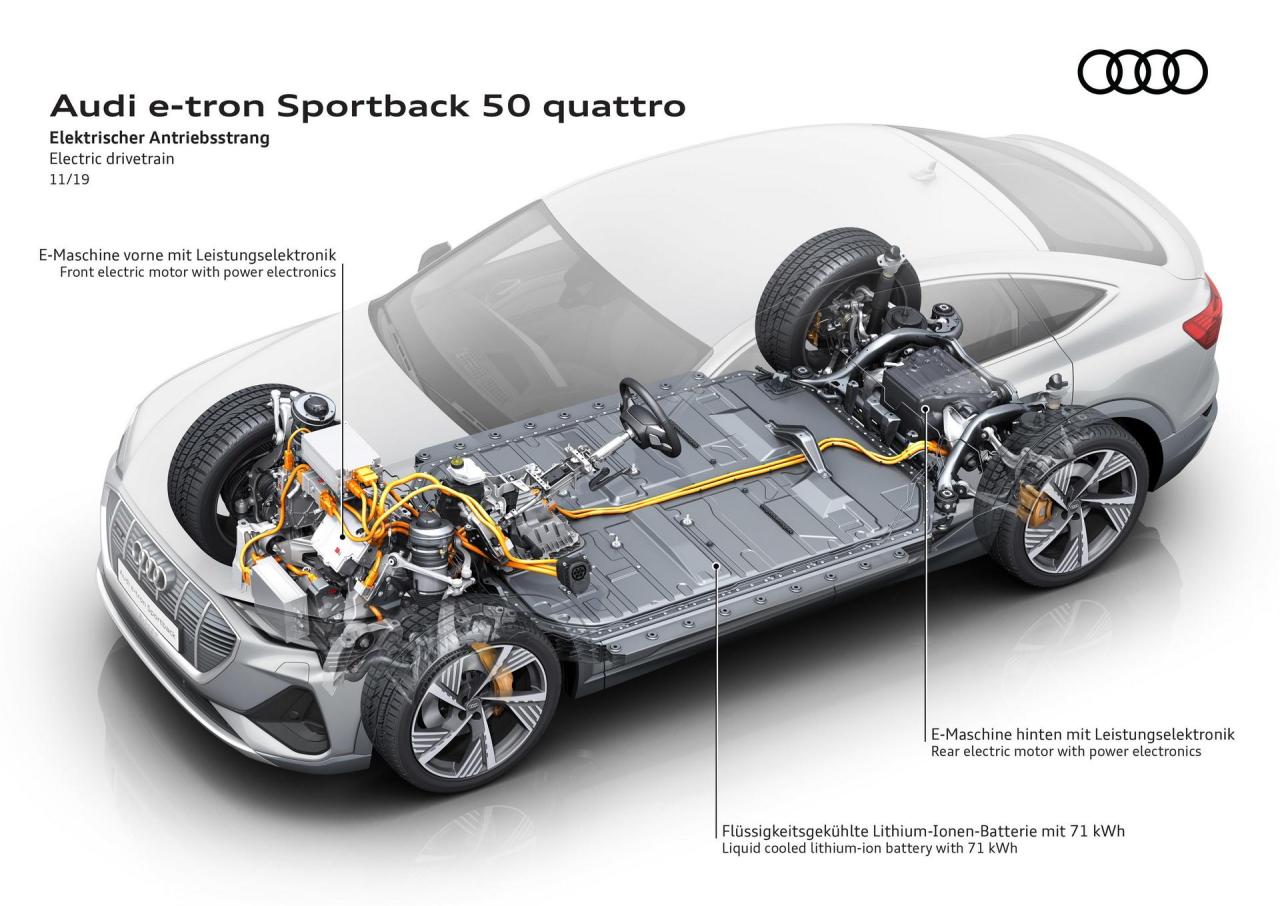

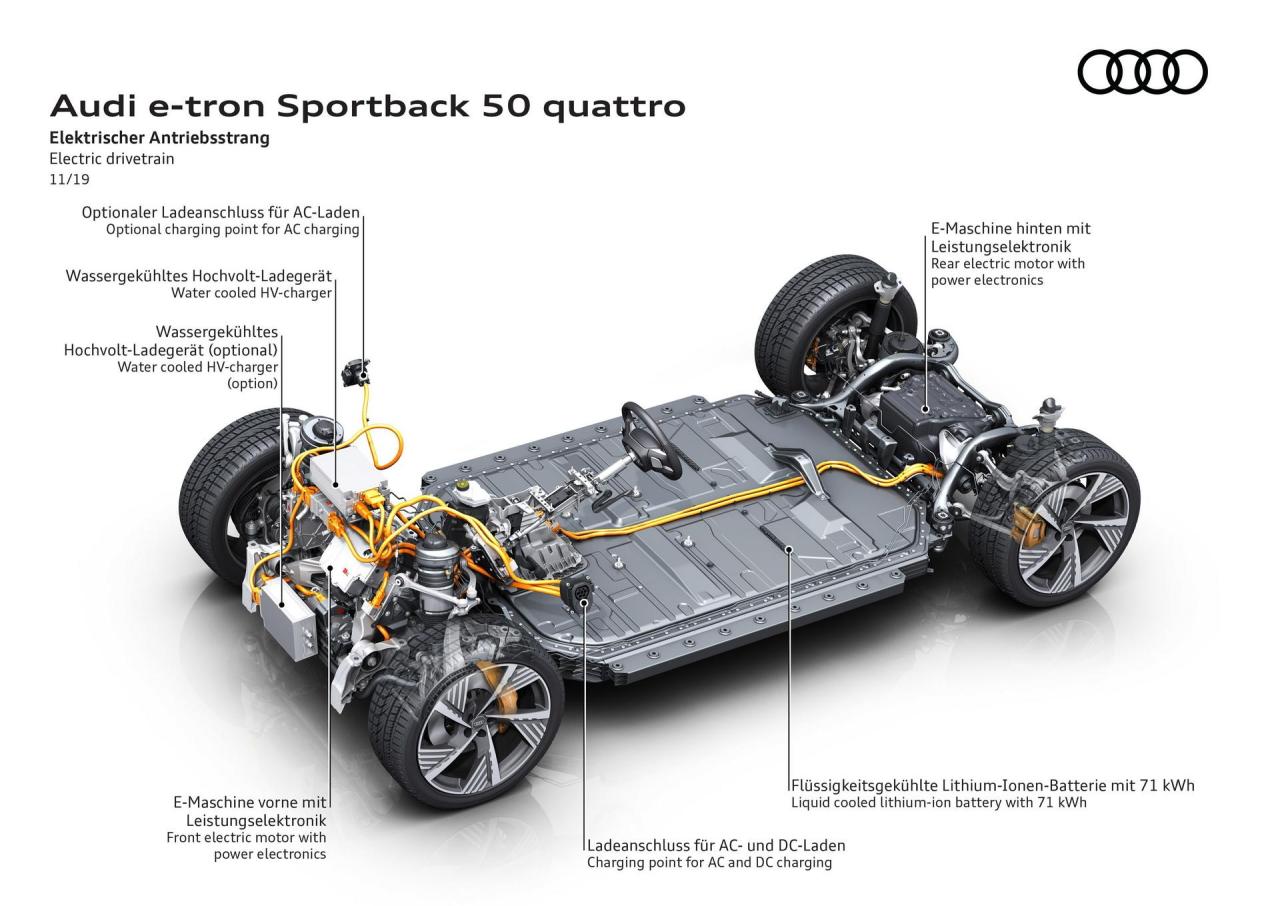

Generating 230 kW of output: the Audi e-tron Sportback 50 quattro

At market launch, Audi will offer the all-electric drive SUV coupé with a second motor variant. The e-tron Sportback 50 quattro generates 230 kW of output and 540 Nm (398.3 lb-ft) of torque (combined electric power consumption in kWh/100 km (62.1 mi)*: 26.3 - 21.6 (WLTP); 23.9 – 21.4 (NEFZ); combined CO₂ emissions in g/km (g/mi): 0). The battery dispenses with the upper “floor;” and its 27 modules each consist of twelve prismatic cells. The system, which weighs roughly 120 kilograms (264.6 lb) less than the battery of the Sportback 55 quattro**, provides 71 kWh of gross energy (64.7 kWh net). This allows the SUV coupé to cover up to 347 kilometers (215.6 mi) on a full charge in the WLTP cycle. The Audi e-tron Sportback 50 quattro accelerates from 0 to 100 km/h (62.1 mph) in 6.8 seconds and has a top speed of 190 km/h (118.1 mph) (combined electric power consumption in kWh/100 km (62.1 mi)*: 26.3 - 21.6 (WLTP); 23.9 – 21.4 (NEFZ); combined CO₂ emissions in g/km (g/mi): 0).

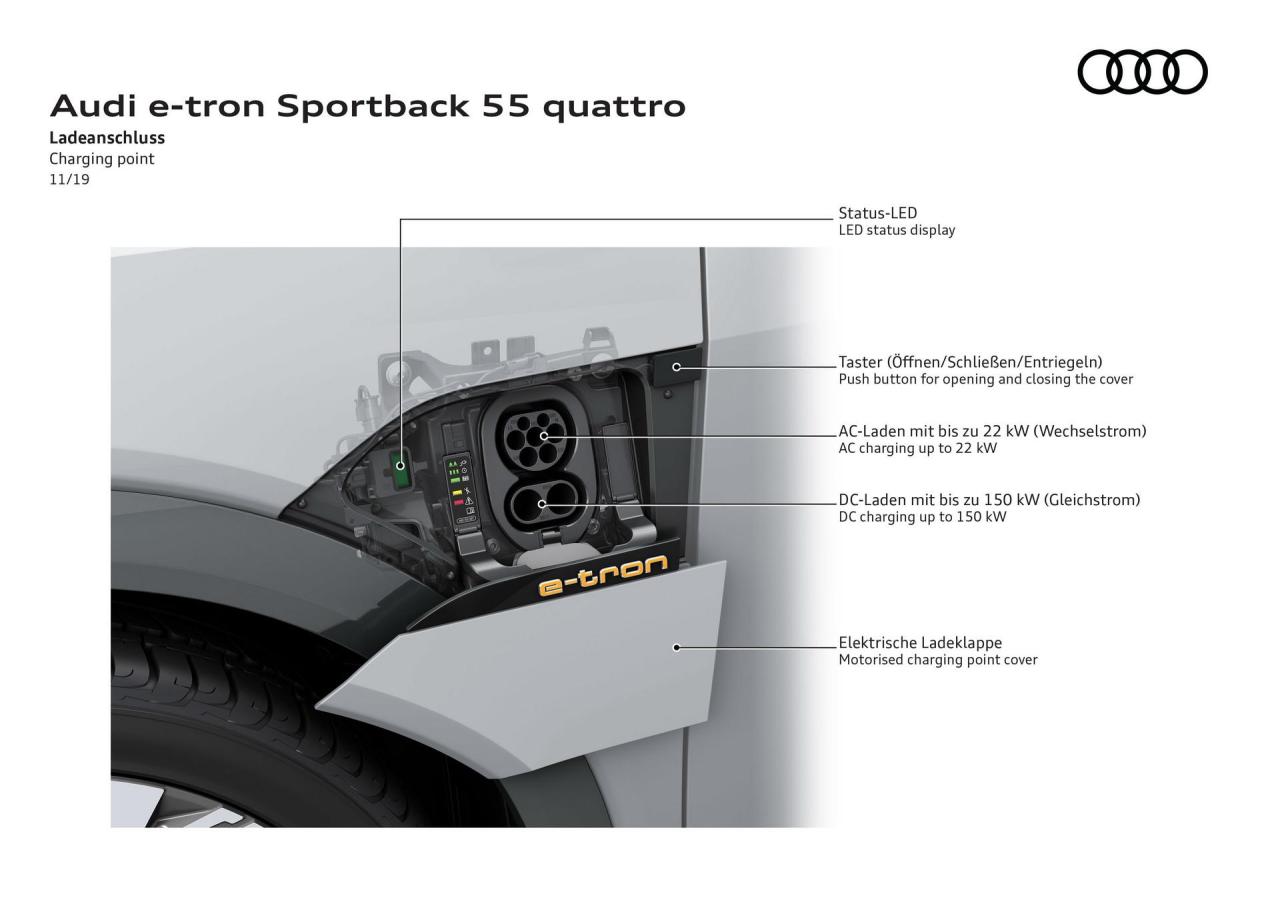

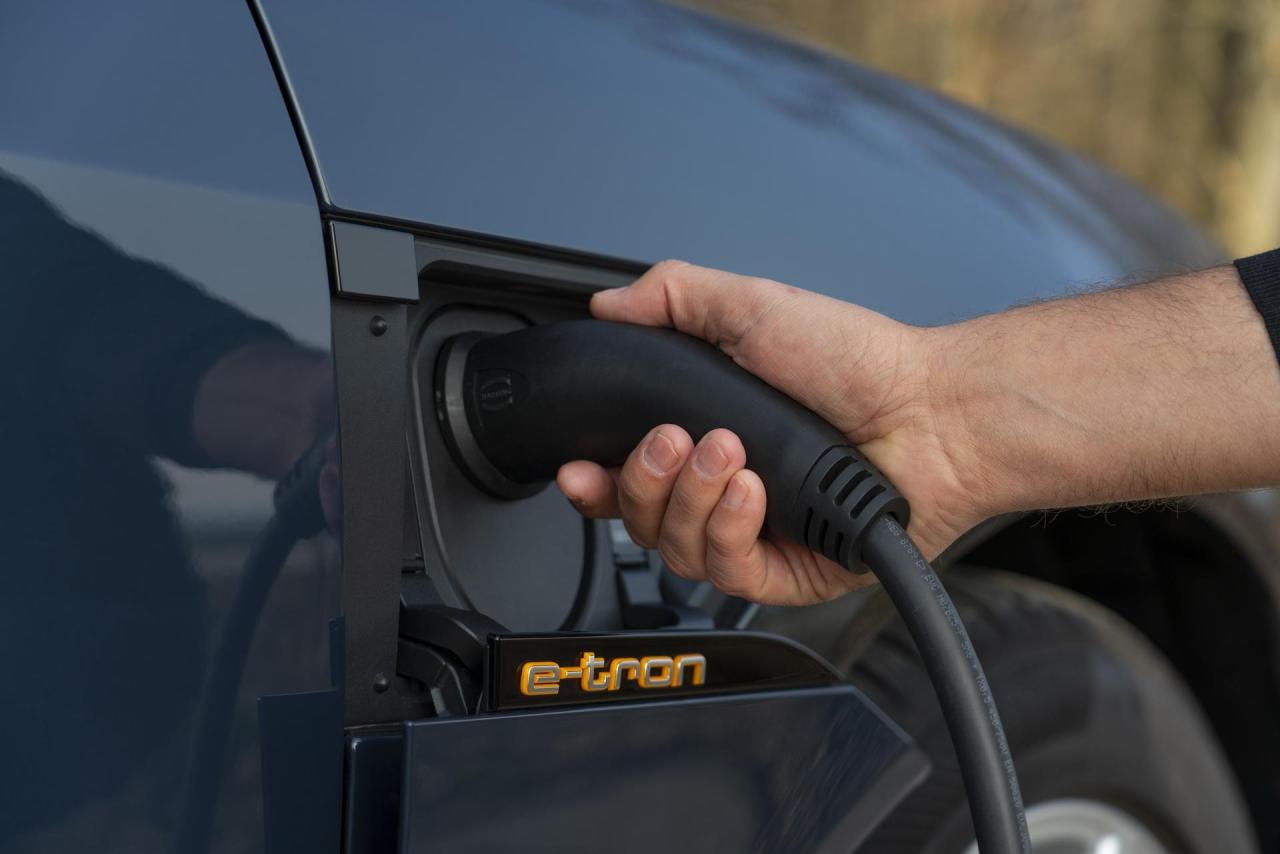

Continue driving in just 30 minutes: the charging line-up

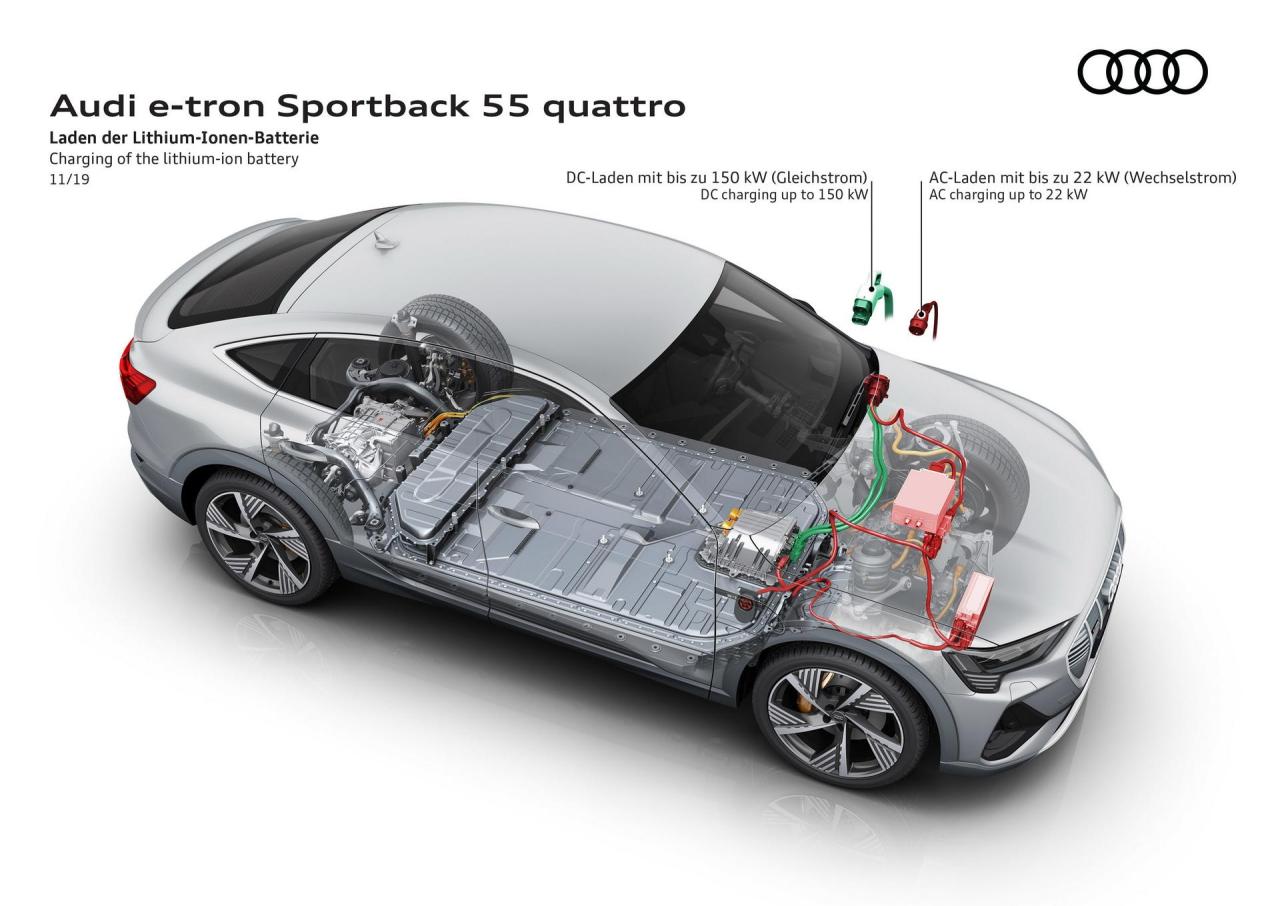

On long-distance routes, the Audi e-tron Sportback 55 quattro** can charge with direct current (DC) at up to 150 kW at fast-charging stations. In just under half an hour, the battery reaches 80 percent of its capacity—sufficient for the next leg of its long-distance trip. The e-tron Sportback 50 quattro** can charge at up to 120 kW and achieves an identical charge status in the same time.

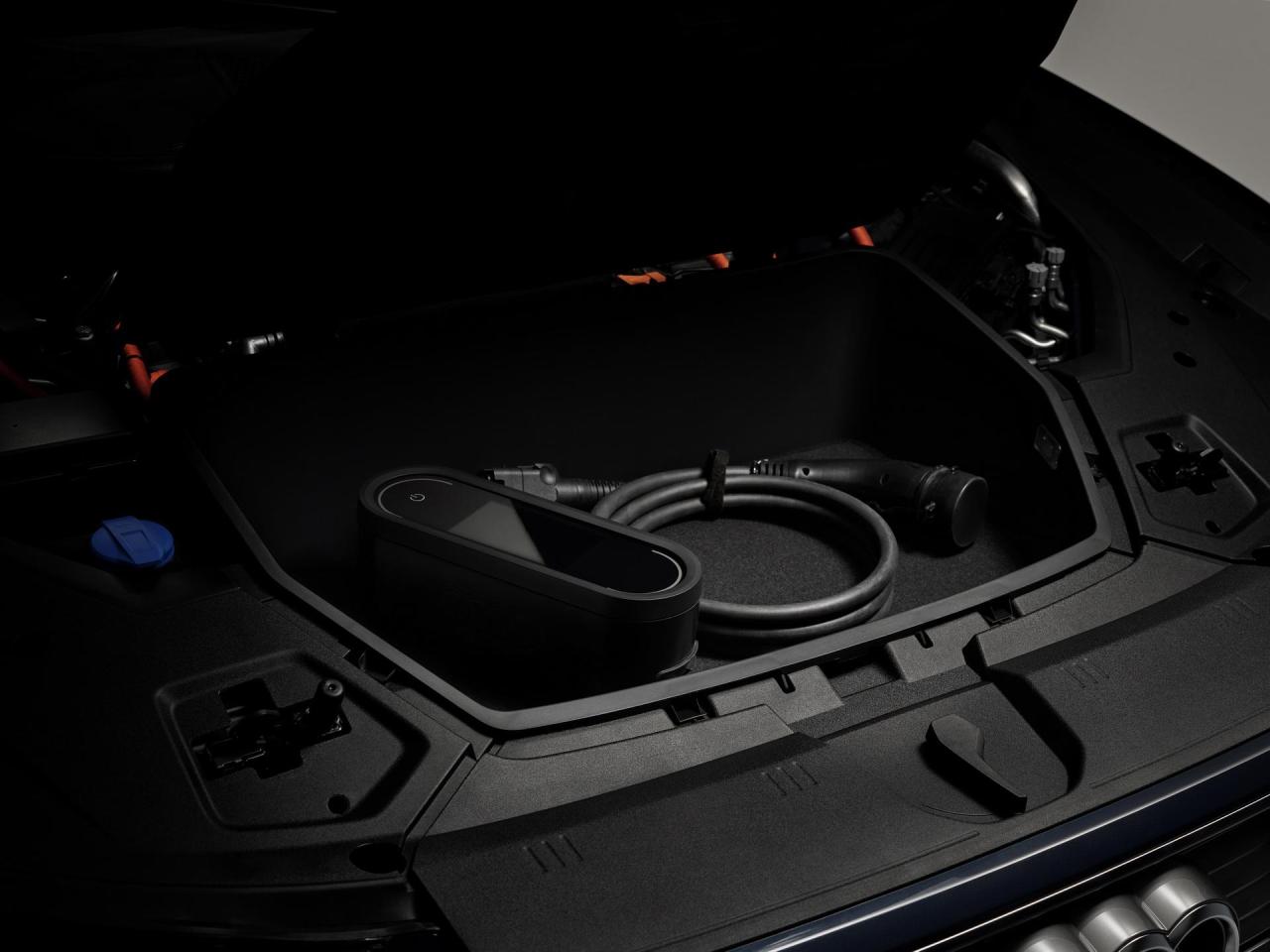

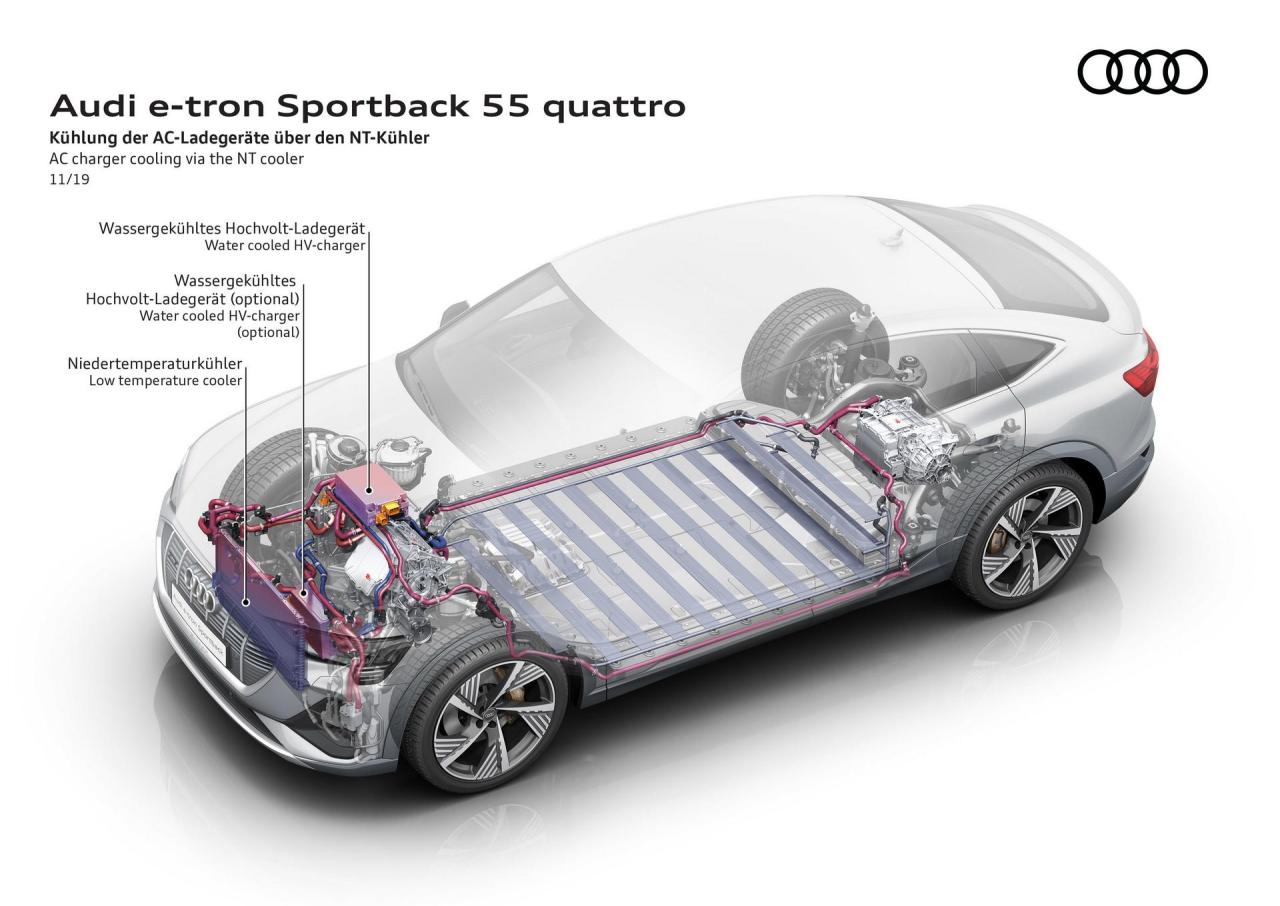

Charging at public AC charging stations can be performed using a standard mode-3 cable. Up to 11 kW of power is available here, which can be increased to 22 kW with an optional second on-board charging device that will be available later this year. Audi’s own charging service, the e-tron Charging Service, provides easy access to more than 140,000 public charging points in 24 European countries – and the number is rising. Whether AC or DC, 11 or 150 kW—a single card is all that is required to start the process.

Audi also offers a range of solutions for charging in the garage at home, depending on the capacity of the domestic power supply. The standard compact charging system is suitable for a simple 230-volt connection and for a 400-volt three-phase outlet with an output of up to 11 kW. The optional charging stem connect will be available for ordering at market launch. It offers smart charging functions, for example preferred charging at low-cost times. The combination with a suitable home energy management system allows the vehicle to be charged preferably with self-generated solar power, provided that the house is equipped with a photovoltaic system.

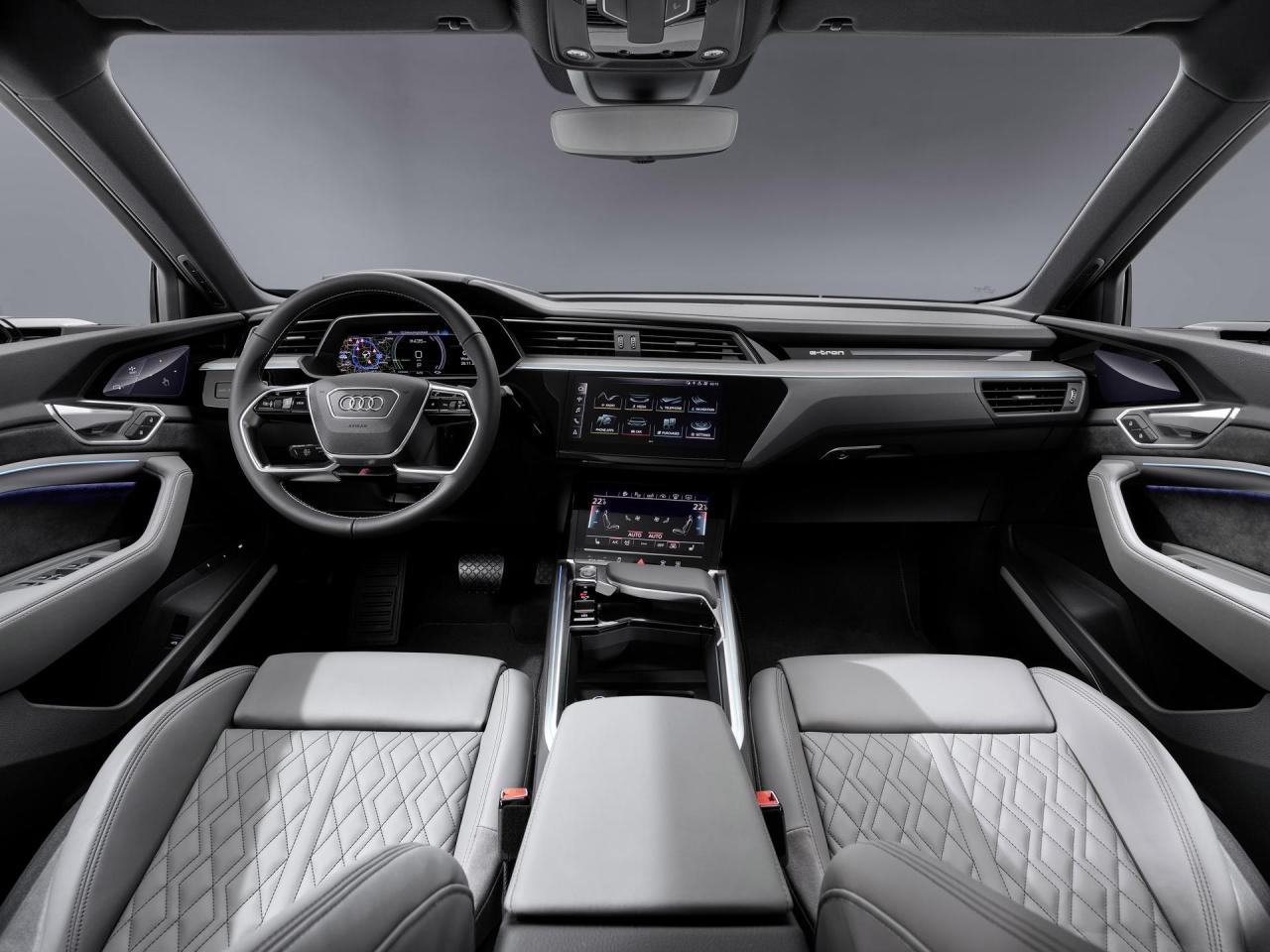

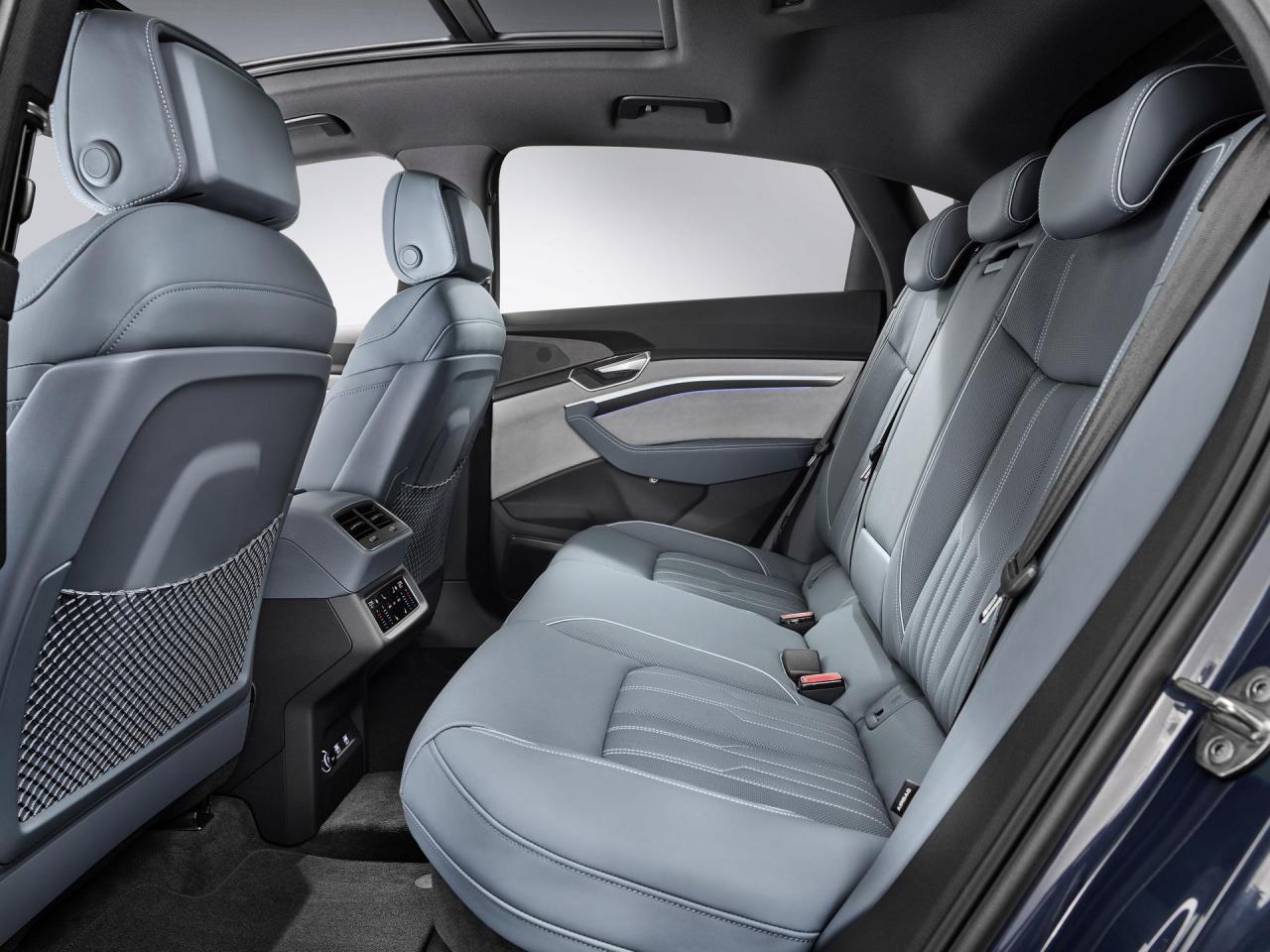

Form and function perfected: The interior

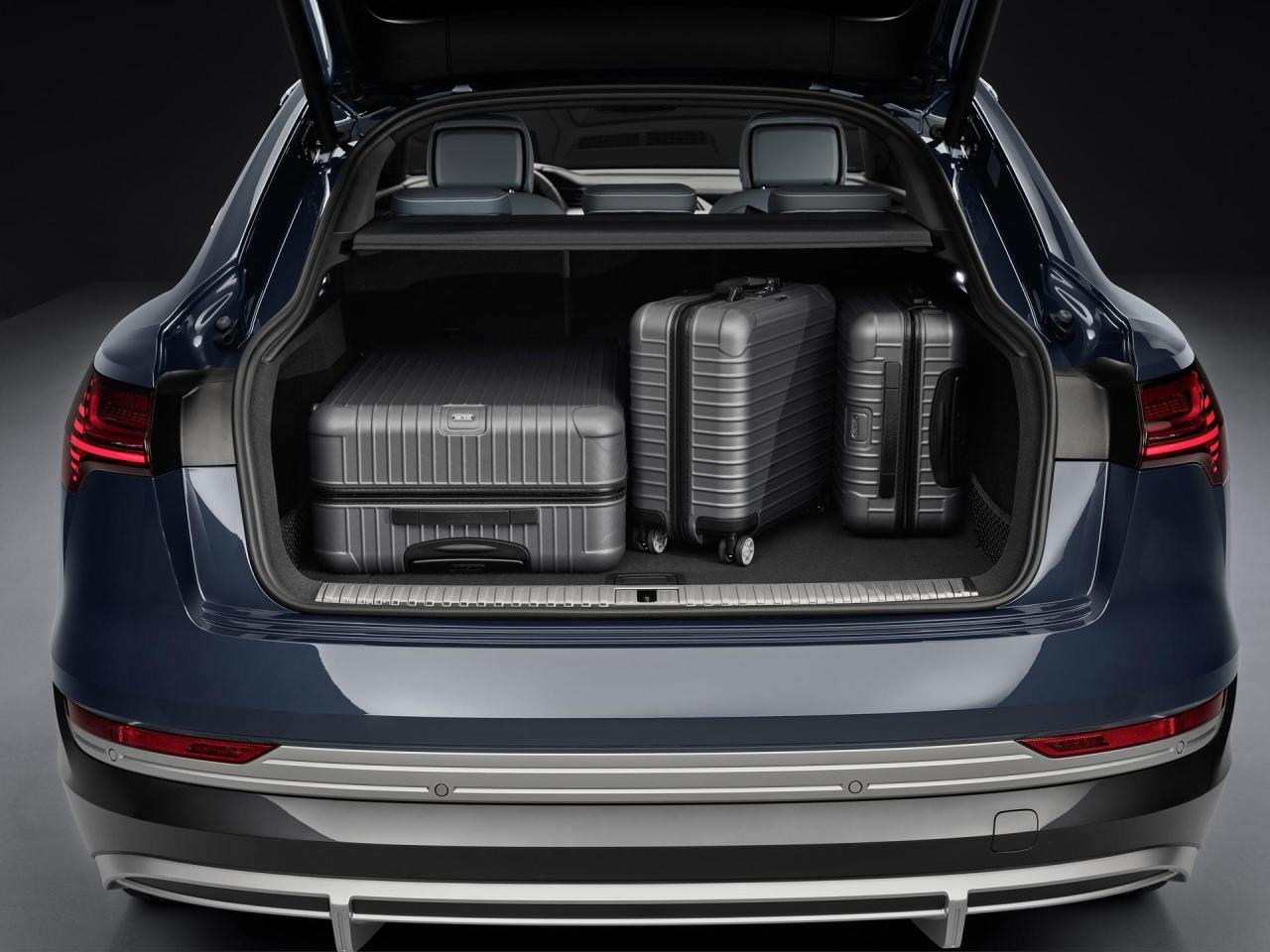

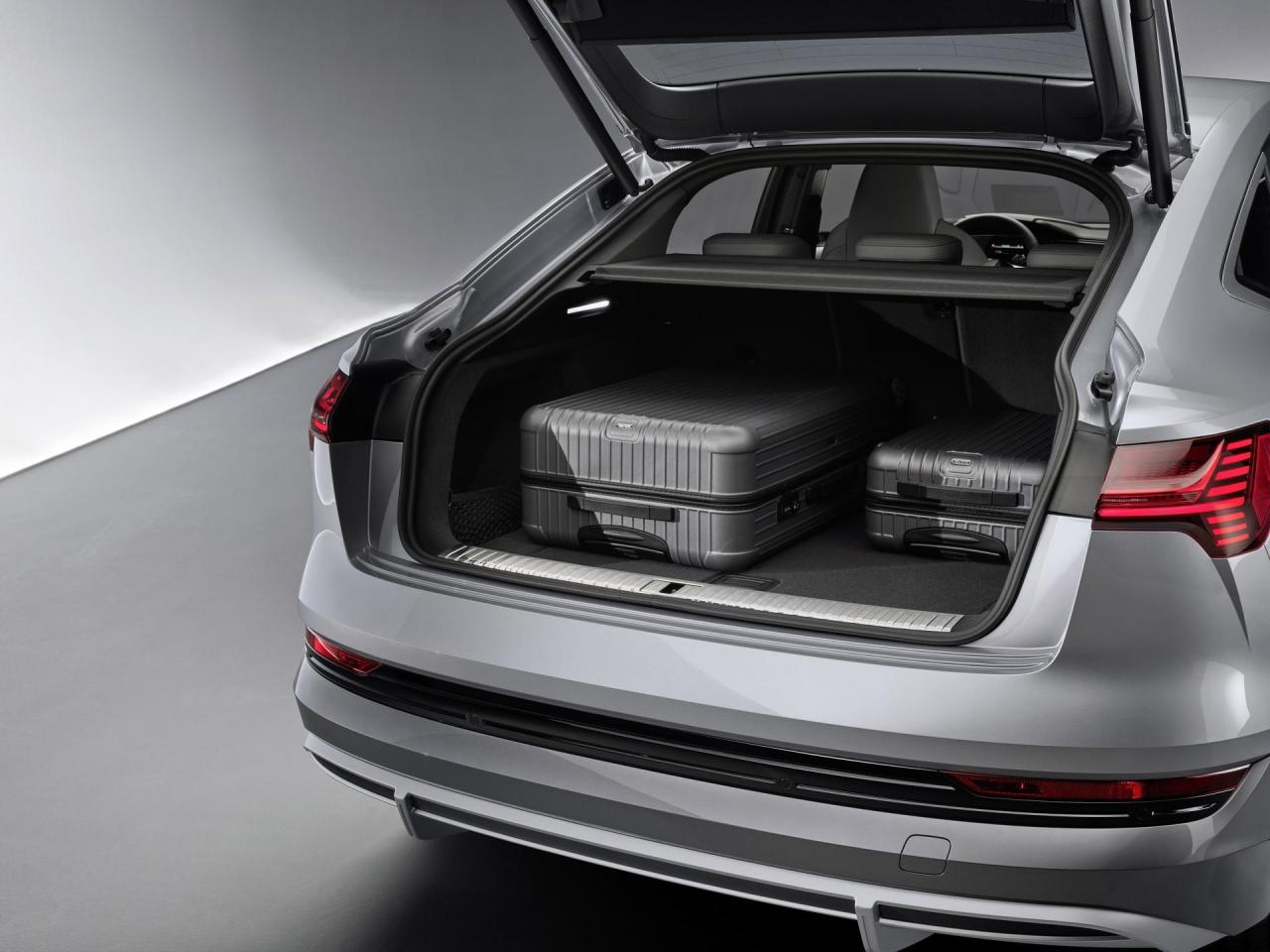

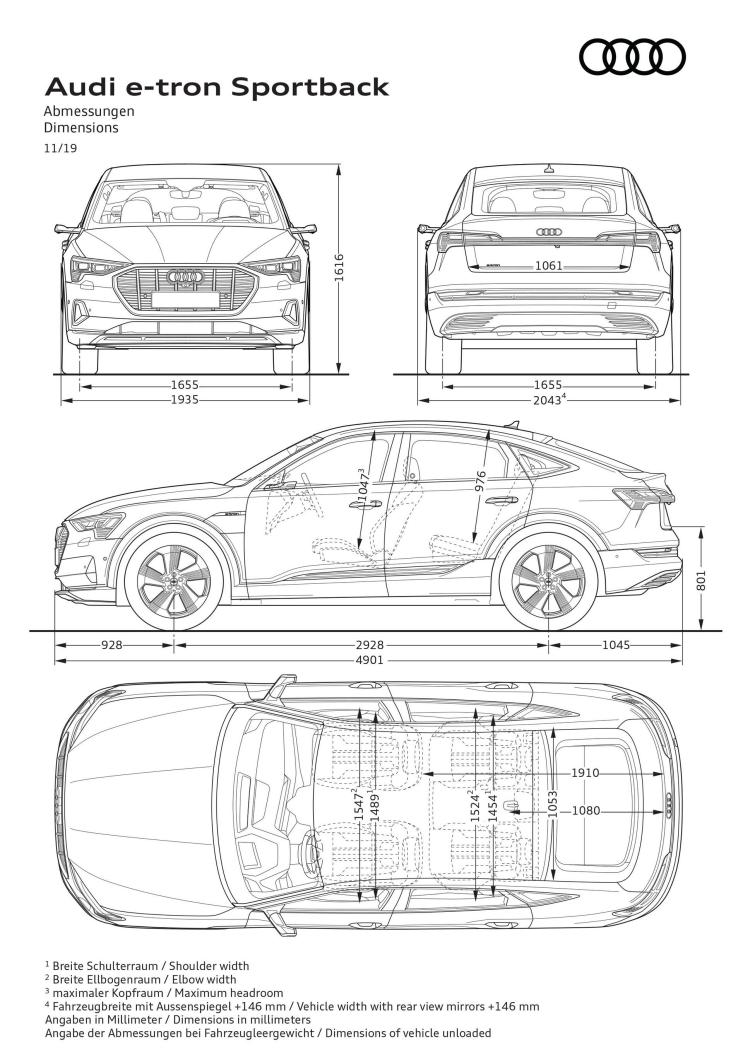

With a wheelbase of 2,928 millimeters (9.6 ft), the Audi e-tron Sportback** has ample space for five occupants along with their bags. Rear headroom is just 20 millimeters (0.8 in) less than in the Audi e-tron. The rear footwell is virtually level—just a flat step remains in place of the center tunnel. Including the 60-liter (2.1 cu ft) stowage compartment underneath the hood, which houses the vehicle tool kit and charging cable, the car offers a total of 615 liters (21.7 cu ft) of luggage capacity. Folding down the rear seat backrests increases the luggage capacity to 1,665 liters (58.8 cu ft). The tailgate opens and closes electrically, by foot movement as an option.

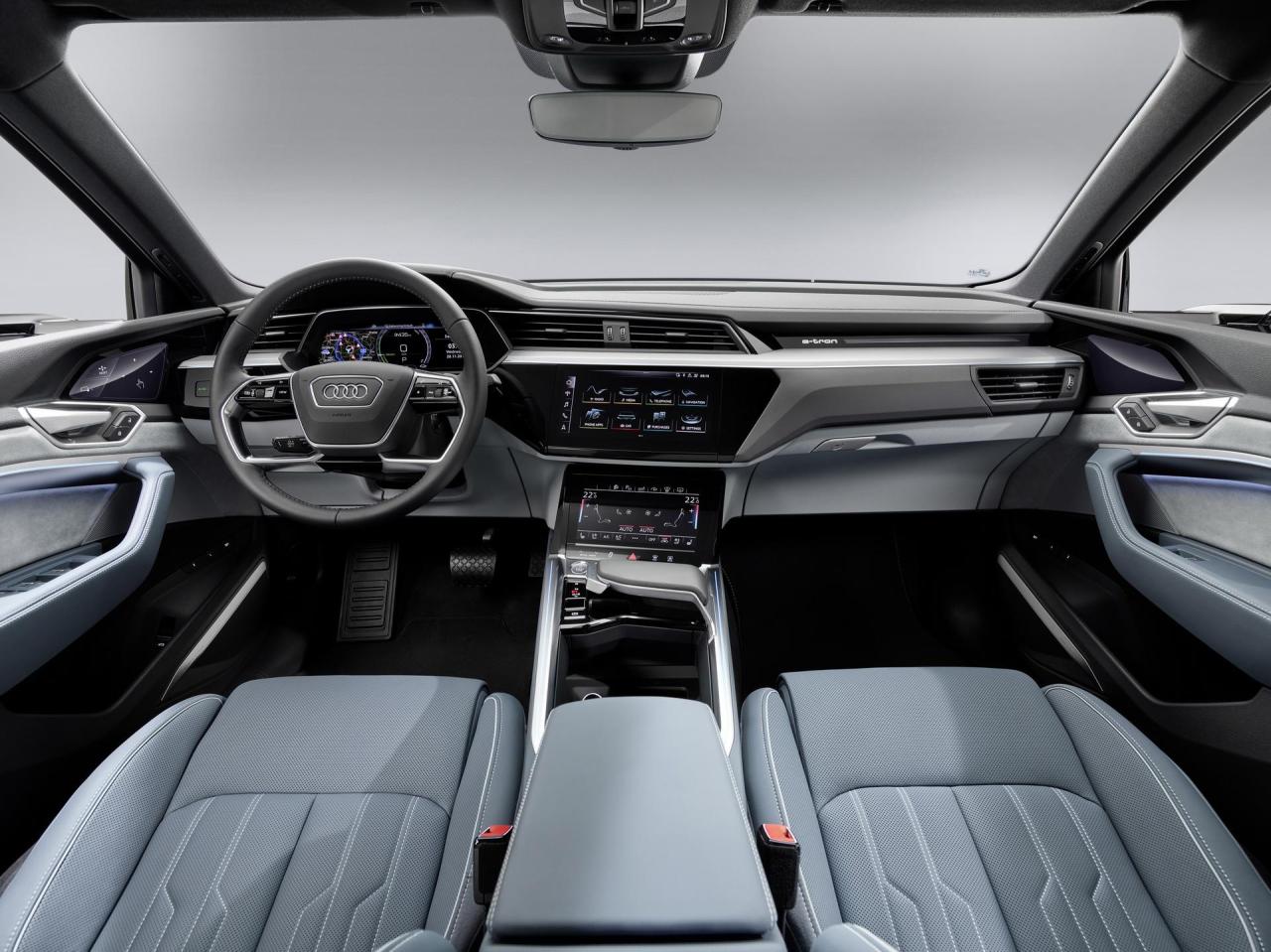

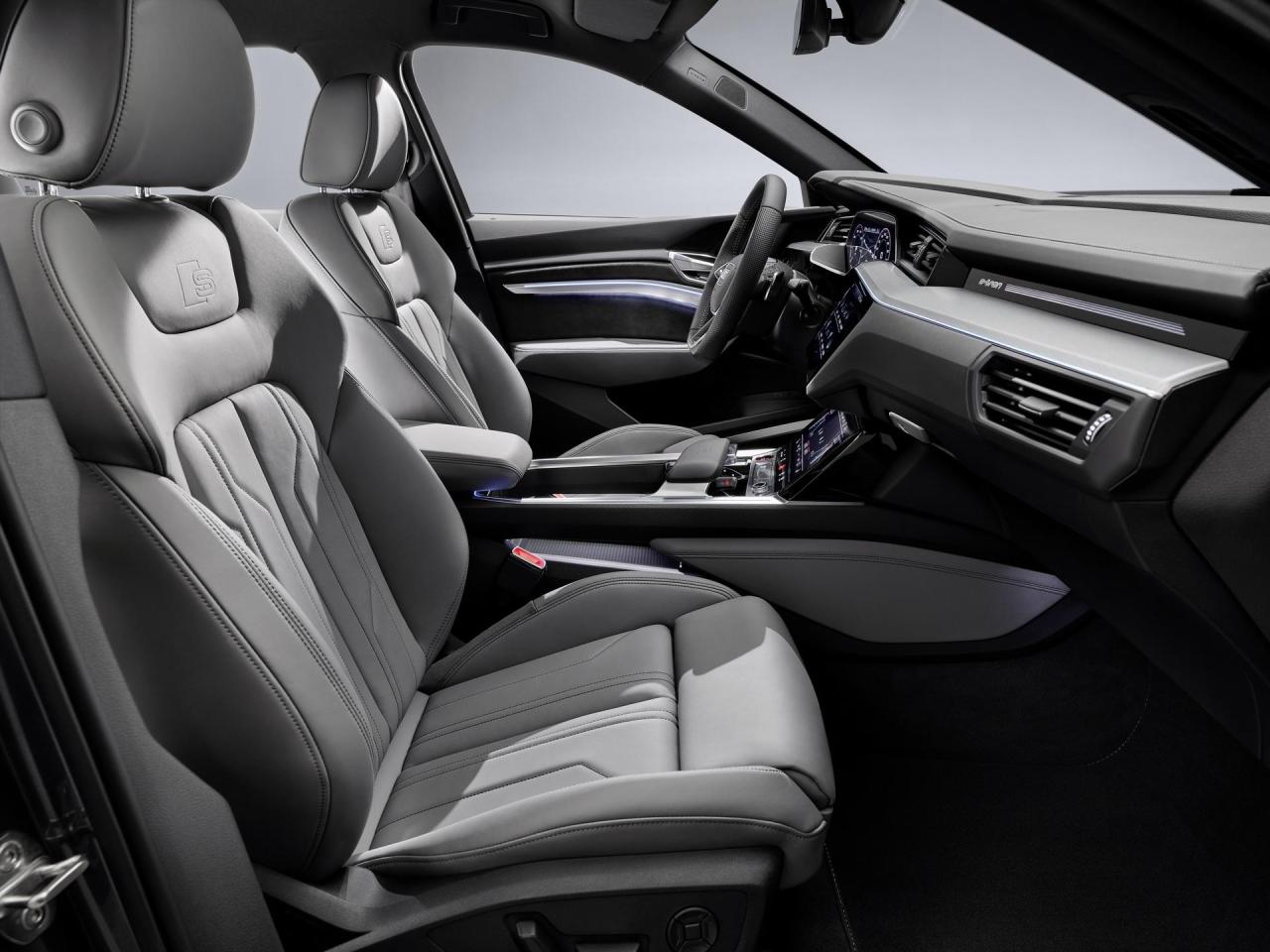

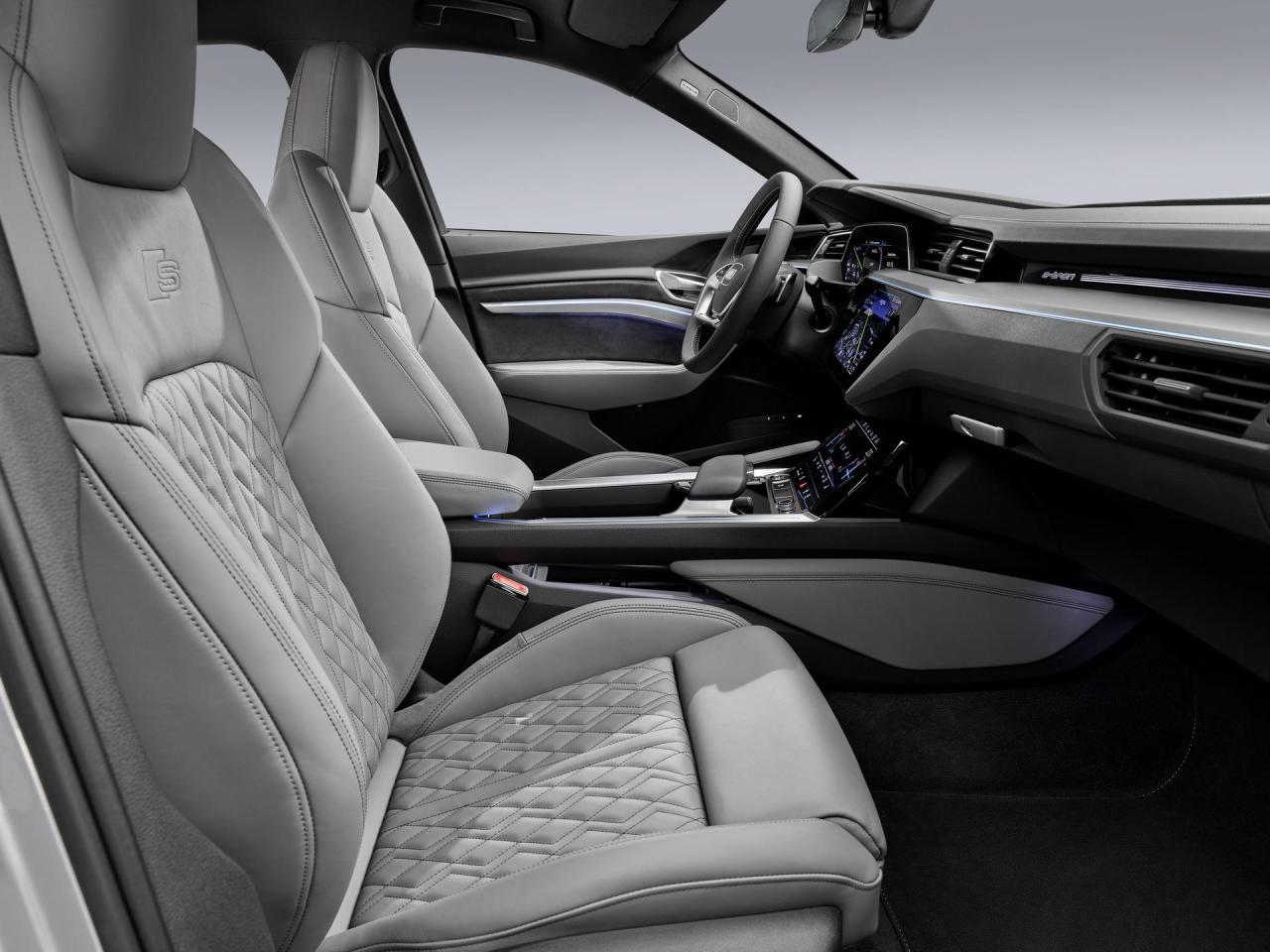

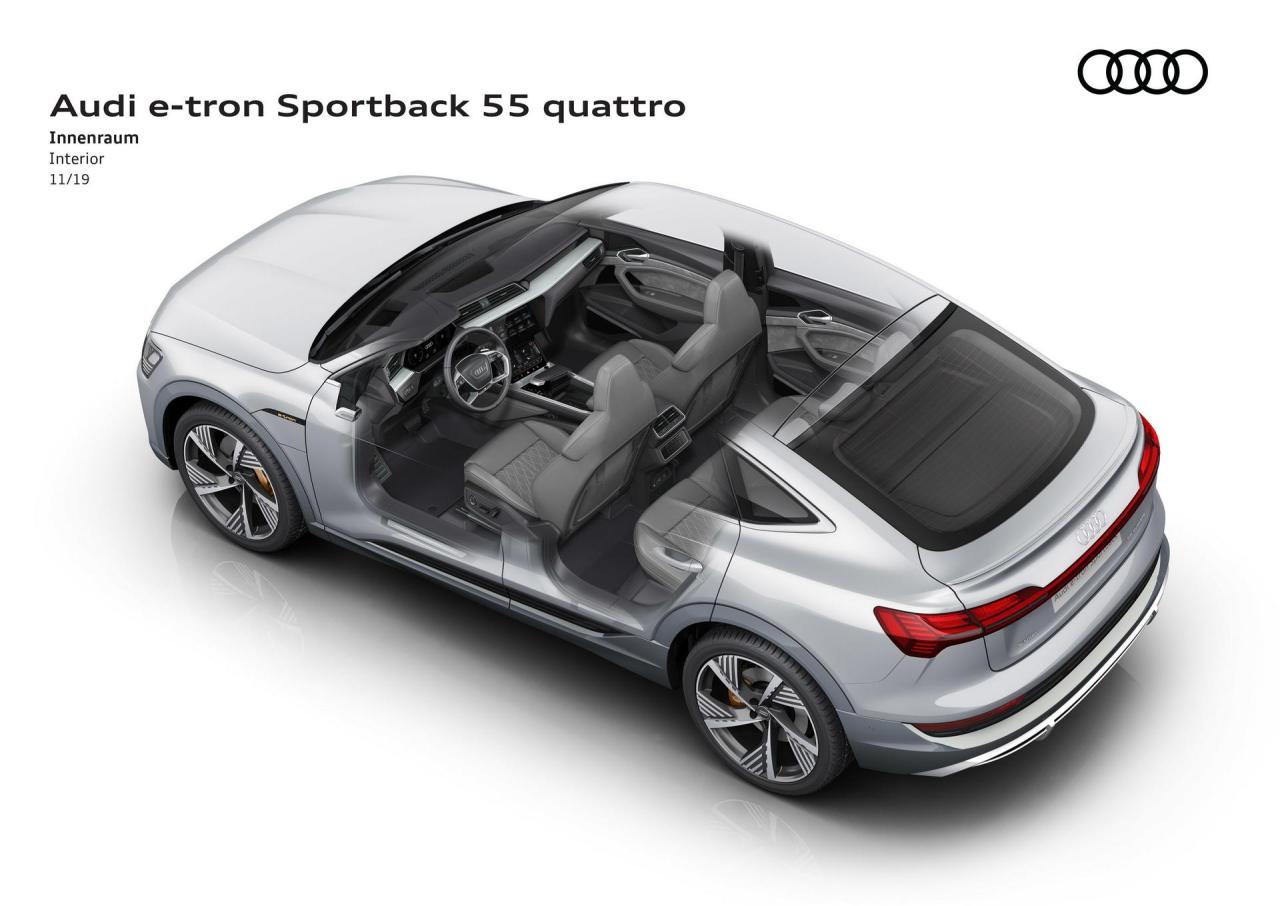

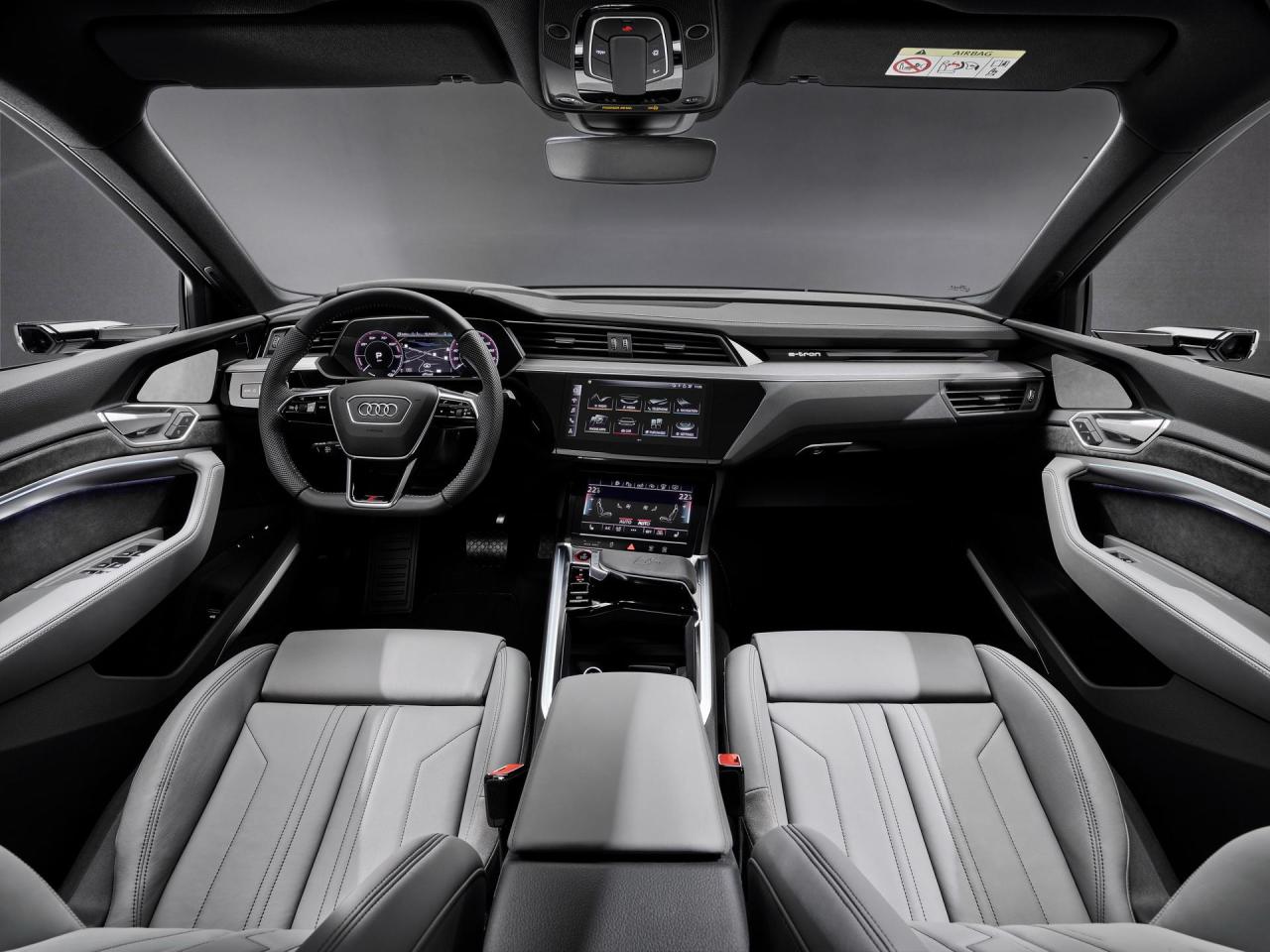

The interior of the Audi e-tron Sportback** is an elegant lounge featuring a seamless blend of design and technology. A generous arc that spans the instrument panel, extending from door to door, harmoniously integrates the cover for the Audi virtual cockpit. Its sleek display stands visually free in space. The wrap-around in the door trims also integrates the screens for the optional virtual exterior mirrors. The instrument panel with its two touch displays is angled towards the driver and therefore particularly ergonomic. When deactivated, the upper of these blends almost invisibly into the large gloss-black surround. Open sidewalls at the center tunnel console emphasize the impression of lightness.

In every equipment line—along with the basic line, there is the interior design selection and S line interior—the Audi e-tron Sportback** features carefully coordinated upholstery materials, colors, and inlays. For the front seats, customers can choose between the standard design, sport seats, S sport seats, and the customized contour seats, with optional ventilation and massage functions. Their stitching pattern is reminiscent of electric circuits and can be enhanced with optional bright orange contrasting stitching and piping. Little details create highlights: The optional contour/ambient lighting package illuminates surfaces subtly and edges sharply. It also issues a brief welcome jingle over the audio system when the motor starts.

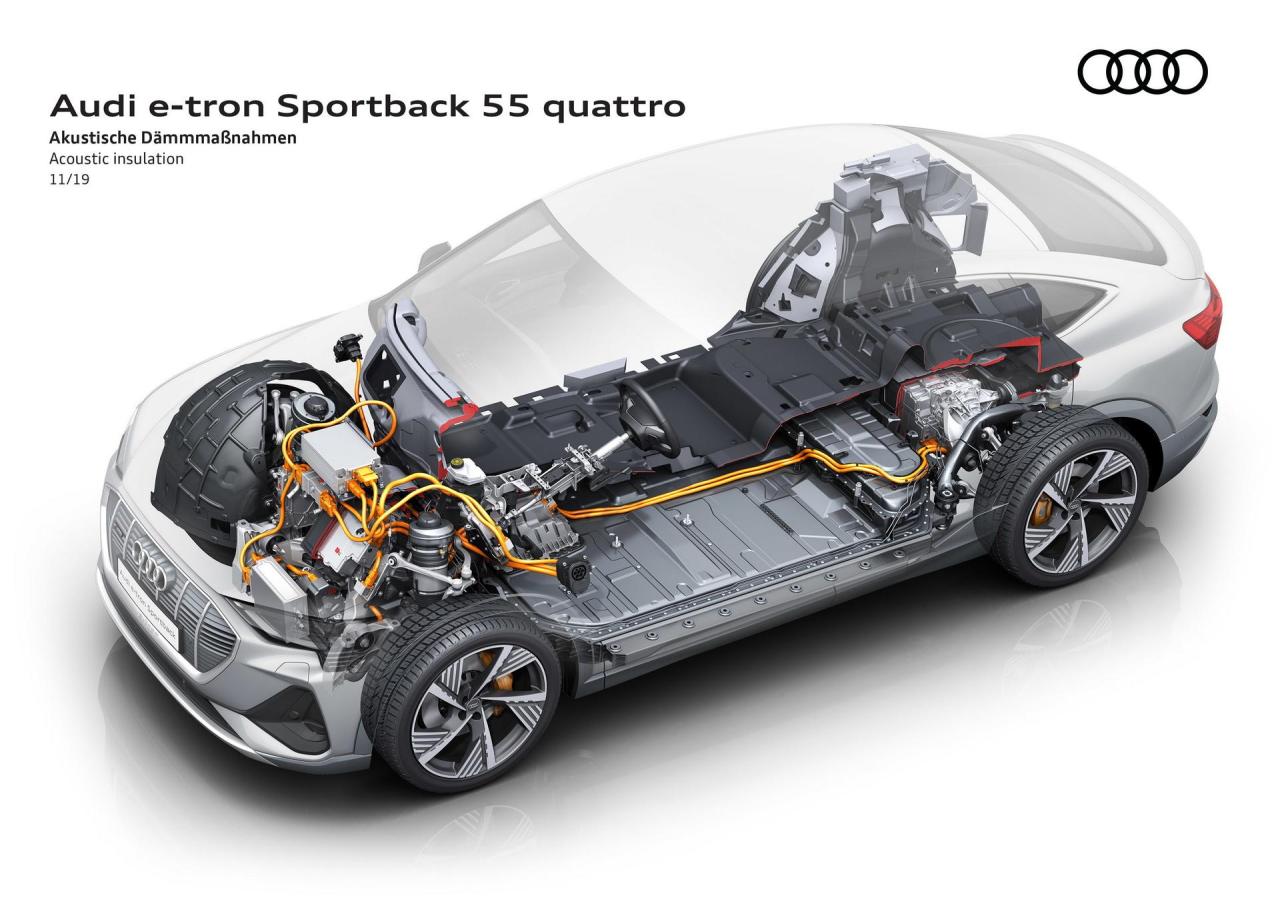

When the Audi e-tron Sportback** is driven in an urban setting, its interior remains almost completely silent—thanks to sophisticated soundproofing and aeroacoustic measures. This ensures that HiFi sound is even more enjoyable, especially with the optional Bang & Olufsen Premium 3D Sound System on board. It allows the music to be enjoyed precisely how it was recorded, without any artificial effects. Another attractive infotainment module is the Audi phone box, which sets benchmarks in terms of connection and sound quality as well as wireless charging.

Palpable and comprehensible: The operating concept

As with all full-size class models from Audi, the e-tron Sportback also features the MMI touch response operating system with two displays. A tactile and acoustic pulse confirms when a finger activates a function. On the upper 12.1-inch touch screen, the driver controls the infotainment, telephony, navigation, and dedicated e-tron settings. The lower 8.6-inch display is used to input text and to operate the convenience functions and climate control. The menu structure is intuitively logical and flat in the same way as a smartphone; the graphics are clear and condensed.

Standard equipment on the Audi e-tron Sportback** also includes the 12.3-inch Audi virtual cockpit. Its display excels with an extremely high resolution of 1,920 x 720 pixels and can be switched between two views using the “View” button on the steering wheel. An optional “plus” version featuring an additional display centered around the power meter is also available. On request, the display and operating concept can be expanded to include a head-up display that projects important information onto the windshield.

In addition to operation by the two touch displays, the driver can activate a host of functions using natural language voice control. The system understands freely worded commands and search queries. The dialog manager asks questions if necessary, allows corrections, offers choices, and also defers to the speaker when interrupted. In doing so, it accesses information stored in the vehicle as well as the knowledge from the cloud.

Top-caliber connectivity: Navigation and Audi connect

In Germany, the Audi e-tron Sportback** is equipped as standard with the MMI Navigation plus and the DAB+ digital radio. The top-end infotainment system supports the high-speed data transmission standard LTE Advanced and comes with an integrated Wi-Fi hotspot for the passengers’ mobile devices. The navigation system makes intelligent destination suggestions based on previous journeys. The route is calculated both on board in the car and online on the servers of the map and navigation provider HERE, which monitors the overall traffic situation in the region.

The wide range of Audi connect navigation & infotainment functions complements the route guidance perfectly. Highlights include online traffic information, navigation with Google Earth™, the e-tron route planner, the hybrid radio, and Car-to-X services. The most recent of these are the on-street parking service, which helps find parking spaces on the roadside, and traffic light information. In some cities, the latter connects the car to the central computer controlling the traffic light systems and provides information to the driver in the Audi virtual cockpit. The service thus contributes to an efficient driving style and facilitates a steady flow of traffic.

A further component of the package is the cloud-based Amazon voice service Alexa, which is fully integrated into the MMI operating system of the Audi e-tron Sportback. The driver can use it to perform a range of tasks such as placing orders and finding information about many current events. The service offers access to more than 80,000 Alexa Skills.

In addition, the free myAudi app can connect the car to a smartphone, which allows the owner of the Audi e-tron Sportback to manage all charging processes remotely. These include querying the battery and range status, starting the charge processes, programming timers, and displaying driving statistics. On long-distance trips, the e-tron route planner displays the necessary charging stops along the route—both in the app as well as in the MMI. In the process, it continuously updates the charge planning based on the traffic situation and to take account of driving behavior. Another function of the myAudi app is preheating/precooling prior to departure, which is powered by electricity from the outlet. The optional deluxe auxiliary air conditioning system allows the customer to specify in detail whether the interior, the steering wheel and the seats—depending on the equipment level—are to be heated.

This smart networking includes the digital Audi connect key in addition to the myAudi app. Available as an option, it authorizes an Android smartphone to not only lock and unlock the SUV coupé, but also to start the engine via the start/stop button.

Ensuring safety in the city and on long journeys: The driver assist systems

The driver assist systems that Audi offers in the e-tron Sportback** support drivers and reduce their workload in many situations. The Audi pre sense basic and Audi pre sense front safety systems are fitted as standard. Audi offers the assist package City specifically for urban traffic. It includes the intersection assist and rear cross traffic assist functions as well as the lane change and exit warnings. Audi pre sense 360°, the combination of Audi pre sense front, rear, and side, is fitted. This system detects collision hazards and initiates targeted protective measures—from full braking to tensioning of the seat belts.

Highlights of the assist package Tour are the adaptive cruise assist, which simplifies longitudinal and lateral control, as well as the efficiency assistant. The latter uses data from the on-board sensors, the navigation system, and Car-to-X services and signals to the driver when it makes sense to take their foot off the accelerator pedal. In combination with the adaptive cruise assist and traffic sign recognition, the efficiency assistant can also brake and accelerate the SUV coupé predictively. The turn assist, collision avoidance assist, and emergency assist functions round out the Tour package. Audi also offers the park assist, the night vision assist, and the 360 degree cameras that allow the driver to select from multiple views.

The central driver assistance controller operates as standard behind the driver assist systems in the Audi e-tron Sportback. It continuously computes a differentiated model of the surroundings. Depending on the selected options, data is received from up to five radar sensors, five cameras, and twelve ultrasonic sensors.

At market launch: Edition model “edition one”

The Audi e-tron Sportback, which is being built in the CO₂-neutral plant in Brussels, will debut on the European market in spring 2020. In Germany, the e-tron Sportback will be available in two output variants, with the base price starting at EUR 71,350. To celebrate the launch, Audi will offer the limited-edition model “edition one” in the plasma blue color. Based on the S line exterior, it also includes the virtual exterior mirrors, attachments finished in an aluminum look, exclusive 21-inch wheels, orange brake calipers, and the panoramic glass sunroof. The illuminated front door sill trims project the model name “edition one” as a logo onto the ground. The interior offers a choice between the interior design selection, supplemented with customized contour seats with exclusive Monaco gray seat covers in Valcona leather, and the S line interior with sport seats also in Valcona leather. The equipment also includes the Bang & Olufsen Premium Sound System with front 3D sound, the assist package Tour and matrix LED headlights with front and rear dynamic turn signals as well as dynamic light scenarios.



Fuel consumption of the models listed
(Information on fuel/power consumption and CO₂ emissions in ranges depending on the chosen equipment level of the car.)

Audi e-tron Sportback 50 quattro
Combined electric power consumption in kWh/100 km (62.1 mi): 26.3 - 21.6 (WLTP); 23.9 – 21.4 (NEFZ)
Combined CO₂ emissions in g/km (g/mi): 0

Audi e-tron Sportback 55 quattro
Combined electric power consumption in kWh/100 km (62.1 mi): 26.0 – 21.9 (WLTP); 22.7 – 20.6 (NEFZ);
Combined CO₂ emissions in g/km: 0

Audi e-tron 55 quattro
Combined electric power consumption in kWh/100 km (62.1 mi): 26.4 – 22.9 (WLTP); 24.6 – 23.7 (NEFZ);
Combined CO₂ emissions in g/km: 0

Audi





e-tron S Sportback











Infografiche:









Press Release:



Cita

• A world first in mass production: Drive with three electric motors mobilizes up to 370 kW of power and 973 Nm (717.6 lb-ft) of torque
• New quattro generation with electric torque vectoring
• Outstanding aerodynamics thanks to intelligent technology





Audi is showing consistency and continuing with its electric offensive – with the new Audi e-tron S² and the new Audi e-tron S Sportback³. Both of the S models with fully electric drive use three electric motors, two of which operate on the rear axle. Their intelligent drive control raises vehicle safety, and dynamic handling in particular, to a new level. In addition to the electric all-wheel drive, the vehicles are equipped with electric torque vectoring with active and fully variable torque distribution on the rear axle.



Handling 2.0: the driving experience

The new Audi e-tron S and the new Audi e-tron S Sportback deliver dynamics in a new dimension. In S gear, they provide their full boost performance for eight seconds – 370 kW of power and 973 Nm (717.6 lb-ft) of torque⁴. The standard sprint takes just 4.5 seconds and acceleration ends at 210 km/h (130.5 mph).

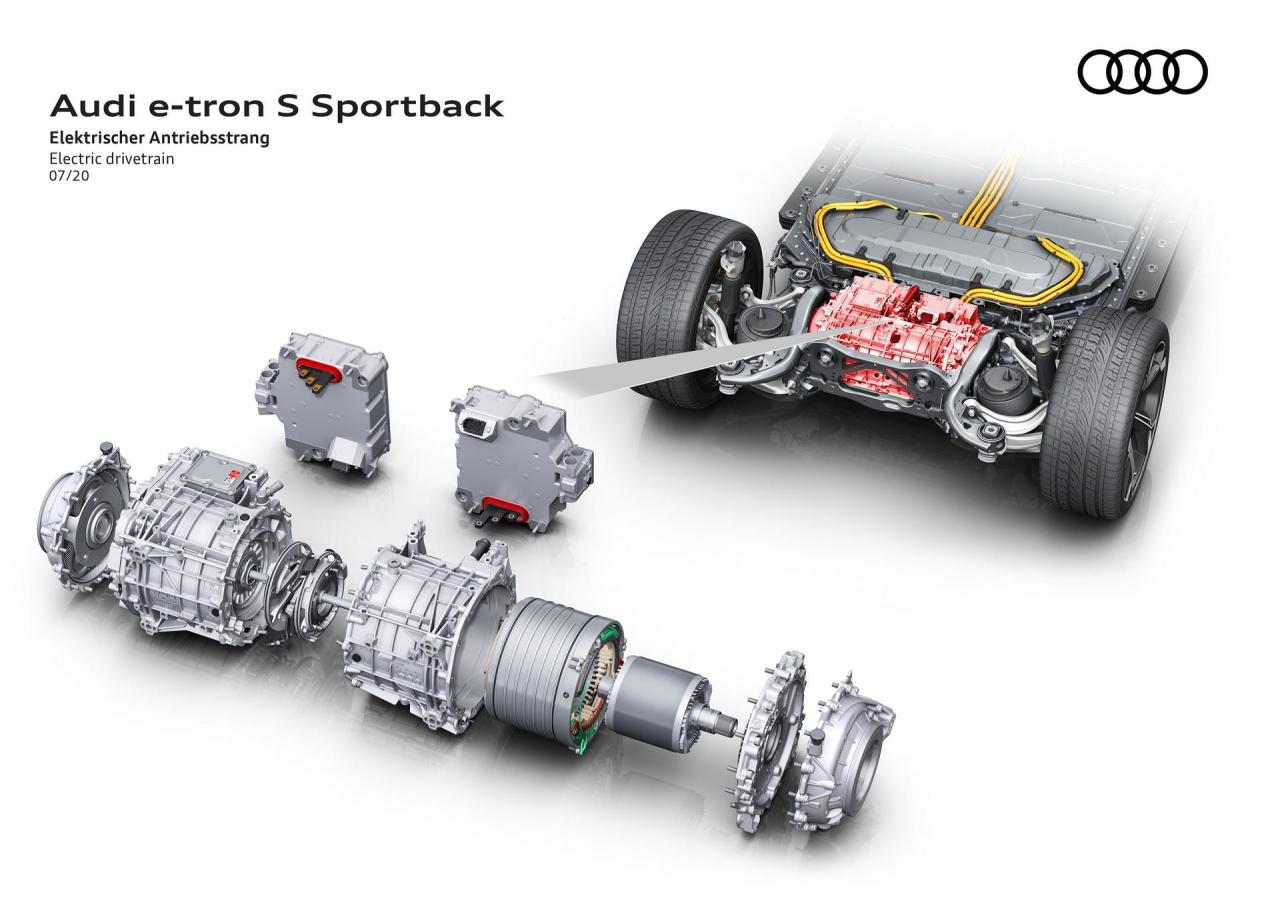

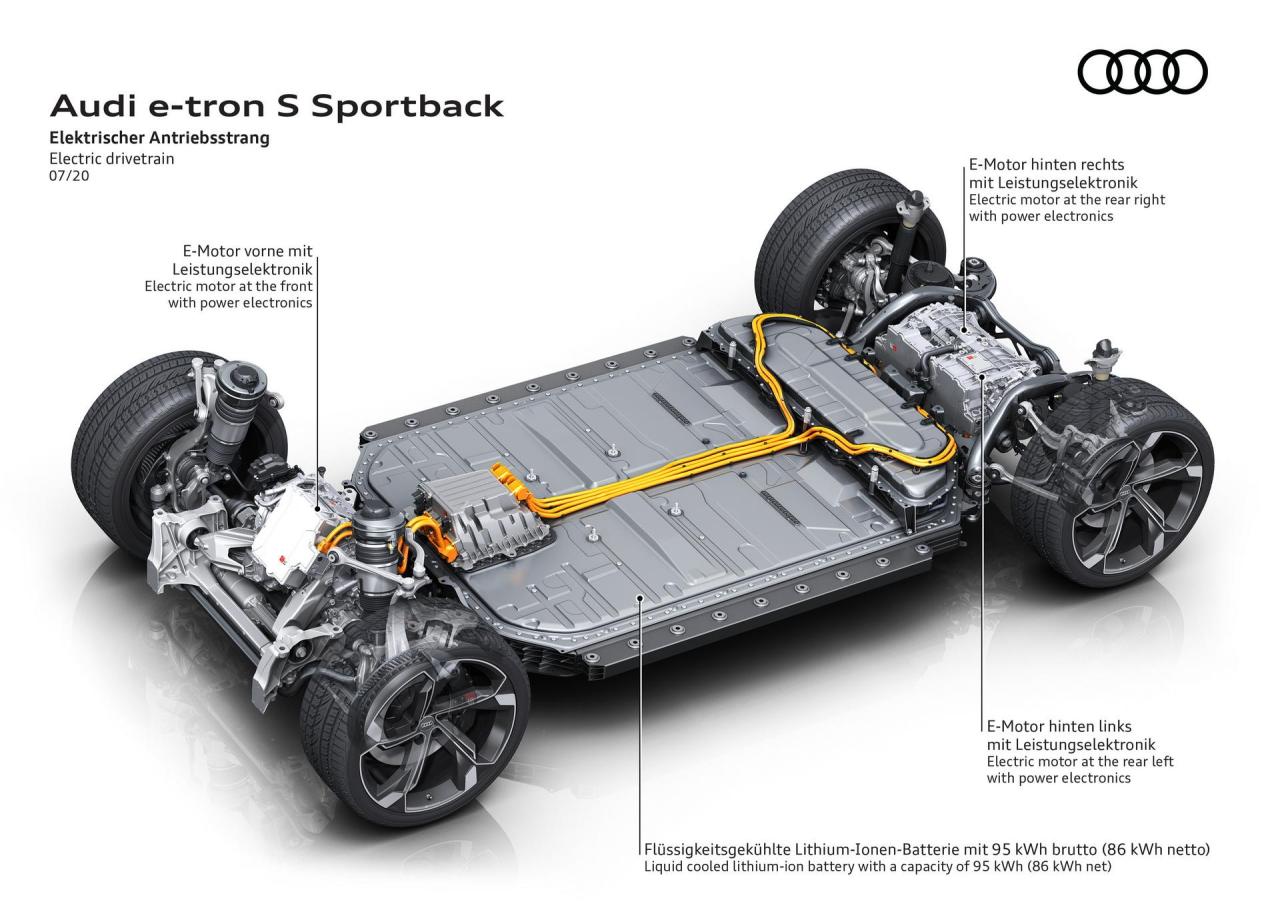

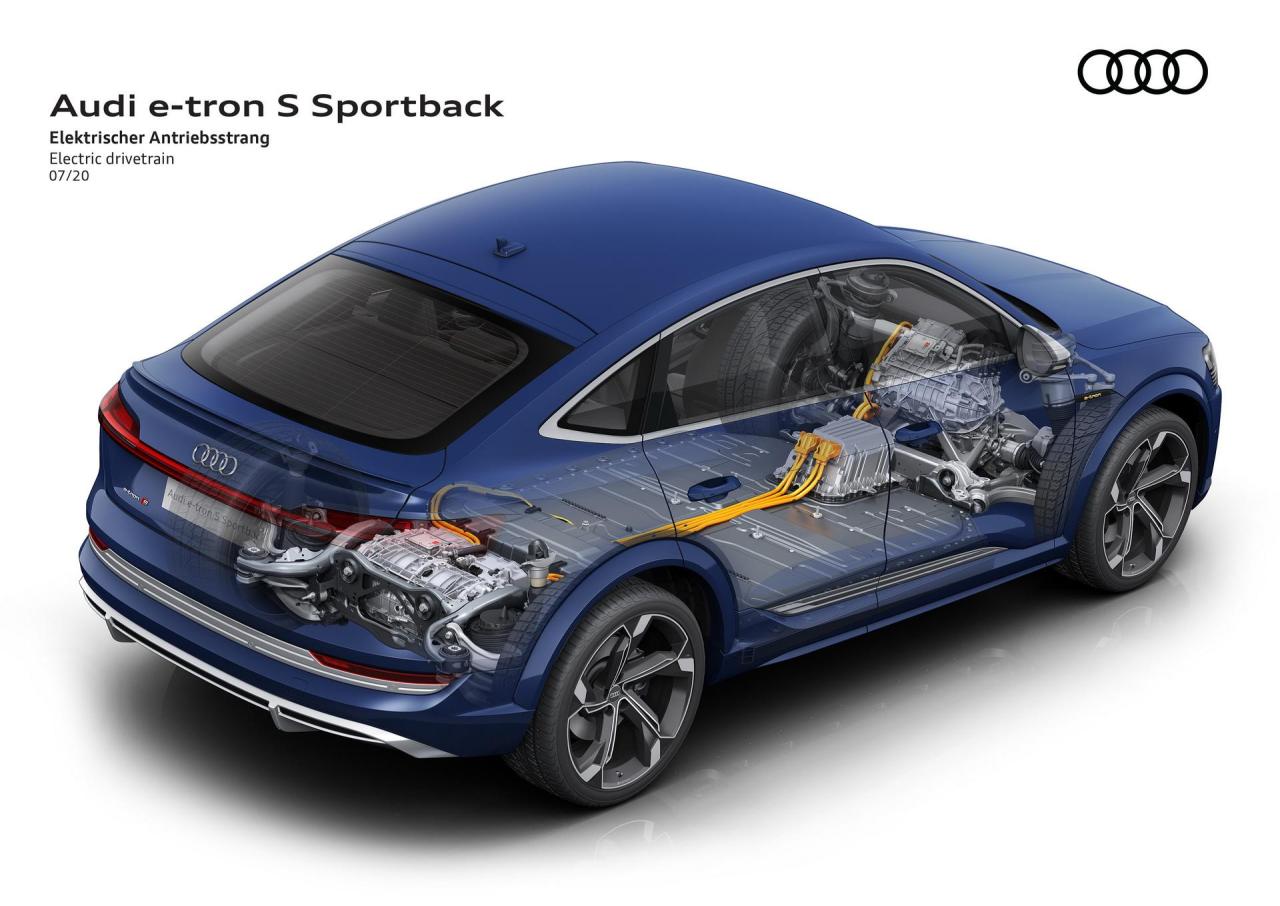

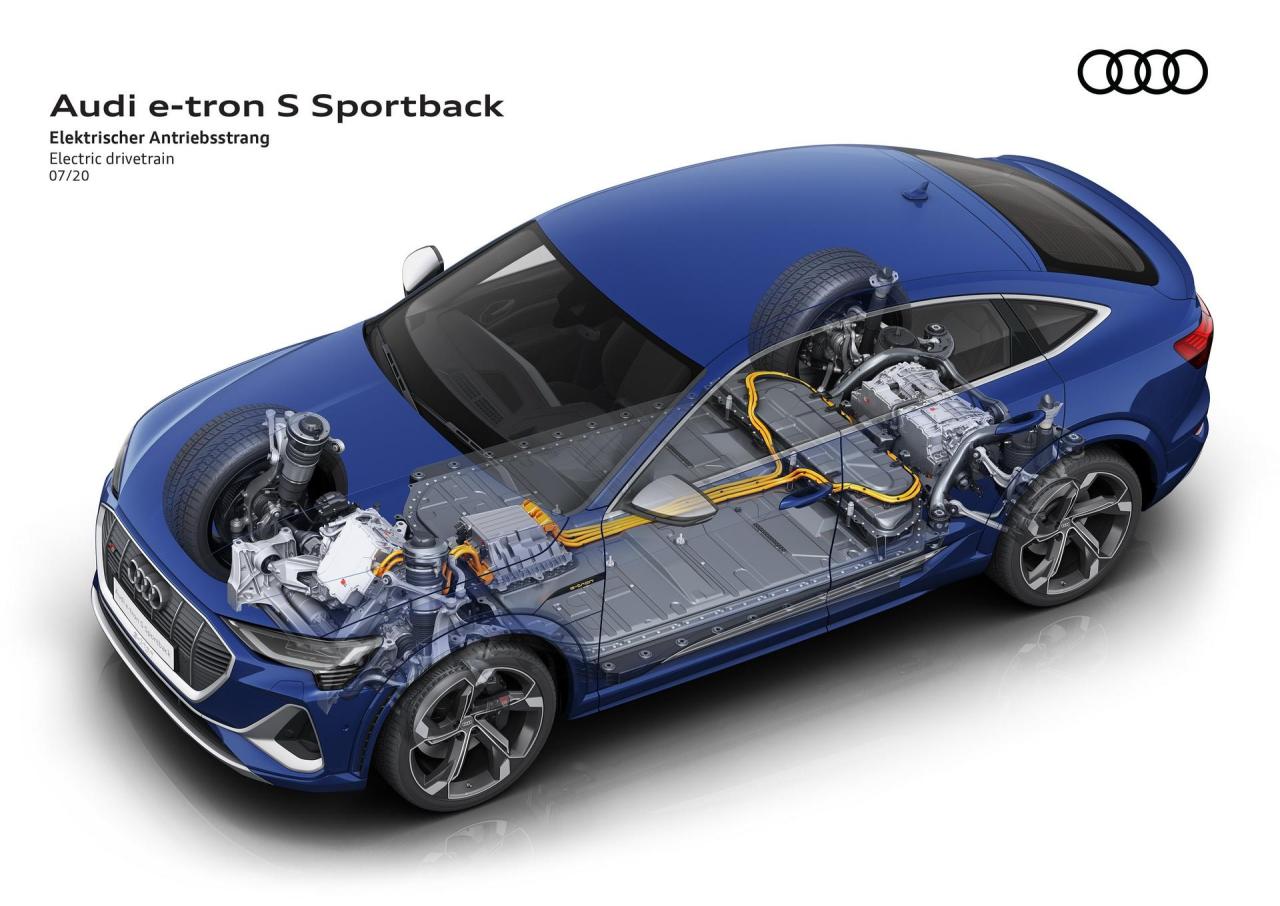

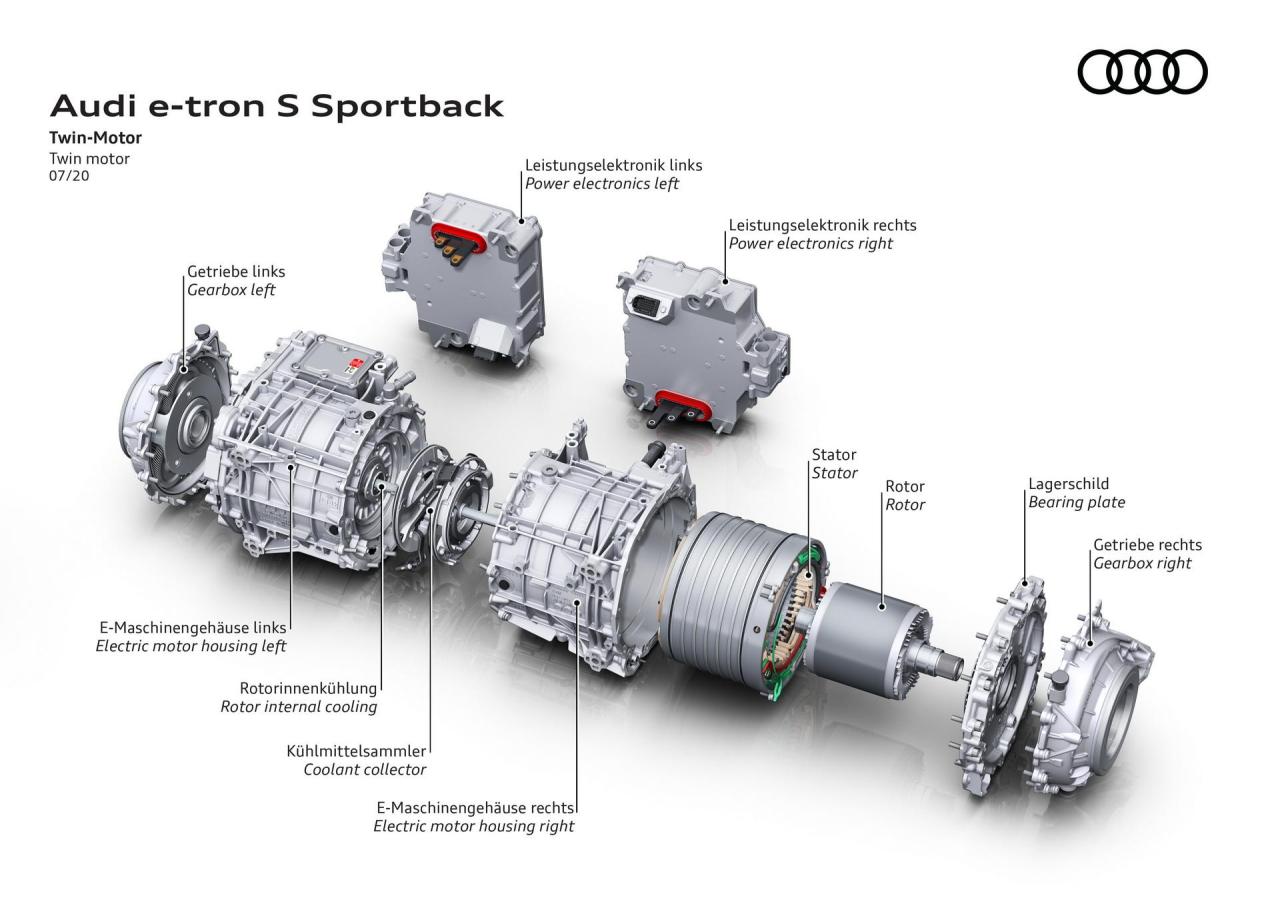

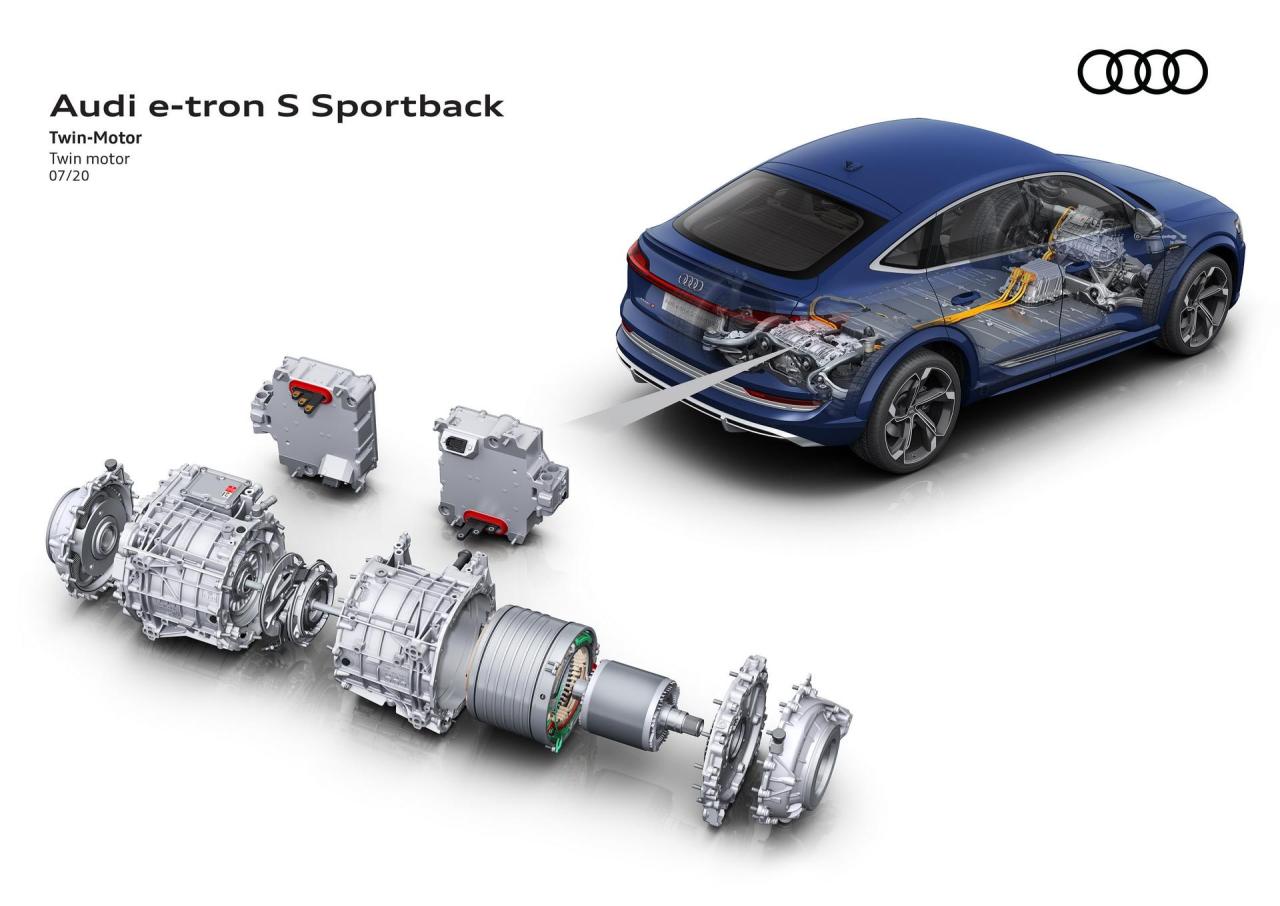

The new S models have two electric motors on the rear axle and one on the front axle, making them the first mass-produced electric cars in the world to have three electric motors. Their drive layout is based on the modular construction principle: An adapted design of the more powerful electric motor that powers rear axle in the Audi e-tron 55⁵ is now installed on the front axle.

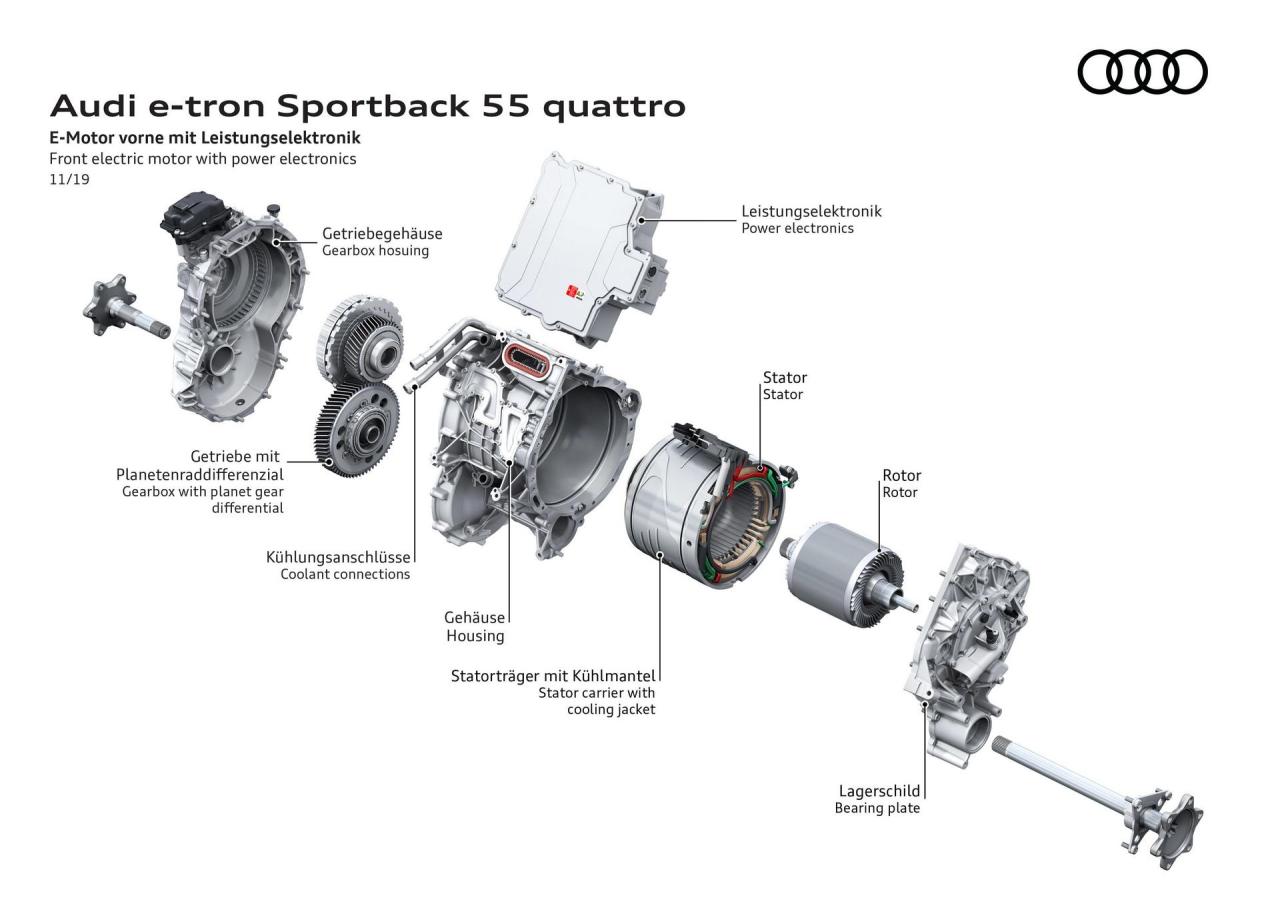

The front electric motor from the e-tron 55 operates together with a structurally identical counterpart and individual modifications in the rear. The high-voltage battery has a gross energy capacity of 95 kWh, of which 91 percent (86 kWh) is usable. With one battery charge, the Audi e-tron S and the Audi e-tron S Sportback achieve ranges of up to 364 km (226.2 mi) and 370 km (229.9 mi) respectively in the WLTP cycle.

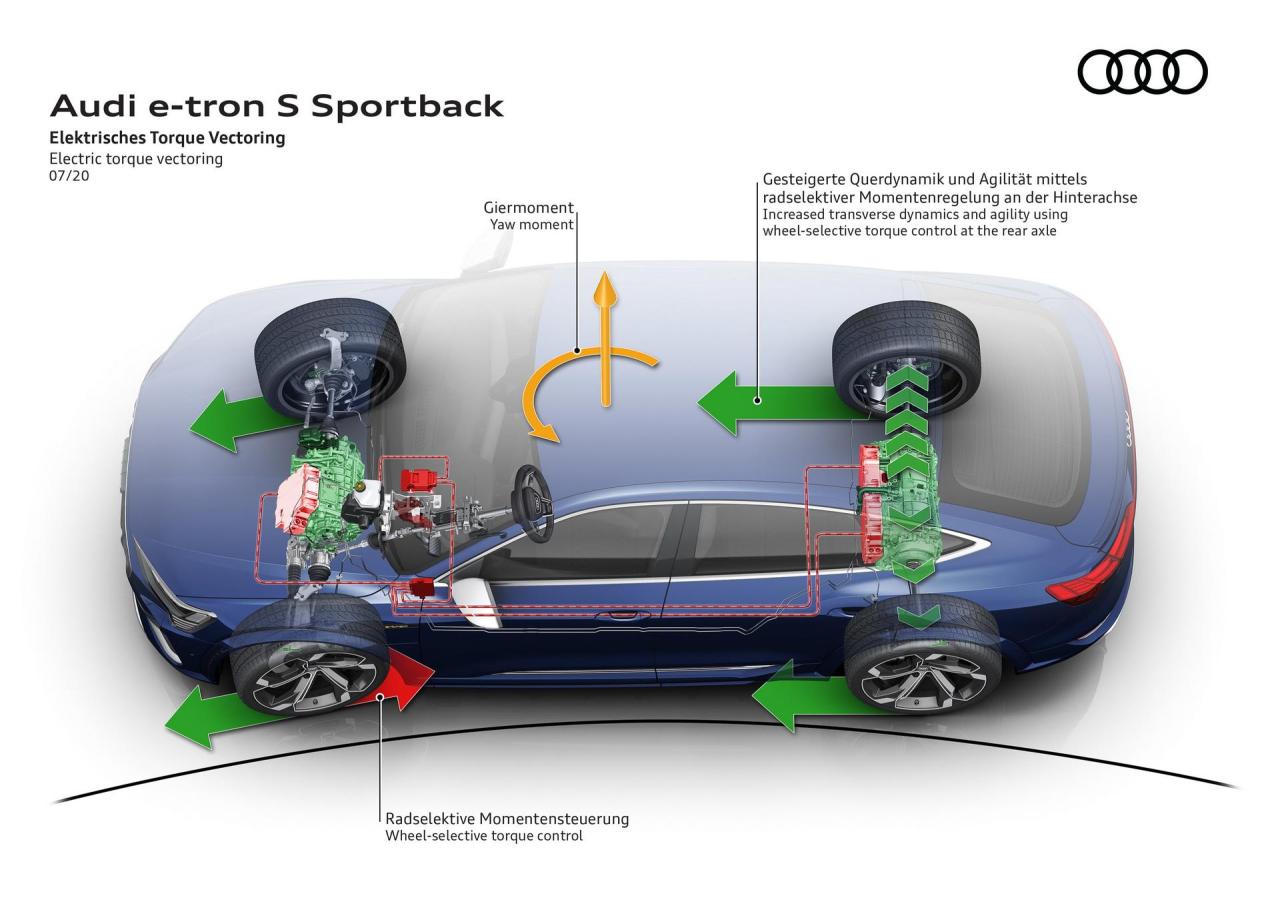

quattro reloaded: electric torque vectoring

In order to improve efficiency, only the rear electric motors are engaged as long as the Audi e-tron S² and the e-tron S Sportback³ are operating in normal driving mode. The front electric motor flashes into action when the driver demands more performance, or predictively before traction subsides.

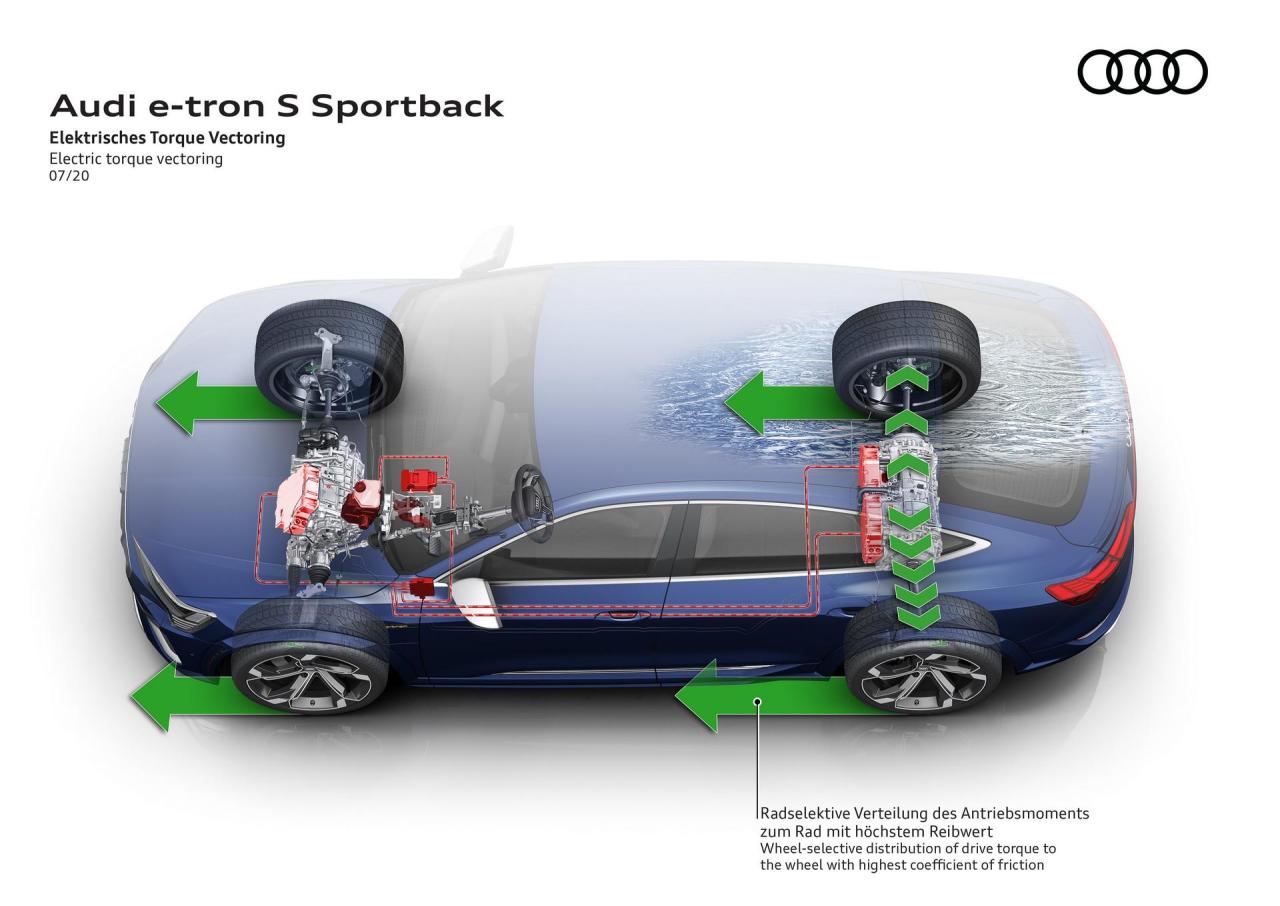

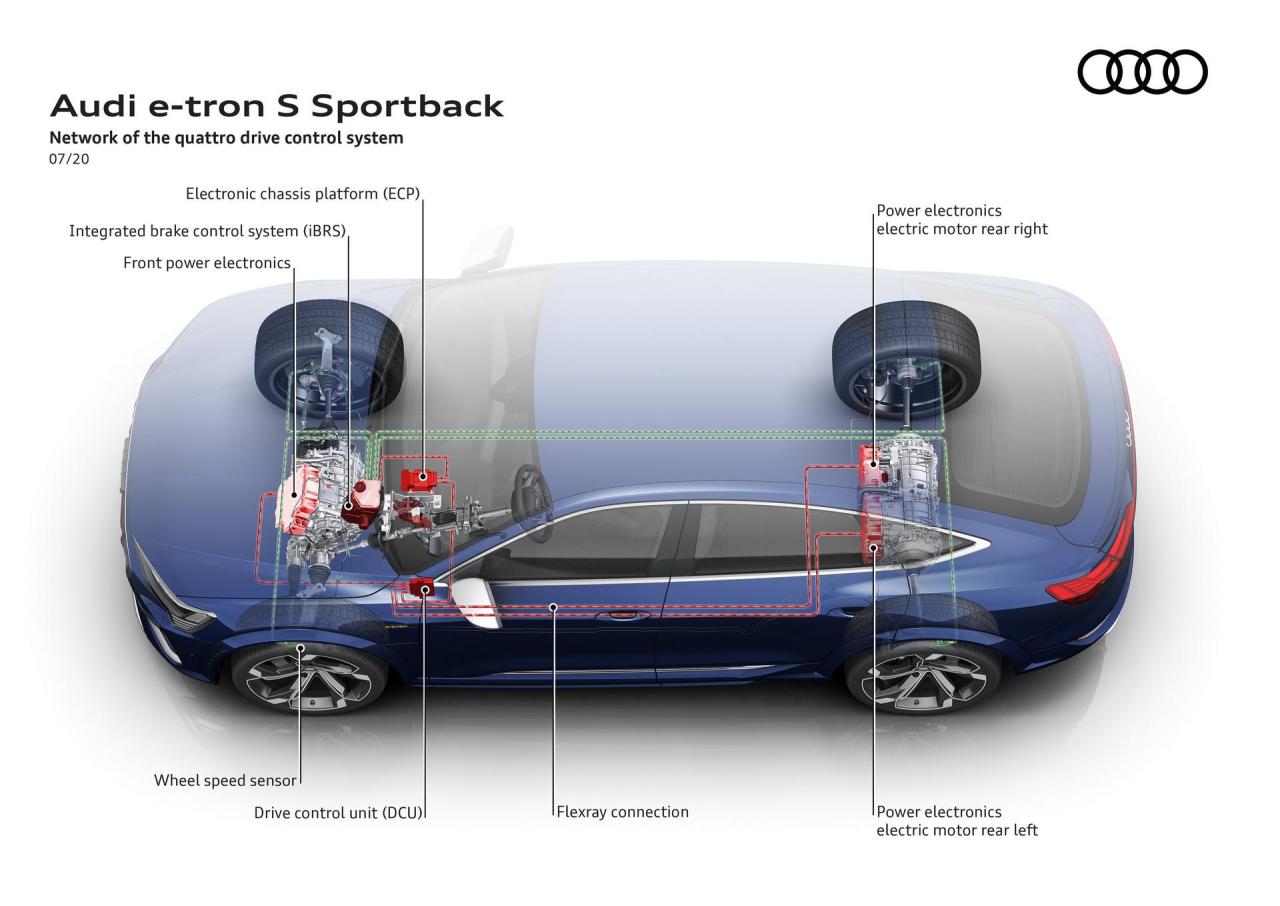

Electric all-wheel drive is now enhanced with electric torque vectoring: Each of the rear electric motors sends the drive torques directly to the respective wheel via a single-speed transmission; there is no more mechanical differential. Need-based regulation takes just milliseconds and can manage very high drive torques.

Drivers experience the excellent agility and traction of the electric S models in particular when challenging them on curvy roads. Their character has a stronger emphasis on the rear end and is even sportier than that of the technical basis. If the ESC stabilization control is set to “sport” and the Audi drive select dynamic handling system is set to maximum performance in “dynamic” mode, the drive layout facilitates a high level of transverse dynamics and, upon request, controlled drifts as well. When approaching the physical limit, the unloaded front wheel on the inside of the curve is decelerated slightly via the wheel brake to prevent slip and further refine handling. The sharp dynamism, high level of precision, and uncompromising safety are based on the close networking between all control units that manage the drive and suspension systems.

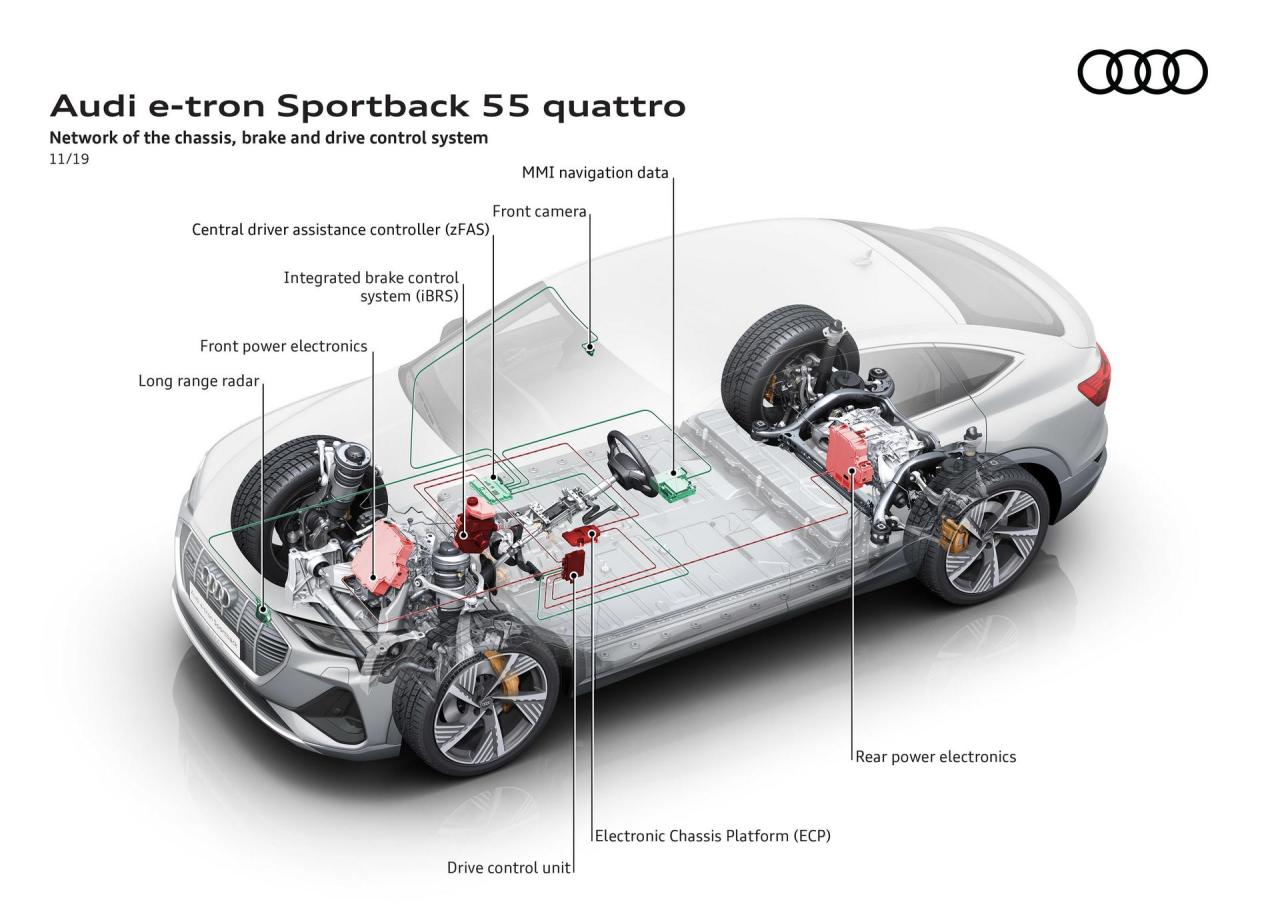

Networking: the suspension of the electric S models

The large high-voltage battery ensures a balanced distribution of the axle loads and is installed in a low position comparable to that of the three electric motors. This lowers the car’s center of gravity, which offers great advantages in terms of handling. The progressive steering, whose ratio becomes increasingly direct as the steering movement increases, emphasizes the sporty character. The suspension has S-specific tuning. The Audi drive select system offers seven driving profiles. For example, it accesses the adaptive air suspension sport – the air suspension with regulated damping can vary the level of the body by up to 76 millimeters (3.0 in) depending on the driving situation and settings.

The electric S models are equipped with 20-inch wheels as standard and come with tires that are already 285 millimeters (11.2 in) wide. 21-inch wheels are available upon request and even sportier 22-inch wheels will follow at a later time. Fixed calipers with six pistons each are installed in the front above the large brake disks; fist calipers are installed in the rear. The brake calipers are painted black as standard and feature the S logo. Upon request, they can be painted in a bright orange and decorated with the e-tron logo.

The brake is actuated and regulated via a compact module that controls the pressure build-up electronically (by wire), reinforces it electrically, and actuates the brakes hydraulically. An electric spindle drive actuates the displacing piston in a flash: The brake pads are in full-pressure contact with the disks after just 150 milliseconds. Depending on the driving situation, the brake control system decides individually for each axle whether the car will decelerate with the electric motors, the wheel brakes, or a combination of both systems.

Innovative solutions: aerodynamics.

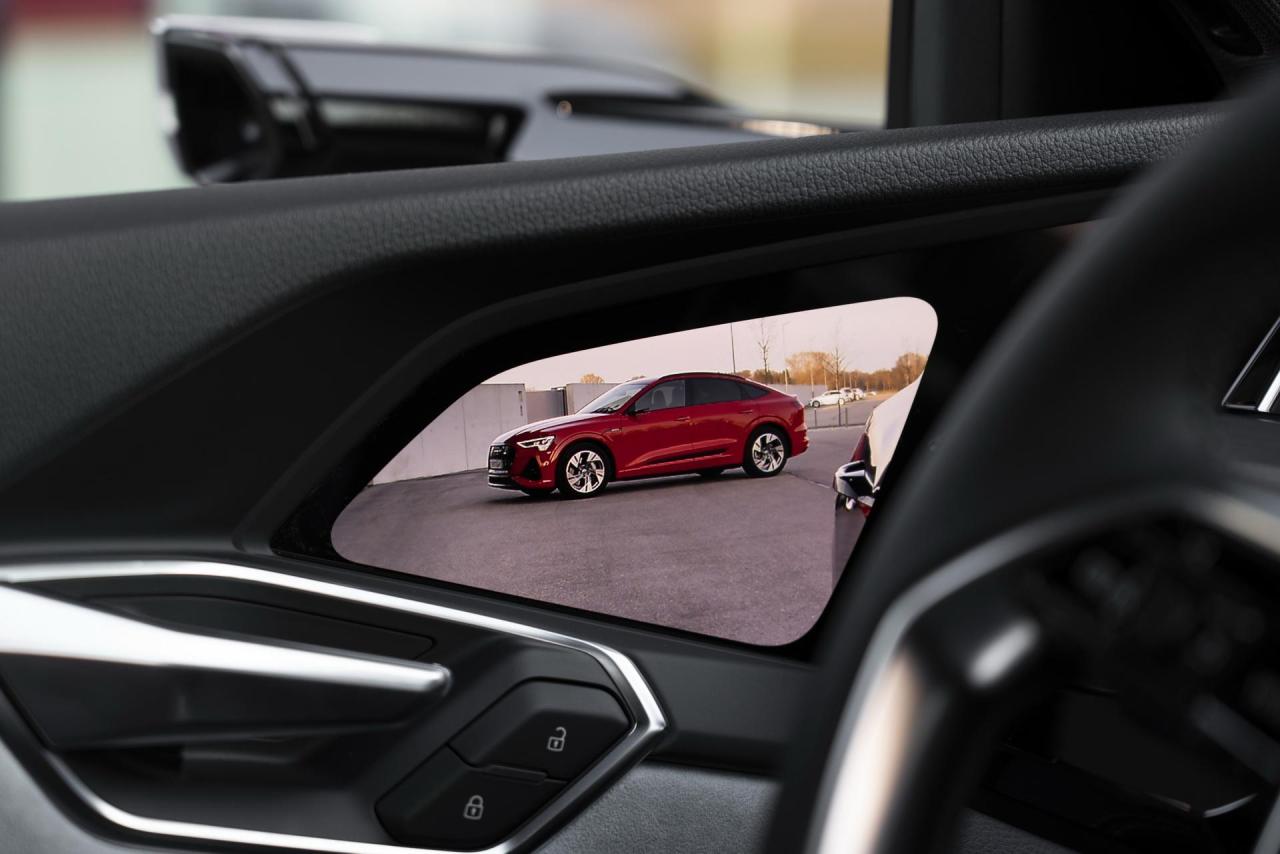

Thanks to the optional virtual exterior mirrors (cameras that send their pictures to high-contrast displays in the interior) in particular, the Audi e-tron S models achieve very good drag coefficients. Flow-optimized wheel arch extensions also make a considerable contribution to resolving the conflict of objectives between outstanding aerodynamics and a sporty look. The innovative technology was developed by Audi and is now patented. The brand with the four rings is introducing it to large-scale vehicle construction for the first time. This allows the Audi e-tron S Sportback to achieve a drag coefficient of just 0.26, despite the widening of its wheel arches; in the Audi e-tron S, the drag coefficient is 0.28.

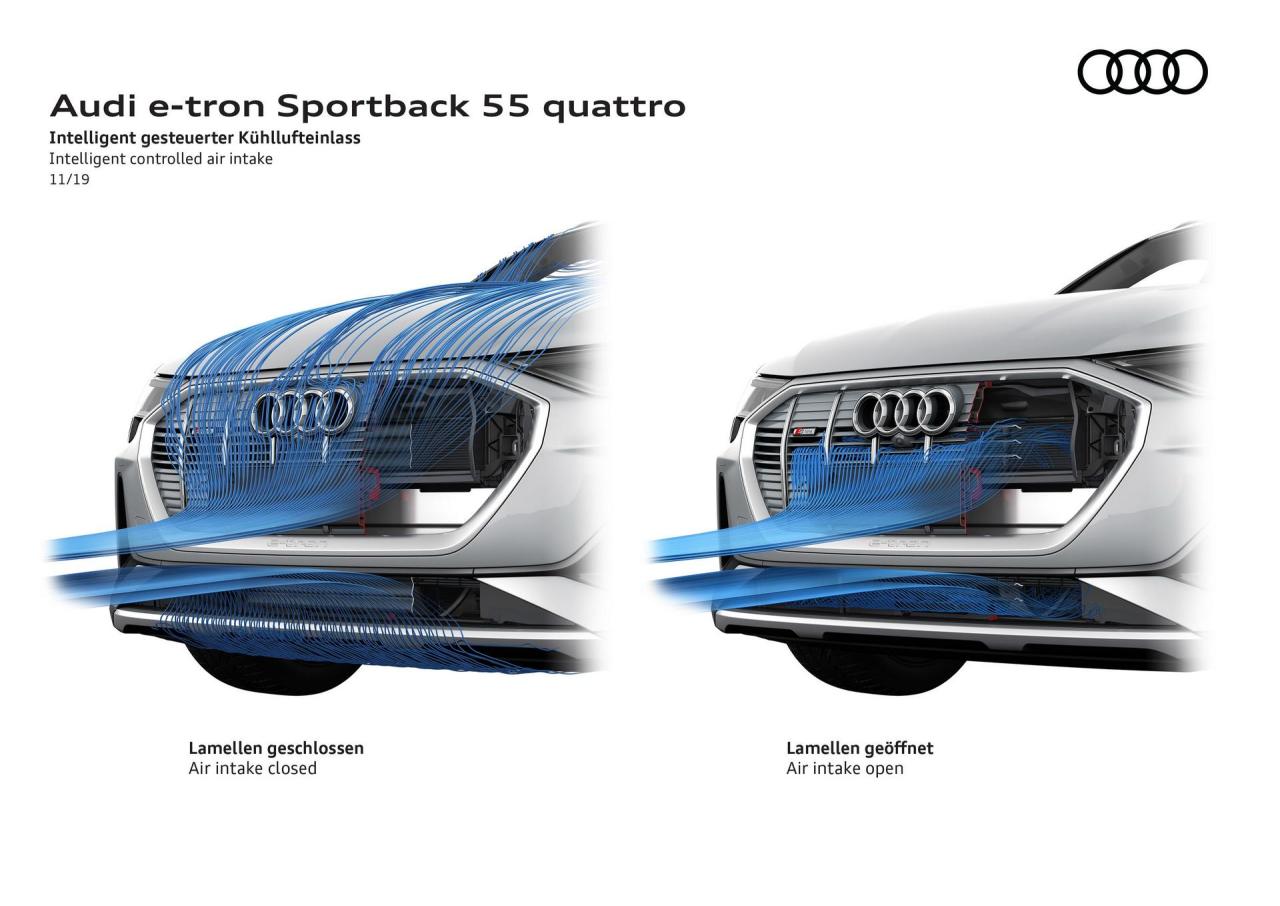

A second major element in the aerodynamics concept is the controllable cooling-air inlet with ducts to cool the front wheel brakes. It remains closed as often as possible so that the airstream flows over the hood with almost no turbulence. As part of efficient thermal management, each e-tron is equipped with a heat pump as standard. It draws heat energy from the waste heat of the drive components, thereby increasing the range by up to ten percent.

The sophisticated recuperation concept also contributes to the vehicle’s efficiency. Drivers can select between three recuperation levels, the highest of which allows them to experience a noticeable one-pedal feeling. When braking, the electric motors decelerate alone up to the area of 0.3 g, i.e. in most everyday situations. The hydraulic wheel brakes only come into play beyond that level. However, the electric motors remain active and can convert up to 270 kW of peak performance when braking from a speed of 100 km/h (62.1 mph).

Five centimeters (2.0 in) more width: the exterior design

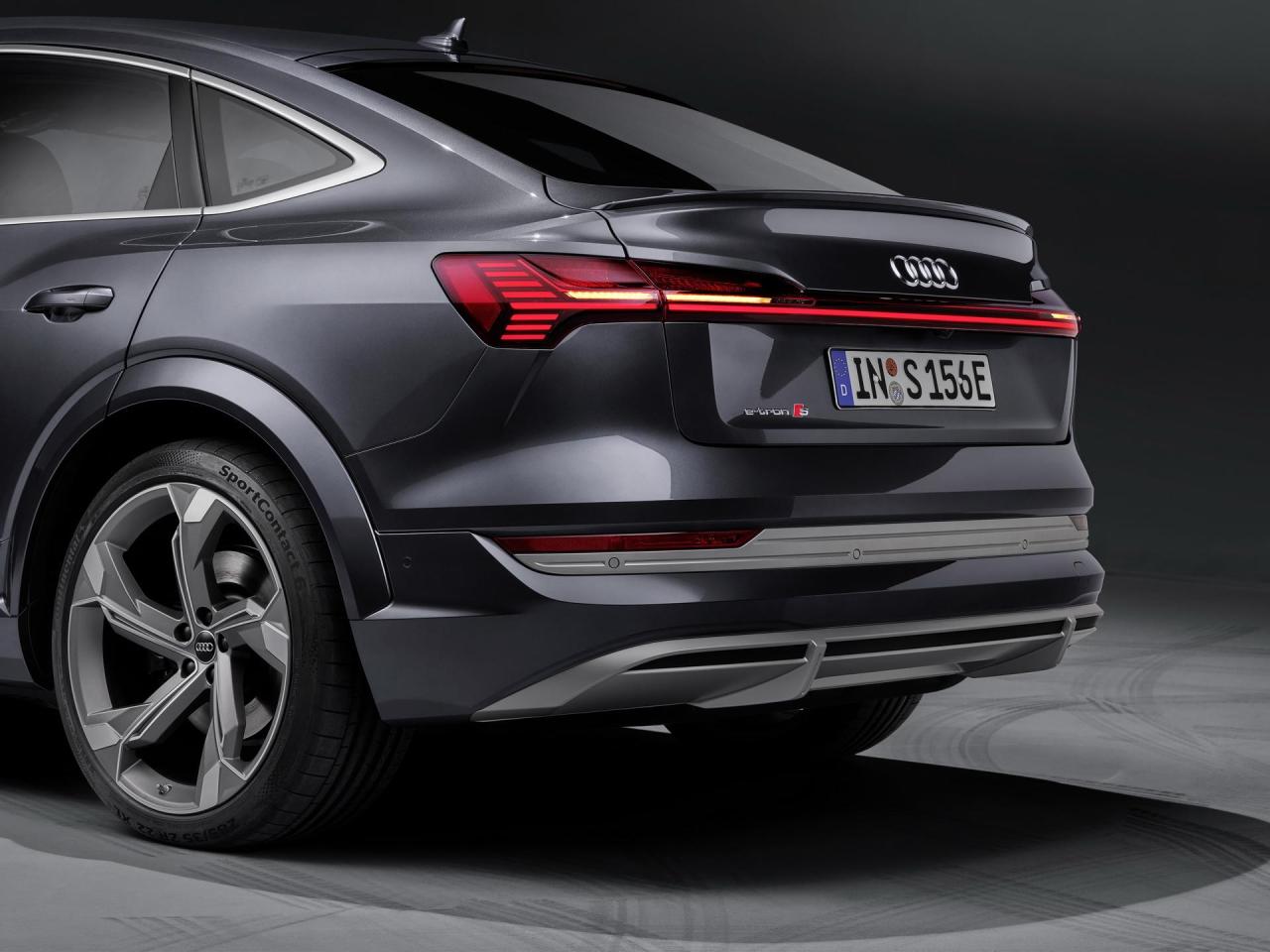

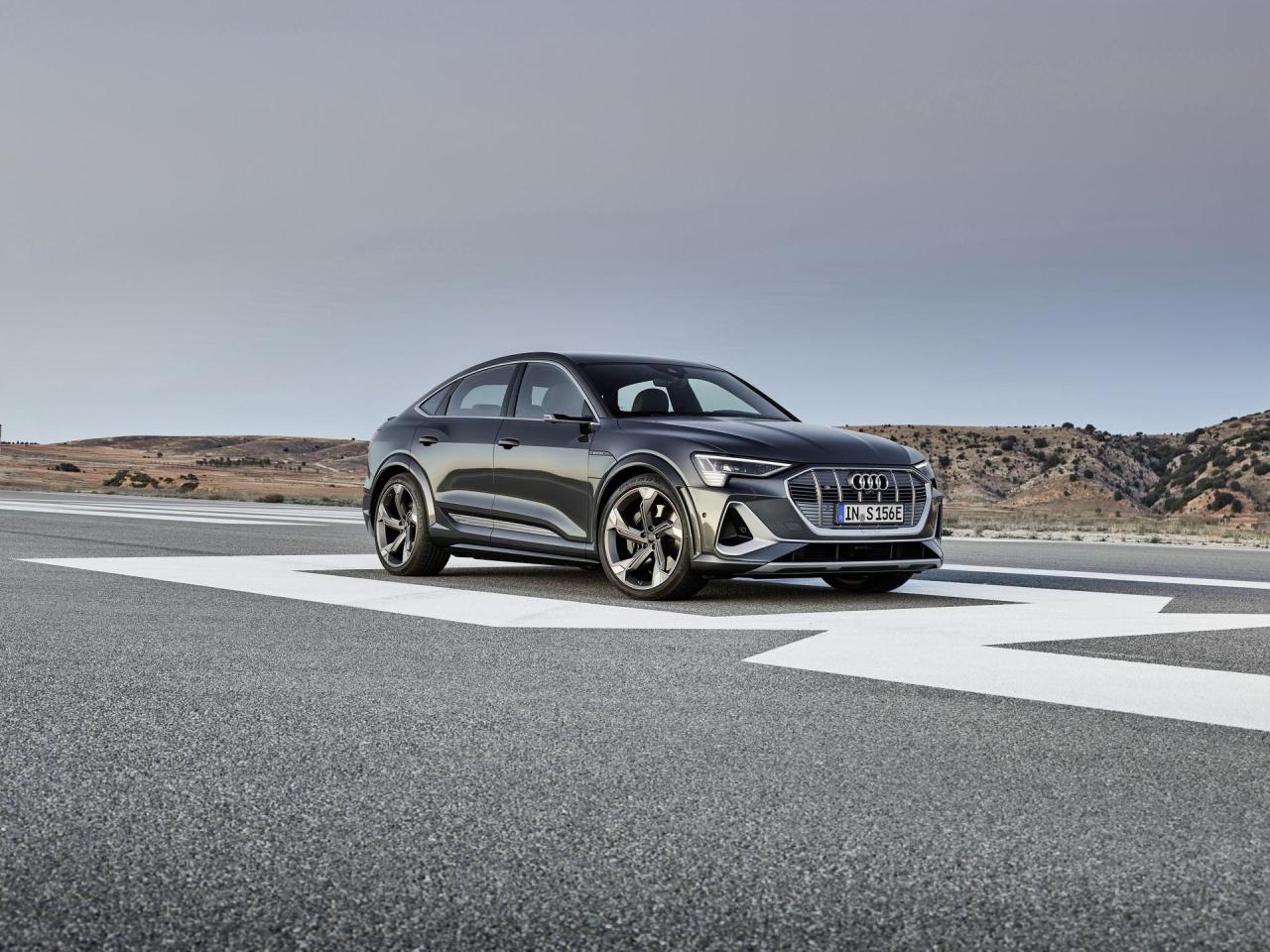

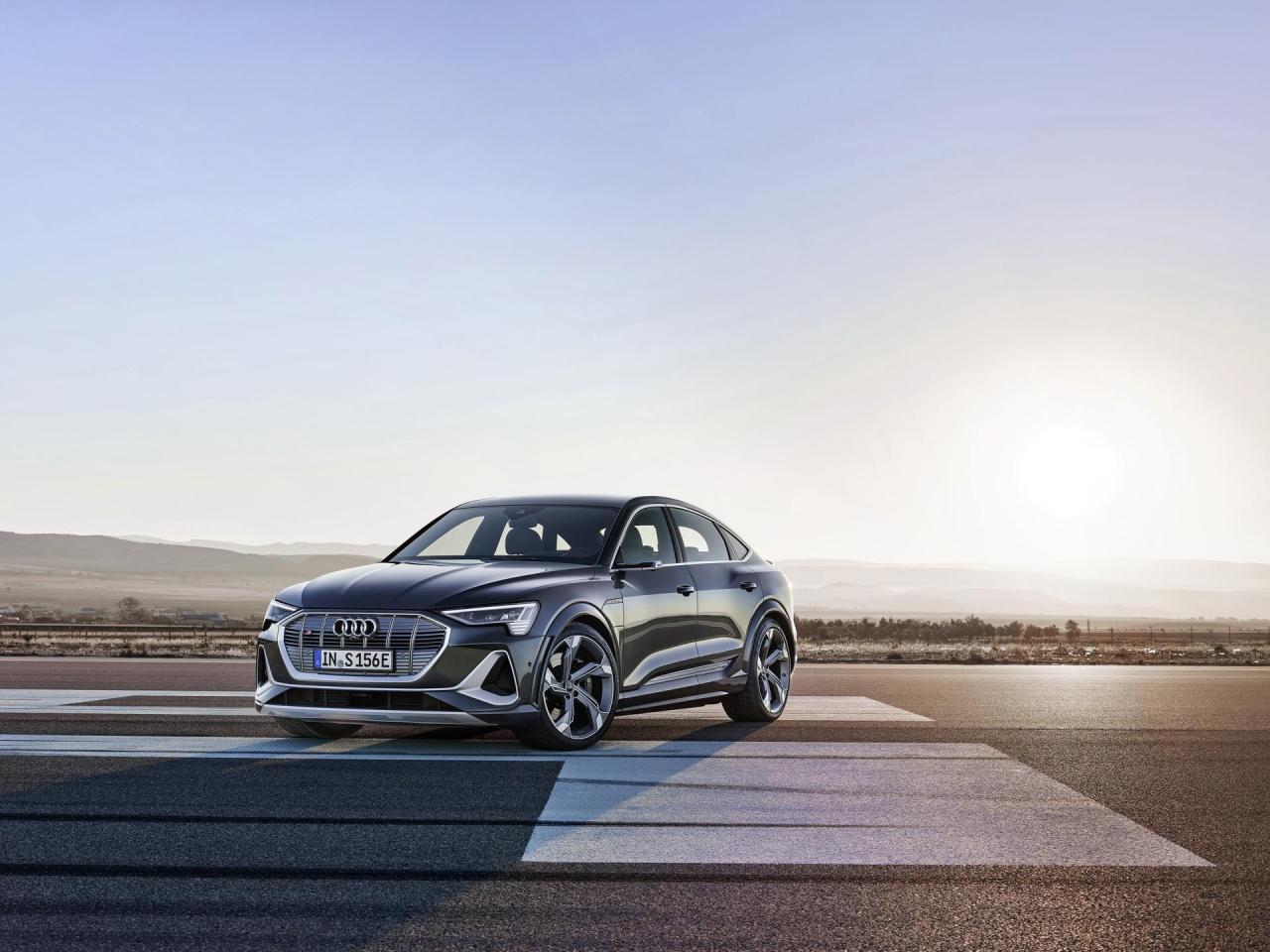

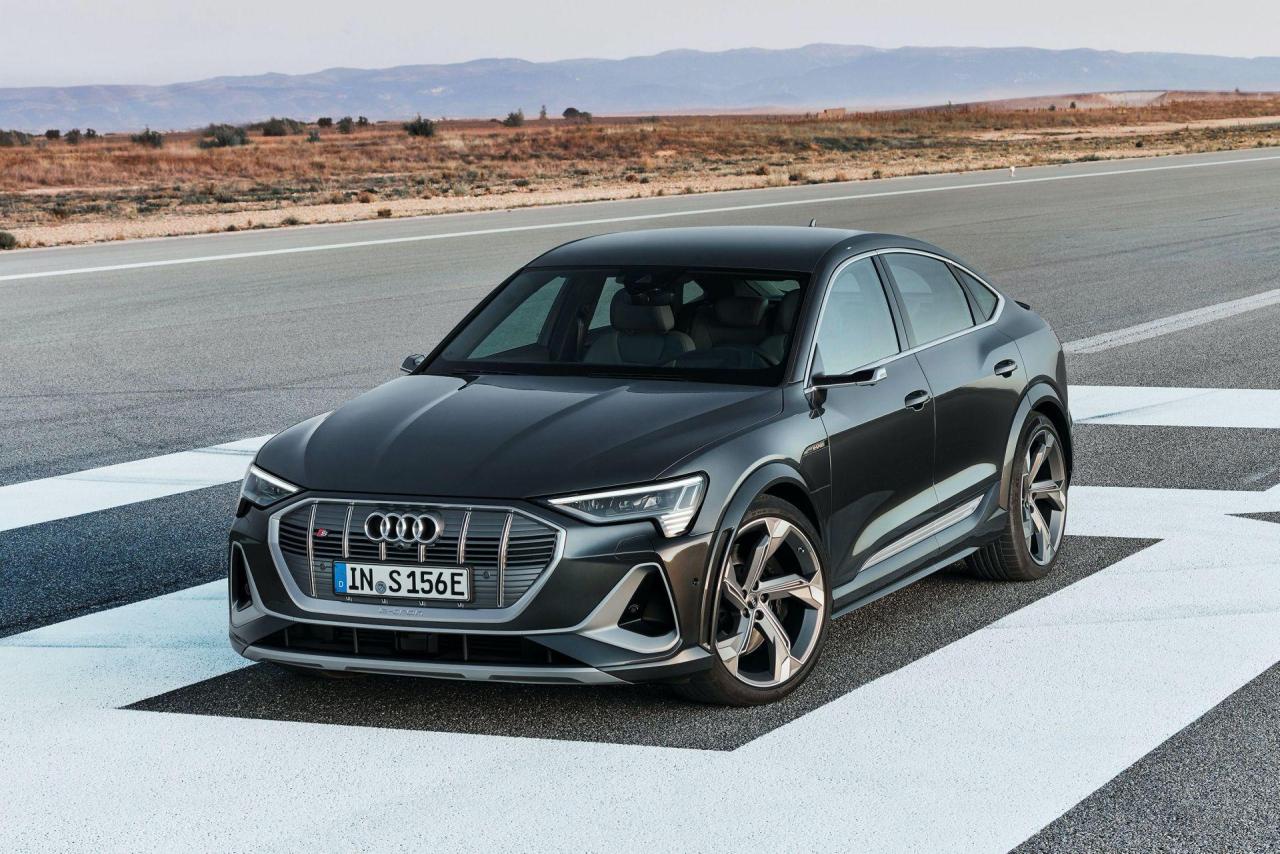

The Audi e-tron S² and the Audi e-tron S Sportback³ reveal their electric power at first glance. Their front and rear bumpers have strong contours, and the air curtains are particularly large and expressive. The diffuser insert at the rear end extends almost across the entire vehicle width. The fact that the wheel arches on both sides are 23 millimeters (0.9 in) wider makes the cars appear very powerful. Silver attachments at the front and rear end add highlights. This, as well as the aluminum exterior mirror housings are exclusive features of the S models Large parts of the body’s lower section can be painted in a contrasting color upon request.

Both cars can be equipped with Matrix LED headlights as an option – another world first in mass production that Audi introduced with the e-tron Sportback in the fall of 2019. Each light is divided into 1.3 million pixels and can be controlled with great precision, which opens up many new functions. In narrow areas, for example, it shows the car’s position in the lane and thus helps the driver to remain safely in the center.

Progressive: interior and equipment

The interiors of the Audi e-tron S² and Audi e-tron S Sportback³ are designed in dark colors. Electrically adjustable sport seats come as standard. Their leather/Alcantara upholstery as well as the gear selector lever feature S embossing with a rhombus. The decorative trims are made of brushed aluminum and are available in two versions. They are also available in carbon upon request. The contour/ambient lighting package adds progressive highlights in the dark.

Fully digital: controls, infotainment, and assist systems

Like all full-size class models from Audi, the Audi e-tron S² and the Audi e-tron S Sportback³ are equipped with the digital MMI touch response control system with the two large central displays. On the third display, the Audi virtual cockpit, the driver can select a special e-tron screen that moves the electric drive to center stage. An optional head-up display complements the displays. The MMI navigation plus control and infotainment system is included as standard. Behind its many functions is the third generation modular infotainment toolkit (MIB 3), which completes all tasks with a high processing power. It cooperates with the communication box, which connects the car with the environment and the passengers’ smartphones.

Audi connect’s online services complement the navigation system, especially the expanded e-tron route planner. It calculates the fastest route including optimum charging stops, taking into account traffic data, the driver’s driving profile, and the duration of the charging stops. In some cases, this strategy may result in the system suggesting an alternative route. The directory of charging points, which includes appropriate additional information, is updated online every day. Upon request, charging stations where the driver can pay using the e-tron Charging Service can be preferred when planning the route.

In the fall: market launch in Europe

The two electrically powered S models will be launched on the European markets in fall 2020. In Germany, the base price for the Audi e-tron S² starts at EUR 91,435.29; for the e-tron S Sportback³, it starts at EUR 93,628.58.

Audi











Modificato 26 Maggio 2022 da Cole_90
Primo Messaggio Aggiornato

[Robert1]

Molto bella, non c'è che dire. Peccato che il range di autonomia sia scarsino rispetto ad una Tesla.

[Maxwell61]

Hanno diminuito il buffer della batteria su questa (ma non sulla SUV), passando da 12 a 9%. Poco, ma qualcosa. Ora dovrebbe avere disponibili circa 86 kWh invece di 83 e dispari.



Più furba la Ford che compensa la scarsità di efficienza con batteria più grande, dovrebbero fare così anche in Audi e arrangiarsi se gli scendono gli utili (o aumentano le perdite), altrimenti il mercato non se lo creano.



Modificato 20 Novembre 2019 da Maxwell61

[nucarote]

10 minuti fa, Maxwell61 scrive:

...



Più furba la Ford che compensa la scarsità di efficienza con batteria più grande, dovrebbero fare così anche in Audi e arrangiarsi se gli scendono gli utili (o aumentano le perdite), altrimenti il mercato non se lo creano.



Data l'immagine che ha Audi si può "permettere" di essere meno efficiente degli altri.

[Maxwell61]

1 minuto fa, nucarote scrive:

Data l'immagine che ha Audi si può "permettere" di essere meno efficiente degli altri.

Non credo, Etron è un flop di vendite rispetto alle ambizioni. In più, con due richiami gravi, uno per rischio incendio.

[nucarote]

1 minuto fa, Maxwell61 scrive:

Non credo, Etron è un flop di vendite rispetto alle ambizioni. In più, con due richiami gravi, uno per rischio incendio.

Il sistema paese che ha dietro l'Audi consentirà di assorbire anche il flop Etron. Del resto hanno assorbito il dieselgate.

Modificato 20 Novembre 2019 da nucarote

[4200blu]

1 ora fa, Robert1 scrive:

Molto bella, non c'è che dire. Peccato che il range di autonomia sia scarsino rispetto ad una Tesla.



Boh..lascia stare le cifre sulla carta secondo tutti questi cicli..la realta su strada e diverso..con una batteria un po piu grande la Tesla X ha 10% piu autonomia, ma in distanza assoluta non fa grande differenza e il consumo reale e quasi lo stesso con piccolo vantaggio per l'Audi.



[gpat]

Model X è ben lontana da essere il meglio di Tesla. Voglio vedere cosa si inventeranno per fare meglio della Model S tra questa e la Taycan.

[Dodicicilindri]

39 minuti fa, 4200blu scrive:



Boh..lascia stare le cifre sulla carta secondo tutti questi cicli..la realta su strada e diverso..con una batteria un po piu grande la Tesla X ha 10% piu autonomia, ma in distanza assoluta non fa grande differenza e il consumo reale e quasi lo stesso con piccolo vantaggio per l'Audi.

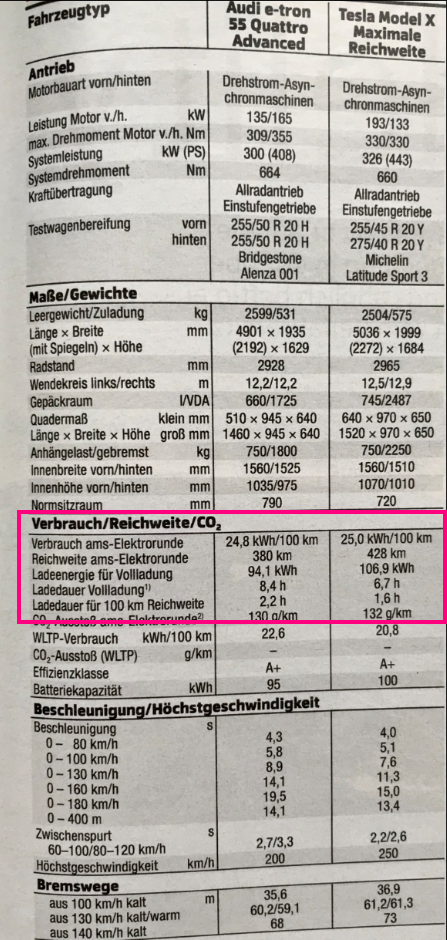

Qui non sono d'accordo, non guardare le riviste, guarda i test reali che fa Bjorn Nyland su youtube.

La Etron e' stata la peggiore e il consumo in kWh/km pessimo. Anche EQC ha fatto meglio, e marginalmente Jaguar.

[Maxwell61]

1 ora fa, 4200blu scrive:



Boh..lascia stare le cifre sulla carta secondo tutti questi cicli..la realta su strada e diverso..con una batteria un po piu grande la Tesla X ha 10% piu autonomia, ma in distanza assoluta non fa grande differenza e il consumo reale e quasi lo stesso con piccolo vantaggio per l'Audi.





Continui a postare queste prove dichiaratamente false come abbiamo già dimostrato in passato. Mica va bene questa cosa. La concorrenza stimola tutti a migliorare, e i tedeschi possono farcela, giusto è un pò presto ancora. Vendere balle non aiuta nessuno.

Va bè, ripostiamo tutto daccapo per l'ennesima volta:



Facciamo che su strada la Model X ha il 22% di efficienza in più, e 115 km in più di autonomia, rispetto alla prova-imbroglio di quella rivista, provata insieme a Etron da gente che deve spendere soldi per affittarle in giro., NEXTMOVE in GERMANIA d'inverno.



Etron è diventata nel mondo il sinonimo di scarsa efficienza per le sue prove reali, perfettamente specchianti i dati EPA che sono a velocità medie decisamente più realistiche di WLTP che gonfia i risultati con vel. media bassa che favorisce i carri armati come i SUV..

Peggio era solo iPace, ma visto che iPace, che è peggio anche come problemi vari riscontrati, si è defilata nelle vendite e se ne parla ormai poco.







https://nextmove.de/autobahn-test-tesla-model-x-beats-audi-e-tron-jaguar-i-pace/



https://cleantechnica.com/2019/02/22/tesla-model-x-over-22-more-efficient-on-winter-highway-than-e-tron-or-i-pace/













Modificato 20 Novembre 2019 da Maxwell61
