BMW iX5 Hydrogen 2022

[philips88]

https://www.ansa.it/canale_ambiente/notizie/energia/2021/04/17/lidrogeno-come-si-produce-e-a-che-serve_9097d3e8-5acf-45cd-8b12-23e98a97b24e.html



incrociamo le dita, qst soluzione l'approvo

[j]



[Felis]

il secondo distributore italiano è dalle mie parti: https://www.quattroruote.it/news/ecologia/2022/06/10/eni_inaugurato_il_secondo_distributore_di_idrogeno_in_italia.html

[j]

Con la iX5 Hydrogen torna in commercio una BMW ad idrogeno, questa volta però Fuel Cell. Presentazione all'IAA 2021







Cita

Starting signal for the CO2-free mobility of the future: Visitors can experience BMW iX5 Hydrogen in action for the first time at IAA Mobility 2021.

Munich. The BMW Group is systematically pushing forward with development of hydrogen fuel cell technology as an additional option for sustainable individual mobility. Two years after unveiling the BMW i Hydrogen NEXT concept car, the company will present the BMW iX5 Hydrogen at the IAA Mobility 2021 in Munich. Currently still in series development, the Sports Activity Vehicle (SAV) with hydrogen fuel cell drive train will be one of several vehicles visitors can experience as they are driven along the Blue Lane connecting the main exhibition grounds with other exhibition venues in the city centre.

A small series of the BMW iX5 Hydrogen, developed on the basis of the BMW X5, will be used for demonstration and testing purposes from the end of next year. Its hydrogen fuel cell system is further proof of the BMW Group’s leading development expertise in the field of electric drive technologies. “With its high-performance fuel cell and optimised power battery, the BMW iX5 Hydrogen’s drive system is unique in the world,” said Juergen Guldner, head of BMW Group Hydrogen Fuel Cell Technology and Vehicle Projects. “With this, we are forging new paths for sustainable driving pleasure.”

With the right conditions, hydrogen fuel cell technology has the potential to become a further pillar in the BMW Group’s drive train portfolio for local CO2-free mobility. The BMW i brand, which is entirely geared towards locally emission-free mobility, could in the future also offer vehicles with hydrogen fuel cell drive trains, in addition to battery-electric models such as the BMW i3, BMW iX3, BMW iX and BMW i4. Provided the hydrogen is produced using renewable energy and the necessary infrastructure is available, this technology can complement the BMW Group’s electrified drive train portfolio – and, in particular, meet the needs of customers who do not have their own access to electric charging infrastructure, frequently drive long distances or desire a high degree of flexibility.

Model-specific design elements 3D-printed for locally emission-free Sports Activity Vehicle.

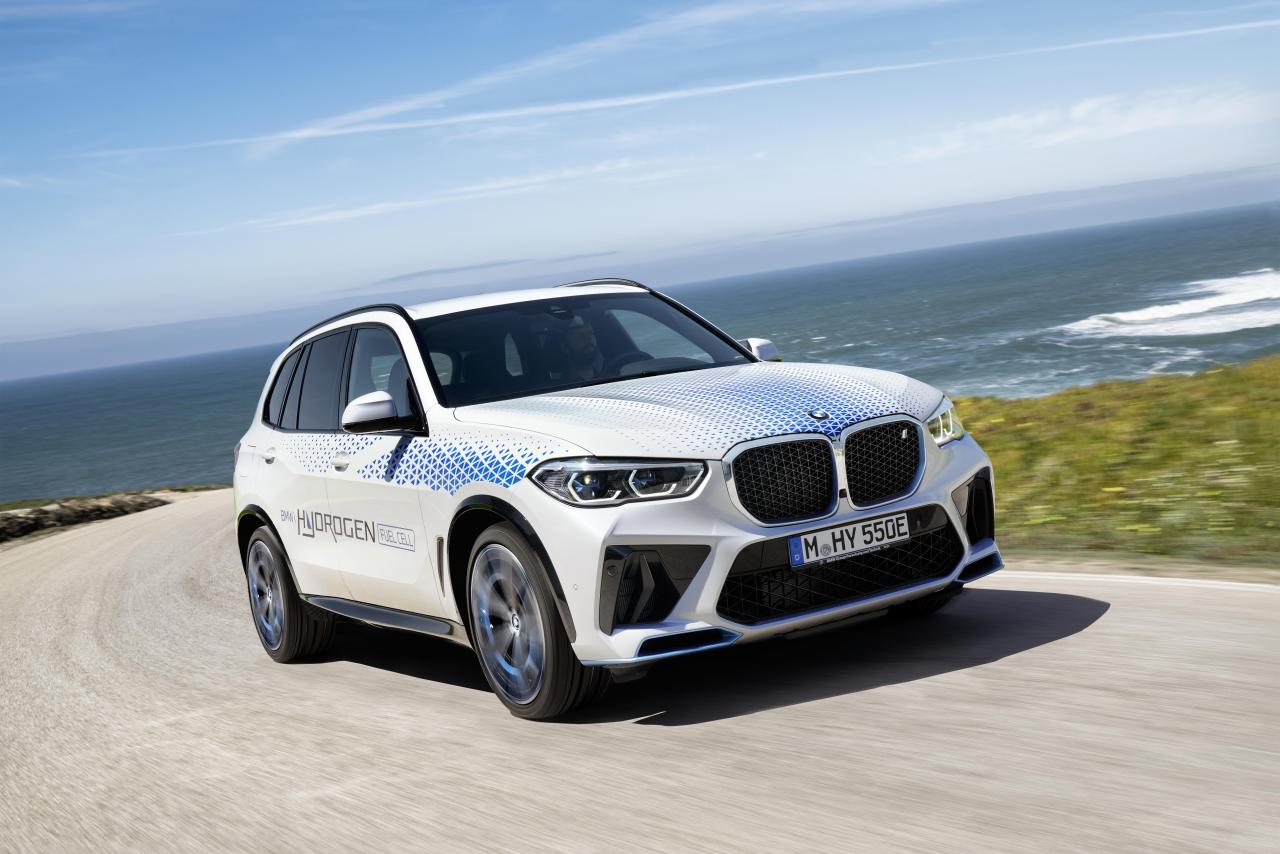

The BMW iX5 Hydrogen is a modern luxury Sports Activity Vehicle (SAV) that combines ground-breaking drive technology with the powerful proportions, convenience and versatility of a BMW X model. Individual exterior and interior design elements highlight the car’s ties to the BMW i brand, as well as its specific drive technology. The inner edging of the BMW kidney grille, the inserts in the 22- inch aerodynamic wheels and the attachments in the outer portion of the rear apron are all in BMW i Blue. The entry sills and cover trim for the instrument panel also sport a “hydrogen fuel cell” badge.

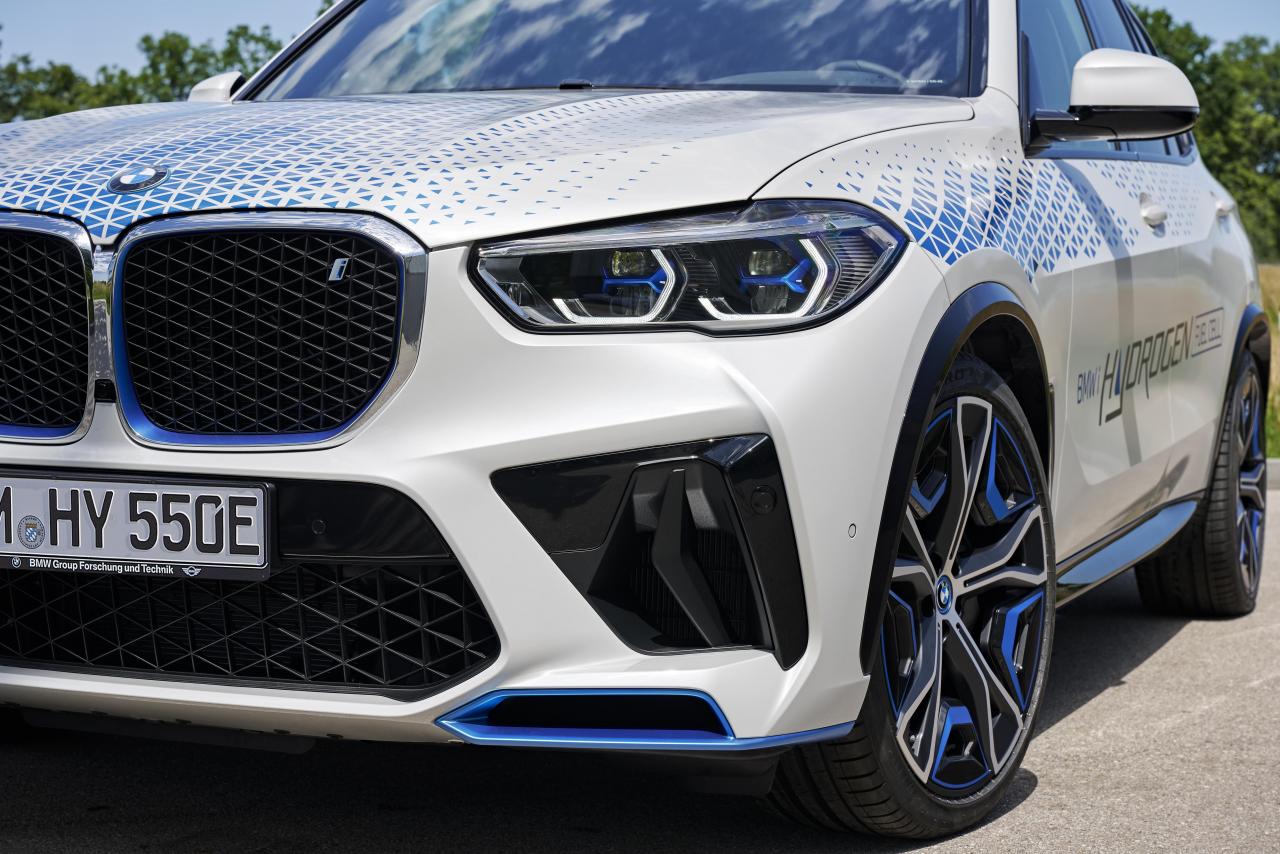

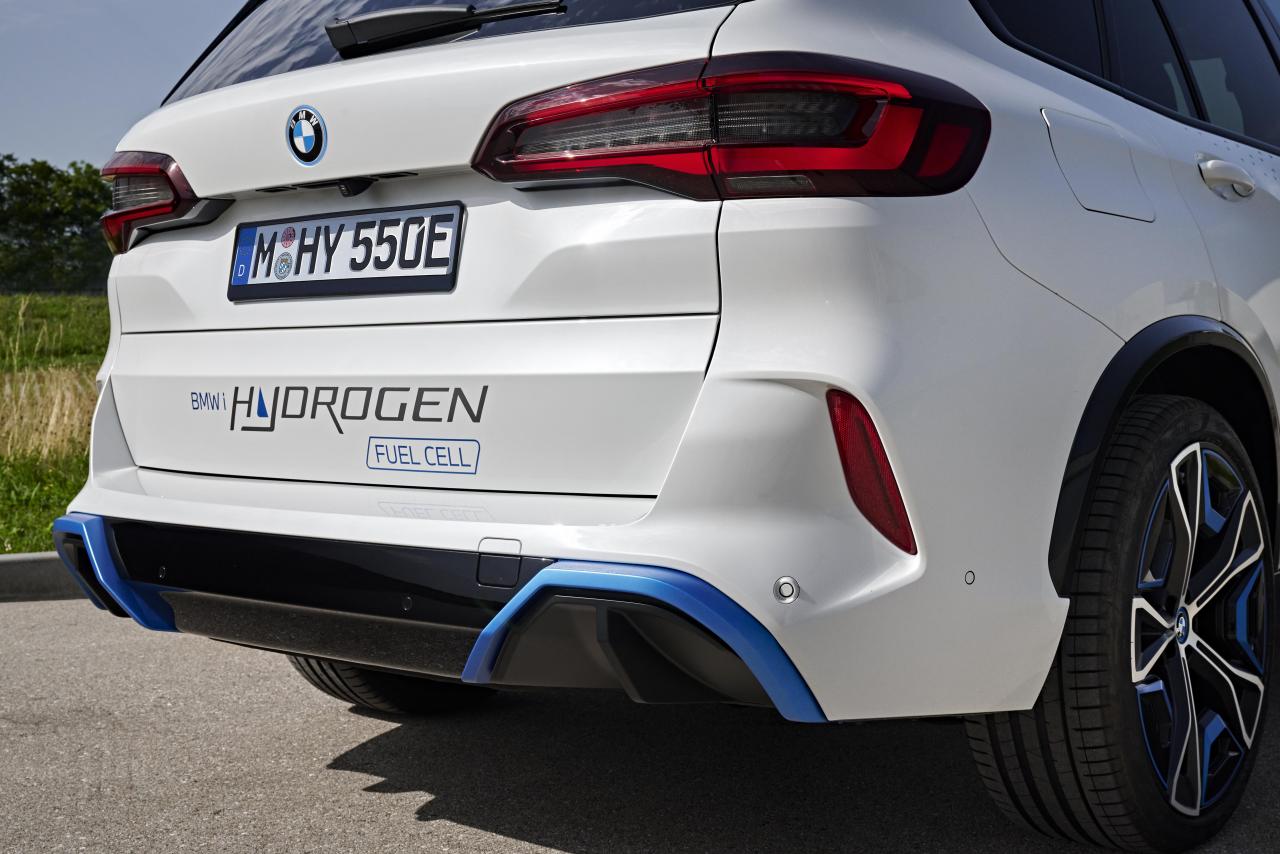

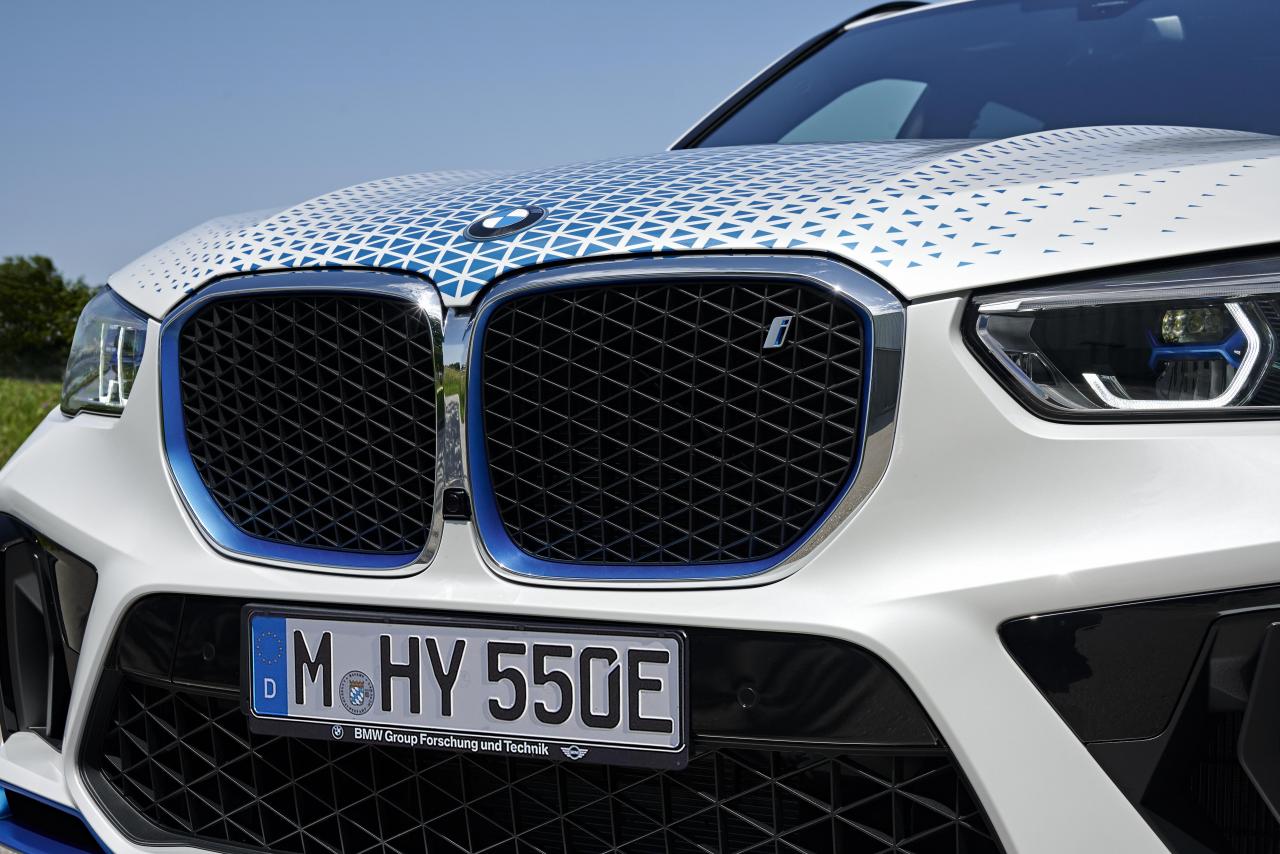

The mesh inserts covering the cooling air openings at the front of the BMW iX5 Hydrogen, as well as the rear apron and its diffuser element, also have their own unique design. The ornamental grilles covering the BMW kidney grille, the lower and two outer air inlets and the body elements for the lower rear end trim all come from the BMW Group’s Additive Manufacturing Campus, which uses 3D printing to produce prototype and standard parts. Additive manufacturing enables fast and highly flexible production of components – some of which have geometric shapes that cannot be realised with conventional production methods.

Systematic sustainability: Aerodynamic wheels and tyres made of natural rubber.
The BMW iX5 Hydrogen’s aerodynamic wheels come with sustainably produced tyres made of natural rubber and rayon. The raw materials for this are extracted in compliance with the standards of the independent Forest Stewardship Council (FSC) organisation. The BMW Group is the first automotive manufacturer worldwide to use Pirelli tyres made exclusively from certified natural rubber and the wood-based material rayon in its production vehicles.

Hallmark BMW driving dynamics, strong long-distance capabilities.
The BMW iX5 Hydrogen combines fuel cell technology with a fifth-generation BMW eDrive. The drive system uses hydrogen as fuel by converting it into electricity in a fuel cell – delivering an electrical output of up to 125 kW/170 hp, with water vapour as the only emission. This drive power also enables it to maintain consistently high speeds over longer distances. The electric motor was developed from the fifth-generation BMW eDrive technology also used in the BMW iX. In coasting overrun and braking phases, it serves as a generator, feeding energy into a power battery. The energy stored in this power battery is also utilised for particularly sporty driving manoeuvres – delivering a system output of 275 kW/374 hp and guaranteeing the brand's signature driving experience.

The hydrogen needed to supply the fuel cell is stored in two 700-bar tanks made of carbon-fibre reinforced plastic (CFRP), which together hold almost six kilograms of hydrogen. “Filling up the hydrogen tanks only takes three to four minutes – so there are no limits on using the BMW iX5 Hydrogen for long distances, with just a few, short stops in-between,” explains Guldner.

Hydrogen as part of global activities for CO2-free mobility.
According to a report by the International Energy Agency (IEA), hydrogen offers considerable potential as a future energy source in connection with global energy transition activities. Thanks to its storage and transport capabilities, hydrogen can be used for a wide variety of applications. Most industrialised countries are therefore adopting hydrogen strategies and backing them up with roadmaps and concrete projects. In the transport sector, hydrogen can become a further technology option, alongside battery-electric mobility, for shaping sustainable individual mobility in the long term. However, this will depend on competitive production of sufficient quantities of hydrogen from green power, as well as expansion of the corresponding filling infrastructure, which is already being intensively pursued in many countries.

The BMW Group welcomes and supports activities to promote innovation in Germany and Europe that will help build a hydrogen economy and accelerate production of green hydrogen. These specifically include the large-scale hydrogen projects classified as Important Projects of Common European Interest (IPCEI). The projects that comprise this European Union initiative, supported in Germany by the Federal Ministry of Economic Affairs and the Federal Ministry of Transport, span the entire value chain – from hydrogen production to transport to applications in industry.



Il concept del 2019 che l'anticipava







Modificato 3 Marzo 2023 da j

[4200blu]



Munich / Antwerp. The BMW Group is presenting international media representatives with the first vehicles in a pilot fleet that will go into service this year. After four years of development work, the BMW iX5 Hydrogen vehicle and development project is entering its critical next phase.

The fleet of under 100 vehicles will then be employed internationally for demonstration and trial purposes for various target groups. This active driving experience will therefore be the first chance for people not involved in the development process to gain a direct impression of what the BMW iX5 Hydrogen has to offer.

“Hydrogen is a versatile energy source that has a key role to play in the energy transition process and therefore in climate protection. After all, it is one of the most efficient ways of storing and transporting renewable energies”, said Oliver Zipse, Chairman of the Board of Management of BMW AG. “We should use this potential to also accelerate the transformation of the mobility sector. Hydrogen is the missing piece in the jigsaw when it comes to emission-free mobility. One technology on its own will not be enough to enable climate-neutral mobility worldwide.”

The BMW iX5 Hydrogen.
The BMW iX5 Hydrogen developed on the basis of the current BMW X5 was first unveiled as a concept at the IAA show in 2019. Initial prototypes were then made available at the IAA Mobility 2021 for visitors to experience in action as shuttle vehicles.

Its hydrogen fuel cell system is further proof of the BMW Group’s leading development expertise in the field of electric drive technologies. The BMW Group is systematically pushing forward with development of hydrogen fuel cell technology as an additional option for locally emission-free individual mobility in the future.

BMW’s technological expertise.

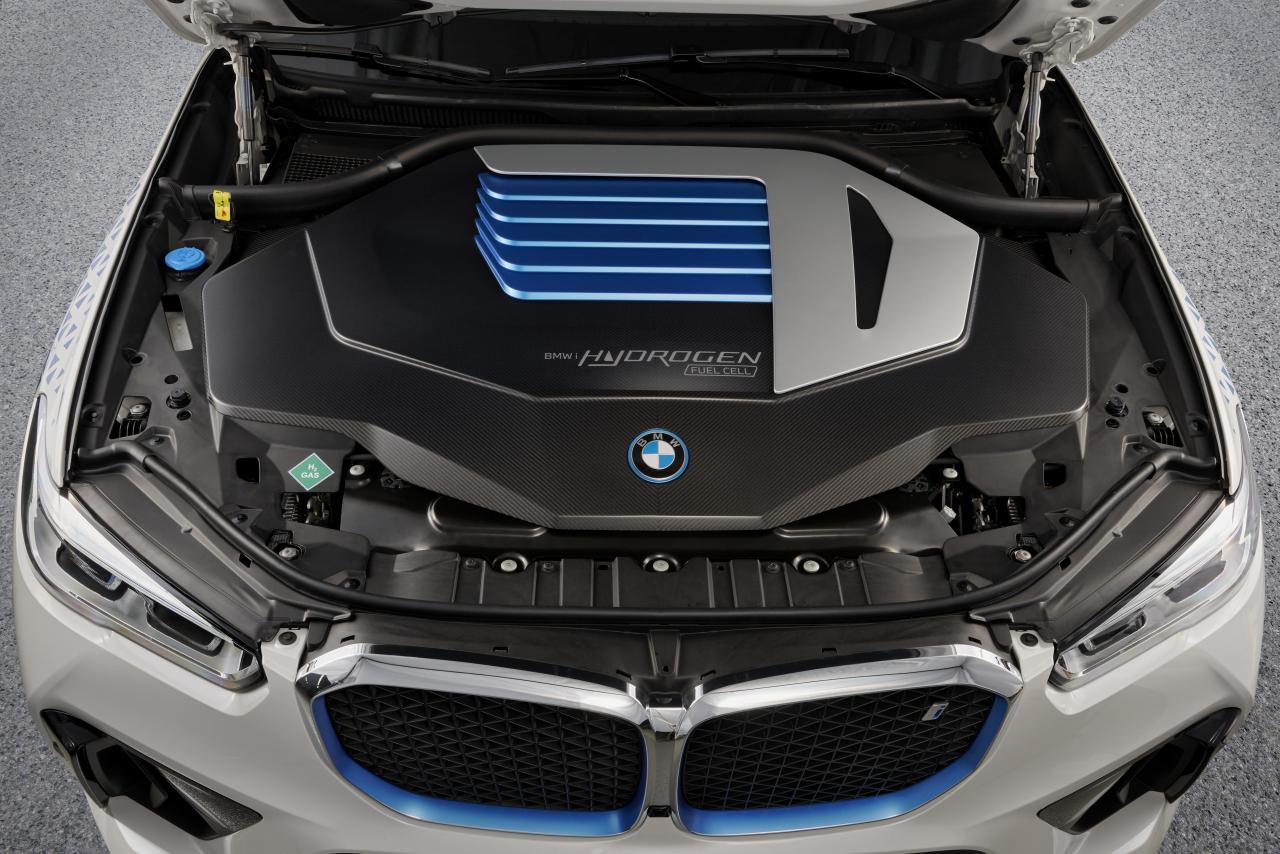

The BMW Group produces the highly efficient fuel cell systems for the pilot fleet at its in-house competence centre for hydrogen in Munich. This technology is one of the core elements in the BMW iX5 Hydrogen and generates a high continuous output of 125 kW/170 hp.

A chemical reaction takes place in the fuel cell between gaseous hydrogen from the tanks and oxygen from the air. Maintaining a steady supply of both elements to the fuel cell’s membrane is of crucial importance for the drive system’s efficiency. In addition to the technological equivalents of features found on combustion engines, such as charge air coolers, air filters, control units and sensors, the BMW Group also developed special hydrogen components for its new fuel cell system. These include the high-speed compressor with turbine and high-voltage coolant pump, for instance.

The BMW Group sources the individual fuel cells from the Toyota Motor Corporation. The two companies have enjoyed a partnership characterised by trust for many years and have been collaborating on fuel cell drive systems since 2013.

Fuel cell systems are manufactured in two main steps, based on the individual fuel cells. The cells are first assembled into a fuel cell stack. The next step involves fitting all the other components to produce a complete fuel cell system.

Stacking of the fuel cells is largely a fully automated process. Once the individual components have been inspected for any damage, the stack is compressed by machine with a force of five tonnes and placed in a housing. The stack housing is manufactured in the light metal foundry at BMW Group Plant Landshut using a sand casting technique.

For this, molten aluminium is poured into a mould made from compacted sand mixed with resin in a process specially designed for this small-series vehicle.

The pressure plate, which delivers hydrogen and oxygen to the fuel cell stack, is made from cast plastic parts and light-alloy castings, also from the Landshut plant. The pressure plate forms a gas-tight and water-tight seal around the stack housing.

Final assembly of the fuel cell stacks includes a voltage test along with extensive testing of the chemical reaction within the cells. Finally, all the different components are fitted together in the assembly area to produce the complete system.

During this system assembly stage, further components are fitted, such as the compressor, the anode and cathode of the fuel-cell system, the high-voltage coolant pump and the wiring harness.

In combination with a highly integrated drive unit using fifth-generation BMW eDrive technology (the electric motor, transmission and power electronics are grouped together in a compact housing) at the rear axle and a power battery with lithium-ion technology developed specially for this vehicle, the powertrain channels maximum output of 295kW / 401 hp onto the road. In coasting overrun and braking phases, the motor also serves as a generator, feeding energy back into a power battery.

Production at Munich pilot plant.
The BMW iX5 Hydrogen is being built in the BMW Group’s pilot plant at its Research and Innovation Centre (FIZ) in Munich. This is the interface between development and production where every new model from the company’s brands is made for the first time. Around 900 people work there in the body shop, assembly, model engineering, concept vehicle construction and additive manufacturing.
They are tasked with ensuring that both the product and the manufacturing process are ready for series production. In the case of the BMW iX5 Hydrogen, specialists in hydrogen technology, vehicle development and initial assembly of new models have been working closely together to integrate the cutting-edge drive and energy storage technology.

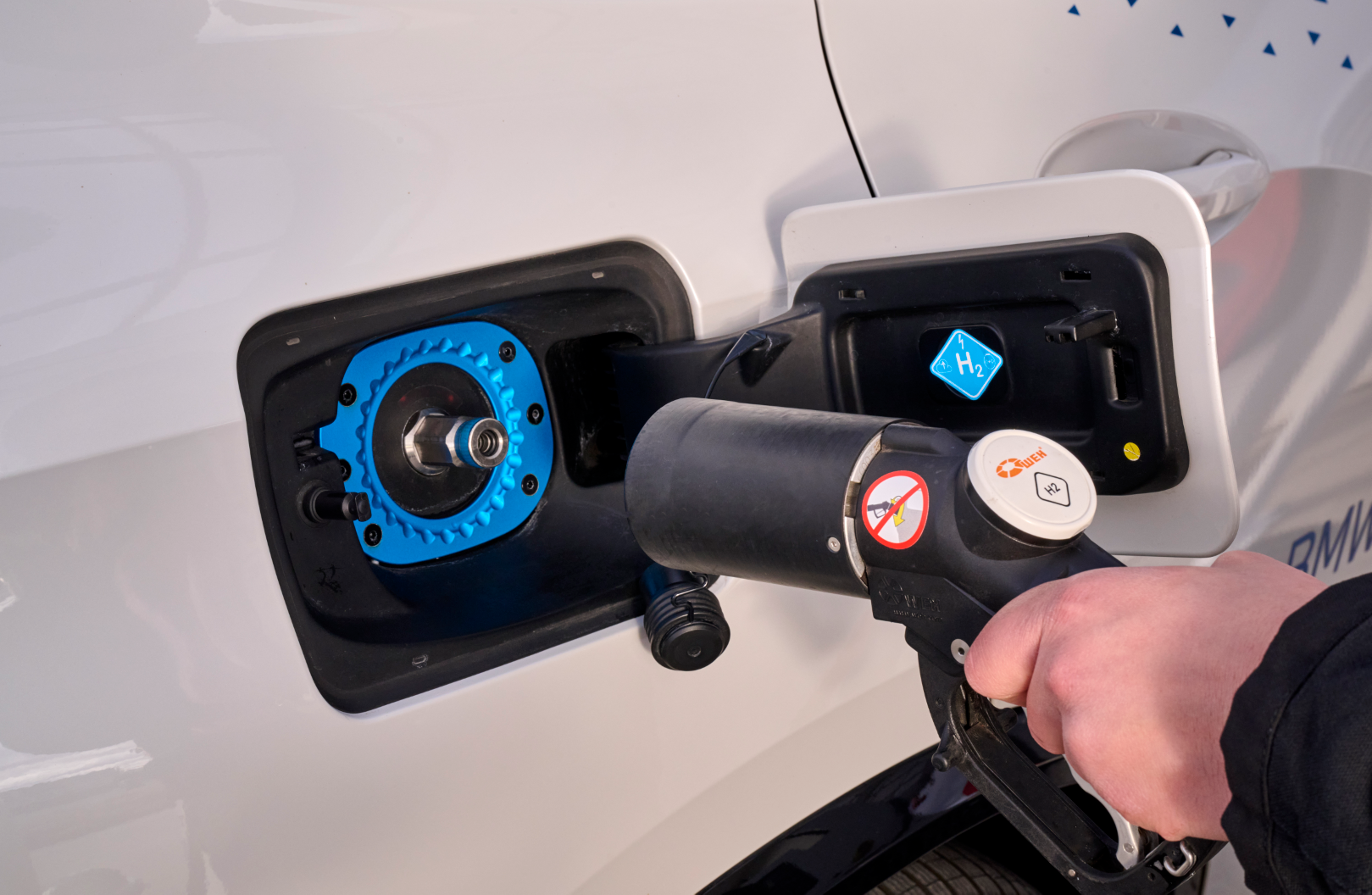

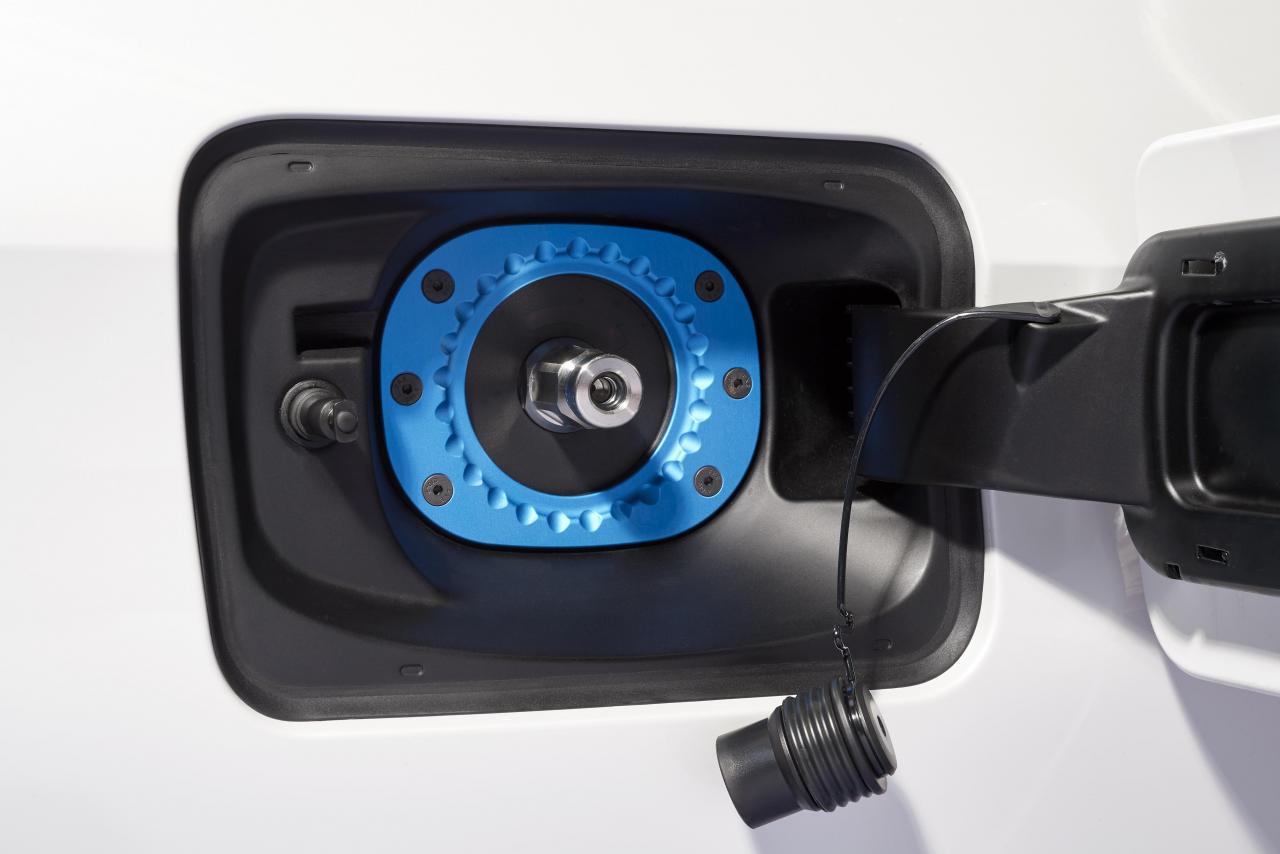

Hydrogen allows rapid re-fuelling.
The hydrogen needed to supply the fuel cell is stored in two 700-bar tanks made of carbon-fibre reinforced plastic (CFRP). Together these hold almost six kilograms of hydrogen, enough to give the BMW iX5 Hydrogen a range of 504 km (313 miles) in the WLTP cycle. Filling up the hydrogen tanks only takes three to four minutes – so the BMW iX5 Hydrogen can also provide the driving pleasure for which BMW is renowned over long distances, with just a few, short stops along the way.

Summary of the technical data, performance, fuel consumption and range figures for the BMW iX5 Hydrogen:

Maximum output of overall drive system: 295 kW/401 hp
Electric continuous output of the fuel-cell system: 125 kW/170 hp
Maximum output of the battery (lithium-ion technology): 170 kW/231 hp
Maximum output of the highly integrated electric drive unit: 295 kW/401 hp
Capacity of the hydrogen tanks: 6 kg hydrogen (gaseous)
Acceleration 0-100 km/h (62 mph) < 6 s
Top speed: Over 180 km/h (112 mph)
Hydrogen consumption in the WLTP cycle: 1.19 kg/100 km
Range in the WLTP cycle: 504 km (313 miles)

FCEV technology contributes to decarbonisation.
The BMW Group is the first German carmaker to have joined the “Business Ambition for 1.5°C campaign” led by the Science Based Targets initiative and is committed to achieving the goal of full climate neutrality throughout the value chain.

The next step in this process involves the BMW Group’s plan to reduce CO2 emissions per vehicle over its full lifecycle – i.e. supply chain, production and use phase – by at least 40 per cent by 2030 compared with 2019.

The BMW Group sold more than 215,000 fully electric vehicles worldwide in 2022, which represents an increase over the previous year of almost 108 per cent. Fully electric vehicles accounted for just under 9 per cent of total sales volumes last year, and this share is set to increase to 15 per cent in 2023.

By 2030 at the latest, the BMW Group is looking to reach a situation where fully electric vehicles claim a more than 50 per cent share of its overall sales.

The BMW Group views FCEV technology expressly as a potential addition to the drive technology used by battery-electric vehicles.

Hydrogen as part of global activities for CO2-free mobility.
According to a report by the International Energy Agency (IEA), hydrogen offers considerable potential as a future energy source in connection with global energy transition activities. Thanks to its storage and transport capabilities, hydrogen can be used for a wide variety of applications.
Most industrialised countries are therefore adopting hydrogen strategies and backing them up with roadmaps and concrete projects. In the transport sector, hydrogen can become a further technology option, alongside battery-electric mobility, for shaping sustainable individual mobility in the long term.

However, this will depend on competitive production of sufficient quantities of hydrogen from green power, as well as expansion of the corresponding filling infrastructure, which is already being intensively pursued in many countries.

The BMW Group welcomes and supports activities to promote innovation in Germany and Europe that will help build a hydrogen economy and accelerate production of green hydrogen. These specifically include the large-scale hydrogen projects classified as Important Projects of Common European Interest (IPCEI).

The projects that comprise this European Union initiative, supported in Germany by the Federal Ministry of Economic Affairs and the Federal Ministry of Transport, span the entire value chain – from hydrogen production to transport to applications in industry.

With the right conditions, hydrogen fuel cell technology has the potential to become a further pillar in the BMW Group’s drive train portfolio for local CO2-free mobility.

CO2 EMISSIONS & CONSUMPTION.

BMW iX5 Hydrogen.

Consumption combined in WLTP cycle: 1,19 kg H2/100 km,
CO2 emissions combined in WLTP cycle: 0 g/km
Electric range: 504 km (313 miles)



https://www.youtube.com/watch?v=9paWV10_BiQ













(BMW)





[aboutdas]

Al netto dei vantaggi nel rifornimento rapido, non capisco perché declinarla come soluzione vincente nel trasporto personale. Su altri tipi di trasporto (navi, aerei, camion) lo trovo logico, per una vettura personale meno. Quantomeno per il cittadino medio, sia chiaro.

[CarBreathing]

Si sa l'aggravio di peso di questo sistema?

[lucagiak]

Bah, io resto dell'idea che quando avranno smaltito gli investimenti per le batterie obbligandoci "politicamente" a passare alle auto elettriche, ci si renderà conto di aver preso una strada sbagliata e si passerà a qualcos'altro per accumulare energia, che per il momento pare essere l'idrogeno

[4200blu]

19 minuti fa, aboutdas scrive:

Al netto dei vantaggi nel rifornimento rapido, non capisco perché declinarla come soluzione vincente nel trasporto personale. Su altri tipi di trasporto (navi, aerei, camion) lo trovo logico, per una vettura personale meno. Quantomeno per il cittadino medio, sia chiaro.

Perche? Ha tutti i vantaggi di una ice ed essere una ev e H2 e molto piu facile da trasportare a distanze lunghi (alla fine simile come LNG), potresti produrre il H2 in zone della terra dove c'e sole infinito e usare il H2 in zone della terra dove c'e solo poco sole, una cosa che non potresti fare con elettricita diretta dove hai sempre grande perdite durante il trasporto a distanze lunghe. E non hai il problema della porcheria per la estrazione del litio e per la produzione delle batterie.
